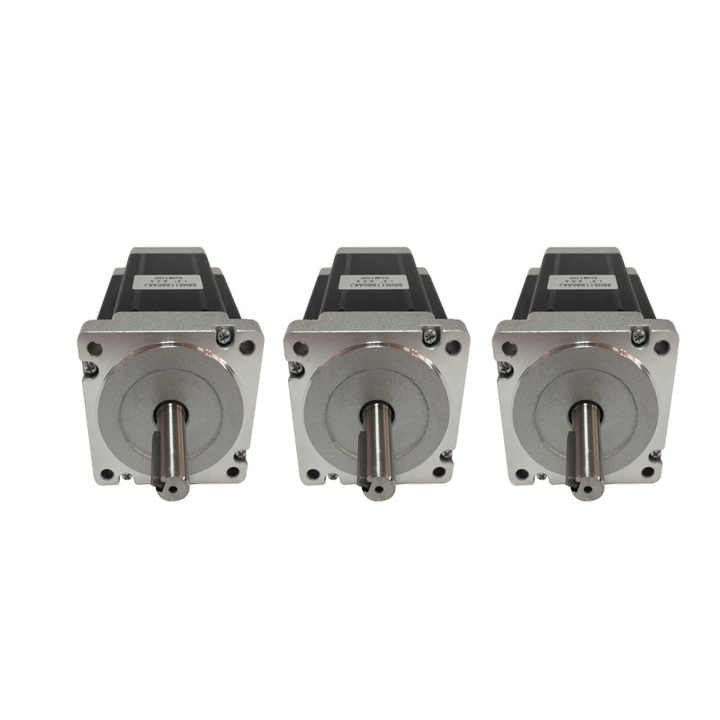

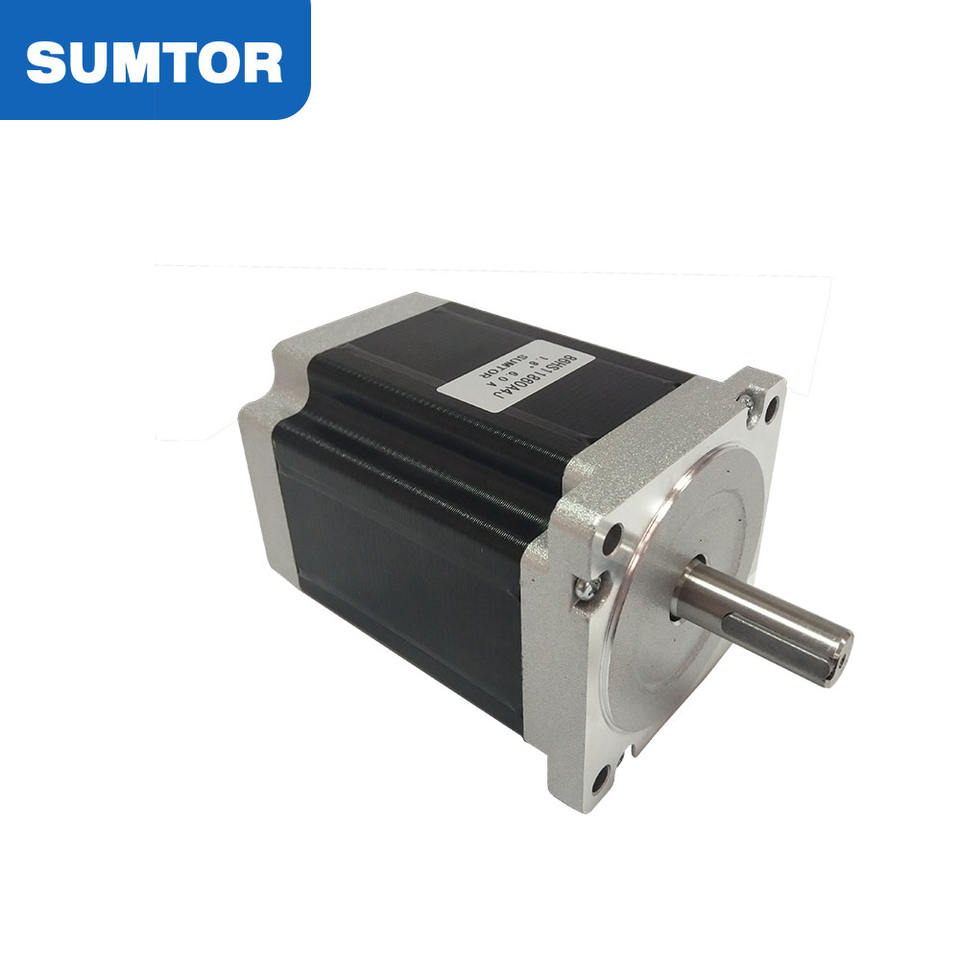

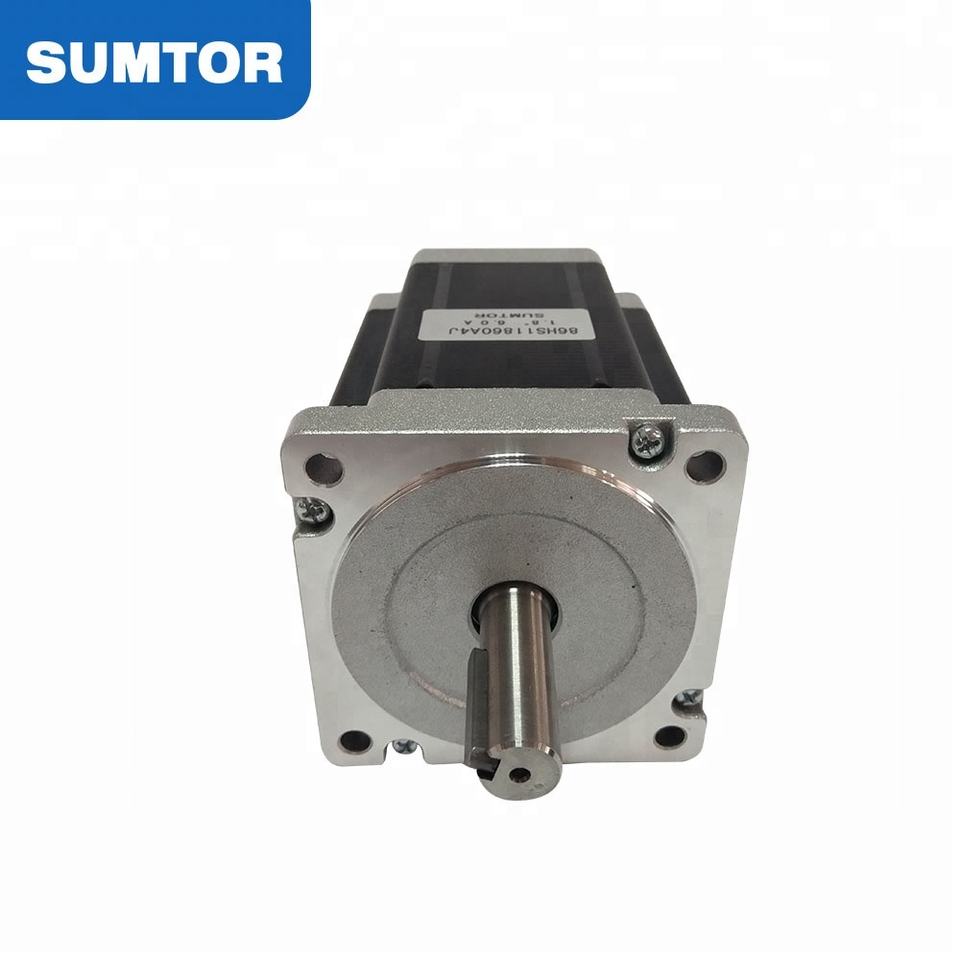

Hybrid Stepper Motor Price 86HS11860A4J Keyed Shaft Step Motor Nema 34 Two Phase Stepping Motor 24v High Torque 8.5N.M SUMTOR
Store rating:4.9
(171 reviews)Complies with EU standards
Complies with EU standards
Attributes
HybridType
2Phase
3 months ~ 1 yearWarranty
Jiangsu, ChinaPlace of Origin
86HS11860A4J/JEPModel Number
SUMTORBrand Name
Current / Phase:6A
Rhase Inductance:5mH
Resistance:0.6
Installment pitch of holes:69.6mm
face to face dimension:86mm
axis length:37mm
shaft diameter:14mm
Body length:118mm
mode of connection:Red A+ green A- Yel B+ Blue B-
shaft key:5*5*25mm
wire length:60CM
Service
1-year warranty
Key attributes
Type
Hybrid
Phase
2
Warranty
3 months ~ 1 year
Place of Origin
Jiangsu, China
Model Number
86HS11860A4J/JEP
Brand Name
SUMTOR
Current / Phase
6A
Rhase Inductance
5mH
Resistance
0.6
Installment pitch of holes
69.6mm
face to face dimension
86mm
axis length
37mm
shaft diameter
14mm
Body length
118mm
mode of connection
Red A+ green A- Yel B+ Blue B-
shaft key
5*5*25mm
wire length
60CM
Packaging and delivery
Selling Units
Single item
Single package size
XX cm
Lead time
Customization options
Logo/graphic design+$0.10/piece (Min. order: 1 piece)
View details
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Customizable
Minimum order quantity: 1 piece
$2220-2710
Variations
Select nowHolding Torque: 86HS11860A4JEP Black
86HS11860A4JEP Black
86HS11860A4J 5*25 keyway
86HS11860A4 Vertical flat
86HS11860A4JEP-11 shaft 12.7
86HS11860A4J-11 shaft 12.7
86HS11860A4J-1 shaft L 32
86HS11860A4F4 waterproof
Step Angle(degrees)
1.8°
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
