Attributes
180-350max. length of workpiece (mm)
Medium Dutymachining capacity
75 - 130range of spindle speed(r.p.m)
Horizontaltype
Colorado, United Statesplace of origin
380 V, 220 Vvoltage
weight (kg):73
warranty:2 Years
max. weight of workpiece(kg):50
width of bed (mm):/
brand name:/
model number:AM8700
dimension(l*w*h):700*580*650mm
key selling points:High-Accuracy
machinery test report:Provided
video outgoing-inspection:Provided
spindle taper:Other
cutting torque:3000 N.m
tool post stations:4

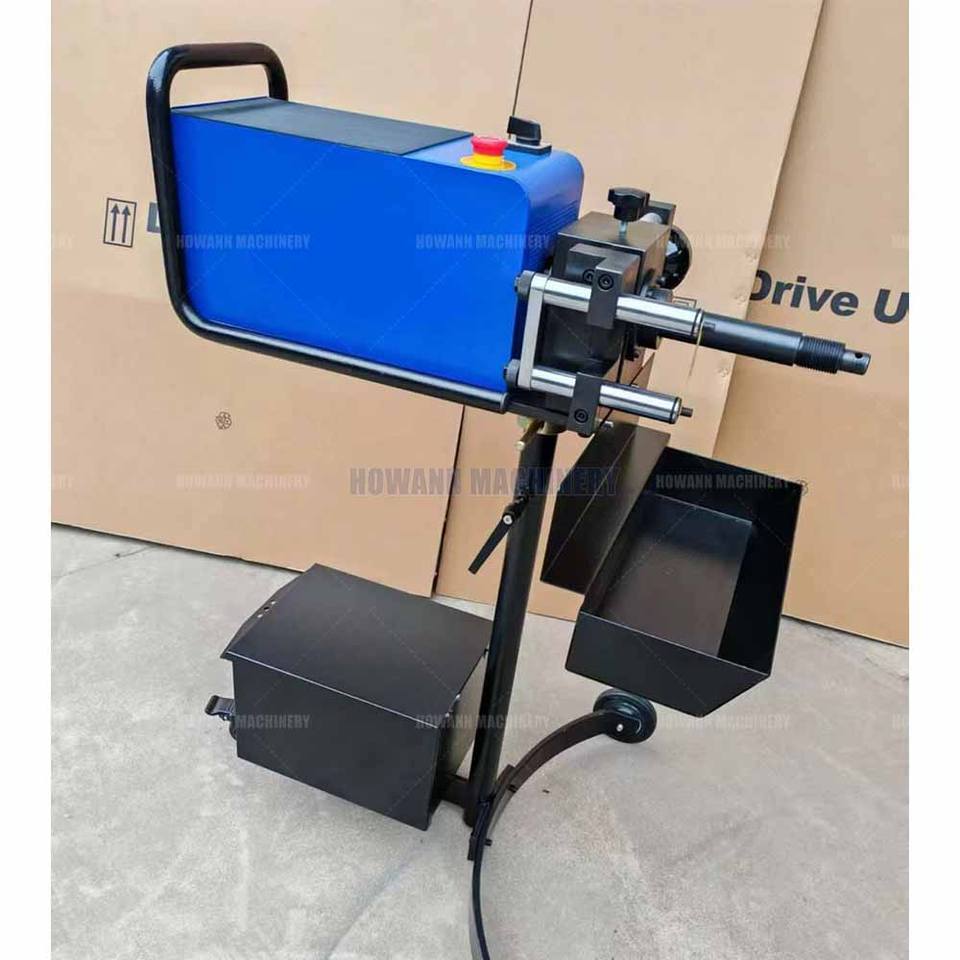

Product Name:On-the-car Brake Disc Lathe
Working height min/max:1/1.25m
Drive speed:98rpm
Motor power:750W
Electrical specifications:220v/50Hz110V/60Hz
Ambient temperature range:-25to50°c
Maximum diameter of brake disc:400mm
Thickness of brake disc:6~40mm
Cutting depth per knob:0.005~0.015mm
Cutting precision:≤0.00-0.003mm
Selling Units:Single item
