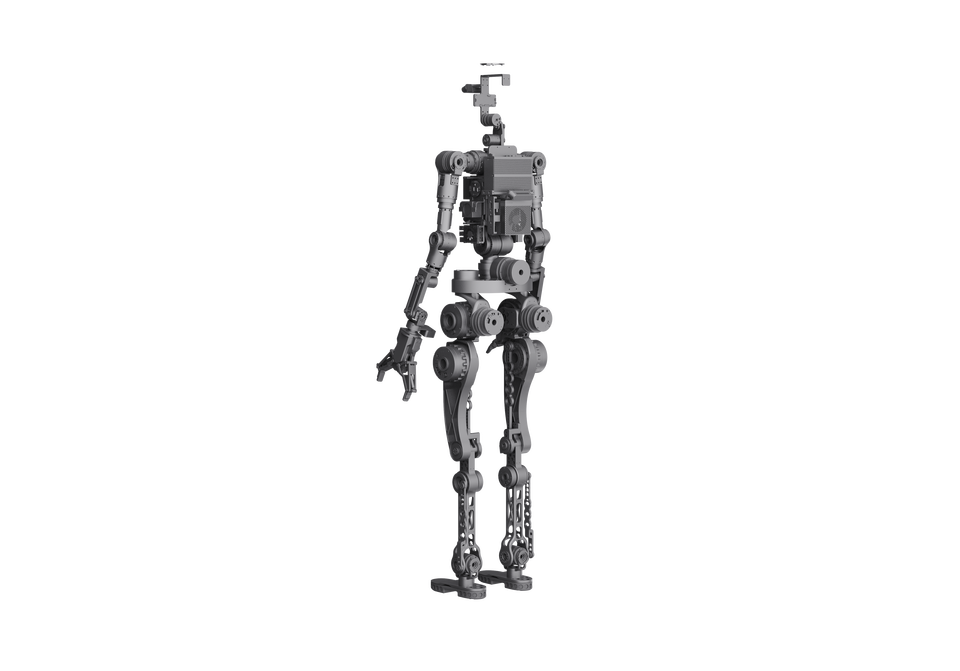

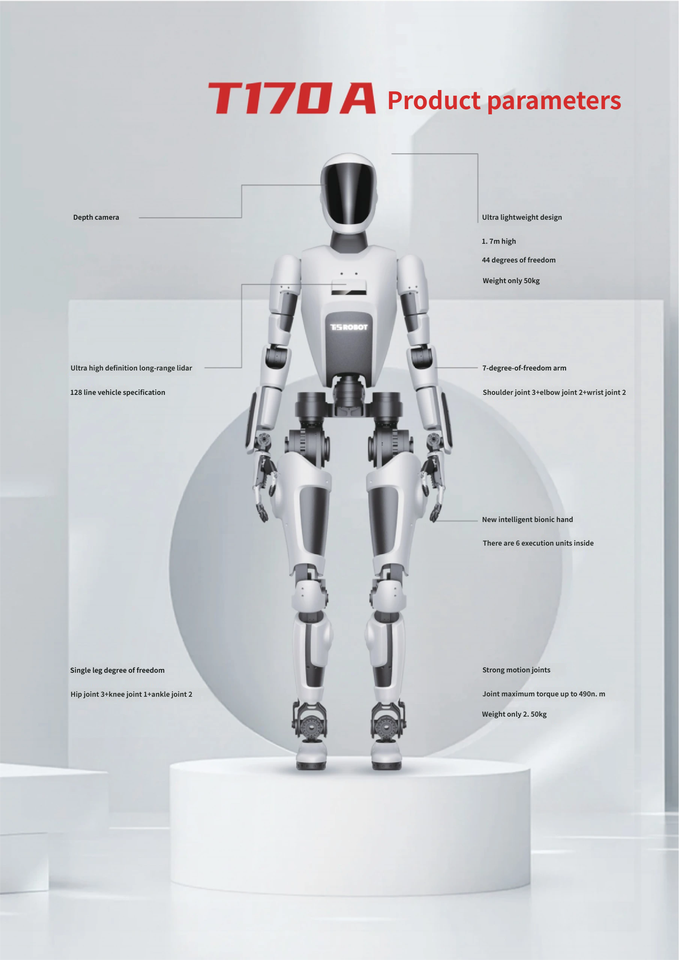

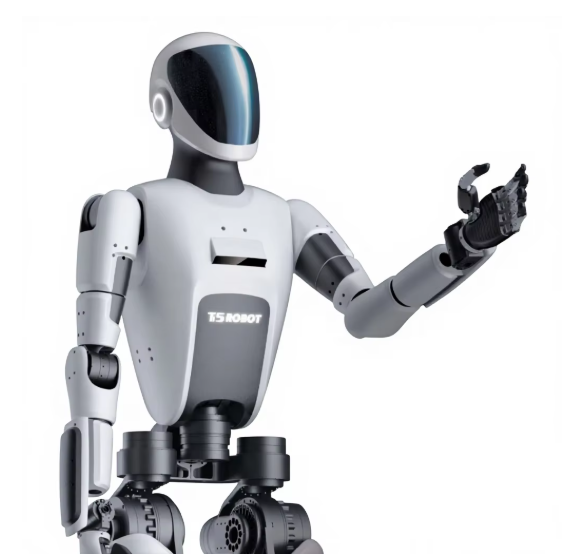

Hot Sale Full Size Humanoid Robot 44 DOF AI Biped Platform Gearbox Motor 1 kW Power IP54 Protection for Research Education
No reviews yet
Attributes
Humanoid robotRobots
48Vvoltage
1 kWpower(w)
ElectromechanicalDrive Type
IP54Ingress Protection
Providedmachinery test report
production capacity:30DAY
place of origin:Shanghai, China
weight (kg):48
brand name:Ti5robot
application:Industrial Manufacturing / Research and Education
Warranty:3 months-1Year
dimension(l*w*h):Arm Span: 1.5 m
video outgoing-inspection:Provided
core components:Gearbox, Motor
Number of Jaws:0
Dexterous Hand:Standard: TH-RH-1-L/R / Flagship: High-Precision Dexterous Hand
Hand Payload:Standard: 0.5 kg / Flagship: 3 kg
Joint Sensor Type:Standard: N/A / Flagship: 2 * 6-Axis Force Sensors
Vision System:Standard: N/A / Flagship: Intel RealSense D435 Depth Camera
Arm Span Length:1.5 m

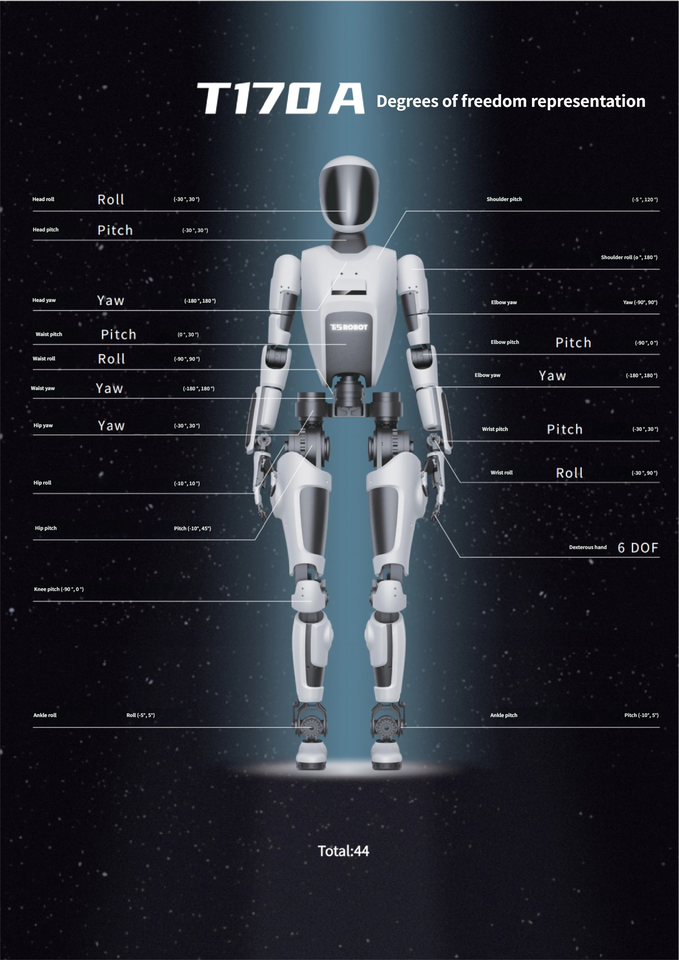

Total Active Degrees of Freedom:44
Single-Arm Payload:3 kg
End-Effector Repeatability:≤0.3 mm
Dexterous Hand Active DOF:6

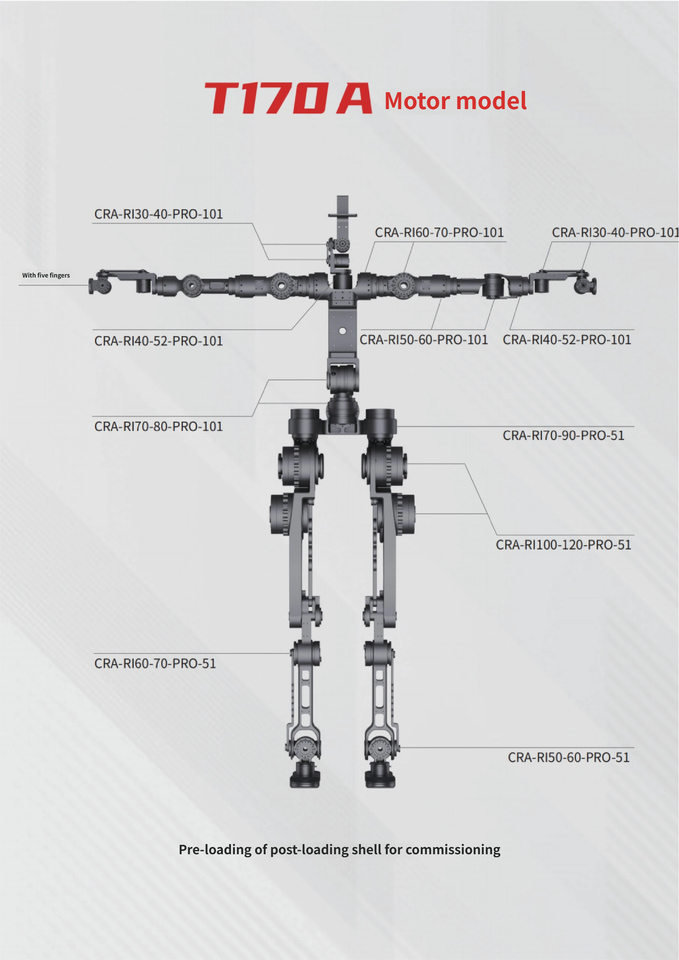

Joint Motor Quantity:32
Joint Driver Type:CAN / EtherCAT
Joint Reducer Type:Harmonic Drive
Joint Encoder Resolution:18 bit
Battery Capacity & Voltage:48V 10Ah
Software Algorithm:Dual-Arm API
Communication Protocol:Joint CAN/EC; Hand 485/CAN
Key attributes
Robots
Humanoid robot
voltage
48V
power(w)
1 kW
Drive Type
Electromechanical
Ingress Protection
IP54
machinery test report
Provided
video outgoing-inspection
Provided
Warranty
3 months-1Year
core components
Gearbox, Motor
production capacity
30DAY
place of origin
Shanghai, China
weight (kg)
48
brand name
Ti5robot
application
Industrial Manufacturing / Research and Education
dimension(l*w*h)
Arm Span: 1.5 m
Number of Jaws
0
Dexterous Hand
Standard: TH-RH-1-L/R / Flagship: High-Precision Dexterous Hand
Hand Payload
Standard: 0.5 kg / Flagship: 3 kg
Joint Sensor Type
Standard: N/A / Flagship: 2 * 6-Axis Force Sensors
Vision System
Standard: N/A / Flagship: Intel RealSense D435 Depth Camera
Arm Span Length
1.5 m
Total Active Degrees of Freedom
44
Single-Arm Payload
3 kg
End-Effector Repeatability
≤0.3 mm
Dexterous Hand Active DOF
6
Joint Motor Quantity
32
Joint Driver Type
CAN / EtherCAT
Joint Reducer Type
Harmonic Drive
Joint Encoder Resolution
18 bit
Battery Capacity & Voltage
48V 10Ah
Software Algorithm
Dual-Arm API
Communication Protocol
Joint CAN/EC; Hand 485/CAN
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$71,64180-72,64180
Variations
Select nowmodel number
T170A Standard Version
T170A Flagship Version
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
