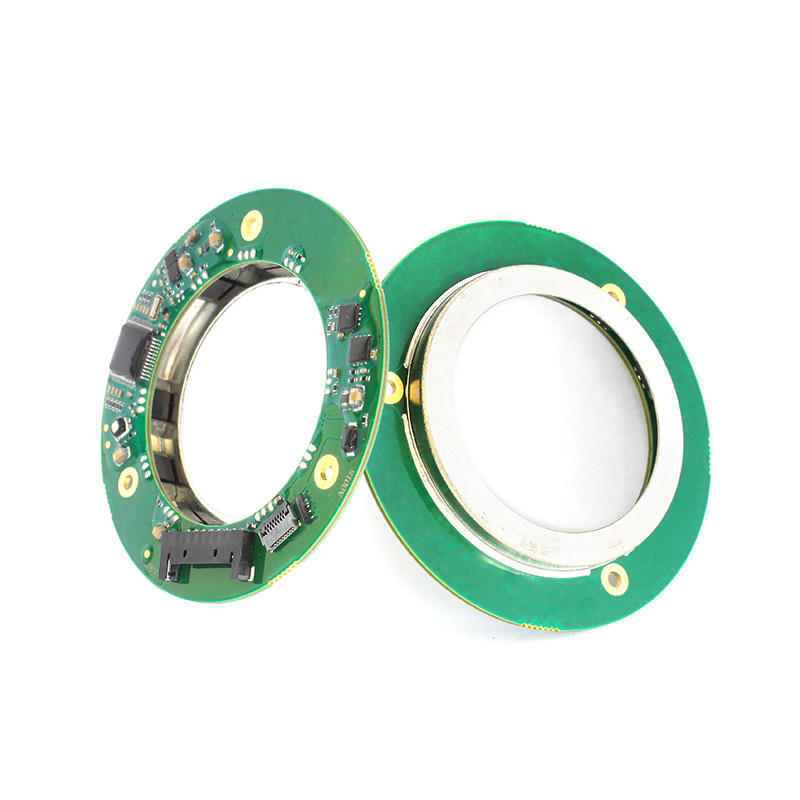

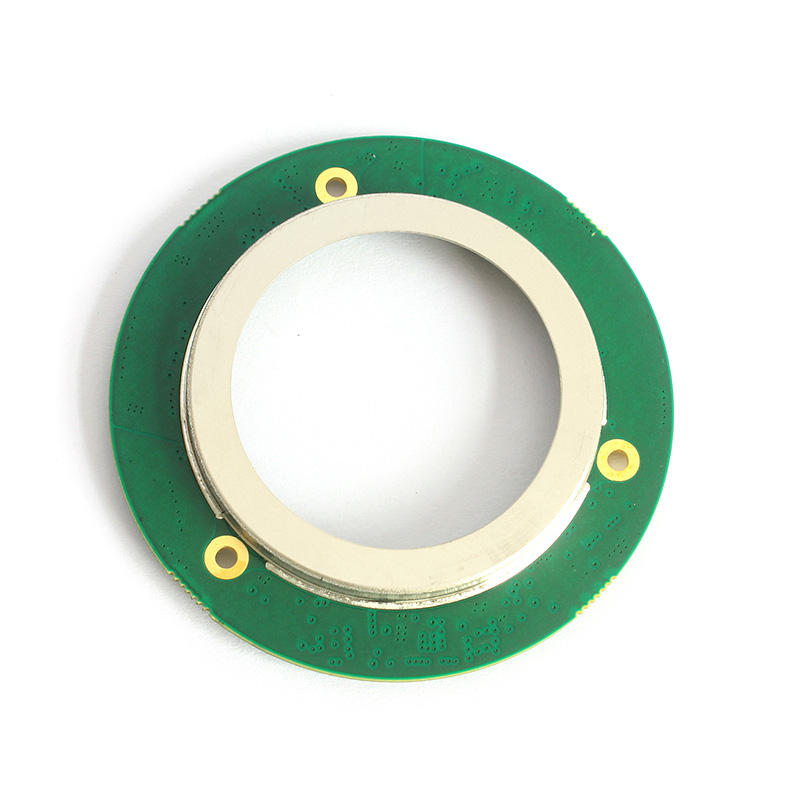

Hollow Shaft ID50mm OD67mm Thickness7mm multiturn 17-24bit Resolution 0.05 Accuracy Absolute Rotary Magnetic Encoder
No reviews yet
Attributes
Magnetic EncoderType
DependsOutput
otherCommunication Interface
Multi-turn absoluteTheory
otherTermination Style
otherOrientation
Actuator Type:other
Usage:Robot joint or integrated servo and so on
Manufacturer Part Number:S-40-57
Mounting Type:Depends
Brand Name:other
Description:S magnetic encoder, ABSOLUTE ENCODER
Place of Origin:Guangdong, China
Series:S series
Features:absolute system, High precision, thin and light
Built in Switch:other
Voltage - Supply:other
Rotational Life (cycles Min):other

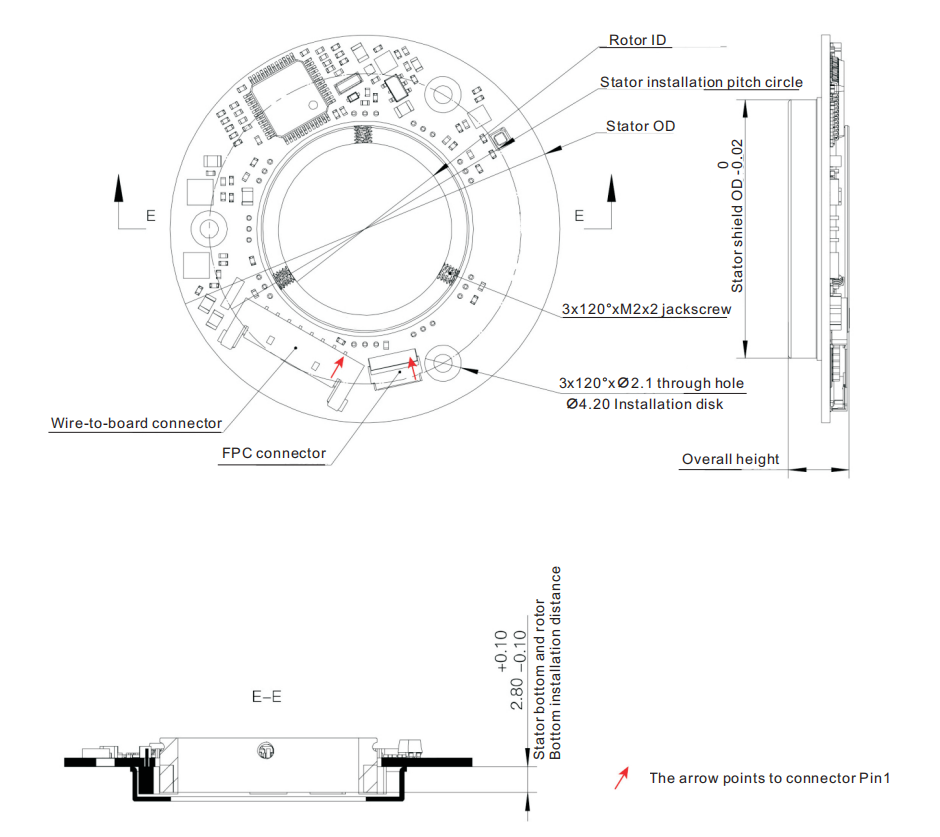

Rotor ID:6/8/10/12/13/15/18/20/23/25/28/30/33/35/38/40/43/45/48/50/53/55
Stator OD:23/25/28/30/33/36/38/40/42/45/47/50/52/55/57/60/62/65/67/70/72/75/80
Output type:absolute value
Output parameters:single-turn and multi-turn
Output Interface:BISS-C Standard/SSI/RS485/RS422/T485/BUS/PERIOD
Input voltage:5V
Working temperature:40 ~ 85.C
Key attributes
Type
Magnetic Encoder
Output
Depends
Communication Interface
other
Theory
Multi-turn absolute
Termination Style
other
Orientation
other
Actuator Type
other
Usage
Robot joint or integrated servo and so on
Manufacturer Part Number
S-40-57
Mounting Type
Depends
Brand Name
other
Description
S magnetic encoder, ABSOLUTE ENCODER
Place of Origin
Guangdong, China
Series
S series
Features
absolute system, High precision, thin and light
Built in Switch
other
Voltage - Supply
other
Rotational Life (cycles Min)
other
Rotor ID
6/8/10/12/13/15/18/20/23/25/28/30/33/35/38/40/43/45/48/50/53/55
Stator OD
23/25/28/30/33/36/38/40/42/45/47/50/52/55/57/60/62/65/67/70/72/75/80
Output type
absolute value
Output parameters
single-turn and multi-turn
Output Interface
BISS-C Standard/SSI/RS485/RS422/T485/BUS/PERIOD
Input voltage
5V
Working temperature
40 ~ 85.C
