FranMar High Voltage Input 600W DC to DC Converter DHFB600 2:1 Input Voltage Full Brick DIP Industrial
No reviews yet
Attributes
90%Efficiency
1Number of Outputs
DHFB600Model Number
600WPower (Watts)
50ACurrent - Output (Max)
ChinaPlace of Origin
Brand Name:FranMar
Mounting Type:DIP
Description:600 Watt 2:1 Input Isolation DC-DC Converter
Application:Railway, Industrial, Automation

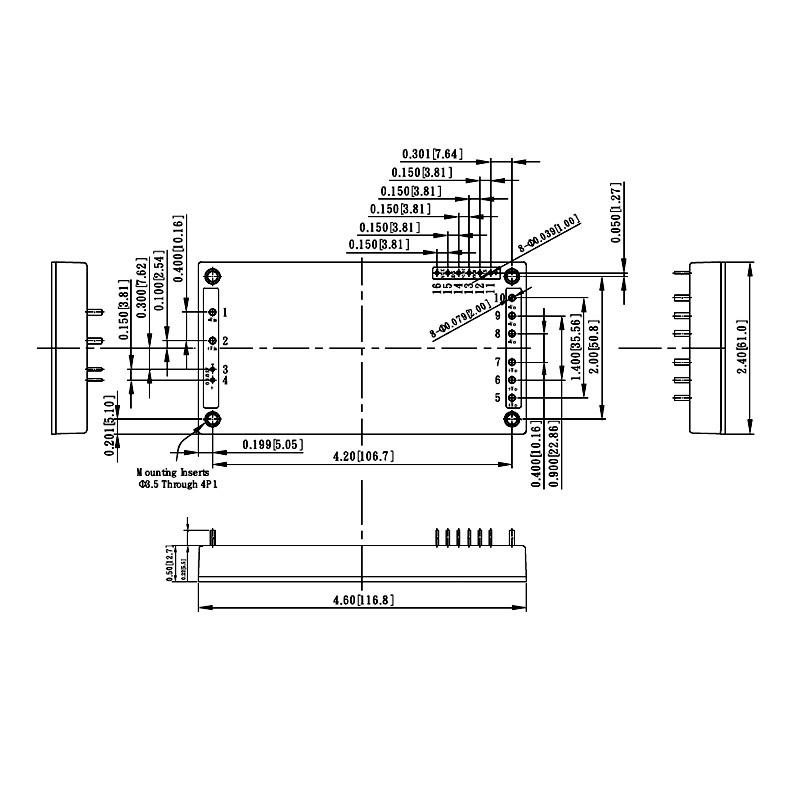

Size / Dimension:116.8x61x12.7mm
Operating Temperature:-40°C to 100°C
Voltage - Isolation:2250VDC
Voltage - Output 1:12V
Voltage - Input (Min):18
Voltage - Input Max:36
Warranty:One Year
Power:600W
Voltage - Isolation:2.25 KV
Key attributes
Efficiency
90%
Number of Outputs
1
Application
Railway, Industrial, Automation
Brand Name
FranMar
Current - Output (Max)
50A
Description
600 Watt 2:1 Input Isolation DC-DC Converter
Model Number
DHFB600
Mounting Type
DIP
Operating Temperature
-40°C to 100°C
Place of Origin
China
Power (Watts)
600W
Size / Dimension
116.8x61x12.7mm
Voltage - Input (Min)
18
Voltage - Input Max
36
Voltage - Isolation
2250VDC
Voltage - Output 1
12V
Warranty
One Year
Efficiency
88%
Power
600W
Voltage - Isolation
2.25 KV
