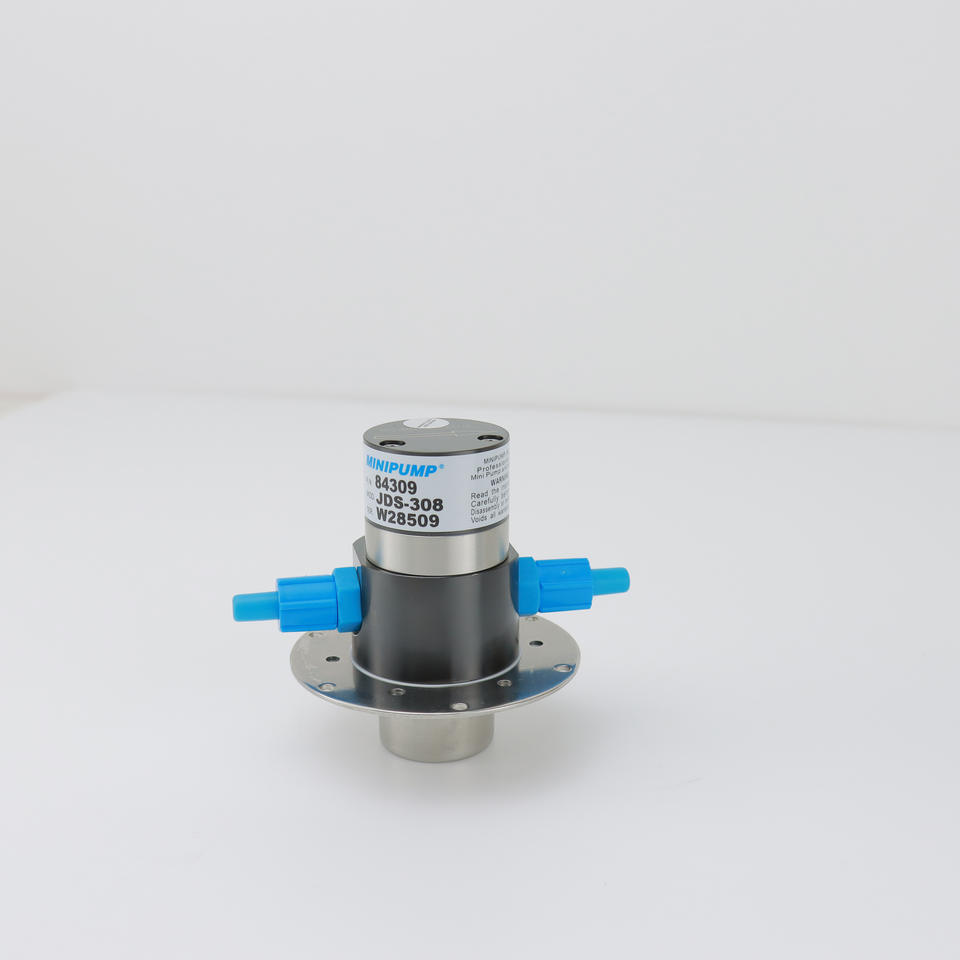

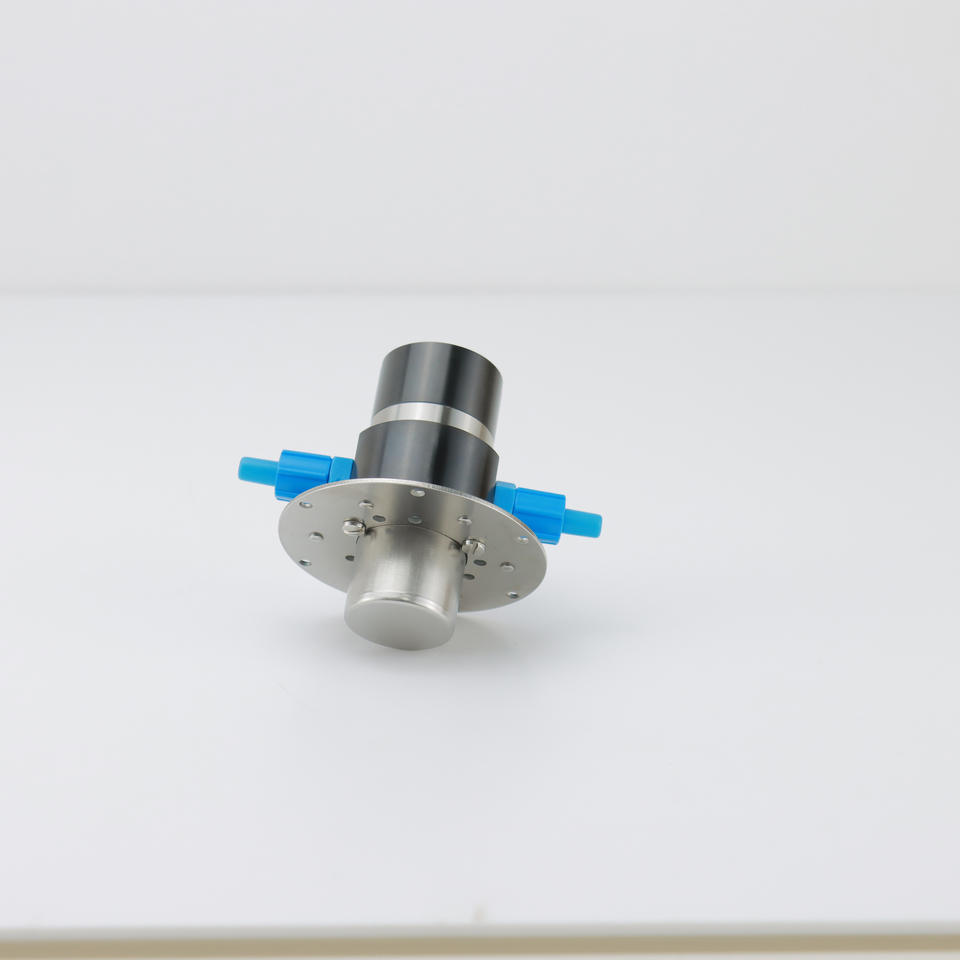

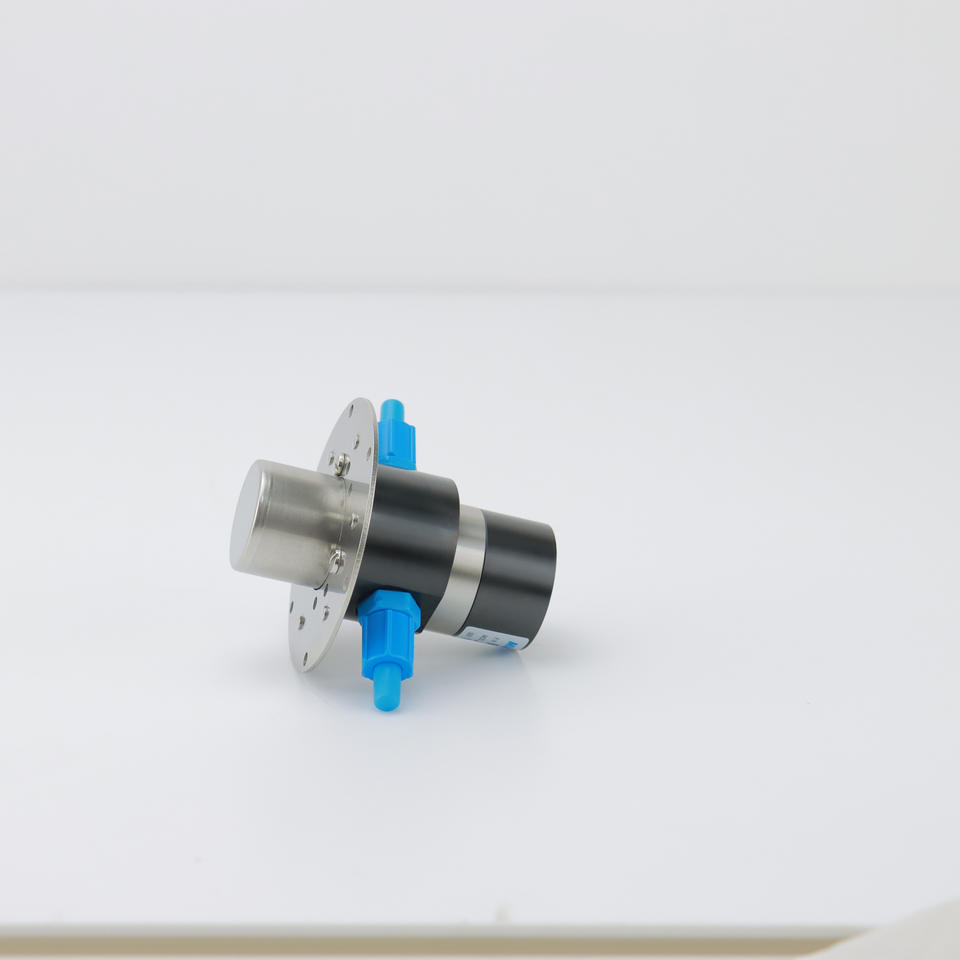

High Viscosity Liquid Pump Meter Food Grade Oil Honey Milk Juice Pump Cream Transfer Gear Pump With Magnetic Coupling
No reviews yet
Attributes
Automotive Industryapplication
Gear Pumpstructure
2.5L/minMax Flow Rate
0.8MPa (preset value0.7MPa)Max Pressure
Electricpower source
Alcohol, Diesel, oils, WaterChemical Compatibility
Applicable temperature:-40 to 105 degrees Celsius
Material:Stainless Steel
motor:Servo Motor, Brushless DC Motor, Stepper Motor
warranty:1 Year
customized support:OEM, ODM, OBM
pressure:Low Pressure
model number:GQB065ESLB01
place of origin:Guangdong, China
brand name:DOCOD
Nominal Displacement:0.65ml/rev
Max. Flow Rate:2.5L/min (water as medium)
Max. Pressure:0.8MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:Metal
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Shaft Material:Porcelain
Key attributes
application
Automotive Industry
structure
Gear Pump
Max Flow Rate
2.5L/min
Max Pressure
0.8MPa (preset value0.7MPa)
power source
Electric
Chemical Compatibility
Alcohol, Diesel, oils, Water
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
Low Pressure
model number
GQB065ESLB01
place of origin
Guangdong, China
brand name
DOCOD
Nominal Displacement
0.65ml/rev
Max. Flow Rate
2.5L/min (water as medium)
Max. Pressure
0.8MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
Metal
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Shaft Material
Porcelain
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
$28846
100 - 499 pieces
$23077
>= 500 pieces
$19231
Variations
Select now最大流速: 2.5L/min
2.5L/min
最大扬程: other
other
类型: Gear pump
Gear pump
电压
24VDC
