Attributes
Horizontaltype
1400max. length of workpiece (mm)
1000max. weight of workpiece(kg)
Singleno. of spindles
240travel (x axis)(mm)
1560travel (z axis)(mm)
positioning accuracy (mm):±0.005
repeatability (x/y/z) (mm):±0.005
place of origin:Jiangsu, China
warranty:1 Year
machining capacity:Medium Duty
width of bed (mm):240 mm
number of axes:2
dimension(l*w*h):4000*2000*2100
brand name:Minnuo
model number:TCK50Y
voltage:220v/380v
cnc control system:FANUC
tool post stations:12
weight:5100
key selling points:High-Accuracy
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:0 - 3000 r.p.m
cutting torque:10

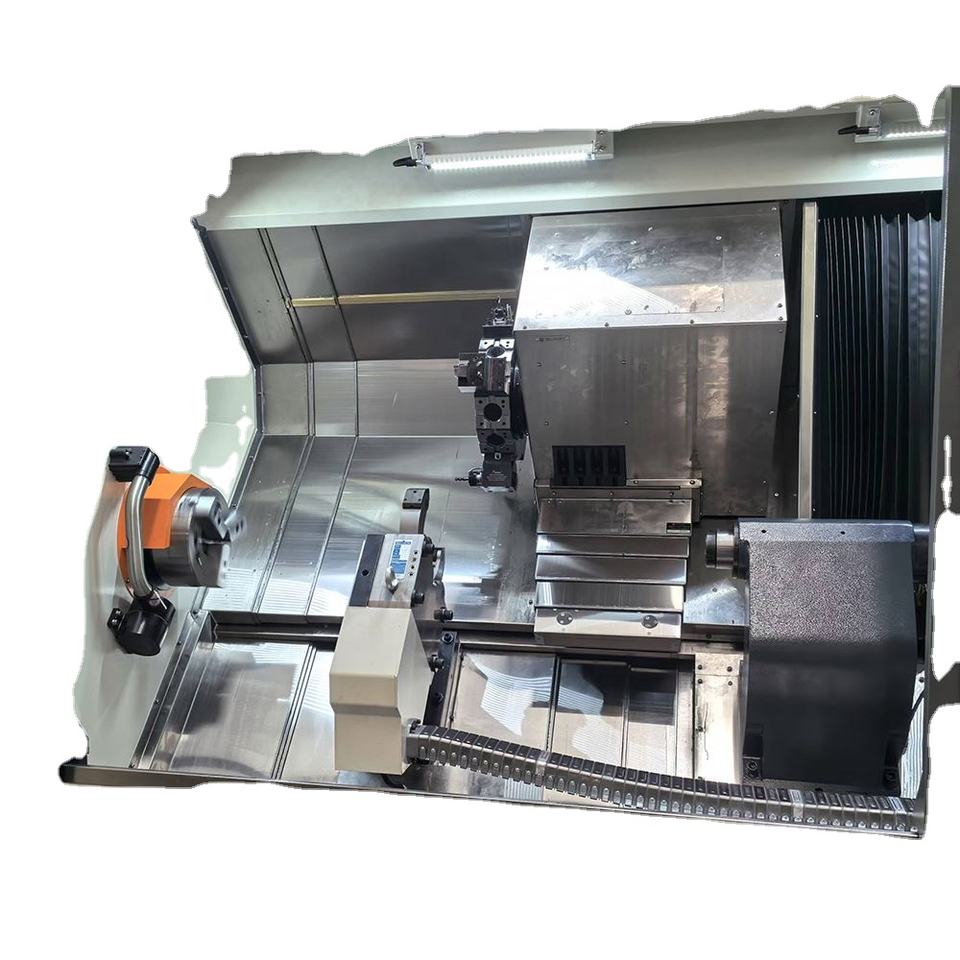

Product name:High Rigidity CNC Slant Bed Lathe with Ball Screw Transmission
CNC Controller:Siemens 808DA,GSK,fanuc
CNC or Not:CNC Lathe Machine
Distance between centers(mm):1500
Repeatability (X/Y/Z) (mm):±0.005
spindle nose:A2-8
Z axis sfast moving speed(m/min):18
Cylindrical tool dimensions(mm):25*25
Total rated power:24KW
Warranty of core components:1 Year
Selling Units:Single item
