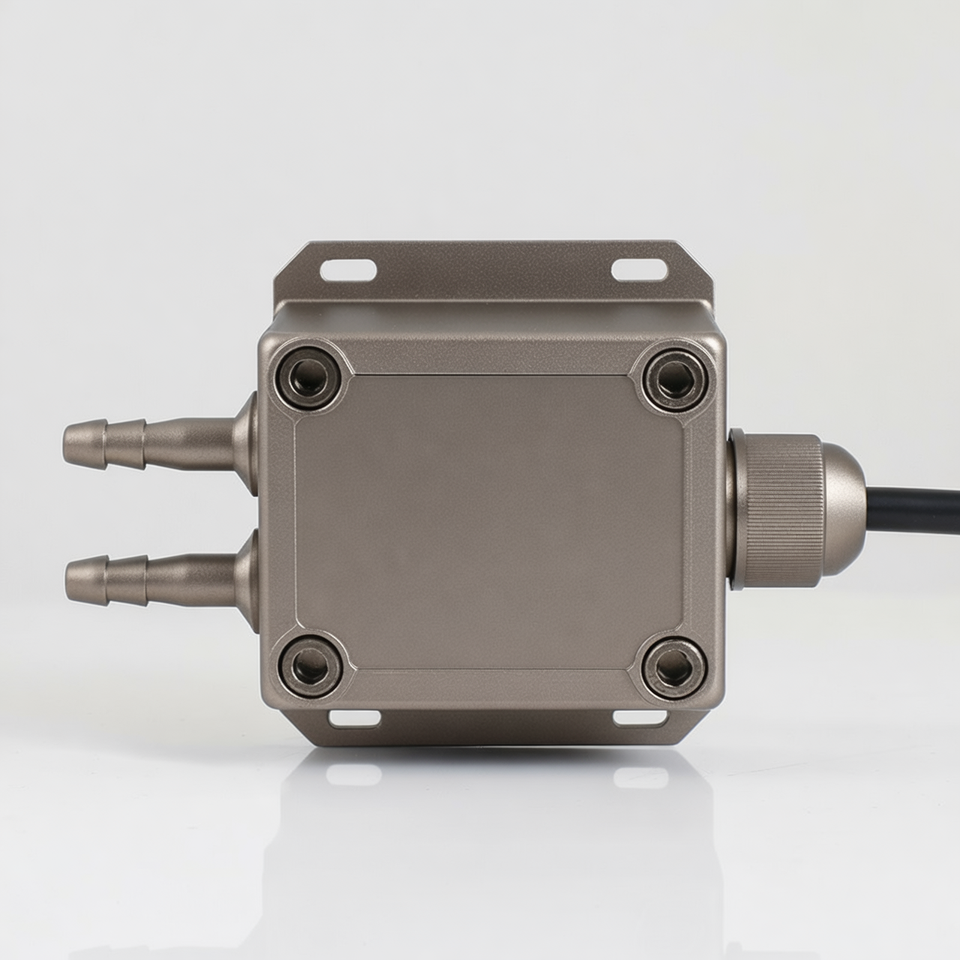

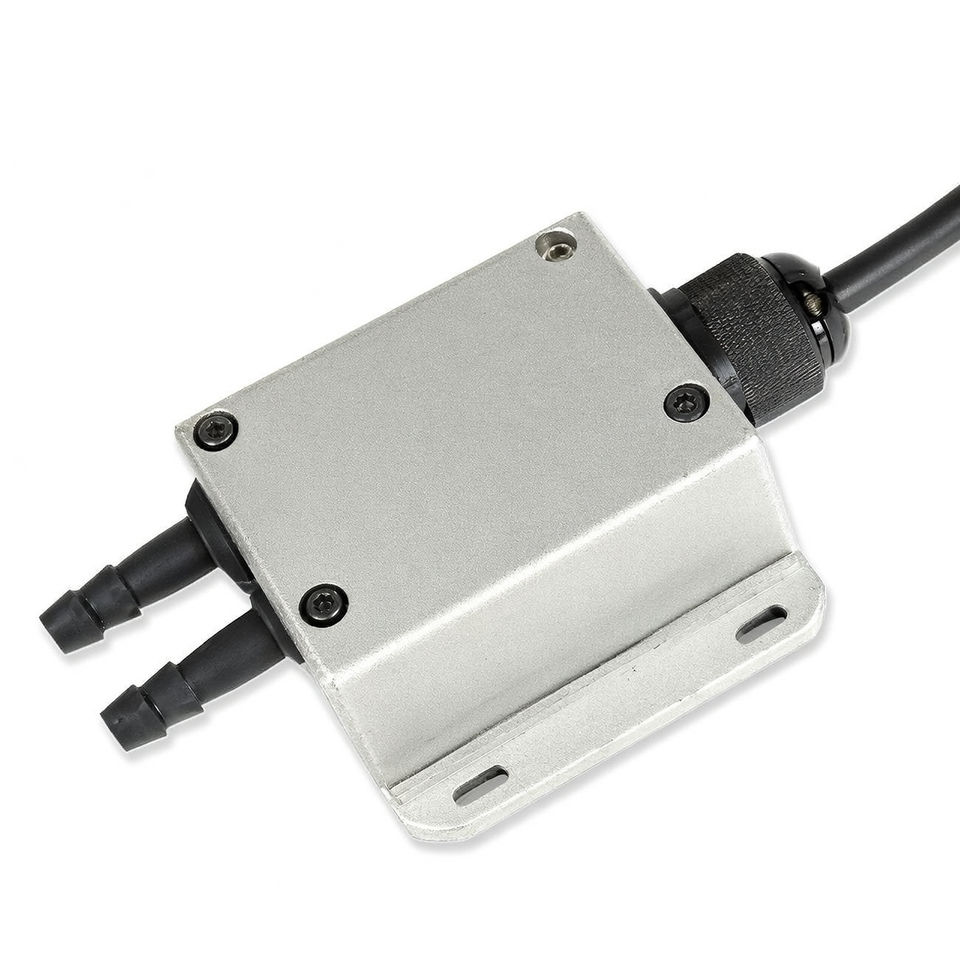

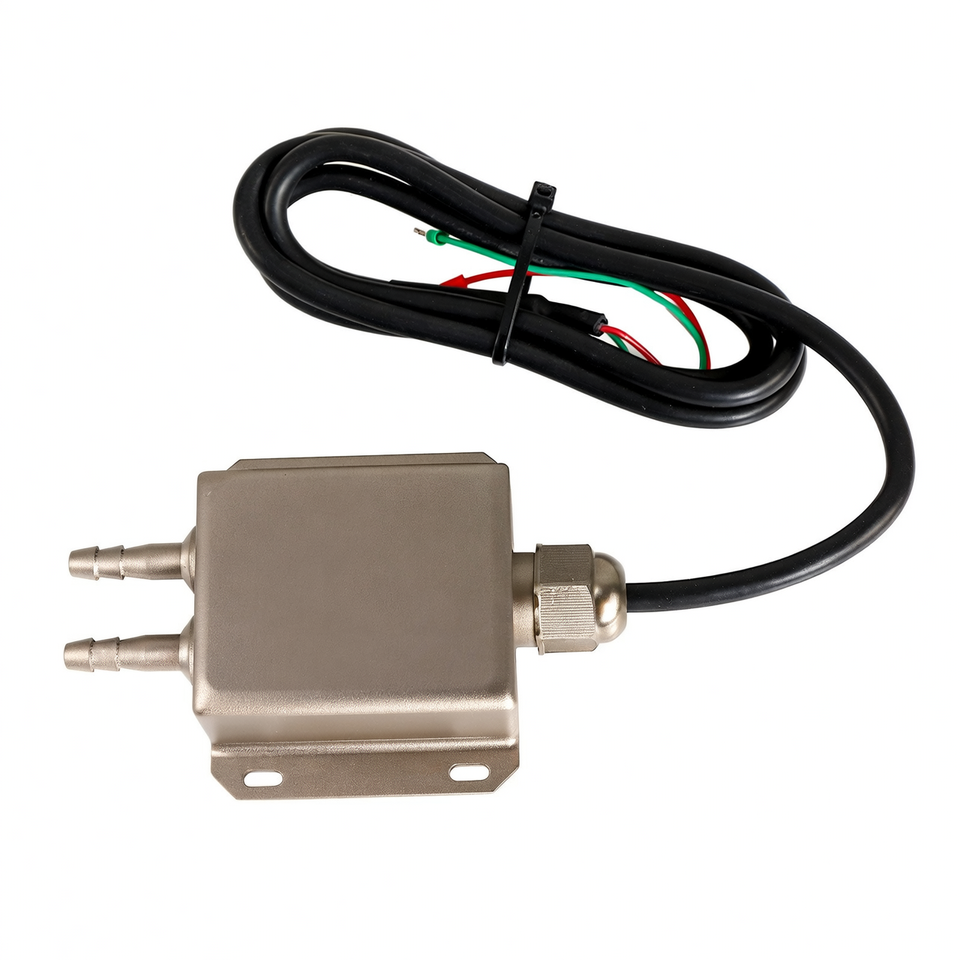

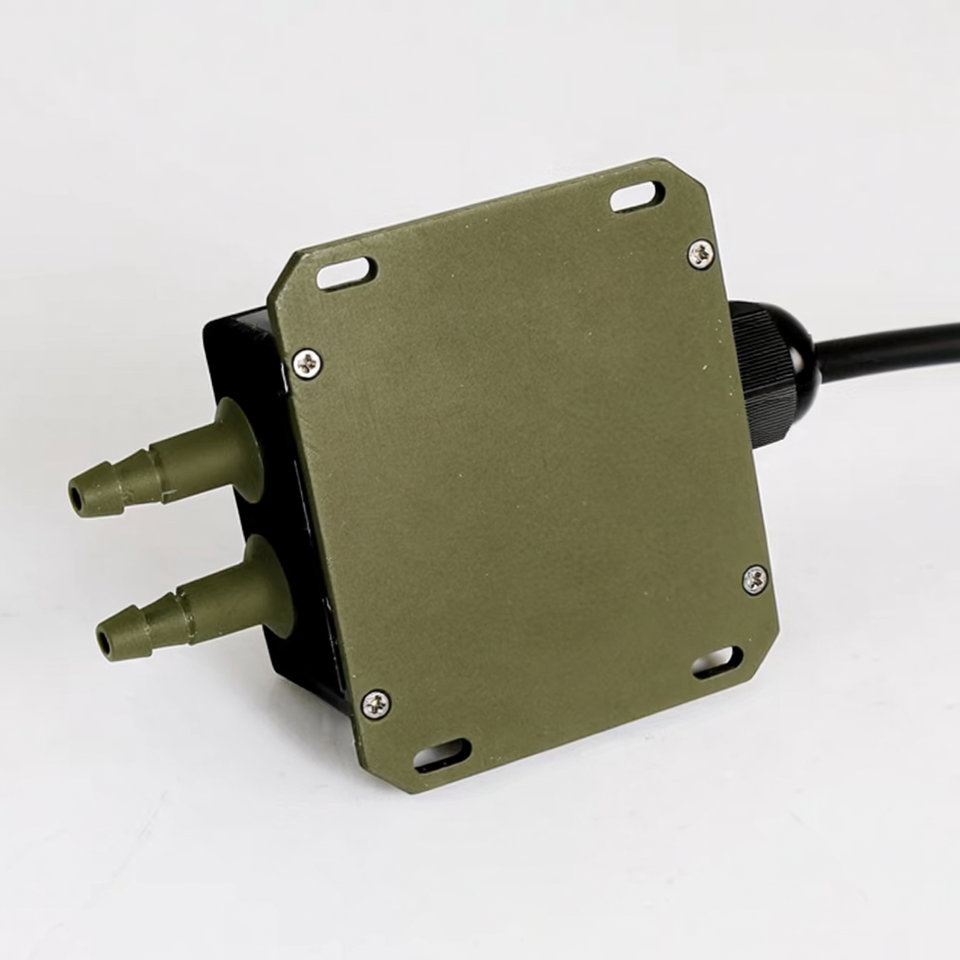

High Precision Low Cost 420ma Micro Wind Differential air Pressure Transmitter
No reviews yet
Attributes
IP66Ingress Protection
12 monthswarranty
OEM, ODMcustomized support
differential pressure sensortype
Hunan, Chinaplace of origin
HPT710model number
brand name:PMI
material:ABS
Pressure range:0Pa~±100Pa, 500Pa ...1000Pa; 0kPa~2kPa,10kPa...100kPa
Output:4-20mA,0.5-4.5V,I2C,RS485
Power supply:12-30VDC,5-30VDC,3.3-5VDC,5-30VDC
Accuracy:±0.5%F.S, ±1.0%F.S
Pressure type:differential pressure
Overload:200%F.S
Electrical wire:2 wire, 3wire, 4wire
Medium temperature:-40℃~85℃
IP Rating:IP66
Ambient temperature:-40℃~85℃
Key attributes
Ingress Protection
IP66
warranty
12 months
customized support
OEM, ODM
brand name
PMI
material
ABS
model number
HPT710
place of origin
Other
type
differential pressure sensor
Pressure range
0Pa~±100Pa, 500Pa ...1000Pa; 0kPa~2kPa,10kPa...100kPa
Output
4-20mA,0.5-4.5V,I2C,RS485
Power supply
12-30VDC,5-30VDC,3.3-5VDC,5-30VDC
Accuracy
±0.5%F.S, ±1.0%F.S
Pressure type
differential pressure
Overload
200%F.S
Electrical wire
2 wire, 3wire, 4wire
Medium temperature
-40℃~85℃
IP Rating
IP66
Ambient temperature
-40℃~85℃
Packaging and delivery
Selling Units
Single item
Package size per batch
32X32X25 cm
Gross weight per batch
2.500 kg
Lead time
Product descriptions from the supplier
1 - 999 pieces
$39
>= 1,000 pieces
$29
Variations
Select nowaccuracy: ±1.0%F.S
±1.0%F.S
pressure range
0Pa~±100Pa
500Pa ...1000Pa
0kPa~2kPa
10kPa...100kPa
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
