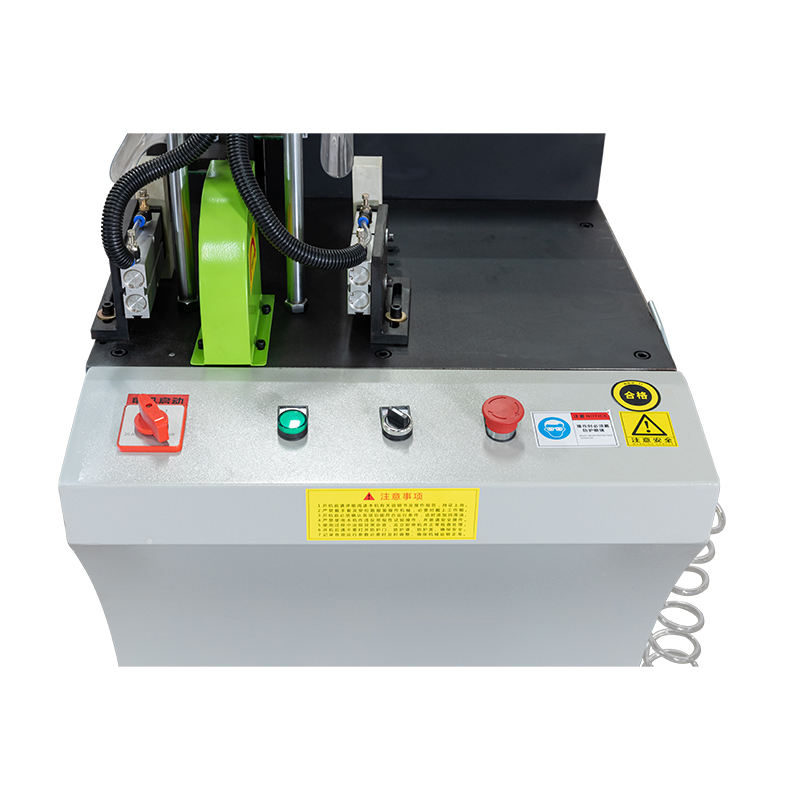

High Precision JD-HB500 90 Degree Cutting Machine 500mm Blade 3000rpm Pneumatic Clamp Linear Guide Tool
No reviews yet
Attributes
Cutting and blanking of extra-thick industrial profilesApplicable Material
380 V, 220V Electrical EquipmentVoltage
High Safety LevelKey Selling Points
Gear, Motor, Pneumatic Components, Electrical Components, Cutting BladeCore Components
1 YearWarranty
ProvidedMachinery Test Report
Power(W):3.05kw
Place of Origin:Guangdong, China
Weight:350 kg
Brand Name:ZLWM
Dimension(L*W*H):630x1065x1425(mm)
Input Power:380V 220V 50Hz
Working Air Pressure:0.5-0.8 MPa
Total Power:3.05 kw
Spindle Power:3kw
Blade Speed:3000 rpm
Blade Specification:500 * 30 * 4.5 * 120T
Cutting Angle:90°
Max Cutting Width:300 mm
Max Cutting Stroke:150 mm
Cutting Method:Upward cutting from bottom to top
Cutting Length Accuracy:±0.1 mm
Angle Accuracy:5-10
Cutting Feed Speed:0-5 m/min
Machine Dimensions (L*W*H):630 * 1065 * 1425 mm
Total Weight:Approx 350 kg
Power Requirement:1.5² 380V 50Hz
Operating Temperature (24h):5-40°C
Relative Humidity:30-75 percent
Vibration Intensity:<0.5 kg
Grounding Resistance:<10 ohm independent grounding not series grounding
Key attributes
Applicable Material
Cutting and blanking of extra-thick industrial profiles
Voltage
380 V, 220V Electrical Equipment
Key Selling Points
High Safety Level
Core Components
Gear, Motor, Pneumatic Components, Electrical Components, Cutting Blade
Warranty
1 Year
Machinery Test Report
Provided
Power(W)
3.05kw
Place of Origin
Guangdong, China
Weight
350 kg
Brand Name
ZLWM
Dimension(L*W*H)
630x1065x1425(mm)
Input Power
380V 220V 50Hz
Working Air Pressure
0.5-0.8 MPa
Total Power
3.05 kw
Spindle Power
3kw
Blade Speed
3000 rpm
Blade Specification
500 * 30 * 4.5 * 120T
Cutting Angle
90°
Max Cutting Width
300 mm
Max Cutting Stroke
150 mm
Cutting Method
Upward cutting from bottom to top
Cutting Length Accuracy
±0.1 mm
Angle Accuracy
5-10
Cutting Feed Speed
0-5 m/min
Machine Dimensions (L*W*H)
630 * 1065 * 1425 mm
Total Weight
Approx 350 kg
Power Requirement
1.5² 380V 50Hz
Operating Temperature (24h)
5-40°C
Relative Humidity
30-75 percent
Vibration Intensity
<0.5 kg
Grounding Resistance
<10 ohm independent grounding not series grounding
Packaging and delivery
Selling Units
Single item
Single gross weight
1800.000 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 unit
$1,14580
Variations
Select nowModel Number: JD-HB500
JD-HB500
Production Capacity: 100%
100%
Max. Working Width
300mm
