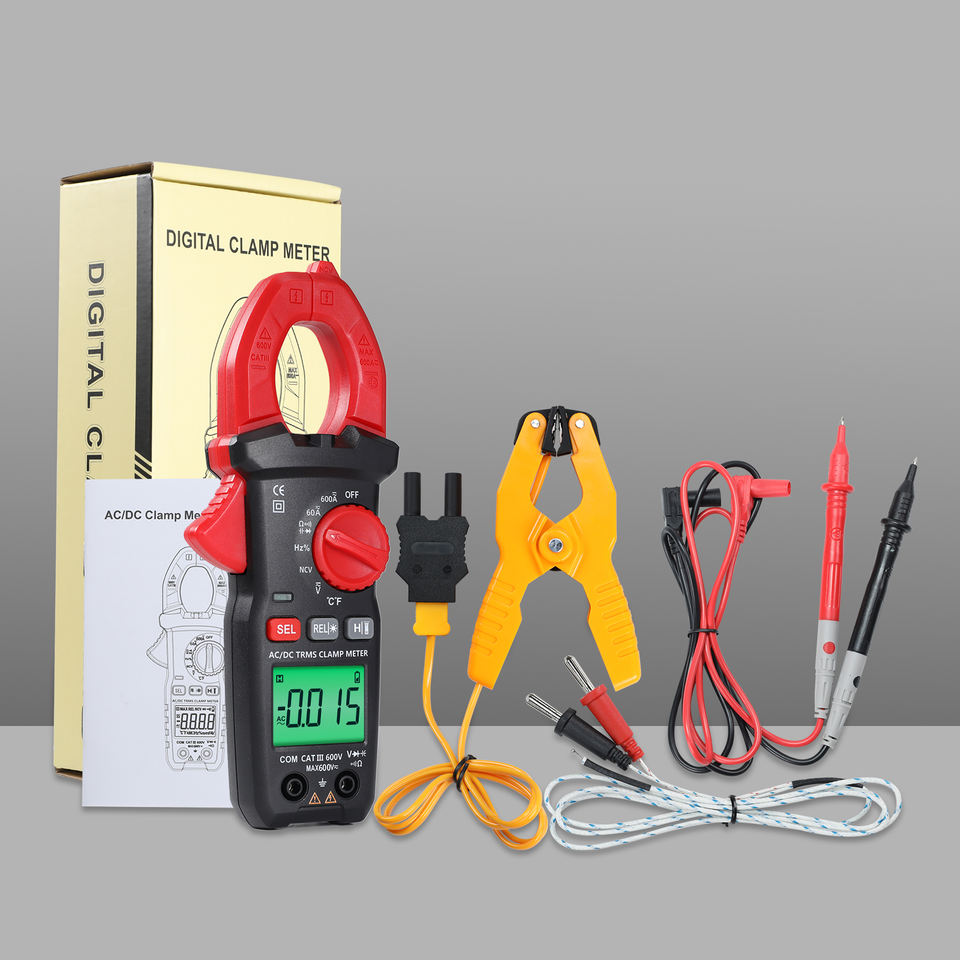

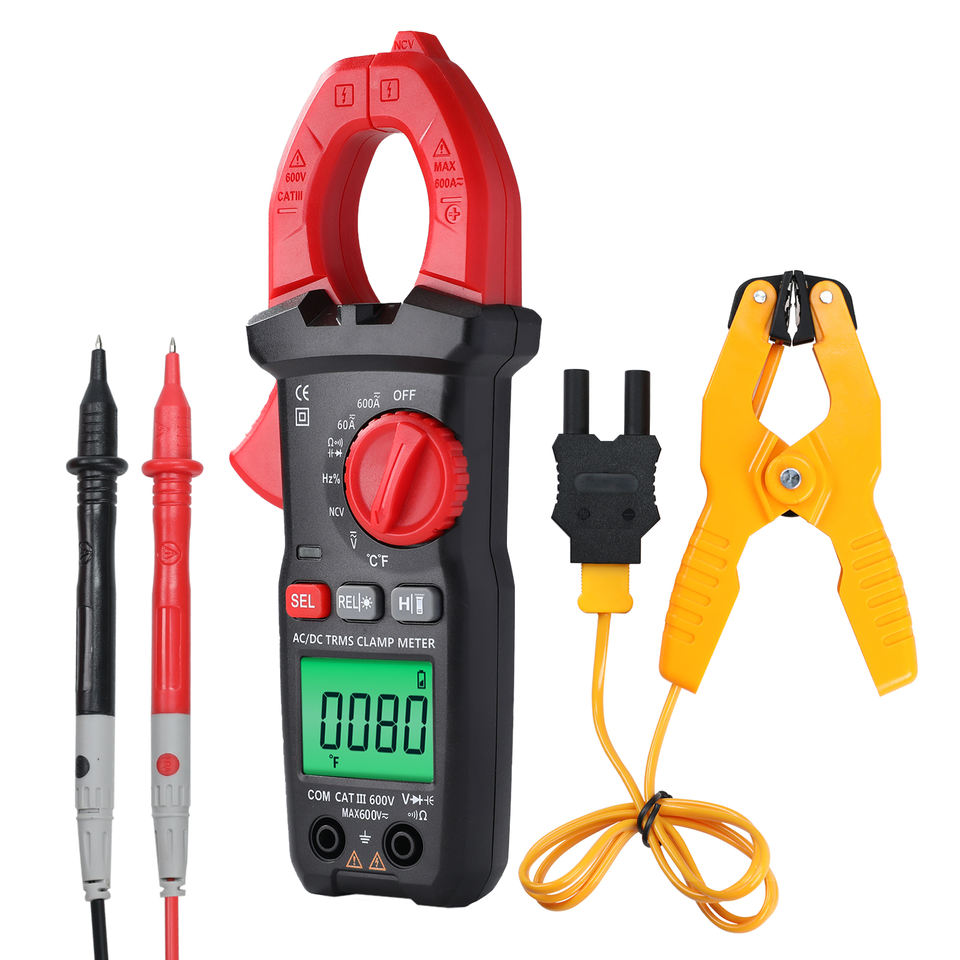

High Performance AC/DC Clamp Meter | Non-Contact Current Clamp & Multimeter for Electricians, HVAC Technicians & DIY Use (OEM)
Store rating:4.7
(369 reviews)#11 most popular in Clamp Meters with 50% Duty Cycle
Attributes
26mmClamp Opening Size

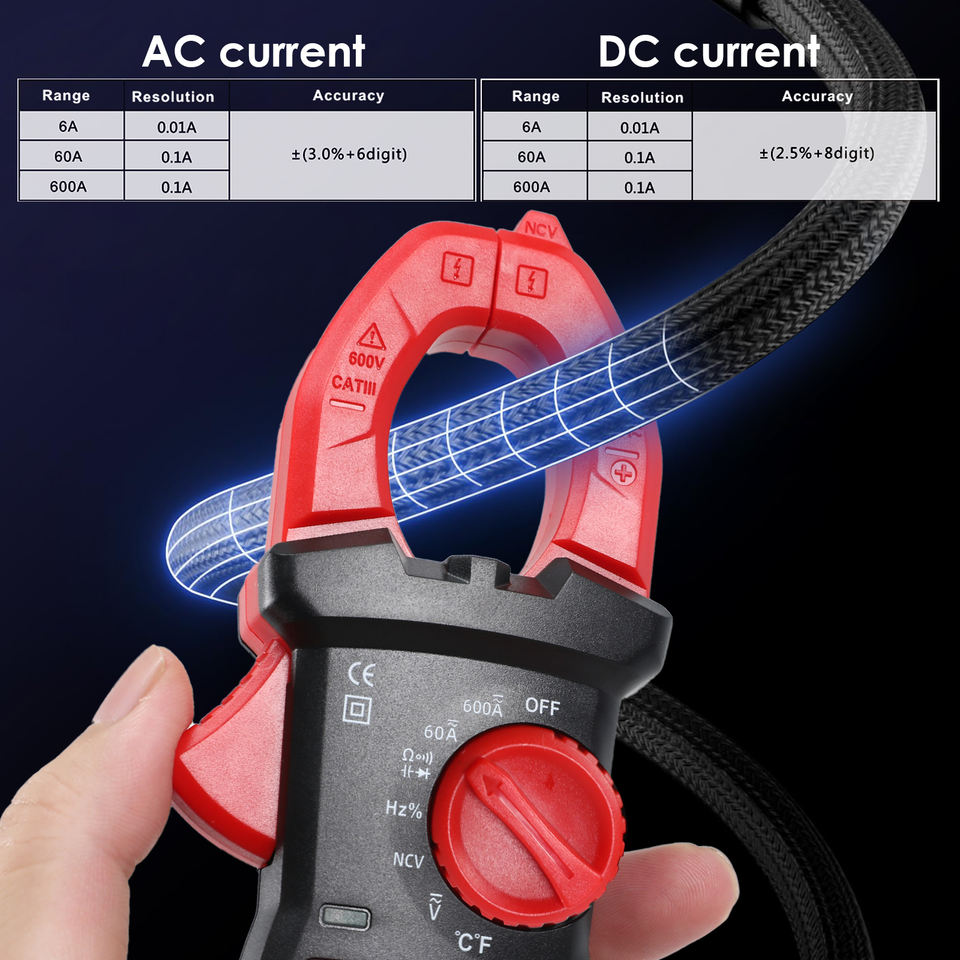

600 AMax. Ac Current
600 AMax. DC Current
6.0-600 VMeasuring Voltage Range
Guangdong, ChinaPlace of Origin
MUL-523_1TC+ADP-BModel Number
Brand Name:Noyafa
Accuracy Class:Other
Dimensions:None
Display Type:Digital Only
Frequency Range:99.99Hz
Instrument Safety Rating:Other
Max. Ac Voltage:Up To 600V
Max. DC Voltage:600 V
Measuring Capacitance Range:6nf to 60mf
Measuring Current Range:6-600 A
Measuring Inductance Range:10 Hz-10 kHz
Measuring Resistance Range:600Ω to 60MΩ
Operating Temperature:0℃ ~40℃
Parameters Measured:AC Voltage, DC Current, Frequency, Temperature, DC Voltage, Capacitance, Duty Cycle, Diode, Resistance, AC Current
Weight:0.5
Working height:Maximum 2000m
Display:LCD screen with 6000 digits max value
Polarity Indicator:Automatic indicator,'-' indicates negative polarity
Hyperview Display:'OL' or -'OL'
Sampling Time:about 3 times/second
Power Supply:1.5V AAA battery
Operating temperature:0~40°C
Storage temperature::-10~50°C

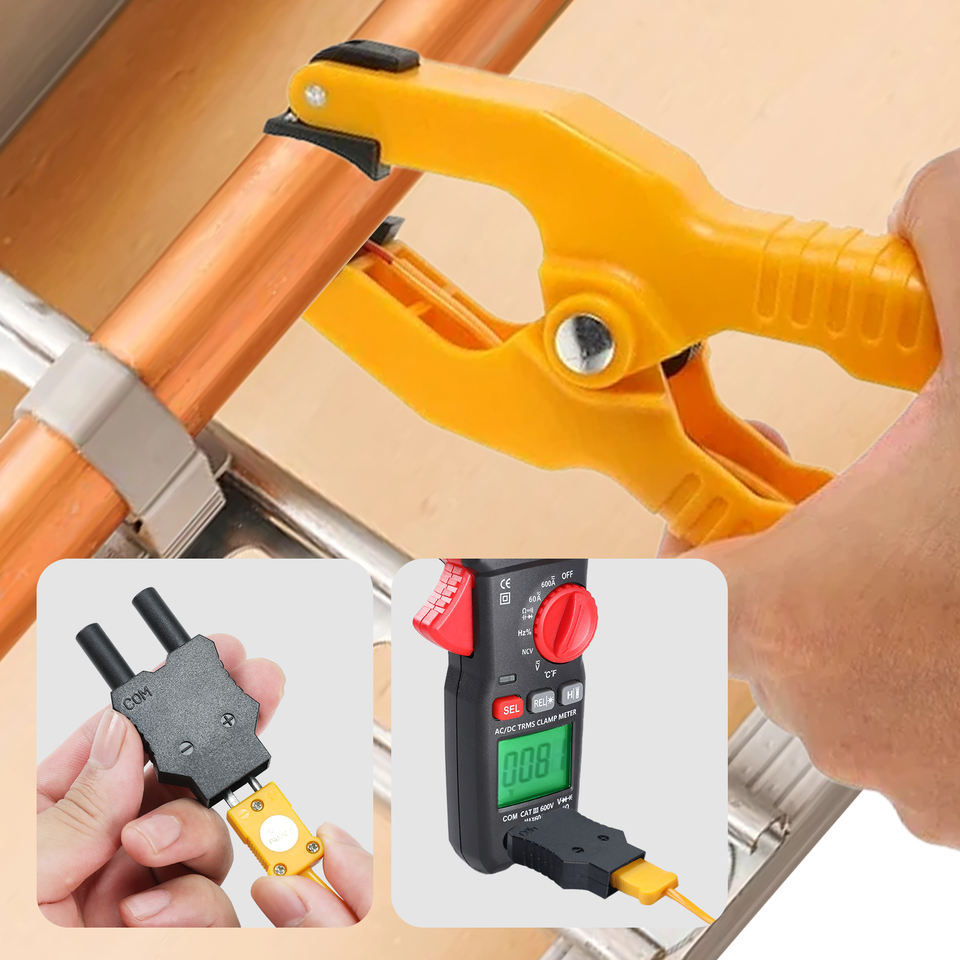

K-type Temp Clamp Probe Range:-40~200°C (-40~392°F)
Key attributes
Clamp Opening Size
26mm
Max. Ac Current
600 A
Max. DC Current
600 A
Measuring Voltage Range
6.0-600 V
Place of Origin
Guangdong, China
Model Number
MUL-523_1TC+ADP-B
Brand Name
Noyafa
Accuracy Class
Other
Dimensions
None
Display Type
Digital Only
Frequency Range
99.99Hz
Instrument Safety Rating
Other
Max. Ac Voltage
Up To 600V
Max. DC Voltage
600 V
Measuring Capacitance Range
6nf to 60mf
Measuring Current Range
6-600 A
Measuring Inductance Range
10 Hz-10 kHz
Measuring Resistance Range
600Ω to 60MΩ
Operating Temperature
0℃ ~40℃
Parameters Measured
AC Voltage, DC Current, Frequency, Temperature, DC Voltage, Capacitance, Duty Cycle, Diode, Resistance, AC Current
Weight
0.5
Working height
Maximum 2000m
Display
LCD screen with 6000 digits max value
Polarity Indicator
Automatic indicator,'-' indicates negative polarity
Hyperview Display
'OL' or -'OL'
Sampling Time
about 3 times/second
Power Supply
1.5V AAA battery
Operating temperature
0~40°C
Storage temperature:
-10~50°C
K-type Temp Clamp Probe Range
-40~200°C (-40~392°F)
Packaging and delivery
Selling Units
Single item
Single package size
23X11X6 cm
Single gross weight
0.540 kg
Lead time
Customization options
Logo Customized+$1/set (Min. order: 1,000 sets)
View details
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
FREE shipping capped at $20
1 - 9 sets
$2508
10 - 29 sets
$2405
30 - 49 sets
$2280
>= 50 sets
$2222
Sample price: $25.08
