Attributes
132Cell size
Half CellType
20.56Panel Efficiency
Tamil Nadu, IndiaPlace of Origin
2104 mm x 1133 mm x 35 mm [optional 40 mm]Panel Dimensions
Buyer's BrandBrand Name

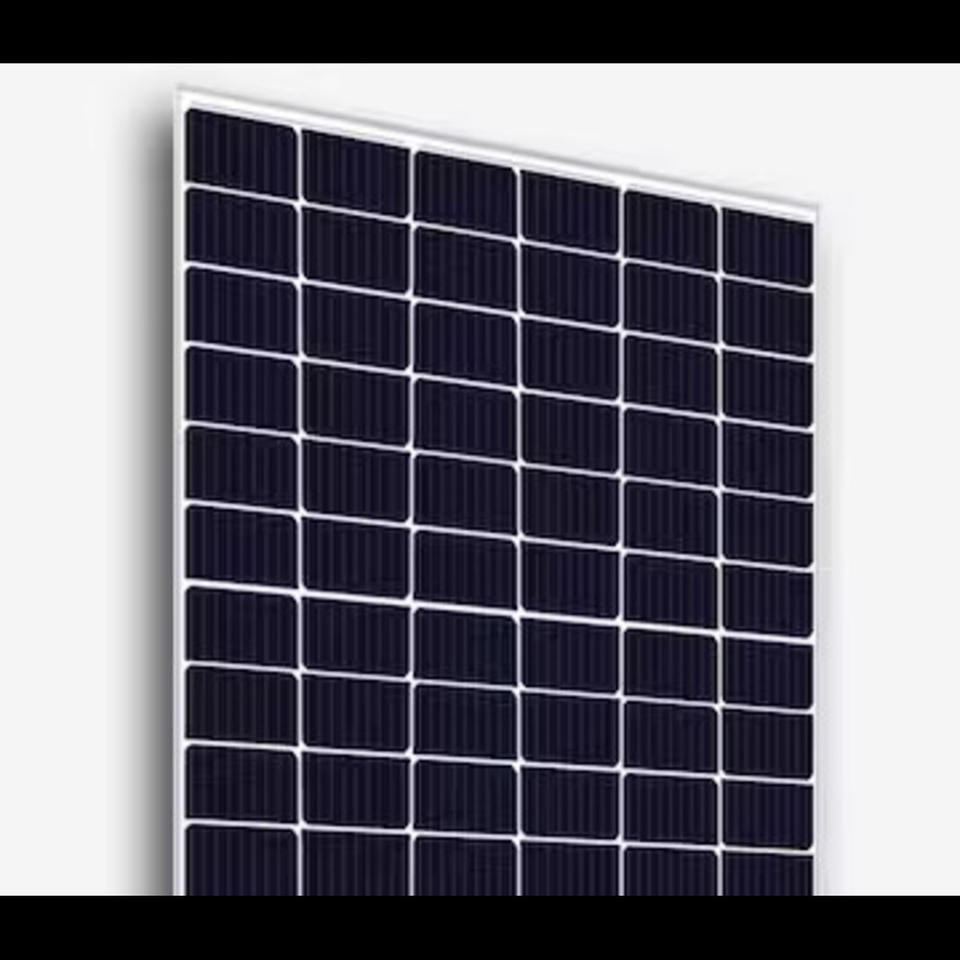

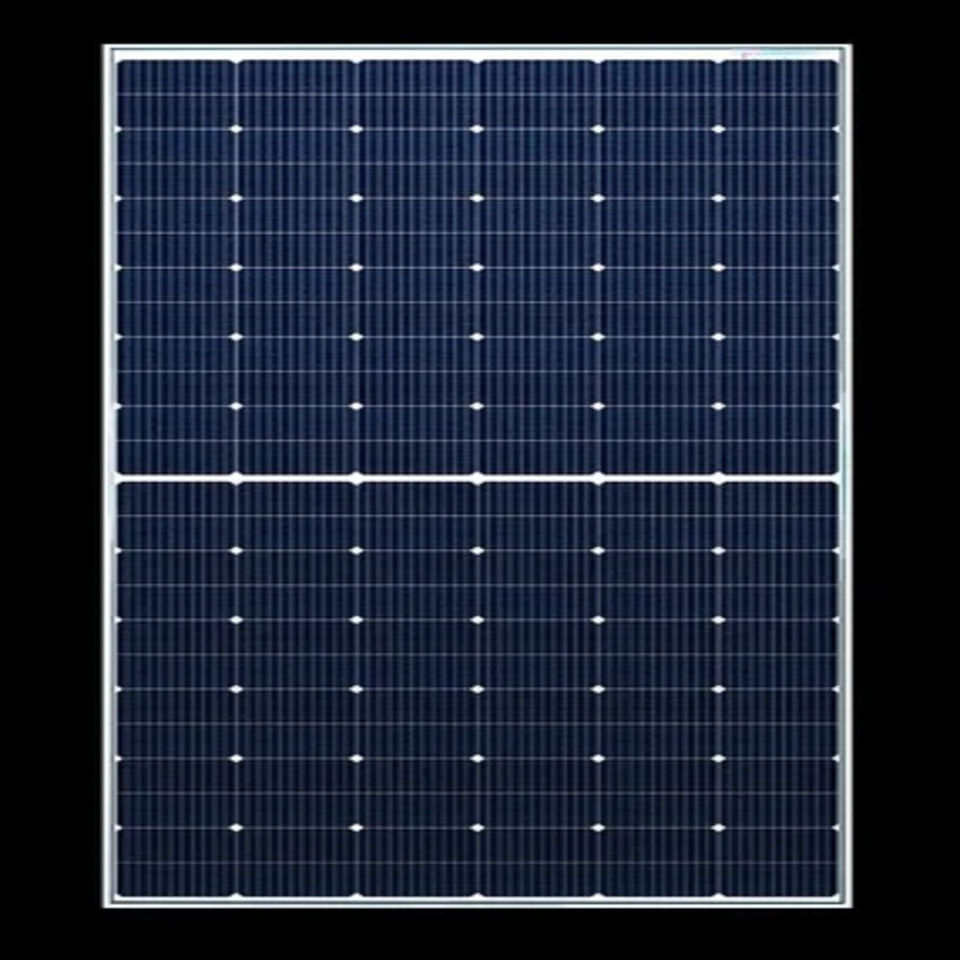

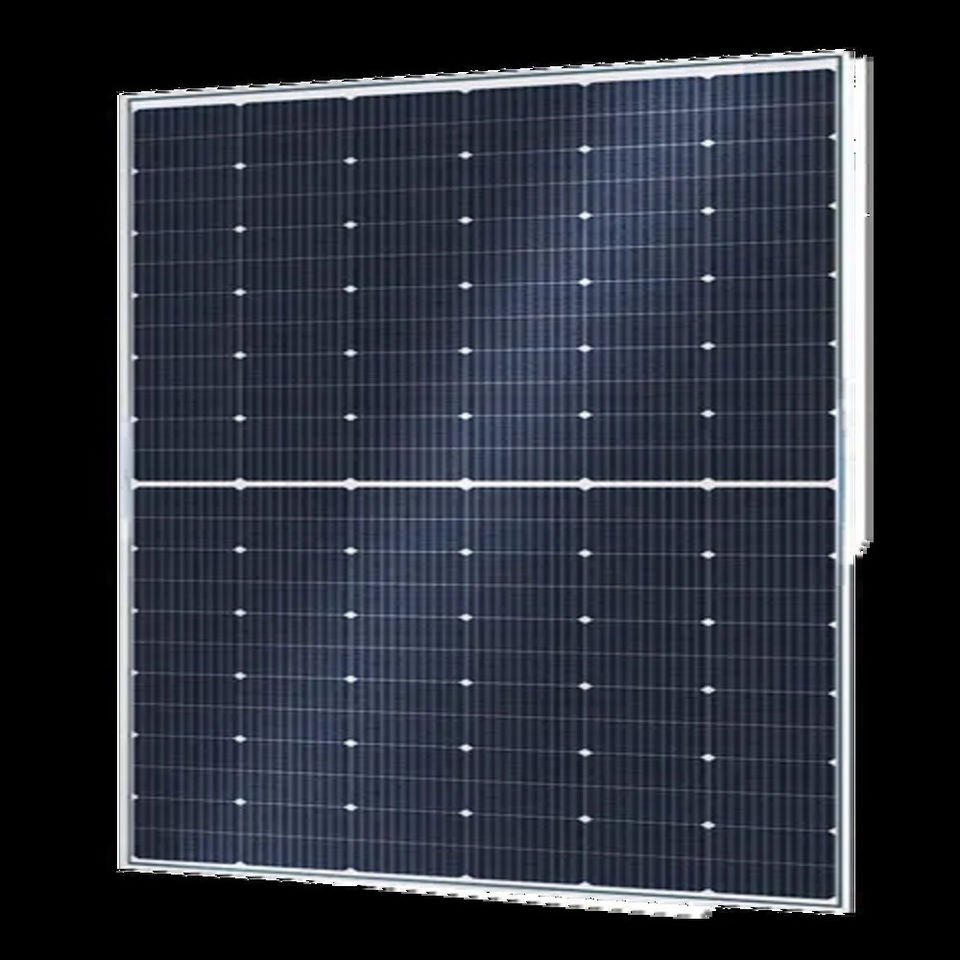

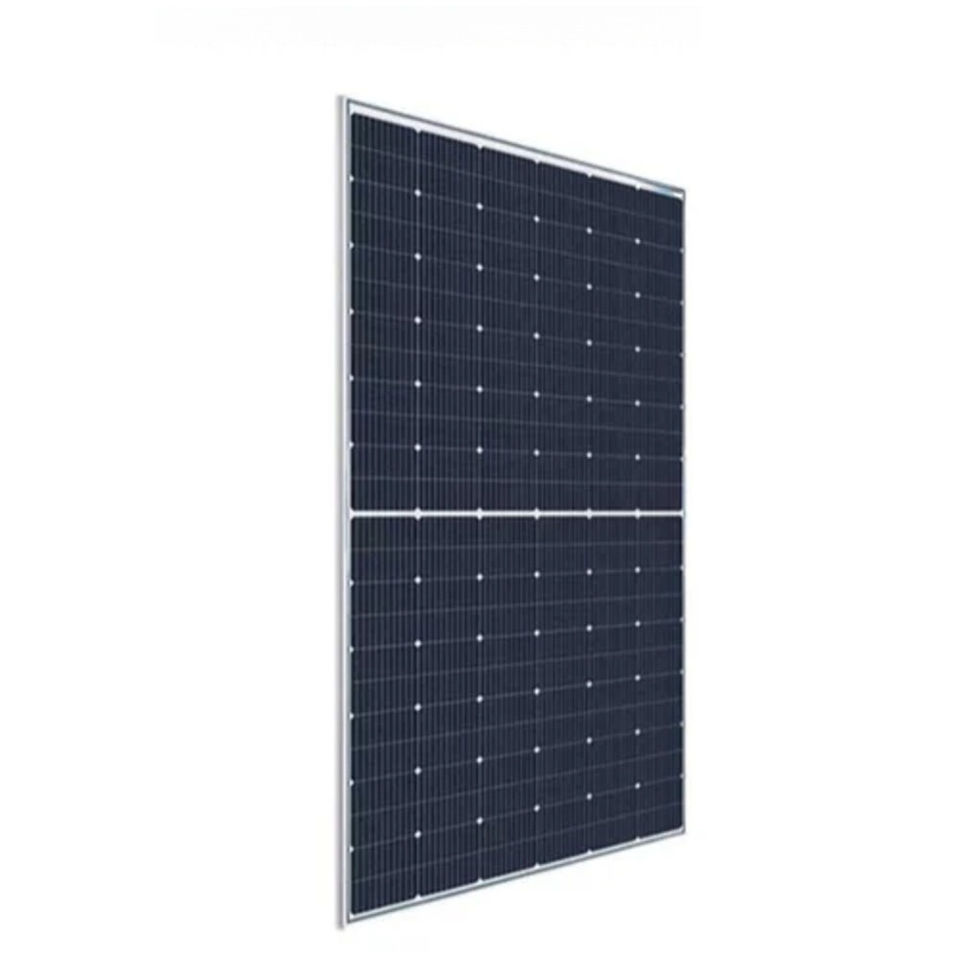

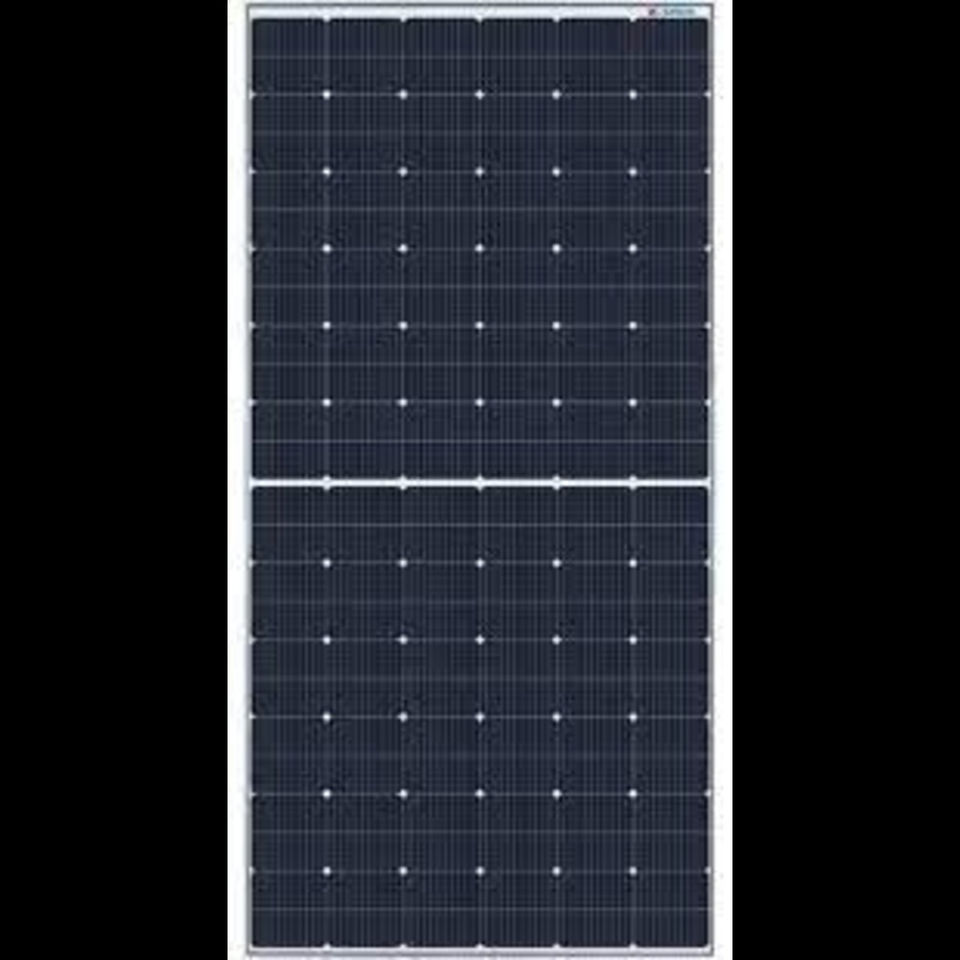

Product name:Mono Half Cut Solar Panels 490W
Frame:Silver Anodized Aluminum frame with twin wall profile
Junction Box:IP 68, Split Juncon Box with individual bypass diodes
Cable:400 mm (+ve) and 400 mm (-ve) length cables
Connector:MC 4 Connectors
Encapsulation Material:PID Free EVA (Ethylene Vinyl Acetate) - FC/UFC
Superstrate:3.2 mm high transmission low iron tempered glass, AR coated
Backsheet:Composite Film - White (Black & Transparent optional)
Mechanical load test:Sustain heavy static load (2400 Pa & 5400 Pa)
Temperature Range:-40°C to +85°C
Warranty:3 year
Selling Units:Single item
