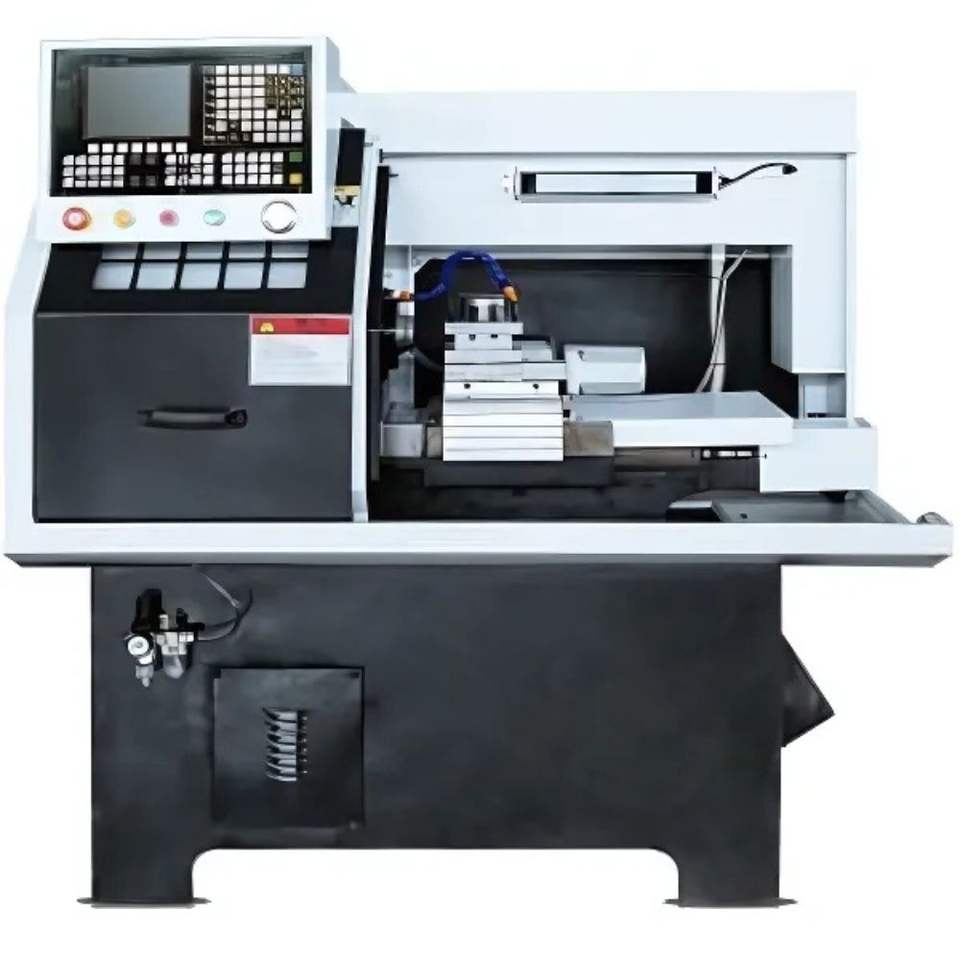

High precision automatic slant bed CNC lathe hydraulic metal cutting machine industrial grade turning center workshop tools

No reviews yet

Attributes

Horizontaltype
200max. length of workpiece (mm)
±0.01positioning accuracy (mm)
±0.01repeatability (x/y/z) (mm)
3number of axes
GSKcnc control system
no. of spindles:Single
tool post stations:4
machining capacity:Medium Duty
voltage:380 V, 220 V
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
key selling points:Multifunctional, Automatic, Competitive Price
max. weight of workpiece(kg):100
travel (x axis)(mm):250
travel (z axis)(mm):250
width of bed (mm):260
place of origin:Gujarat, India
dimension(l*w*h):1600*1000*1550
brand name:BHAVYA MACHINE TOOLS LLP
model number:CK0640-1
weight:900
range of spindle speed:1 - 3000
cutting torque:6
Max. Swing Over Bed:300 mm
Max. Swing Over Slide:100 mm
Spindle Head Type:A2-5 (GB59001)
Spindle Taper Hole:48 mm
Maximum Diameter of Bar:40 mm
Spindle Motor Maximum Speed:3000 r/min
Main Motor Power:4 kw
Maximum Swing Over Bed:300 mm
X/Z-Axis Travel:275/280 mm
Rapid Traverse Speed on X/Z-Axis:8/10 m/min
Turret Type:4 Position Electric Tool Post
Tool Size:20*20 mm

Key attributes

type
Horizontal
max. length of workpiece (mm)
200
positioning accuracy (mm)
±0.01
repeatability (x/y/z) (mm)
±0.01
number of axes
3
cnc control system
GSK
no. of spindles
Single
tool post stations
4
machining capacity
Medium Duty
voltage
380 V, 220 V
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Multifunctional, Automatic, Competitive Price
max. weight of workpiece(kg)
100
travel (x axis)(mm)
250
travel (z axis)(mm)
250
width of bed (mm)
260
place of origin
Gujarat, India
dimension(l*w*h)
1600*1000*1550
brand name
BHAVYA MACHINE TOOLS LLP
model number
CK0640-1
weight
900
range of spindle speed
1 - 3000
cutting torque
6
Max. Swing Over Bed
300 mm
Max. Swing Over Slide
100 mm
Spindle Head Type
A2-5 (GB59001)
Spindle Taper Hole
48 mm
Maximum Diameter of Bar
40 mm
Spindle Motor Maximum Speed
3000 r/min
Main Motor Power
4 kw
Maximum Swing Over Bed
300 mm
X/Z-Axis Travel
275/280 mm
Rapid Traverse Speed on X/Z-Axis
8/10 m/min
Turret Type
4 Position Electric Tool Post
Tool Size
20*20 mm

Packaging and delivery

Selling Units
Single item

Lead time

Product descriptions from the supplier

Minimum order quantity: 1 piece
$7,88117

Variations

Select now

max. swing diameter (mm): 300

300

spindle motor power(kw)

4 kW

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
