Attributes
Horizontaltype
750max. length of workpiece (mm)
600max. weight of workpiece(kg)
Singleno. of spindles
350travel (x axis)(mm)
1500travel (z axis)(mm)
positioning accuracy (mm):±0.03
repeatability (x/y/z) (mm):±0.02
place of origin:Jiangsu, China
warranty:1 Year
machining capacity:Heavy Duty
width of bed (mm):210 mm
number of axes:2
dimension(l*w*h):2200*1600*1800
brand name:Minnuo
model number:CK6140
voltage:220v/380v
cnc control system:Siemens
tool post stations:6, 8, 4
weight:2200
key selling points:High-Accuracy
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:18000 - 20000 r.p.m
cutting torque:15

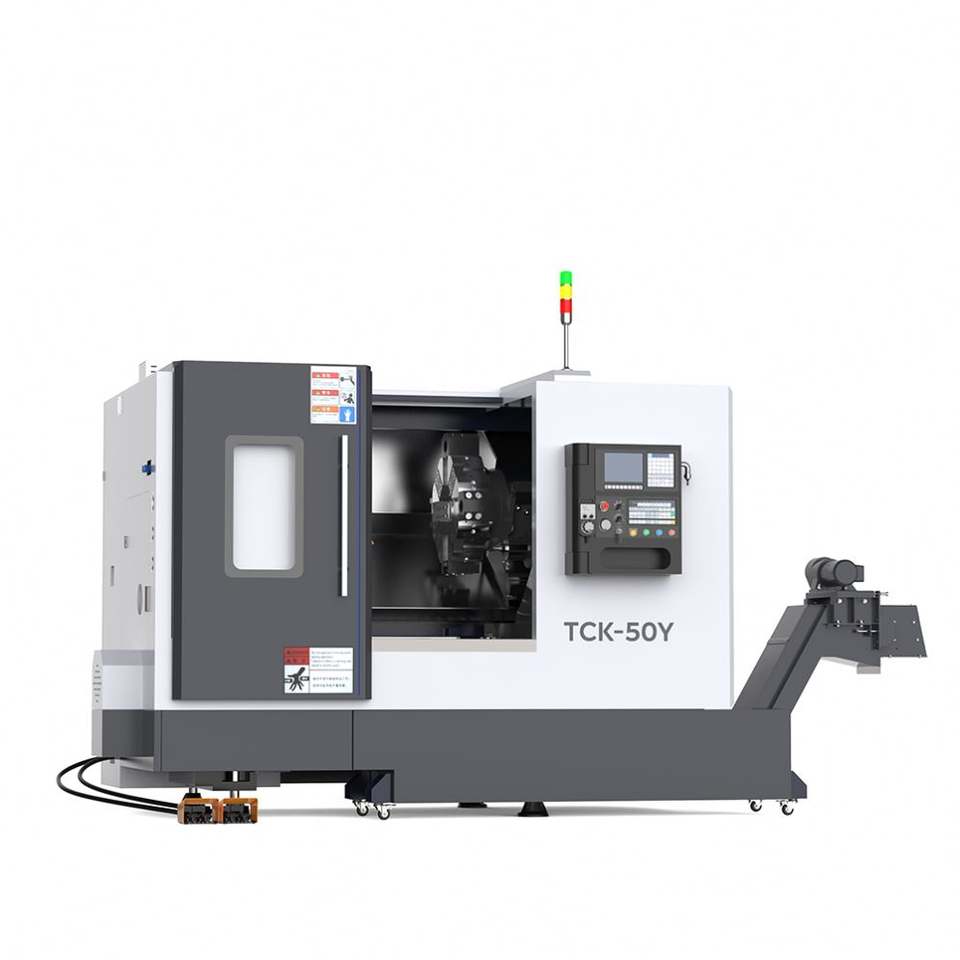

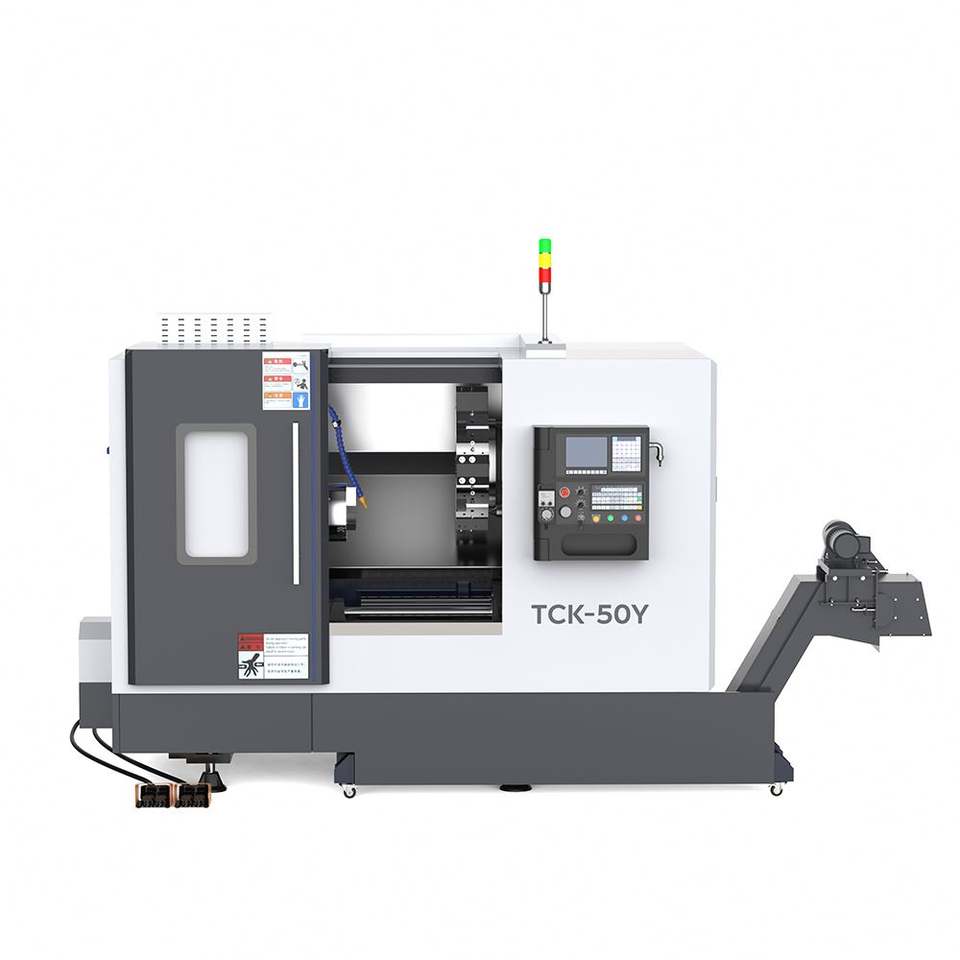

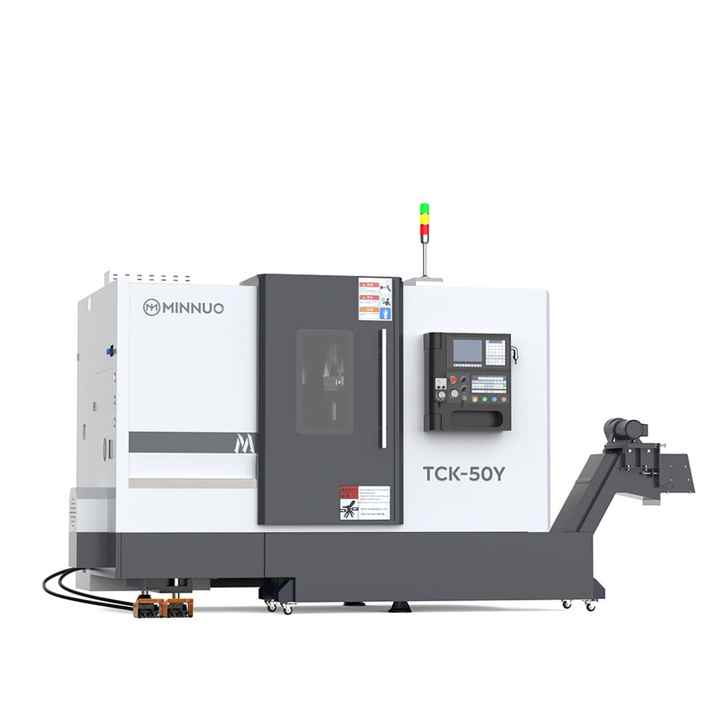

Product name:slant bed cnc lathes and automatic tool change lathe machine
CNC Controller:Siemens 808DA
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.03
Repeatability (X/Y/Z) (mm):±0.02
X axis rapid traverse:6m/min
Z axis rapid traverse:8m/min
X axis servo motor torque:5/7.5 N.m
Z axis servo motor torque:7.5/10/15N.m
Guide way type:Hard rail
Selling Units:Single item
