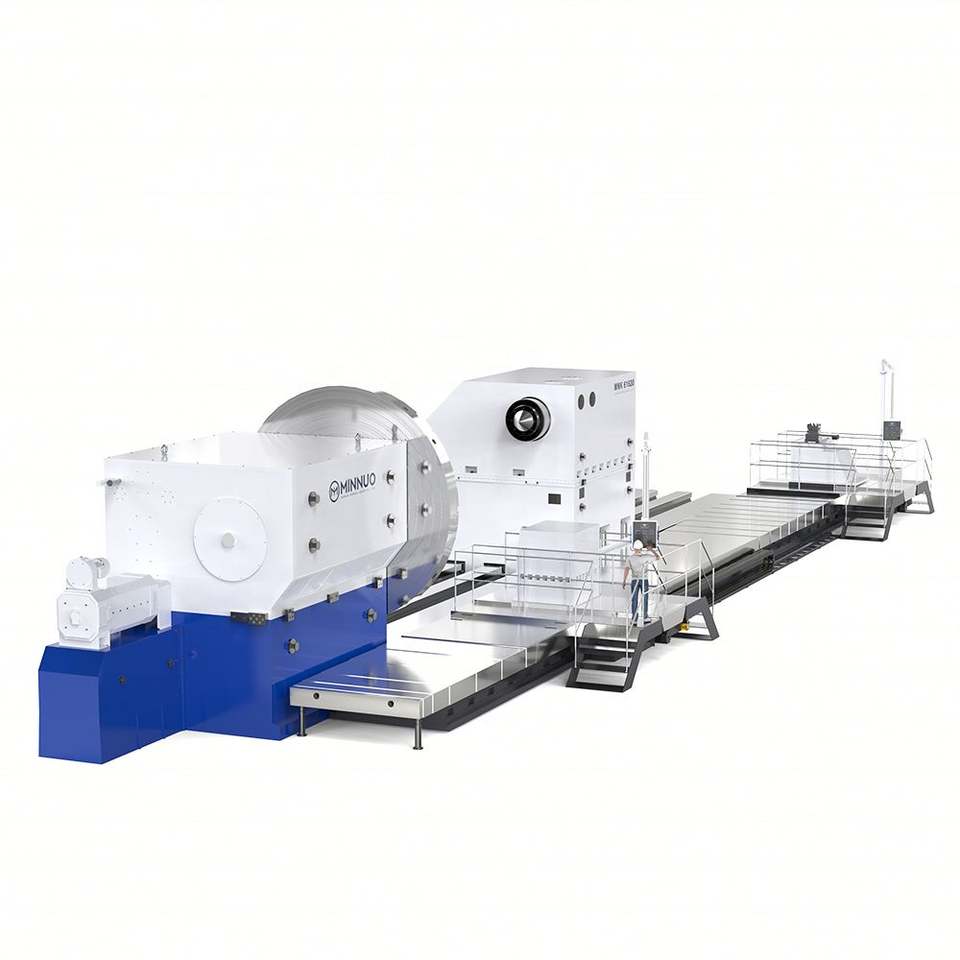

Horizontal Single Spindle Heavy Duty Lathe with Multi-Functional Capabilities for Heavy Metal Fabrication Large-Scale Projects
No reviews yet
Attributes
Horizontaltype
20000max. length of workpiece (mm)
±0.005positioning accuracy (mm)
±0.007repeatability (x/y/z) (mm)
2number of axes
FANUCcnc control system
no. of spindles:Single
tool post stations:12
machining capacity:Heavy Duty
voltage:220 V
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
key selling points:Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Low Maintenance Cost, Digital, Remote Monitoring
max. weight of workpiece(kg):200Ton
travel (x axis)(mm):4000
travel (z axis)(mm):1100
width of bed (mm):2050 mm
place of origin:Jiangsu, China
dimension(l*w*h):14000*4000*3050mm
brand name:Minnuo
model number:MN61350
weight:13000
range of spindle speed:0.63 - 160 r.p.m
cutting torque:80000
Product name:Heavy Duty Lathe with Multi-Functional Capabilities
CNC Controller:Siemens 808DA
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.003
Max.Swing diameter over bed:6300mm
Max turning diameter(Shaft/Disk):2000mm
Max turning length:4000mm
Guide way type:Hard track
Spindle speed range:0.63-160rpm
Key attributes
type
Horizontal
max. length of workpiece (mm)
20000
positioning accuracy (mm)
±0.005
repeatability (x/y/z) (mm)
±0.007
number of axes
2
cnc control system
FANUC
no. of spindles
Single
tool post stations
12
machining capacity
Heavy Duty
voltage
220 V
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Low Maintenance Cost, Digital, Remote Monitoring
brand name
Minnuo
cutting torque
80000
dimension(l*w*h)
14000*4000*3050mm(551.18*157.48*120.08in)
max. weight of workpiece(kg)
200Ton
model number
MN61350
place of origin
Jiangsu, China
range of spindle speed
0.63 - 160 r.p.m
travel (x axis)(mm)
4000
travel (z axis)(mm)
1100
weight
13000
width of bed (mm)
2050 mm(80.71in)
Product name
Heavy Duty Lathe with Multi-Functional Capabilities
CNC Controller
Siemens 808DA
CNC or Not
CNC Lathe Machine
Positioning Accuracy (mm)
±0.005
Repeatability (X/Y/Z) (mm)
±0.003
Max.Swing diameter over bed
6300mm
Max turning diameter(Shaft/Disk)
2000mm
Max turning length
4000mm
Guide way type
Hard track
Spindle speed range
0.63-160rpm
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$280,000
Variations
Select nowmax. swing diameter (mm): 6300
6300
spindle motor power(kw)
132/160/185kw
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
