Attributes
380 Vvoltage
FANUCcnc control system
Heavy Dutymachining capacity
2number of axes
Singleno. of spindles
12tool post stations
max. length of workpiece (mm):20000
key selling points:Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Low Maintenance Cost, Digital, Remote Monitoring
repeatability (x/y/z) (mm):±0.007
positioning accuracy (mm):±0.005
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):200000
travel (x axis)(mm):20000
travel (z axis)(mm):1200
place of origin:Jiangsu, China
width of bed (mm):2050
dimension(l*w*h):14000*4000*3050mm
brand name:Minnuo
model number:MN61350
weight:13000
range of spindle speed:0.63 - 160 r.p.m
cutting torque:8000

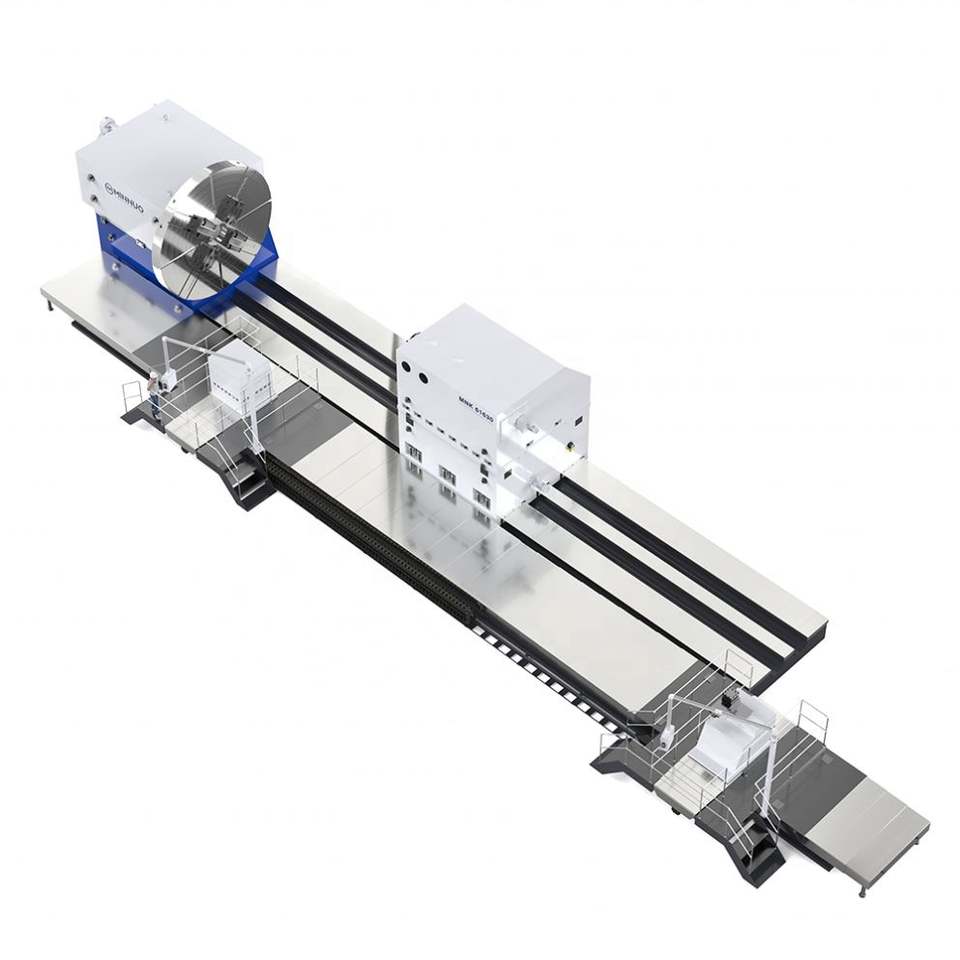

Product name:Heavy Duty CNC Lathe Maximum 20Meter cnc lathe machine automatic
CNC Controller:Siemens 808DA
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.003
Max.Swing diameter over bed:6300mm
Max turning diameter(Shaft/Disk):2000mm
Max turning length:4000mm
Guide way type:Hard track
Spindle speed range:0.63-160rpm
