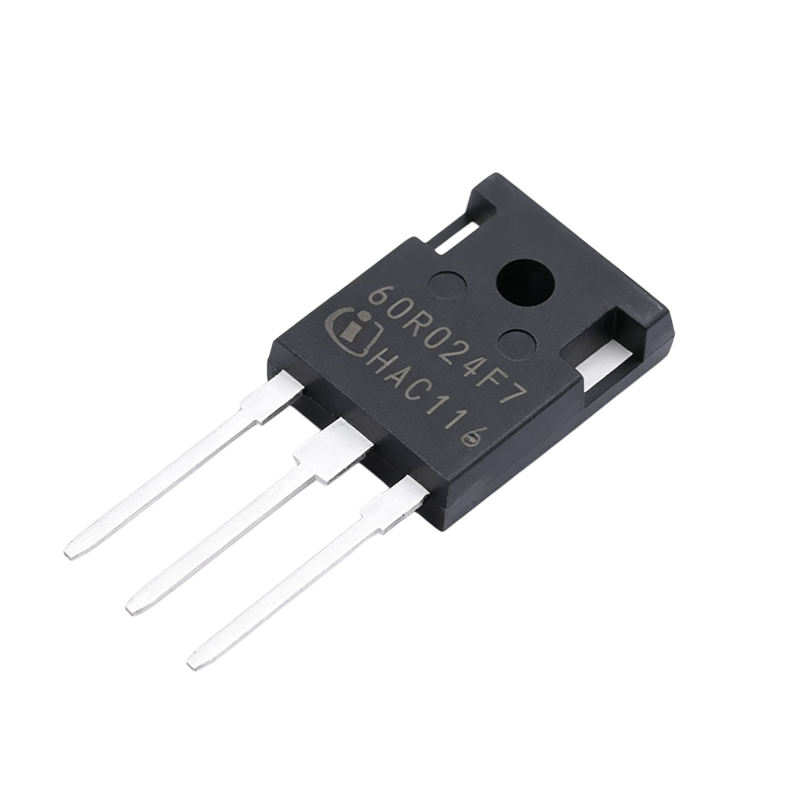

HT Original New Infineon IPW60R024CFD7 TO-247-3 600V 49A N-Channel Power MOSFET

No reviews yet
$6.24
Minimum order quantity: 100 pieces
Specification

Key attributes

Manufacturer Part Number

IPW60R024CFD7

Type

MOSFET

Brand Name

Infineon

Package Type

Tube

Description

IPW60R024CFD7 is an original Infineon CoolMOS CFD7 series N-channel power MOSFET in a TO-247-3 package. Featuring 600V drain-source voltage, 49A continuous drain current, and ultra-low 24mΩ Rds(on), it is optimized for soft-switching topologies and high-efficiency power supplies.

Place of Origin

China

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Delivery via

Expect your order to be delivered before scheduled dates or receive a 5% delay compensation

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Manufacturer Part Number
IPW60R024CFD7
Type
MOSFET
Brand Name
Infineon
Package Type
Tube
Description
IPW60R024CFD7 is an original Infineon CoolMOS CFD7 series N-channel power MOSFET in a TO-247-3 package. Featuring 600V drain-source voltage, 49A continuous drain current, and ultra-low 24mΩ Rds(on), it is optimized for soft-switching topologies and high-efficiency power supplies.
Place of Origin
China
Package / Case
TO-247-3
Operating Temperature
-55°C ~ +150°C
Series
CoolMOS CFD7 Series
Mfg Date Code
Newest Batch
Application
Soft-Switching Topologies
Supplier Type
Original Manufacturer
Media Available
Datasheet PDF
Power - Max
245W
FET Type
N-Channel
FET Feature
Standard
Drain to Source Voltage (Vdss)
600V
Current - Continuous Drain (Id) @ 25°C
49A
Rds On (Max) @ Id, Vgs
24mΩ @ 10V
Vgs(th) (Max) @ Id
3.5V
Gate Charge (Qg) (Max) @ Vgs
183nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds
7.268nF
Current Rating (Amps)
49A
Power - Output
320W
Voltage - Rated
600V
Drive Voltage (Max Rds On, Min Rds On)
10V
Vgs (Max)
±20V
Configuration
Single
Current - Drain (Idss) @ Vds (Vgs=0)
1uA @ 600V
Current Drain (Id) - Max
49A
Resistance - RDS(On)
24mΩ
Transistor Type
MOSFET
Mounting Type
Surface Mount

Packaging and delivery

Selling Units
Single item
Single package size
8X8X2 cm
Single gross weight
0.030 kg
