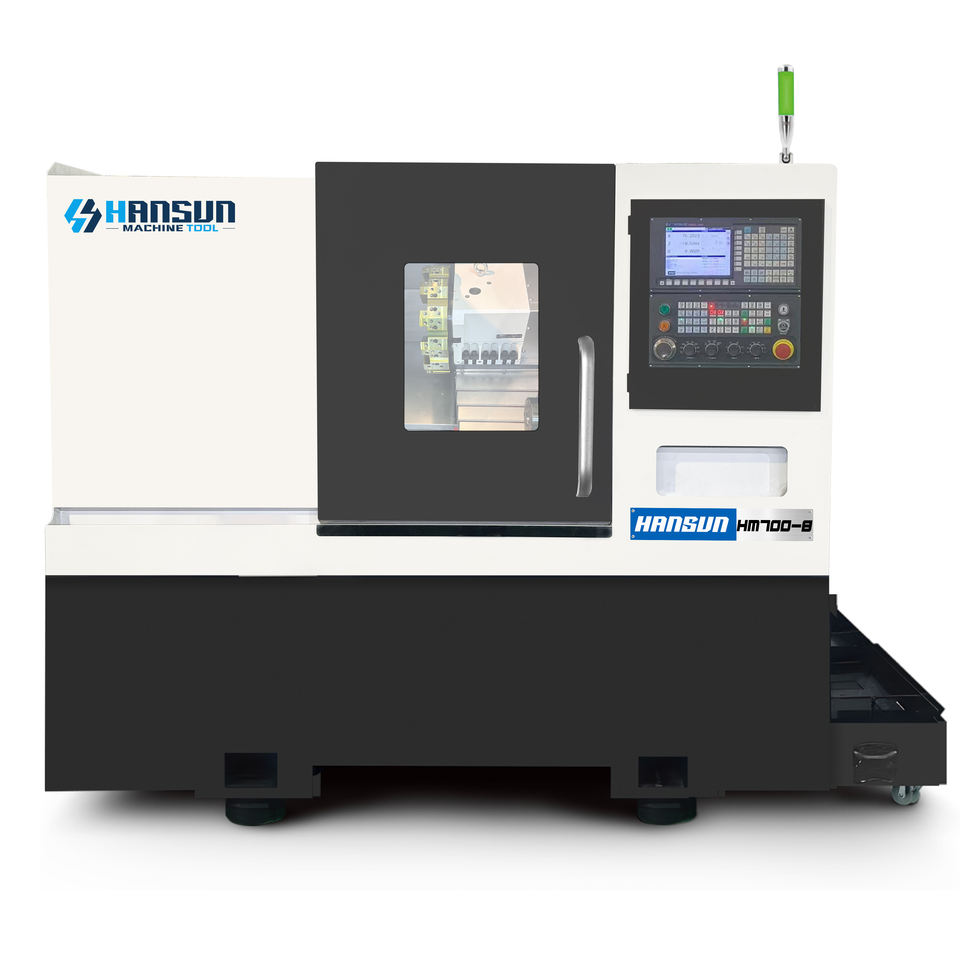

HM 700-8 Horizontal CNC Lathe with Servo Turret Single Spindle Medium Duty Slant Bed Construction Tailstock for Long Shaft Work
No reviews yet
Attributes
Horizontaltype
500max. length of workpiece (mm)
±0.003positioning accuracy (mm)
±0.005repeatability (x/y/z) (mm)
2number of axes
GSK/SYNTEC/FANUC/SIEMENScnc control system
max. weight of workpiece(kg):40
no. of spindles:Single
travel (x axis)(mm):195
travel (z axis)(mm):520
warranty:1 Year
machining capacity:Medium Duty
place of origin:Guangdong, China
dimension(l*w*h):2700*1800*2000
brand name:HS
model number:HM 700-8
voltage:220V Electrical Equipment
tool post stations:12
weight:4250
key selling points:Automatic, Multifunctional, High Safety Level, High-Accuracy, Long Service Life, High Productivity, Easy To Operate, High Rigidity, Flexible Manufacturing
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:0 - 3500
cutting torque:107
CNC or Not:CNC Automatic Lathe Machine
Machine Type:Slant Lathe Machine
Keyword:Cnc Metal Lathe Machine
Function:Turning Milling Drilling
Precision:High Precision Machine
Warranty of core components:12 months
Application:General Machined Parts
Color:White
Year:2024
Spindle speed:3500rpm
Key attributes
type
Horizontal
max. length of workpiece (mm)
500
positioning accuracy (mm)
±0.003
repeatability (x/y/z) (mm)
±0.005
number of axes
2
cnc control system
GSK/SYNTEC/FANUC/SIEMENS
no. of spindles
Single
tool post stations
12
machining capacity
Medium Duty
voltage
220V Electrical Equipment
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Automatic, Multifunctional, High Safety Level, High-Accuracy, Long Service Life, High Productivity, Easy To Operate, High Rigidity, Flexible Manufacturing
max. weight of workpiece(kg)
40
travel (x axis)(mm)
195
travel (z axis)(mm)
520
place of origin
Guangdong, China
dimension(l*w*h)
2700*1800*2000
brand name
HS
model number
HM 700-8
weight
4250
range of spindle speed
0 - 3500
cutting torque
107
CNC or Not
CNC Automatic Lathe Machine
Machine Type
Slant Lathe Machine
Keyword
Cnc Metal Lathe Machine
Function
Turning Milling Drilling
Precision
High Precision Machine
Warranty of core components
12 months
Application
General Machined Parts
Color
White
Year
2024
Spindle speed
3500rpm
Packaging and delivery
Selling Units
Single item
Single package size
270X170X175 cm
Single gross weight
4250.000 kg
Lead time
Customization options
cnc control system (Min. order: 1 set)
tool post stations (Min. order: 1 set)
brand name (Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 set
$45,850
Sample price: $900
Variations
Select nowmax. swing diameter (mm): 500
500
spindle motor power(kw)
11KW
Customization options
cnc control system (Min. order: 1 set)
tool post stations (Min. order: 1 set)
brand name (Min. order: 1 set)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
