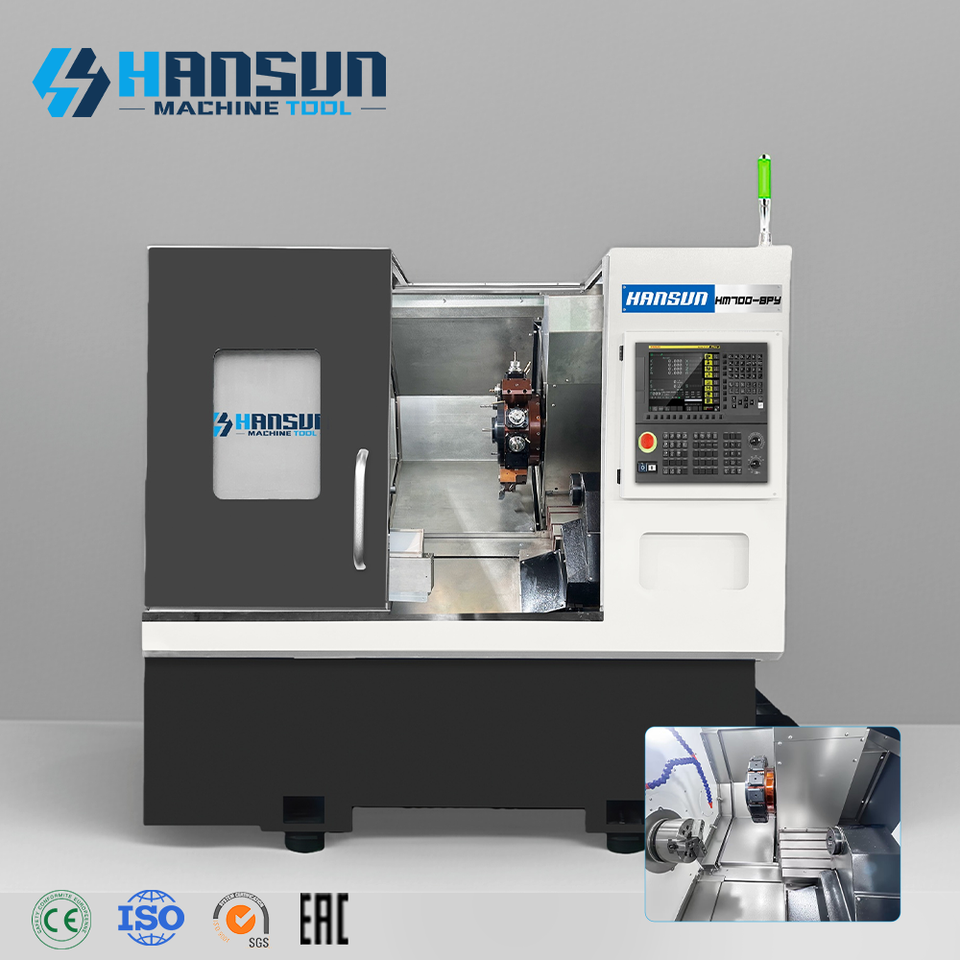

HANSUN 8 Inch Power Turret Hydraulic Tailstock High-Productivity CNC Machine with Y axis
No reviews yet
Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
3number of axes
Singleno. of spindles
15tool post stations
max. length of workpiece (mm):450
key selling points:Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Long Service Life
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year
type:cnc lahte
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):195
travel (z axis)(mm):540
place of origin:Guangdong, China
dimension(l*w*h):2700x1850x2000
brand name:HANSUN
model number:HM700-8PY
weight:4350
range of spindle speed:0 - 3500
CNC or Not:cnc
Max Swing Diameter:500mm
Max Disk-type Process Diameter:300mm
Max Process Diameter Of Tool Holder:200mm
Spindle Nose:A2-6(8 Inch)
Spindle Bore:66mm
Max Passable Bar Diameter:52mm
Tool Change Method:Turret Rotation

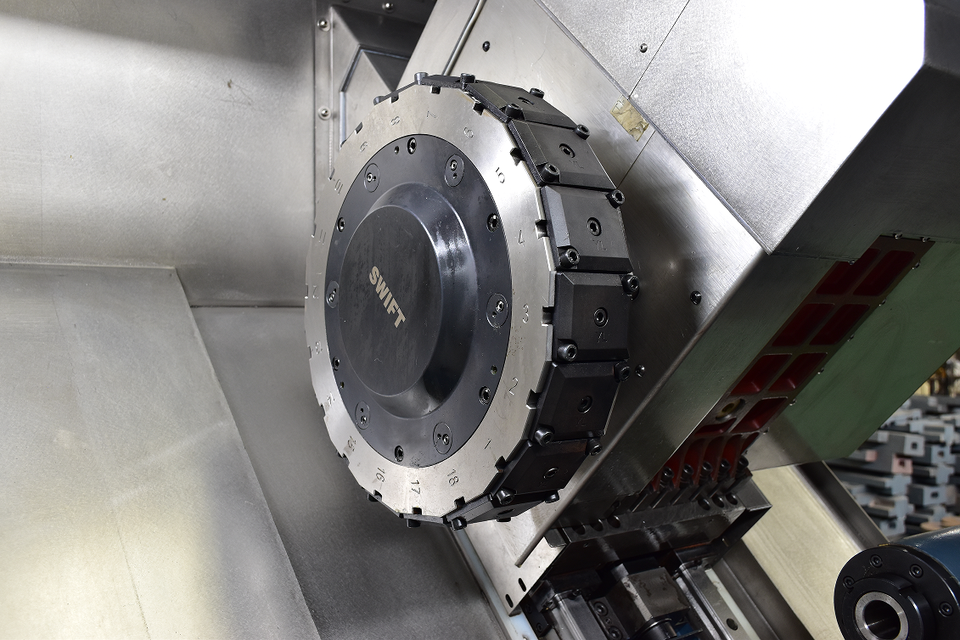

Turret:BMT45, 15-Station Y-Axis Direct-Drive Power Turret
X/Z/Y Axis Travel:195 / 540 / 100
X/Z/Y Axis Fast Moving Speed:20/20/10(Factory setting)
Tool Specifications:BMT45, ER25( 25x25;25/32)
Tailstock Configuration:Programmable Hydraulic Tailstock
Tailstock Travel:450mm
Hydraulic Station Motor Power:1.5kw
Machine Power:26kw
Key attributes
voltage
380 V, 220V Electrical Equipment
cnc control system
FANUC
machining capacity
Light Duty
number of axes
3
no. of spindles
Single
tool post stations
15
max. length of workpiece (mm)
450
key selling points
Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Long Service Life
repeatability (x/y/z) (mm)
±0.005
positioning accuracy (mm)
±0.005
warranty
1 Year
type
cnc lahte
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
50
travel (x axis)(mm)
195
travel (z axis)(mm)
540
place of origin
Guangdong, China
dimension(l*w*h)
2700x1850x2000
brand name
HANSUN
model number
HM700-8PY
weight
4350
range of spindle speed
0 - 3500
CNC or Not
cnc
Max Swing Diameter
500mm
Max Disk-type Process Diameter
300mm
Max Process Diameter Of Tool Holder
200mm
Spindle Nose
A2-6(8 Inch)
Spindle Bore
66mm
Max Passable Bar Diameter
52mm
Tool Change Method
Turret Rotation
Turret
BMT45, 15-Station Y-Axis Direct-Drive Power Turret
X/Z/Y Axis Travel
195 / 540 / 100
X/Z/Y Axis Fast Moving Speed
20/20/10(Factory setting)
Tool Specifications
BMT45, ER25( 25x25;25/32)
Tailstock Configuration
Programmable Hydraulic Tailstock
Tailstock Travel
450mm
Hydraulic Station Motor Power
1.5kw
Machine Power
26kw
Packaging and delivery
Selling Units
Single item
Single package size
2700X1850X2000 cm
Single gross weight
4350.000 kg
Lead time
Customization options
cnc control system (Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
1 - 2 sets
$50,600
>= 3 sets
$49,000
Sample price: $500
