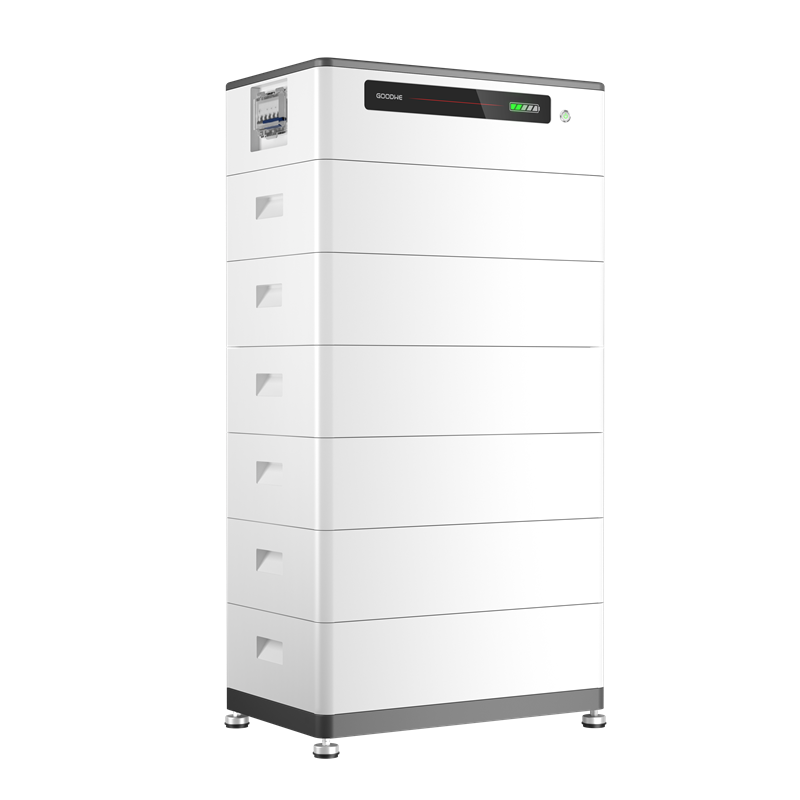

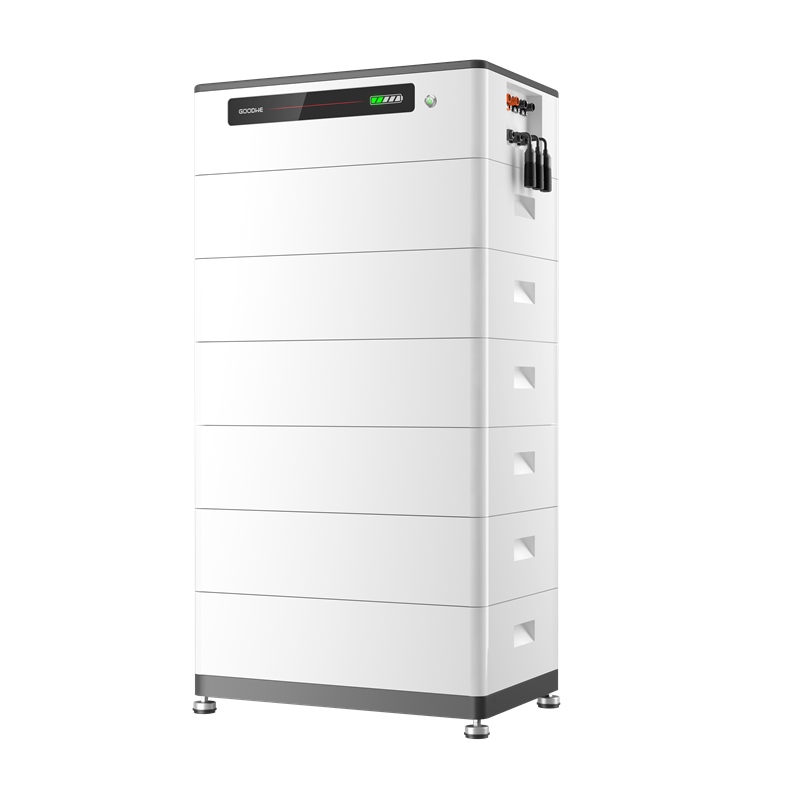

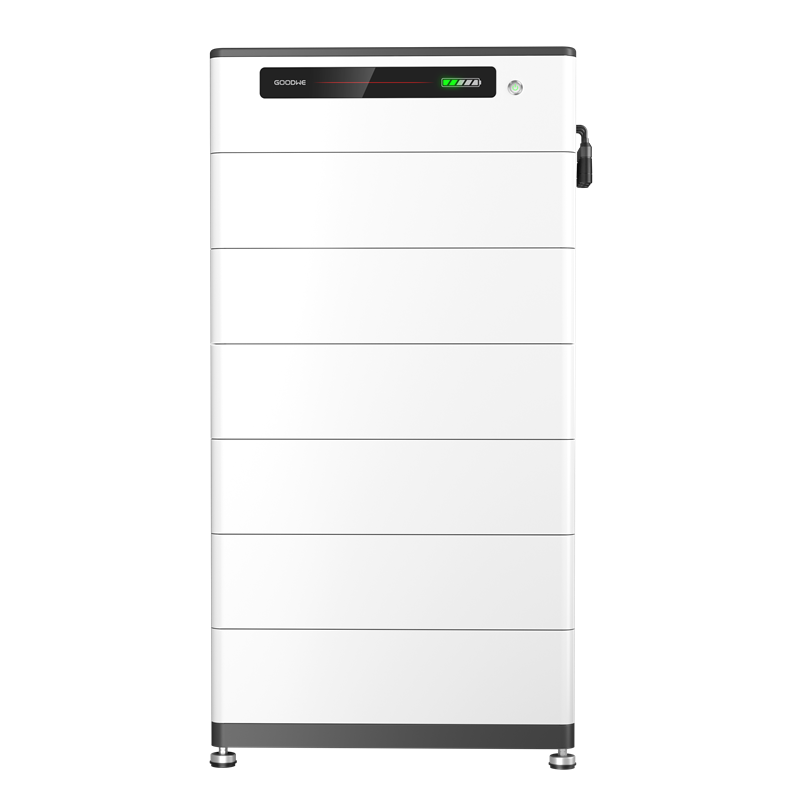

Goodwe Lynx F G2 Series LX F6.4-28.8-H-20 6.4kw 9.6kw 12.8kw 16kw 19.2kw 22.4kw 25.6kw 28.8kw HV LiFePO4 Battery
Store rating:4.3
(41 reviews)
Attributes
LiFePO4Battery Type
128 ~ 576VSystem Voltage
5-30KWOutput Power Range
Hybrid gridGrid connection
SplitType
StackableSystem Type
Protection Class:IP55
Communication Port:CAN
Place of Origin:Zhejiang, China
Model Number:Lynx F G2 Series
Brand Name:Goodwe
Dimension (L*W*H):600*380*559 mm
Weight:86 kg
Number of PCU:1
Battery Module:LX F3.2-20: 64V 3.2kWh
Cell Type:LFP (LiFePO4)
Nominal Dis- / Charge Current (A):35
Operating Temperature Range (°C):Charge: 0 ~ +50; Discharge: -20 ~ +50
Relative Humidity:0 ~ 95%
Max. Operating Altitude (m):3000
Mounting Method:Grounded
EMC:CE, RCM
Transportation:UN38.3
Key attributes
Battery Type
LiFePO4
System Voltage
128 ~ 576V
Output Power Range
5-30KW
Grid connection
Hybrid grid
Type
Split
System Type
Stackable
Protection Class
IP55
Communication Port
CAN
Brand Name
Goodwe
Dimension (L*W*H)
600*380*559 mm
Model Number
Lynx F G2 Series
Place of Origin
Zhejiang, China
Weight
86 kg
Number of PCU
1
Battery Module
LX F3.2-20: 64V 3.2kWh
Cell Type
LFP (LiFePO4)
Nominal Dis- / Charge Current (A)
35
Operating Temperature Range (°C)
Charge: 0 ~ +50; Discharge: -20 ~ +50
Relative Humidity
0 ~ 95%
Max. Operating Altitude (m)
3000
Mounting Method
Grounded
EMC
CE, RCM
Transportation
UN38.3
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$1,925-6,560
Variations
Select nowColor: White
容量: 3.2kWh
3.2kWh
输出功率
6.4KWH
9.6KWH
12.8KWH
16KWH
19.2KWH
22.4KWH
25.6KWH
+1
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
