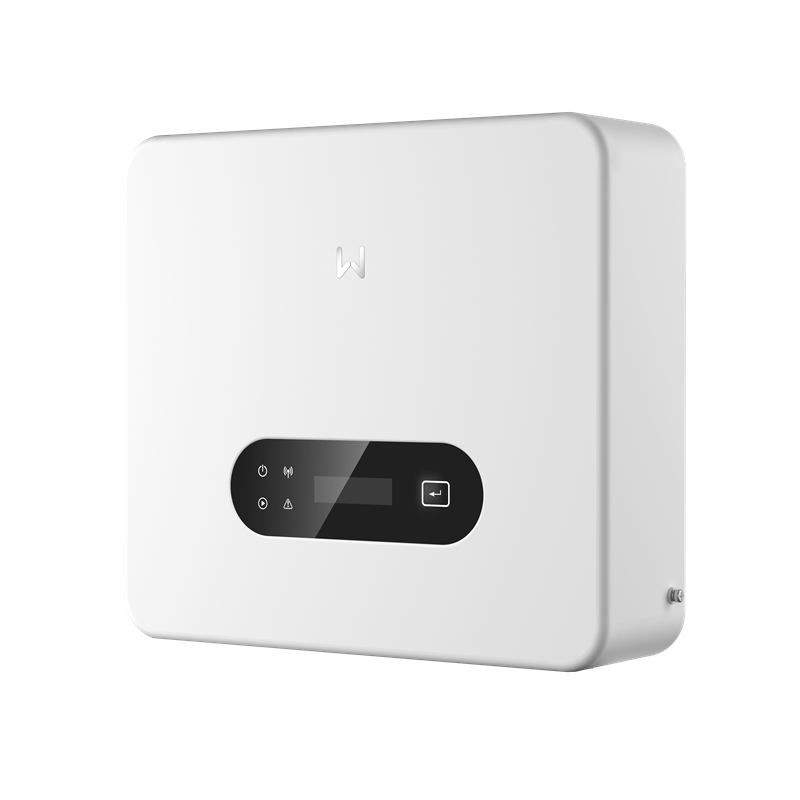

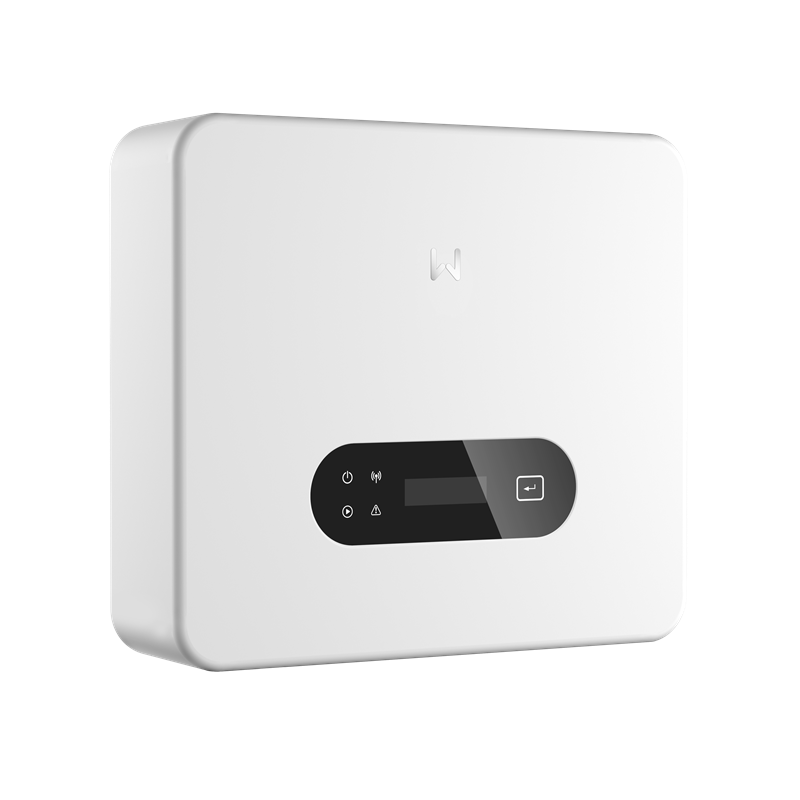

Goodwe GW3-6K-DNS-G40 Three Phase Residential Grid Tie Inverter 3KW to 6KW Power Range Home Solar System Installation
No reviews yet
Attributes
Three PhaseOutput Type
DC/AC InvertersType
GoodweBrand Name
98.1%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
GW3-6K-DNS-G40Model Number
Input Voltage:40 ~ 560V
Output Voltage:220 / 230 / 240V
Output Current:13.7-27.3A
Output Frequency:50Hz/60Hz
Size:358*323*165 mm
Weight:9.2kg
Max.Input Voltage (V):600
MPPT Operating Voltage Range (V):40 ~ 560
Start-up Voltage (V):50
Nominal Input Voltage (V):360
Max. Input Current per MPPT (A):20
Max. Short Circuit Current per MPPT (A):26
User Interface:LED + LCD / WiFi + APP / Bluetooth + APP
Communication:RS485, WIFI, LAN, Bluetooth, 4G
Topology:Non-isolated
Ingress Protection Rating:IP66
Key attributes
Output Type
Three Phase
Type
DC/AC Inverters
Brand Name
Goodwe
Inverter Efficiency
98.1%
Place of Origin
Zhejiang, China
Model Number
GW3-6K-DNS-G40
Input Voltage
40 ~ 560V
Output Voltage
220 / 230 / 240V
Output Current
13.7-27.3A
Output Frequency
50Hz/60Hz
Size
358*323*165 mm
Weight
9.2kg
Max.Input Voltage (V)
600
MPPT Operating Voltage Range (V)
40 ~ 560
Start-up Voltage (V)
50
Nominal Input Voltage (V)
360
Max. Input Current per MPPT (A)
20
Max. Short Circuit Current per MPPT (A)
26
User Interface
LED + LCD / WiFi + APP / Bluetooth + APP
Communication
RS485, WIFI, LAN, Bluetooth, 4G
Topology
Non-isolated
Ingress Protection Rating
IP66
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$315-348
Variations
Select nowApplication: On-Grid Solar System
On-Grid Solar System
Output Power: 3.6KW(4.83hp)
3.6KW(4.83hp)
3 kW(4.02hp)
5 kW(6.71hp)
6 kW(8.05hp)
4.2kw(5.63hp)
Inverter Type
String Inverter
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
