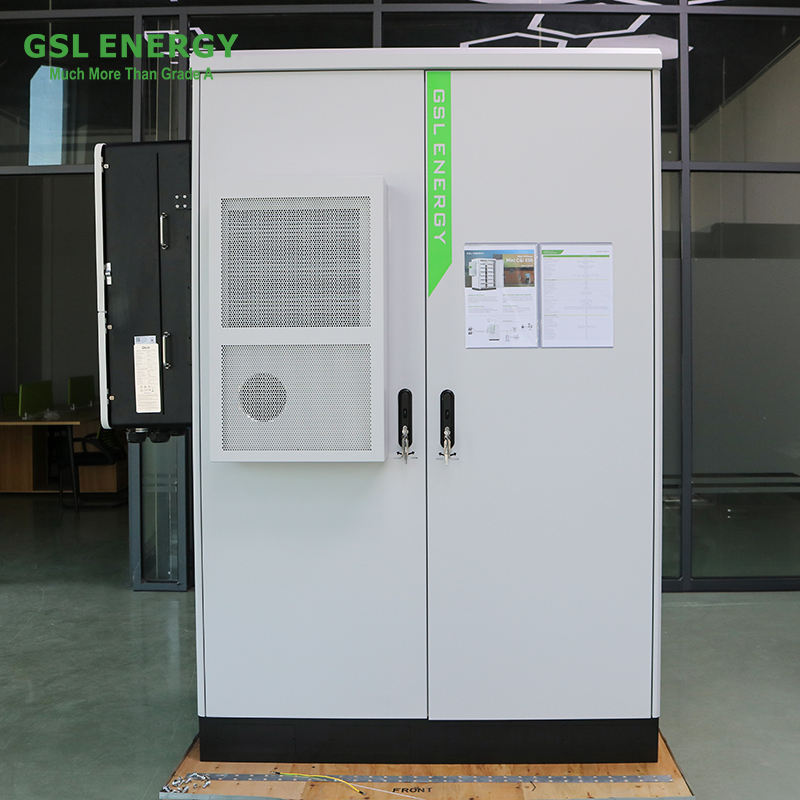

GSL Energy 50kVA 186kWh All-In-One Energy Storage System Fast Install High Voltage Off-Grid Lifepo4 Battery Storage Cabinet
No reviews yet
Attributes
LiFePO4Battery Type
Hybrid grid, On gridGrid connection
AIR COOLINGCooling
IP54Protection Class
CAN, RS485Communication Port
Guangdong, ChinaPlace of Origin
Model Number:GSL-BESS-50K186
Brand Name:GSL ENERGY
Dimension (L*W*H):1400x1100x2150 (no contain inverter)
Weight:2515.5kg (no contain inverter)
Nominal Output Power/UPS Power (W):50000
AC Output Frequency and Voltage:50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type:Three phase
Energy Configuration (kWh):186kwh
System Certification:UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
Max. PV Input Power (W):65000
Rated PV Input Voltage (Vdc):600
Number of MPPT:4
Operating Temperature Range (c):-40~60( 45c derating)
Battery Module Nominal Voltage (V):665.6
Key attributes
Battery Type
LiFePO4
Grid connection
Hybrid grid, On grid
Cooling
AIR COOLING
Protection Class
IP54
Communication Port
CAN, RS485
Brand Name
GSL ENERGY
Dimension (L*W*H)
1400x1100x2150 (no contain inverter)
Model Number
GSL-BESS-50K186
Place of Origin
Other
Weight
2515.5kg (no contain inverter)
Nominal Output Power/UPS Power (W)
50000
AC Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type
Three phase
Energy Configuration (kWh)
186kwh
System Certification
UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
Max. PV Input Power (W)
65000
Rated PV Input Voltage (Vdc)
600
Number of MPPT
4
Operating Temperature Range (c)
-40~60( 45c derating)
Battery Module Nominal Voltage (V)
665.6
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 9 pieces
$29,439
10 - 29 pieces
$28,556
>= 30 pieces
$27,673
Variations
Select nowColor: Light Grey
System Energy Range: 100-200KW
100-200KW
Capacity: 186KWH
186KWH
System Voltage Range
200-500 V
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
