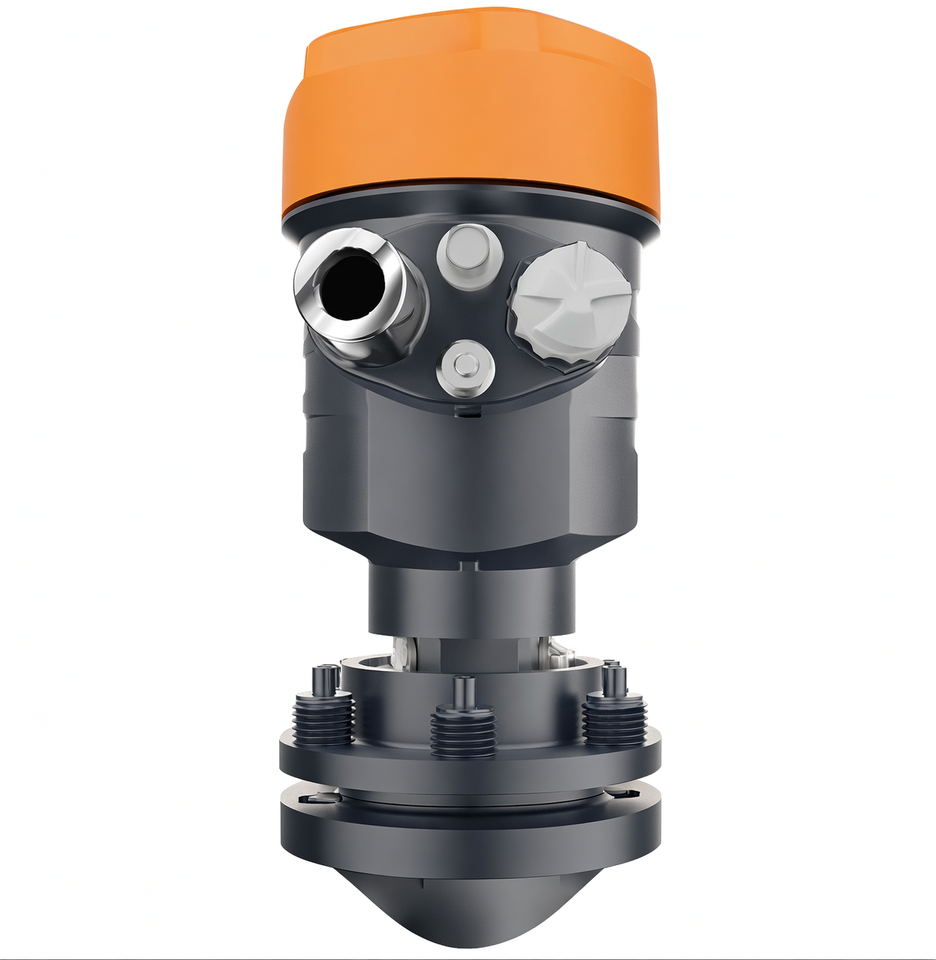

GAMICOS GLT742 High Frequency 1mm 80G Radar Level Sensor for Environmental Monitoring
No reviews yet
Attributes
Level GaugeType
±0.1%, ±0.03%, ±0.05%Accuracy
ABS, Aluminium Alloy, Glassmaterial
1 Yearwarranty
OEM, ODMcustomized support
GAMICOSbrand name
place of origin:Shaanxi, China
Transmit:76GHz~81GHz
Measurement range:0.08m ~30m(Liquids);0.3m~60m; 0.6m~120m
Beam angle:3°
Power supply:15~28.0VDC, 2-wire
Signal output:4~20mA, RS485
Working:-40~85℃/≤95%RH
Housing shell material:Aluminum alloy
Antenna type:Lens antenna
Process pressure:-0.1~20MPa
Key attributes
Type
Level Gauge
Accuracy
±0.1%, ±0.03%, ±0.05%
material
ABS, Aluminium Alloy, Glass
warranty
1 Year
customized support
OEM, ODM
brand name
GAMICOS
place of origin
Other
Transmit
76GHz~81GHz
Measurement range
0.08m ~30m(Liquids);0.3m~60m; 0.6m~120m
Beam angle
3°
Power supply
15~28.0VDC, 2-wire
Signal output
4~20mA, RS485
Working
-40~85℃/≤95%RH
Housing shell material
Aluminum alloy
Antenna type
Lens antenna
Process pressure
-0.1~20MPa
Packaging and delivery
Selling Units
Single item
Package size per batch
15X20X30 cm
Gross weight per batch
3.560 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$600
Variations
Select nowMeasurement Range: 0-10m
0-10m
0-15m
model number
GLT742
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
