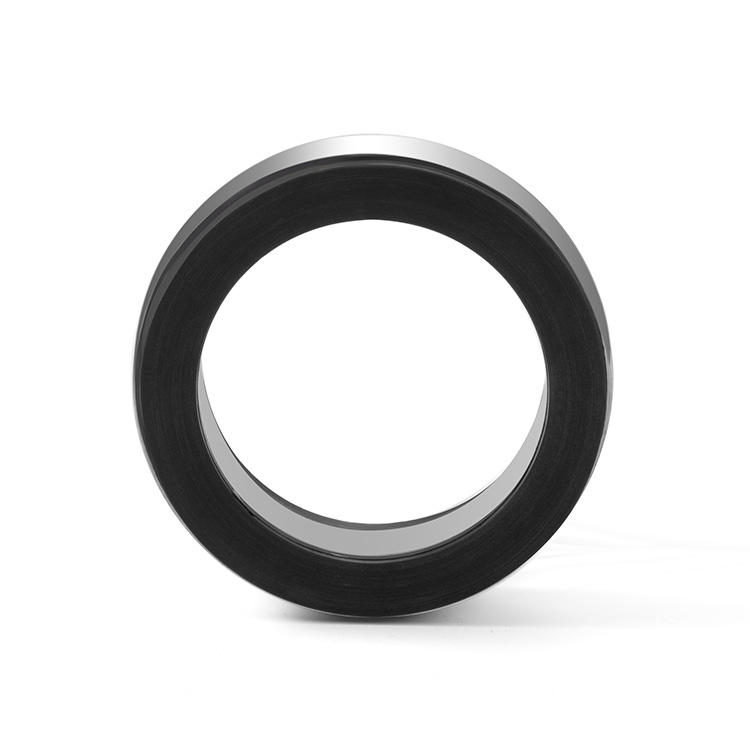

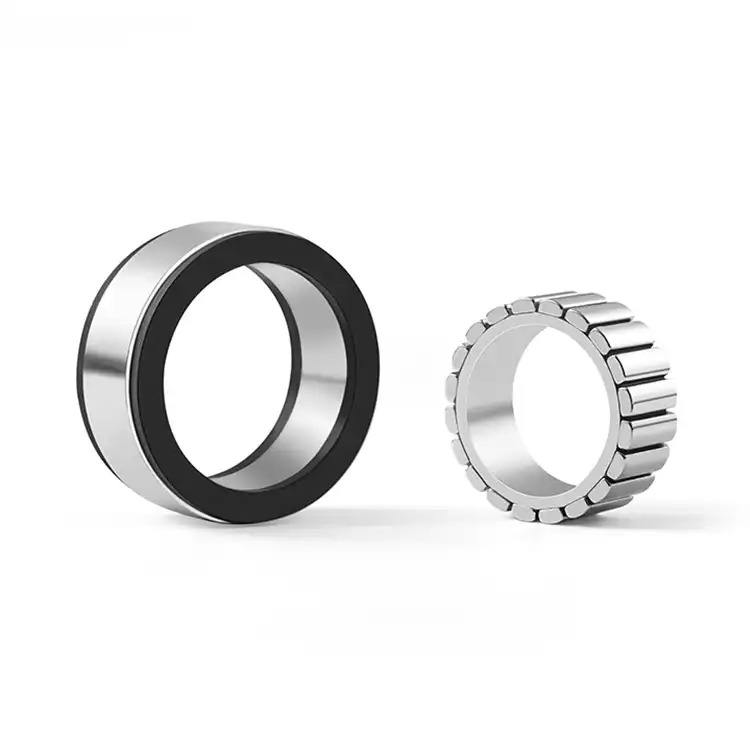

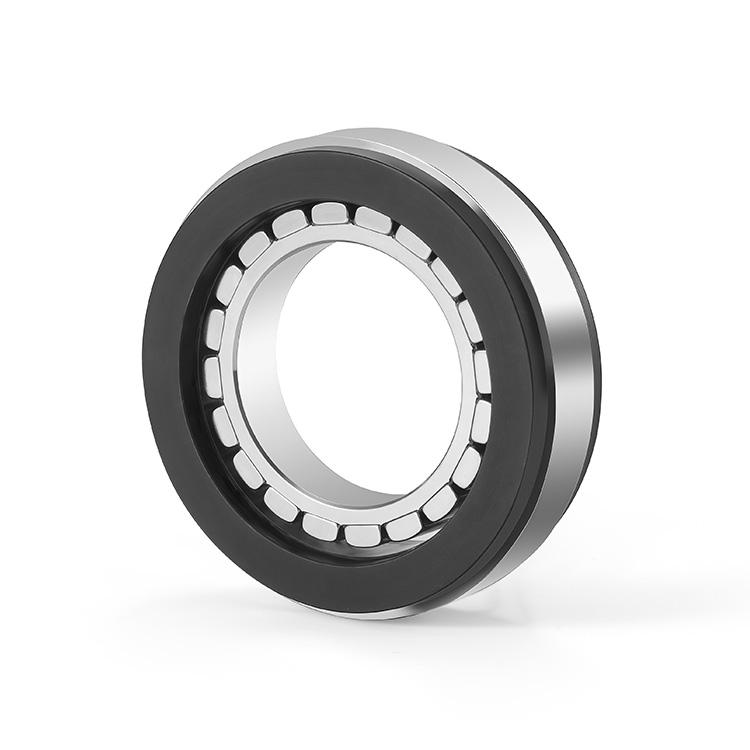

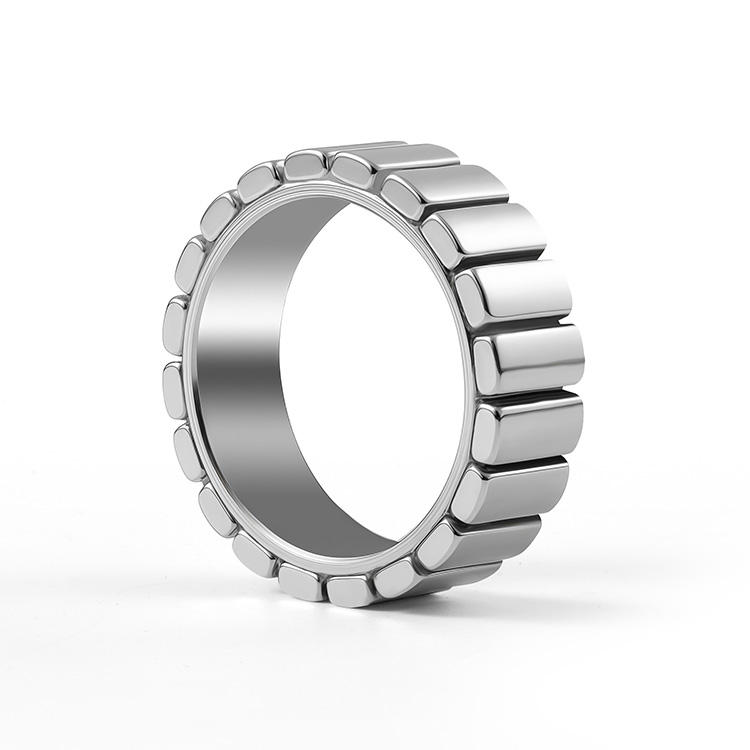

Frameless Bldc Motor 48V Direct Drive Torque Motor with OD60mm Torque 0.6NM Height 22mm for Medical Surgery Robot Joint and Arm
Store rating:4.6
(15 reviews)
Attributes
BrushlessCommutation
189WRated Power
3000 RPMSpeed Rpm
3000RPMSpeed(RPM)
otherIP Rating
IE 4Efficiency
Continuous Current(A):3.5A
Place of Origin:Guangdong, China
Frame:NO
Motor Mounting Type:Glue type

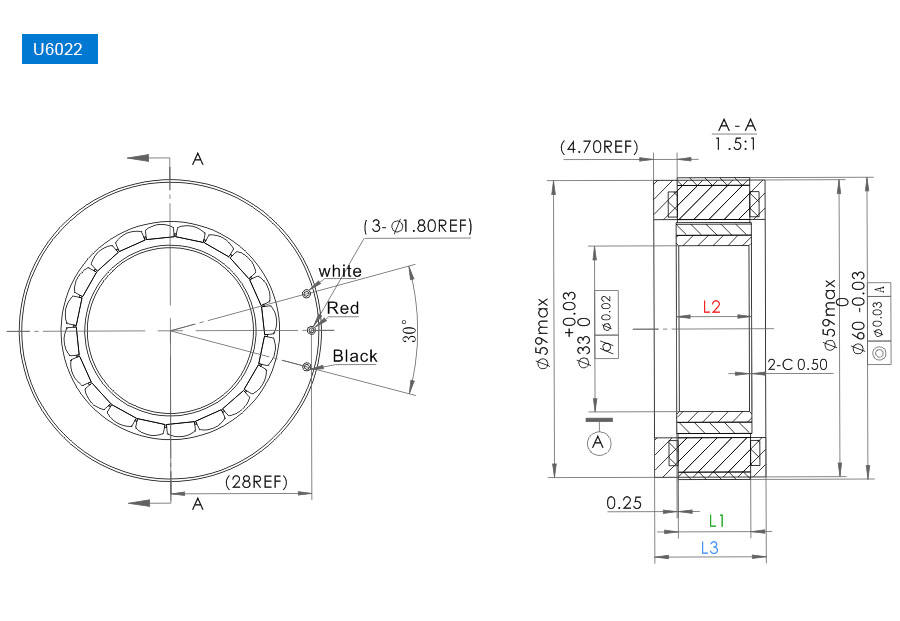

Model Number:U6022
Brand Name:other
Construction:Permanent Magnet
Protect Feature:Totally Enclosed
Torque:0.6NM
Type:Brushless Motor
Usage:Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty:Other
OD(mm):60
Height(mm):24.4
Voltage (VDC):48
Rated Output*1 (W):189
Rated torque*1 (Nm):0.6
Instant Max Torque*1 (Nm):1.8
Rated Current*1 (Arms):3.5
Instant Max Current*1 (Arms):11
Rated Speed*1 (Rpm):3000
Max Speed*1 (Rpm):6000
Key attributes
Commutation
Brushless
Rated Power
189W
Speed Rpm
3000 RPM
Speed(RPM)
3000RPM
IP Rating
other
Efficiency
IE 4
Type
Brushless Motor
Construction
Permanent Magnet
Frame
NO
Motor Mounting Type
Glue type
Protect Feature
Totally Enclosed
Usage
Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other
Continuous Current(A)
3.5A
Model Number
U6022
Torque
0.6NM(0in)
Place of Origin
Guangdong, China
Brand Name
other
OD(mm)
60
Height(mm)
24.4
Voltage (VDC)
48
Rated Output*1 (W)
189
Rated torque*1 (Nm)
0.6
Instant Max Torque*1 (Nm)
1.8
Rated Current*1 (Arms)
3.5
Instant Max Current*1 (Arms)
11
Rated Speed*1 (Rpm)
3000
Max Speed*1 (Rpm)
6000
Packaging and delivery
Selling Units
Single item
Single package size
12X12X12 cm
Single gross weight
40.000 kg
Lead time
Product descriptions from the supplier
2 - 299 pieces
$80
>= 300 pieces
$46
Variations
Select nowRated voltage: /
/
Output Power: 189W
189W
Speed of Revolution
3000RPM
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
