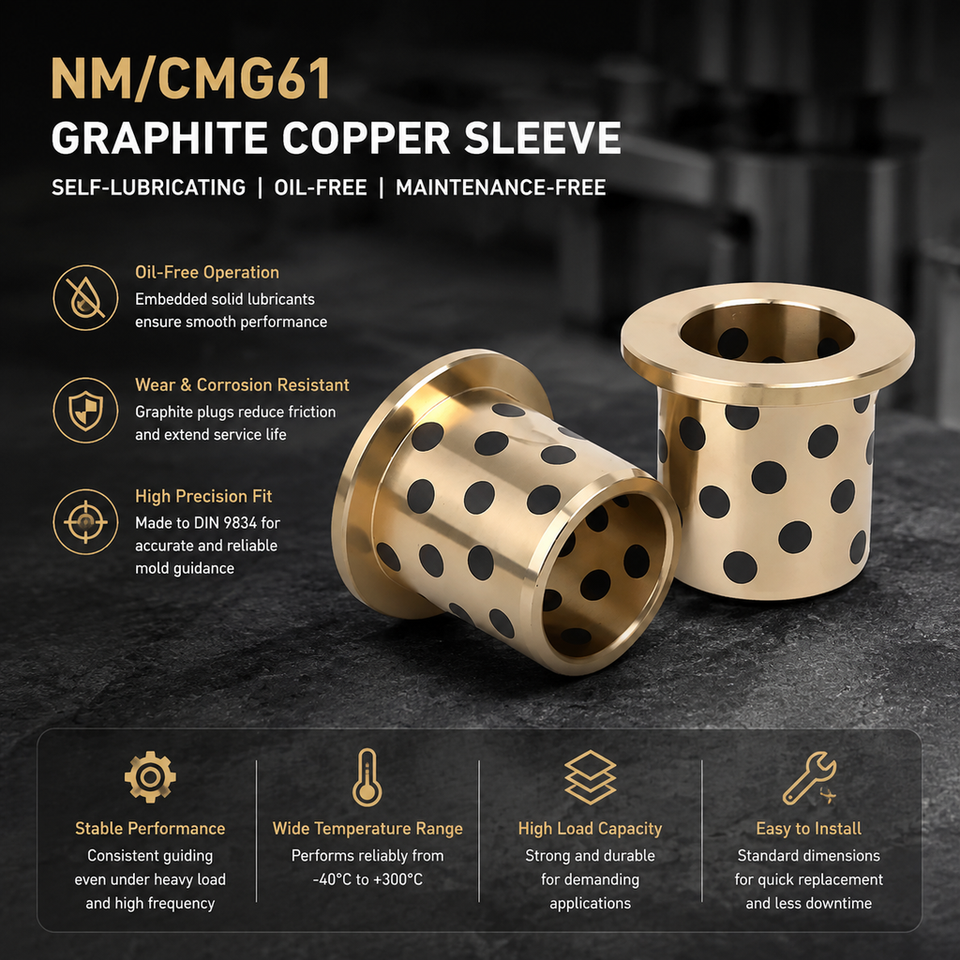

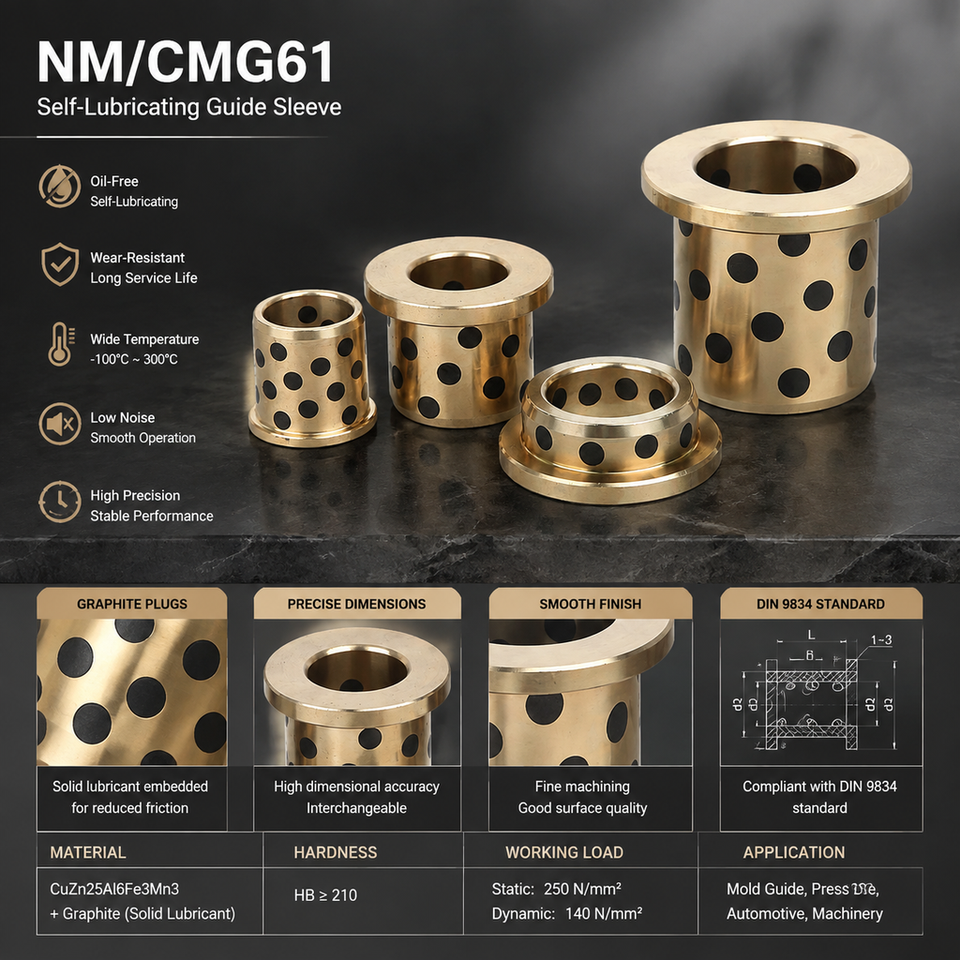

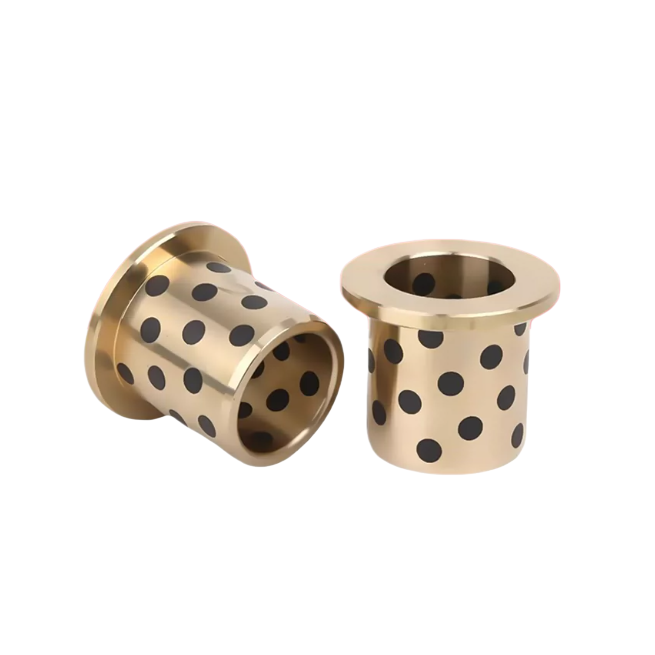

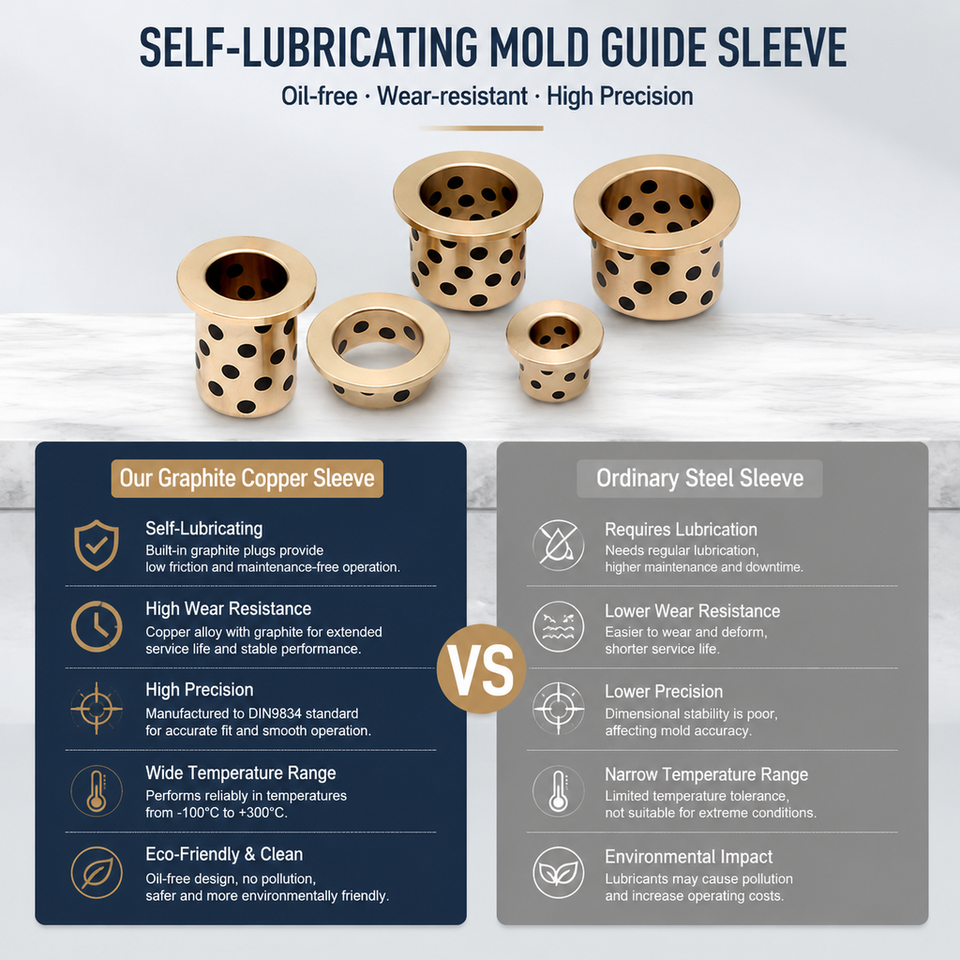

Flanged DIN9834 Graphite Copper Guide Bushing Mold Sleeve Self Lubricating Anti Friction Dry Run For Progressive Die Use

No reviews yet
$4
200-499 pieces
$3.97
500-999 pieces
$3.95
1,000-1,999 pieces
$3.80
≥2,000 pieces
Sample price: $10

Quantity

Customization options
Color customization+$0.20/piece (Min. order: 10,000 pieces)

Key attributes

Applicable Industries

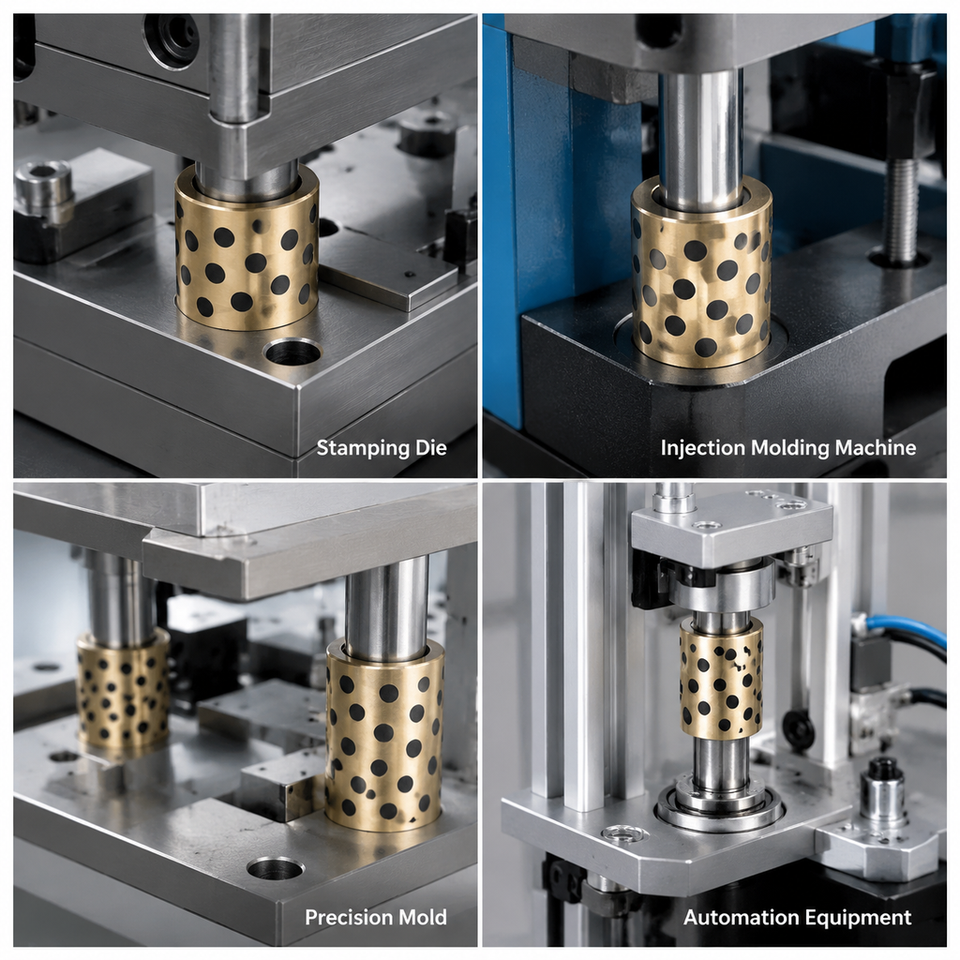

Construction works, Manufacturing Plant, Building Material Shops, Machinery Repair Shops

Material

Graphite Bronze Alloy

Type

Sleeve

Place of Origin

Zhejiang, China

Inside Diameter Tolerance

±0.01 mm

Lubrication

Grease

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Item subtotal
$0.00
Shipping total
To be negotiated
Subtotal
$0.00

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Applicable Industries
Construction works , Manufacturing Plant, Building Material Shops, Machinery Repair Shops
Material
Graphite Bronze Alloy
Type
Sleeve
Place of Origin
Zhejiang, China
Inside Diameter Tolerance
±0.01 mm
Lubrication
Grease
Outside Diameter Tolerance
±0.01 mm
Overall Length
10 mm
Model Number
DX-5
Brand Name
JDB MPBZ
Bore Geometry
Round
Logo/graphic design
Laser Carving
Product name
Graphite Bronze Bushing / Self-Lubricating Guide Bush
Bush types
Tube
Features
Corrosion Resistance
Lubricating
Self-lubricating
Size
12*15*10
Service
OEM Services
Packing
Carton
Samples
Avaliable
MOQ
50pcs
Weight
0.1kg
Precision / Tolerance
Standard tolerance H7/g6 for guide applications
Hardness
60-90 HB (Brinell Hardness, for the bronze matrix)
PV Value (Max.)
1.8 MPa m/s (Typical, for continuous operation)
Coefficient of Friction
0.10 - 0.20 (Dry against steel, dynamic)

Packaging and delivery

Selling Units
Single item
Single package size
10X5X30 cm
Single gross weight
2.000 kg

Lead time

Customization options

Color customization(+ from +$0.2/piece/Min. order: 10,000 pieces)
