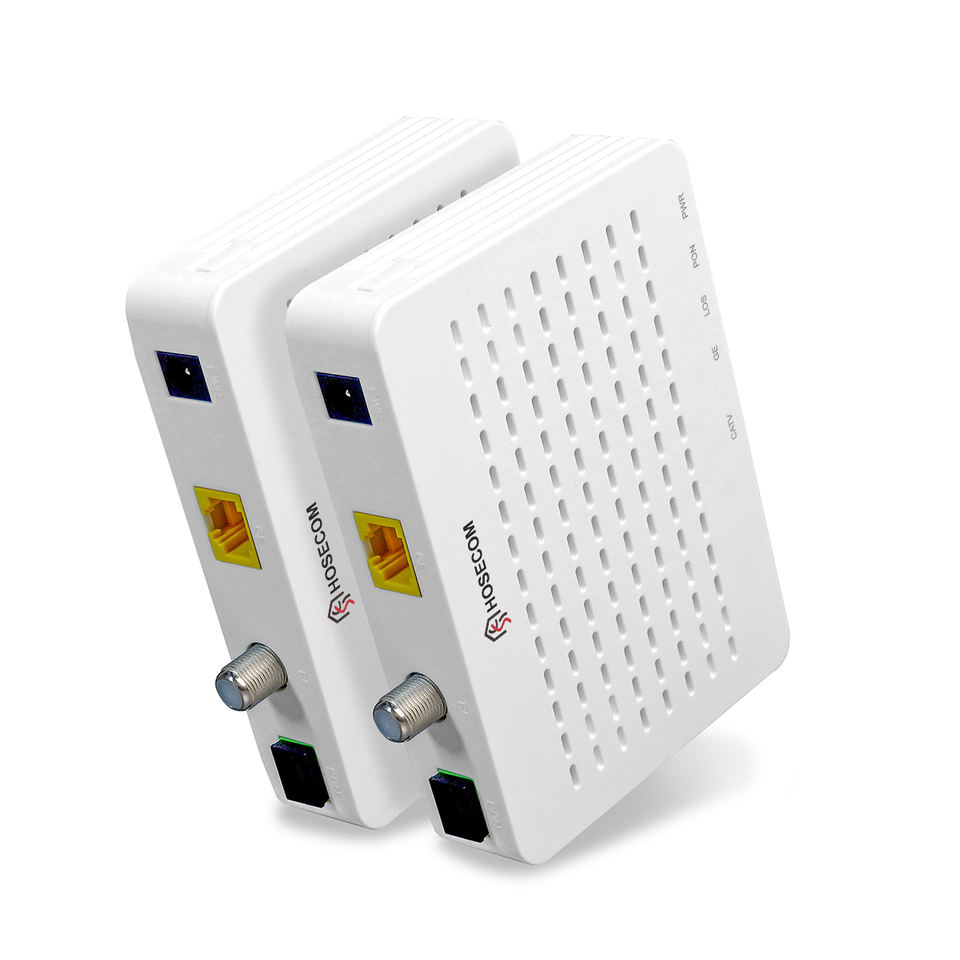

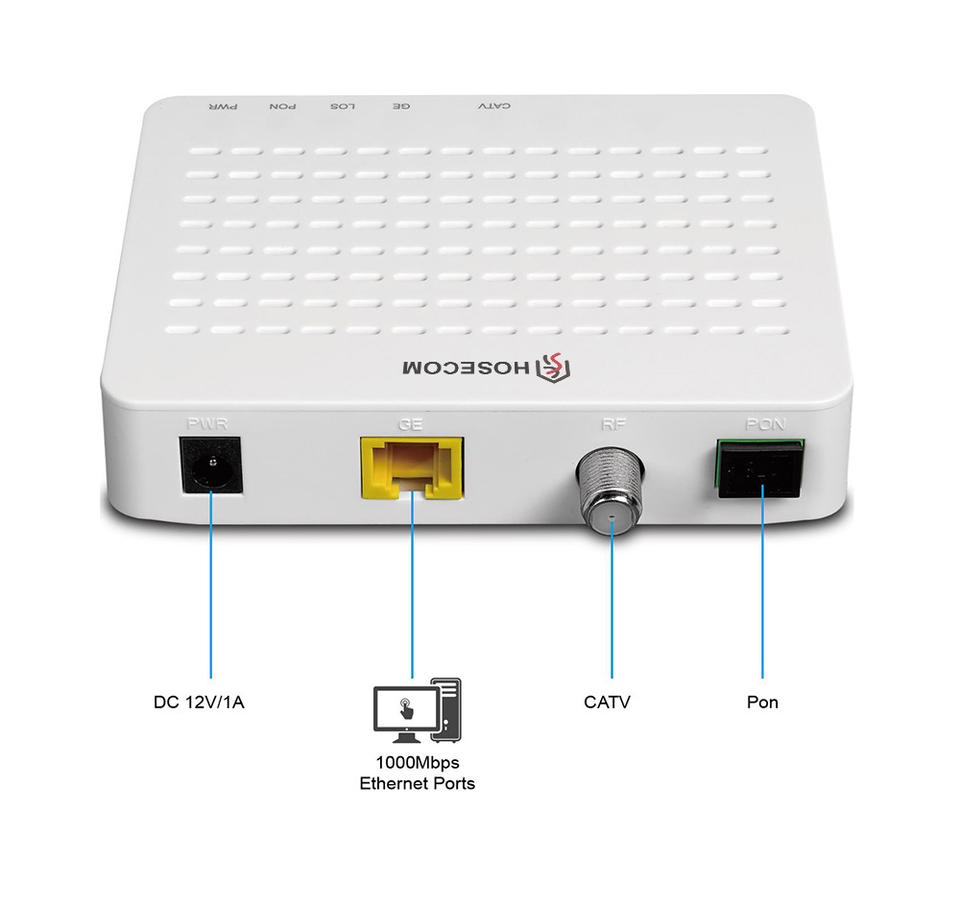

FTTH ONU G53C, 1 Gigabit Ethernet Port, RF CATV Port, Support Triple Play Service (VoIP Ready) Fiber Optic Equipment free sample
No reviews yet
Attributes
ONUType
APCConnector Type
Dc 12VPower Source
FTTHUse
Wired LAN, TCP, Ip, CATV, XPonNetwork
G53CModel Number
Brand Name:HOSECOM
Place of Origin:Guangdong, China
Warranty Time:2 Year
Port:RJ45
Product name:Universal XPON ONU with CATV Port, GPON/EPON Adaptive, 1GE
Use:FTTH
Application:FTTH PON CATV
Color:White
Work model:GPon EPon adaptive
Power:DC 12V/1.5A
Working wavelength:PON:TX1310,RX1490; CATV:1150~1600
The light emitting power:1 ~ +4(xPON)
Transmission distance:0~20km
Transmission rate:GPON: Up 1.244Gbps;Down 2.488Gbps EPON: Up 1.244Gbps;Down 1.244Gbps
The light receiving sensitivity:≥ -27dBm
Optical fiber connector:SC/APC (Optional SC/APC)
CATV optical power range:+2~-18dBm
CATV optical reflection loss:≥45dB
CATV responsivity:≥0.9 @1550nm
Reflection loss:≥14( 75Ω)
The user side Ethernet ports:1GE
Weight:0.105KG
Ports:1*GE+CATV
Key attributes
Type
ONU
Connector Type
APC
Power Source
Dc 12V
Use
FTTH
Network
Wired LAN, TCP, Ip, CATV, XPon
Model Number
G53C
Brand Name
HOSECOM
Place of Origin
Guangdong, China
Warranty Time
2 Year
Port
RJ45
Product name
Universal XPON ONU with CATV Port, GPON/EPON Adaptive, 1GE
Use
FTTH
Application
FTTH PON CATV
Color
White
Work model
GPon EPon adaptive
Power
DC 12V/1.5A
Working wavelength
PON:TX1310,RX1490; CATV:1150~1600
The light emitting power
1 ~ +4(xPON)
Transmission distance
0~20km
Transmission rate
GPON: Up 1.244Gbps;Down 2.488Gbps EPON: Up 1.244Gbps;Down 1.244Gbps
The light receiving sensitivity
≥ -27dBm
Optical fiber connector
SC/APC (Optional SC/APC)
CATV optical power range
+2~-18dBm
CATV optical reflection loss
≥45dB
CATV responsivity
≥0.9 @1550nm
Reflection loss
≥14( 75Ω)
The user side Ethernet ports
1GE
Weight
0.105KG
Ports
1*GE+CATV
Packaging and delivery
Selling Units
Single item
Single package size
13X10X9 cm
Single gross weight
0.300 kg
Lead time
Customization options
Customized logo (Min. order: 5,000 pieces)
Customized packaging (Min. order: 5,000 pieces)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 2 pieces
$1199-1399
Sample price: $13.99
Variations
Select nowSpecification
1GE+CATV
Customization options
Customized logo (Min. order: 5,000 pieces)
Customized packaging (Min. order: 5,000 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
