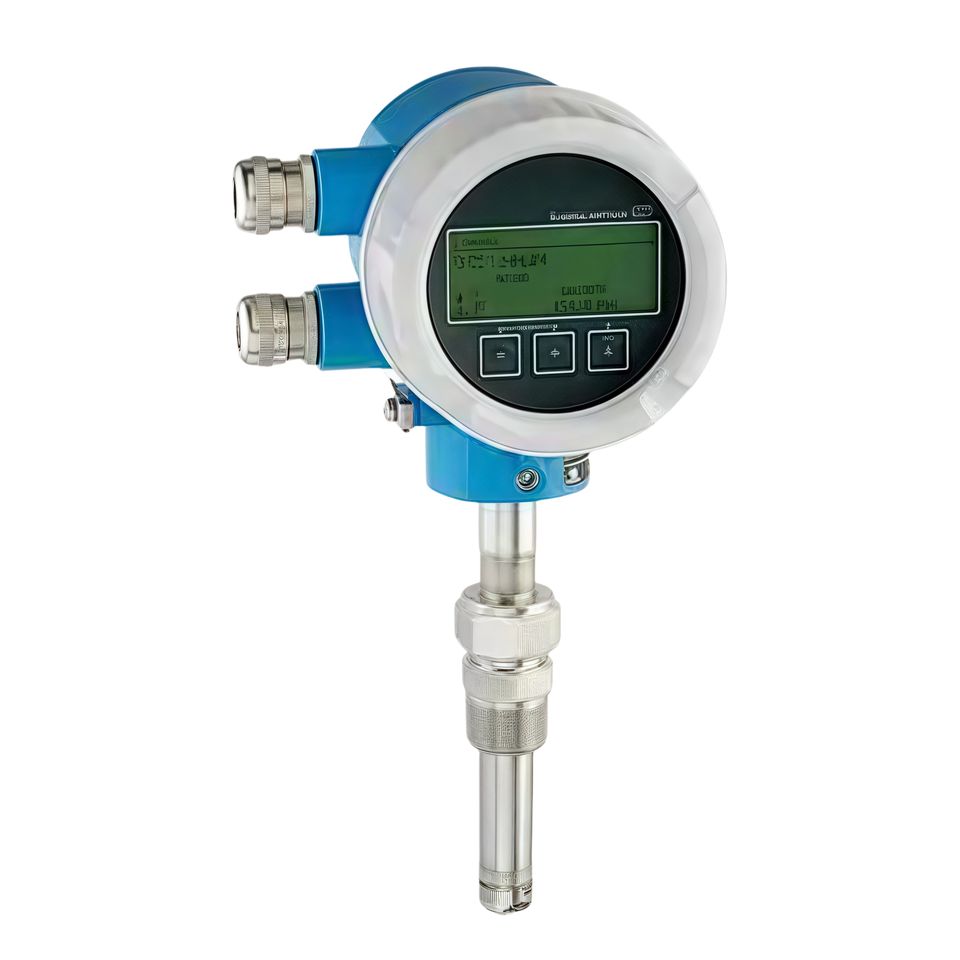

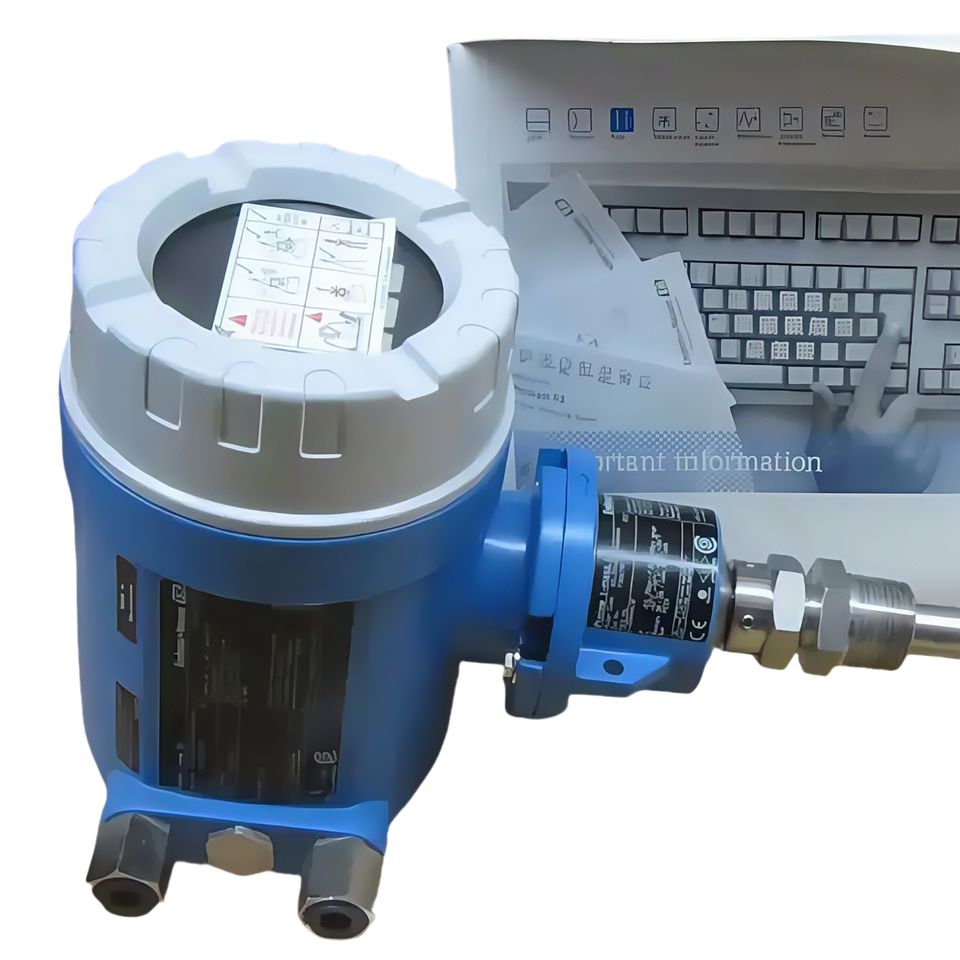

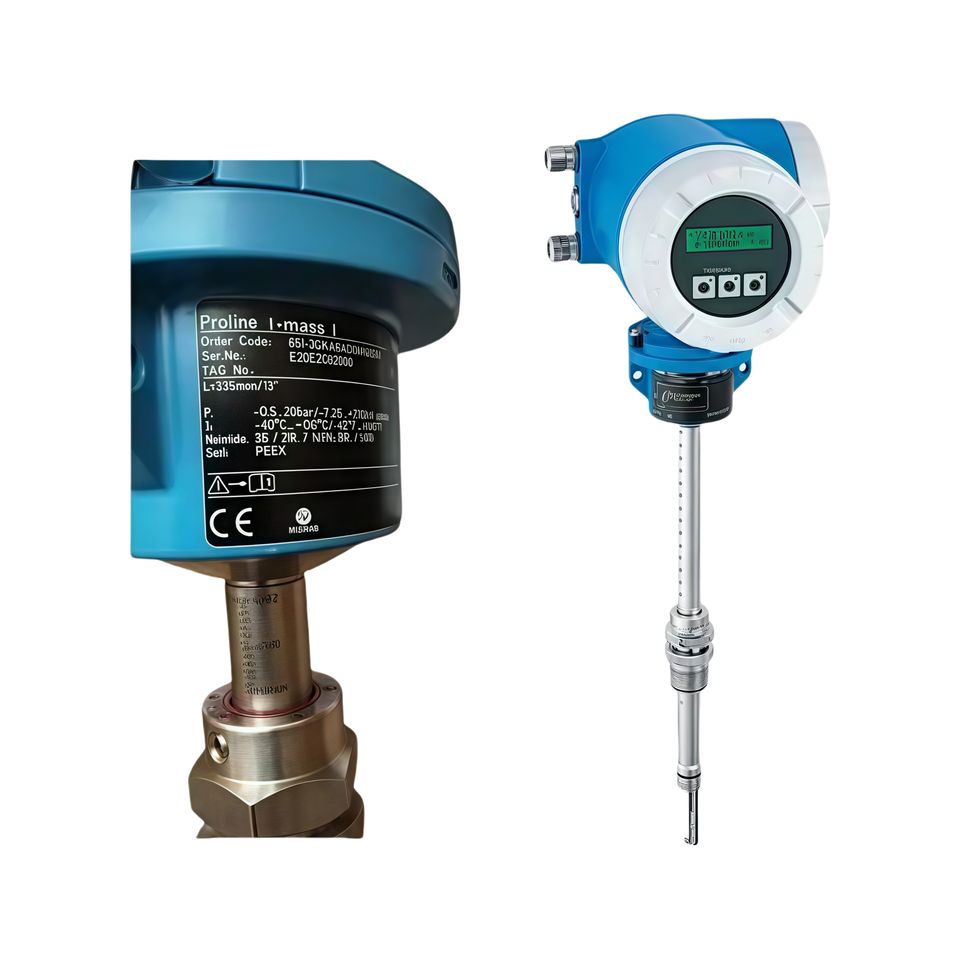

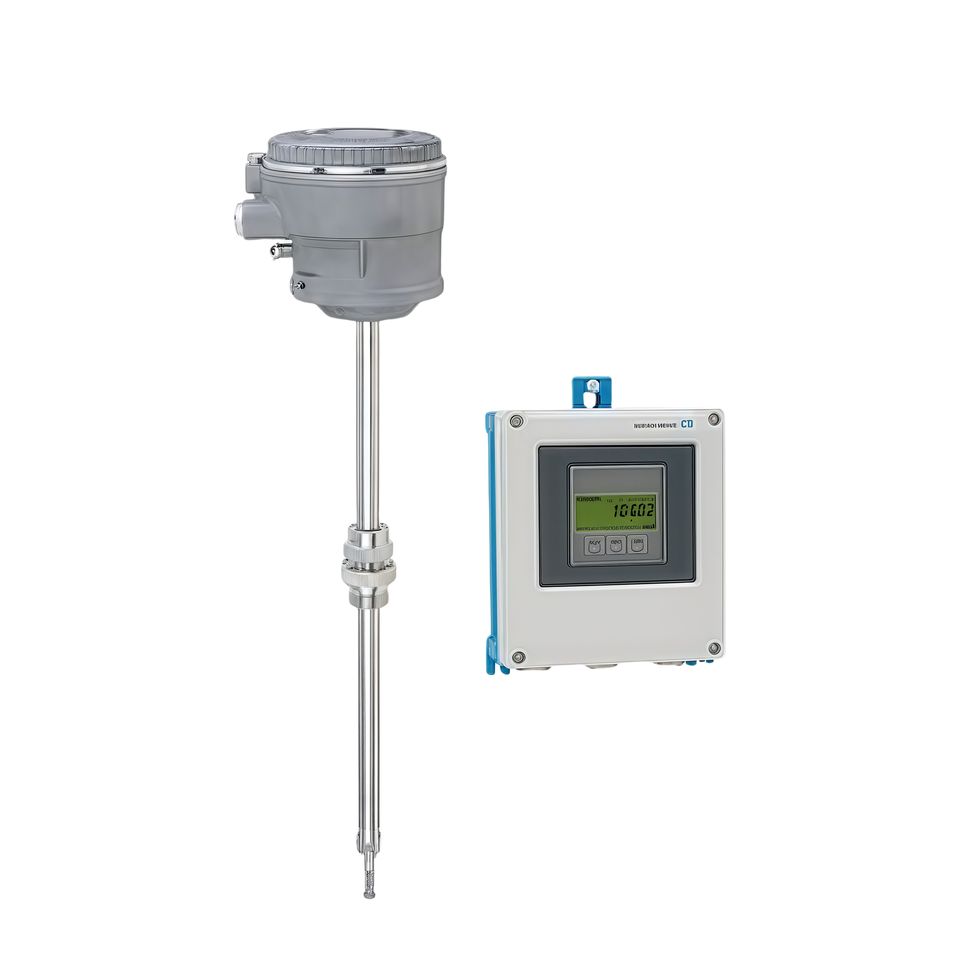

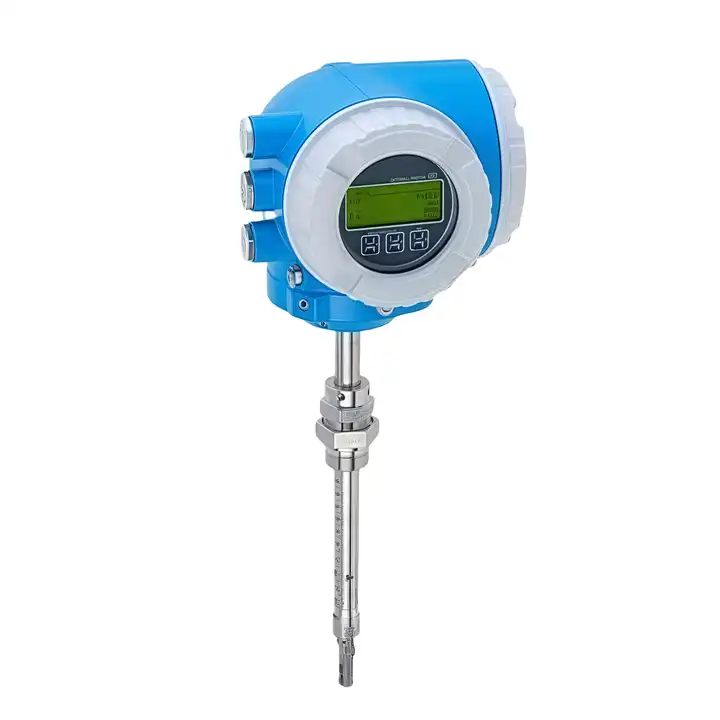

Endress Hauser Thermal mass flowmeter Proline t-mass I 500 6I5B Plug-in flowmeter Split type transmitter 4-20 mA HART
No reviews yet
Attributes
Water,Oil,Gas,liquidMedium
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeterstype
±1%accuracy
/Connectivity
ABS, Alloymaterial
1 Yearwarranty
place of origin:Germany
Flow Rate:Other
Measurement Range:20 to 733501 kg/h (44 to 1669340 lb/h)
model number:I 500 6I5B
brand name:E+H
customized support:OEM, ODM
Product Name:Thermal mass flowmeter
Maximum measurement error:Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)
Maximum process pressure:-0.5 to 20 bar_g (-7.25 to 290 psi_g)
Medium temperature range:-40 °C to +180°C (-40 °F to +356°F)
Transmitter housing material:Aluminium, AlSi10Mg, coated Polycarbonate
Class of protection:IP66/67, Type 4X enclosure Sensor: IP68, Type 6P (optional)
Input:Status input 4-20 mA input
Power source:DC 24V AC 100 to 240V
Key attributes
Medium
Water,Oil,Gas,liquid
type
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters
accuracy
±1%
Connectivity
/
material
ABS, Alloy
warranty
1 Year
customized support
OEM, ODM
Measurement Range
20 to 733501 kg/h (44 to 1669340 lb/h)
model number
I 500 6I5B
place of origin
Germany
Flow Rate
Other
brand name
E+H
Product Name
Thermal mass flowmeter
Maximum measurement error
Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)
Maximum process pressure
-0.5 to 20 bar_g (-7.25 to 290 psi_g)
Medium temperature range
-40 °C to +180°C (-40 °F to +356°F)
Transmitter housing material
Aluminium, AlSi10Mg, coated Polycarbonate
Class of protection
IP66/67, Type 4X enclosure Sensor: IP68, Type 6P (optional)
Input
Status input 4-20 mA input
Power source
DC 24V AC 100 to 240V
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 9 pieces
$2,000
>= 10 pieces
$1,500
Variations
Select nowdn
DN10
DN125
DN150
DN20
DN450
DN65
