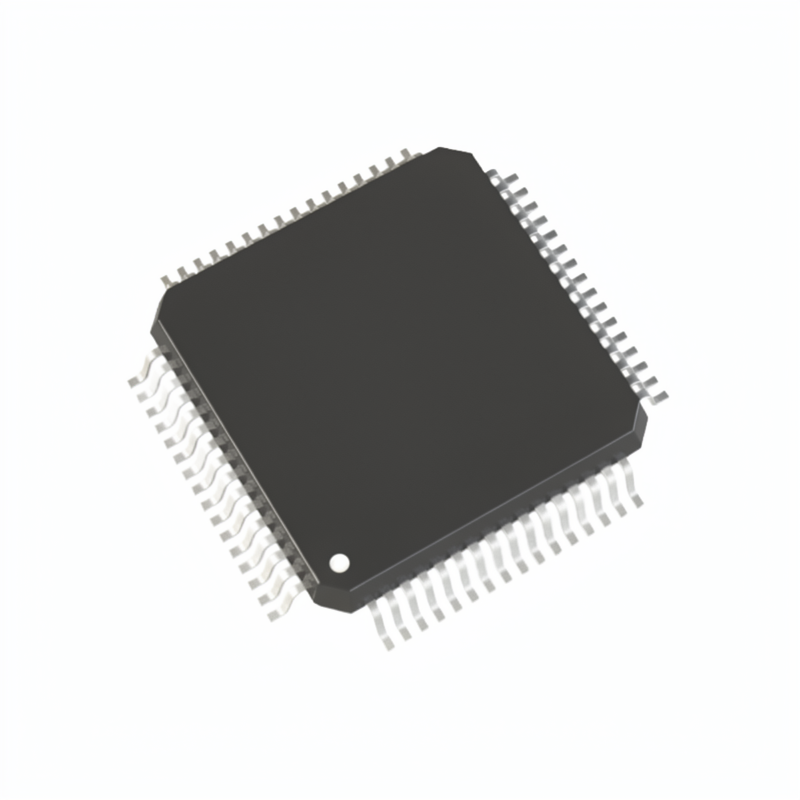

Embedded 64 LQFP Buy Electronics Components Online UPD78F1146GB(S)-GAH-AX Authorized Distributor

No reviews yet
$3.68
320-3,319 pieces
$1.84
≥3,320 pieces
Select now

Specification

UPD78F1146GB(S)-GAH-AX

Key attributes

Mounting Type

Surface Mount

Manufacturer Part Number

UPD78F1146GB(S)-GAH-AX

Type

Component & Part

Place of Origin

China

Manufacturer

Original

Mfg Date Code

NEW

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Mounting Type
Surface Mount
Manufacturer Part Number
UPD78F1146GB(S)-GAH-AX
Type
Component & Part
Place of Origin
China
Manufacturer
Original
Mfg Date Code
NEW
Series
Microcontroller
Description
IC MCU 16BIT 256KB FLASH 64LQFP
Application
Microcontrollers
Operating Temperature
-40°C ~ 85°C (TA)
Core Processor
78K/0R
RAM Size
12K x 8
Packaging
Tray
Core Size
16-Bit
Connectivity
3-Wire SIO, EBI/EMI, I2C, LINbus, UART/USART
Peripherals
DMA, LVD, POR, PWM, WDT
Number of I/O
50
Program Memory Size
256KB (256K x 8)
Program Memory Type
FLASH
EEPROM Size
-
Voltage - Supply (vcc/vdd)
1.8V ~ 5.5V
Data Converters
A/D 8x10b SAR
Oscillator Type
Internal
Package / Case
64-LFQFP (10x10)
Graphics Acceleration
-
USB
CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB
Product Status
Active
Core Processor
78K/0R
Core Size
16 Bit
Speed
20MHz
Number of I/O
50
Program Memory Size
256KB (256K x 8)
RAM Size
12K x 8
