Attributes

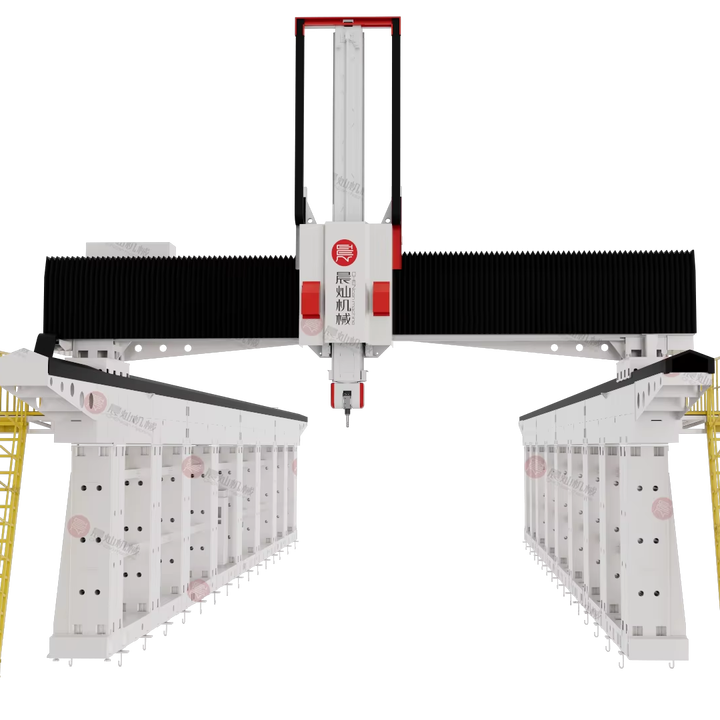

CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
380vvoltage
40000weight (kg)
1 Yearwarranty
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.1
number of axes:5
No. of Spindles:ATC
travel (x axis)(mm):19000
travel (y axis)(mm):6000
repeatability (x/y/z) (mm):0.05
Spindle Motor Power (kw):15
brand name:chencna
dimension(l*w*h):24000mm*13000mm*10000mm
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Other
After-sales Service Provided:Engineers available to service machinery overseas
Model:CC-SF19060-5S
C Axis:±360°
A Axis:±120°
Type:Controlled 5-Axes Router
Spindle:Water Cooling
Transmission:Ball Screw Transmission
Guide rail:Taiwan Hiwin Square Guide Rail
Motor:Japan Yaskawa Servo Motor

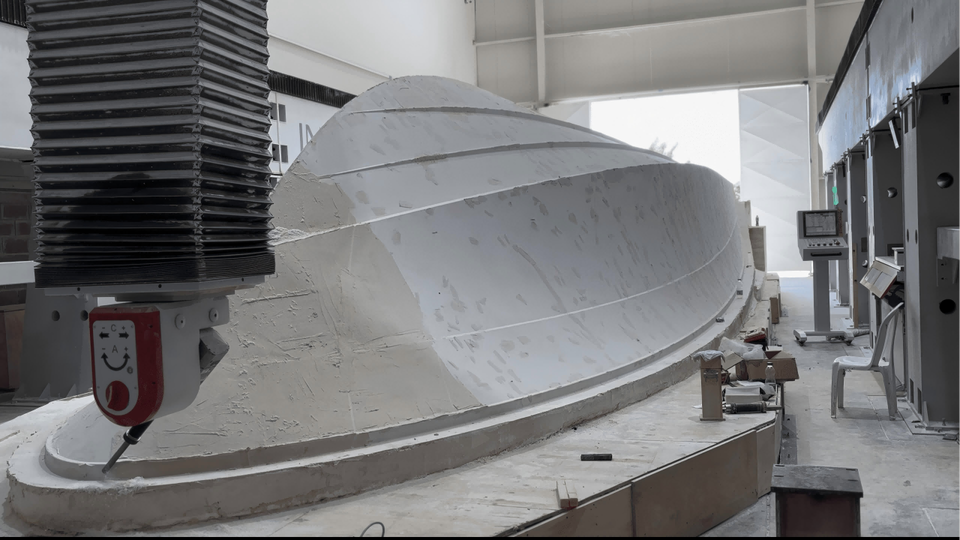

Application:yacht
Selling Units:Single item
Single package size:1180X228X245 cm
Single gross weight:40000.000 kg
