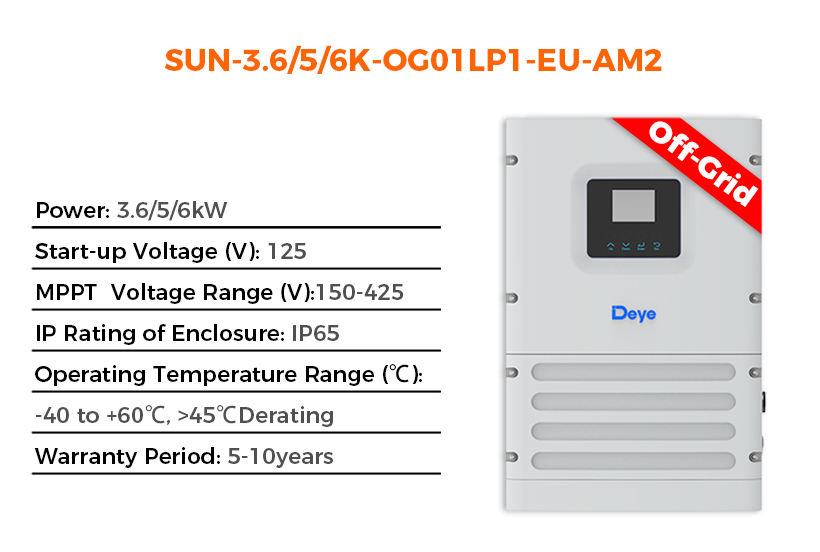

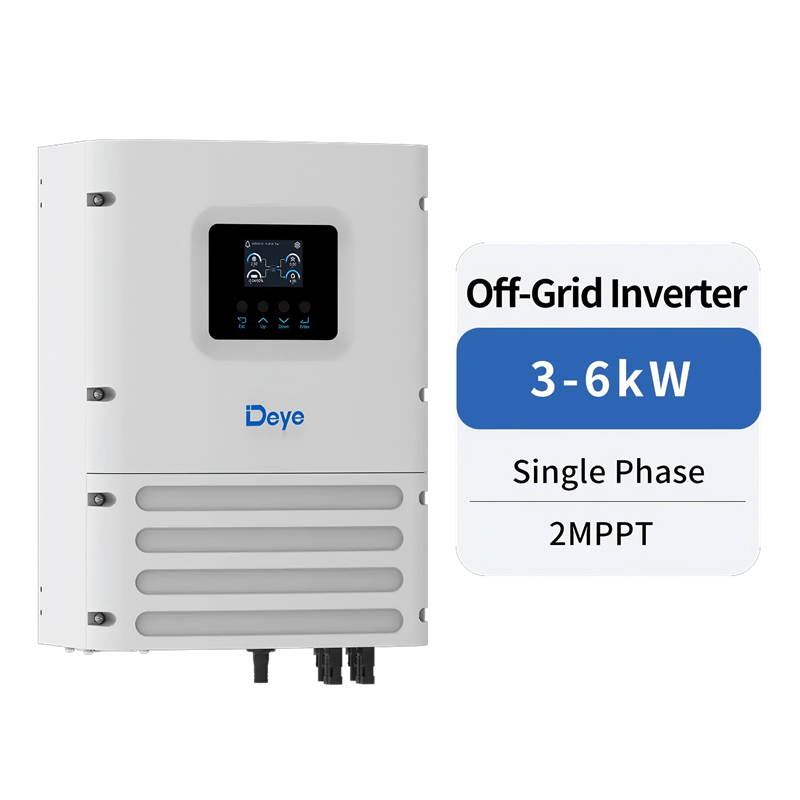

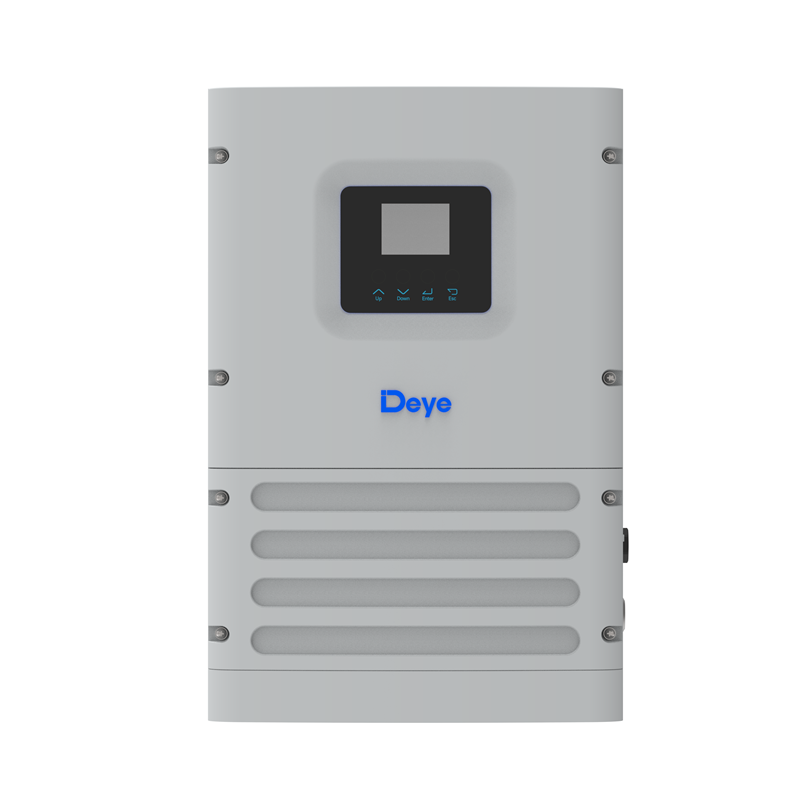

Deye off grid 6kw inverter 6000W single phase wifi IP65 230V SUN-3.6/5/6K-OG01LP1-EU-AM2 off grid solar inverter
See store reviews
Attributes
SingleOutput Type
DC/AC InvertersType
DeyeBrand Name
>99%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
SUN-3.6/5/6K-OG01LP1-EU-AM2Model Number
Input Voltage:40-60V
Output Voltage:230V
Output Current:Max 26.1A
Output Frequency:50Hz/60Hz
Size:456.5*306*175 mm
Weight:17kg
Battery Type:Lead-acid or Lithium-ion
Battery Voltage Range (V):40-60
Max. PV Access Power (W):7200/10000/12000
Max. PV Input Power (W):5760/8000/9600
Rated AC Input/Output Current (A):16.4/15.7;22.8/21.8;27.3/26.1
Communication Interface:RS485/RS232/CAN
Monitor Mode:GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range (℃):-40 to +60℃, >45℃ Derating
Ingress Protection(IP) Rating:IP 65
Safety / EMC Standard:IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Key attributes
Output Type
Single
Type
DC/AC Inverters
Brand Name
Deye
Inverter Efficiency
>99%
Place of Origin
Zhejiang, China
Model Number
SUN-3.6/5/6K-OG01LP1-EU-AM2
Input Voltage
40-60V
Output Voltage
230V
Output Current
Max 26.1A
Output Frequency
50Hz/60Hz
Size
456.5*306*175 mm
Weight
17kg
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40-60
Max. PV Access Power (W)
7200/10000/12000
Max. PV Input Power (W)
5760/8000/9600
Rated AC Input/Output Current (A)
16.4/15.7;22.8/21.8;27.3/26.1
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating
Ingress Protection(IP) Rating
IP 65
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$361-440
Variations
Select nowApplication: Off-Grid Solar System
Off-Grid Solar System
Output Power: 3.6KW
3.6KW
5 kW
6 kW
Inverter Type
String Inverter
