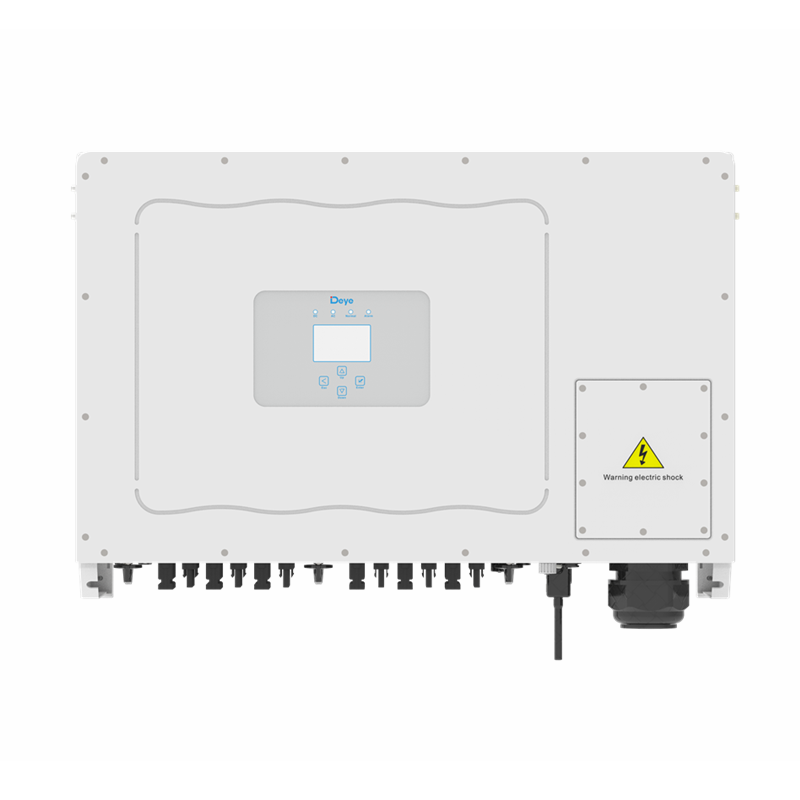

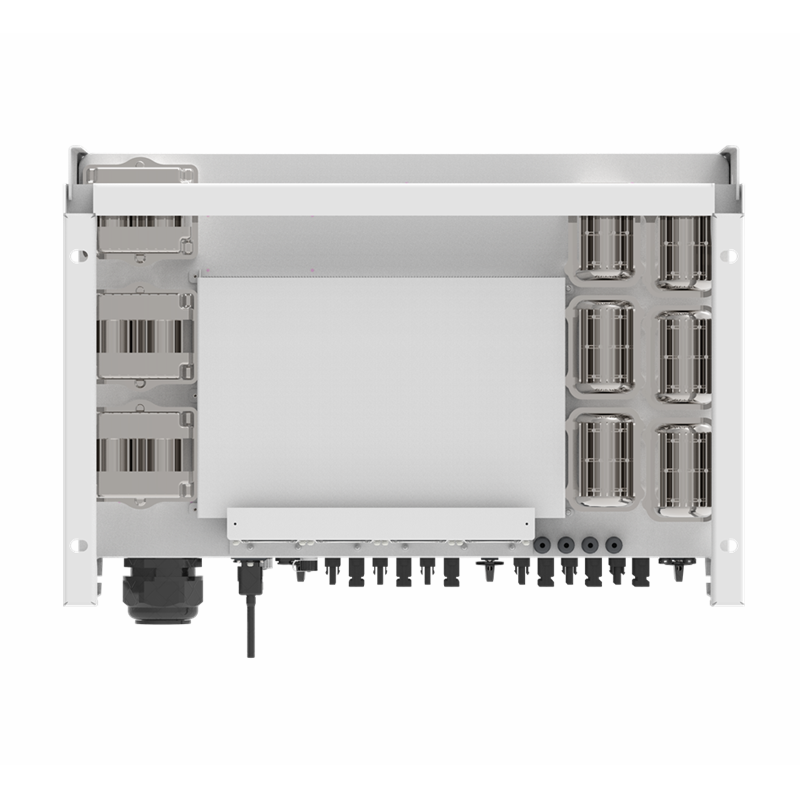

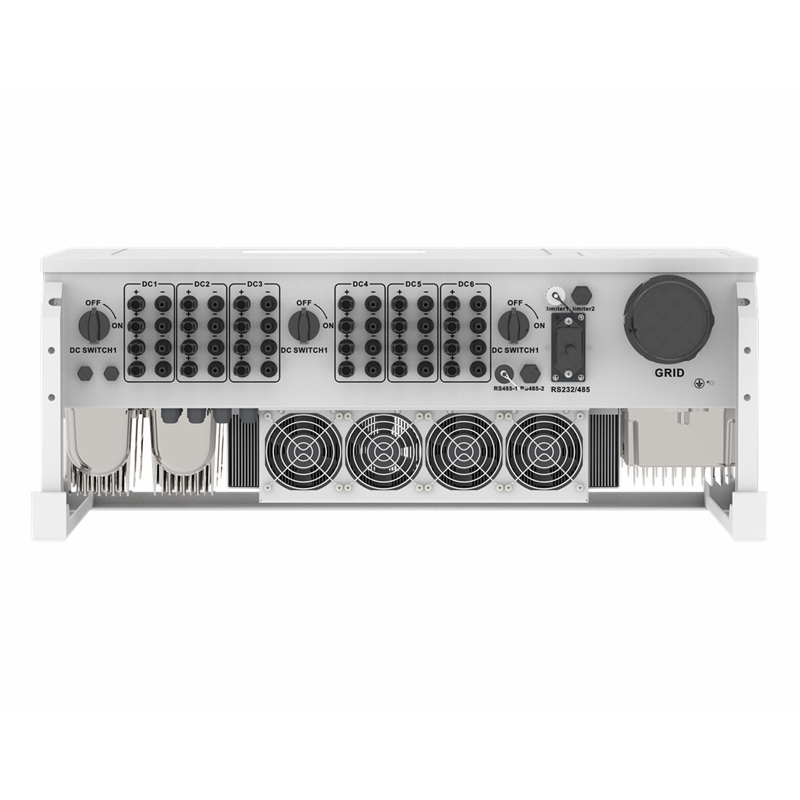

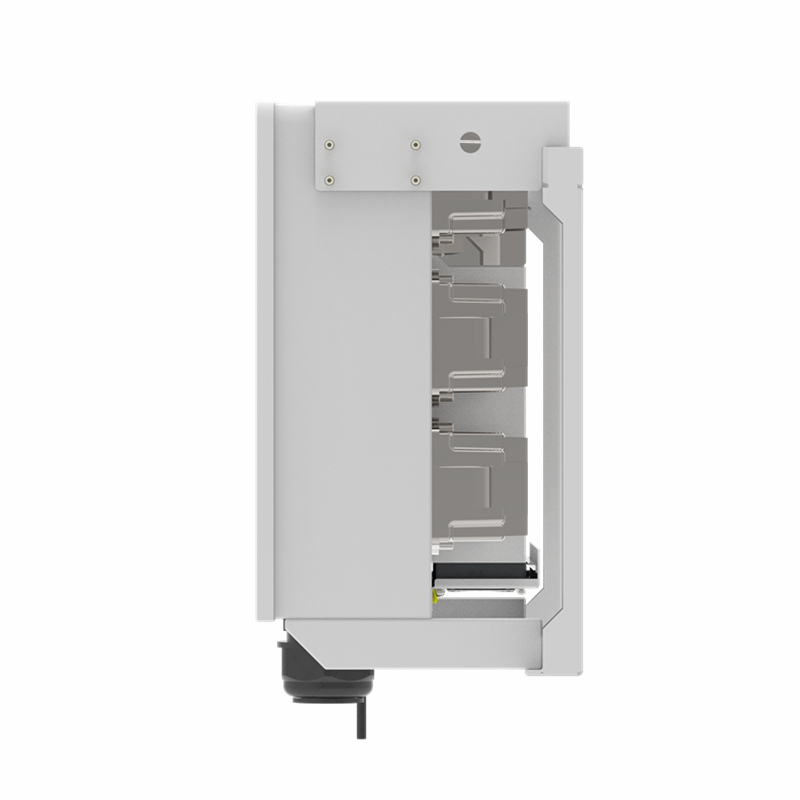

Deye SUN-70/75/80/90/100/110K-G03 110kW On Grid Inverter IP65 Rated Outdoor Installation Industrial Use
No reviews yet
Attributes
Three PhaseOutput Type
98.7%/98.8%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
SUN-70/75/80/90/100/110K-G03Model Number
DeyeBrand Name
600VInput Voltage
Output Voltage:220/380V, 230/400V
Output Current:106.1/101.5A-166.7/159.4A
Output Frequency:50Hz/60Hz
Size:824mm*516mm*312.7mm
Type:DC/AC Inverters
Weight:81KG
Max. PV Input Voltage(V):1000
Start-up Voltage(V):250
MPPT voltage range(V):200-850
Grid Connection Form:3L+N+PE
Total Current Harmonic Distortion THDi:<3%
MPPT Efficiency:>99%
Communication Interface:RS485/RS232
Monitor Mode:GPRS/WIFI/Bluetooth/4G/LAN(optional)
Ingress Protection(IP) Rating:IP 65
Warranty [year]:5 Years
Key attributes
Output Type
Three Phase
Inverter Efficiency
98.7%/98.8%
Place of Origin
Zhejiang, China
Model Number
SUN-70/75/80/90/100/110K-G03
Brand Name
Deye
Input Voltage
600V
Output Voltage
220/380V, 230/400V
Output Current
106.1/101.5A-166.7/159.4A
Output Frequency
50Hz/60Hz
Size
824mm*516mm*312.7mm(32.44in*20.31in*12.31in)
Type
DC/AC Inverters
Weight
81KG(178.57lb)
Max. PV Input Voltage(V)
1000
Start-up Voltage(V)
250
MPPT voltage range(V)
200-850
Grid Connection Form
3L+N+PE
Total Current Harmonic Distortion THDi
<3%
MPPT Efficiency
>99%
Communication Interface
RS485/RS232
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
Ingress Protection(IP) Rating
IP 65
Warranty [year]
5 Years
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 49 sets
$2,540
>= 50 sets
$1,820
Variations
Select nowApplication: On-Grid Solar System
On-Grid Solar System
Output Power: 70kw(93.87hp)
70kw(93.87hp)
75kw(100.58hp)
80kw(107.28hp)
90kw(120.69hp)
100kw(134.10hp)
110kw(147.51hp)
Inverter Type
String Inverter
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
