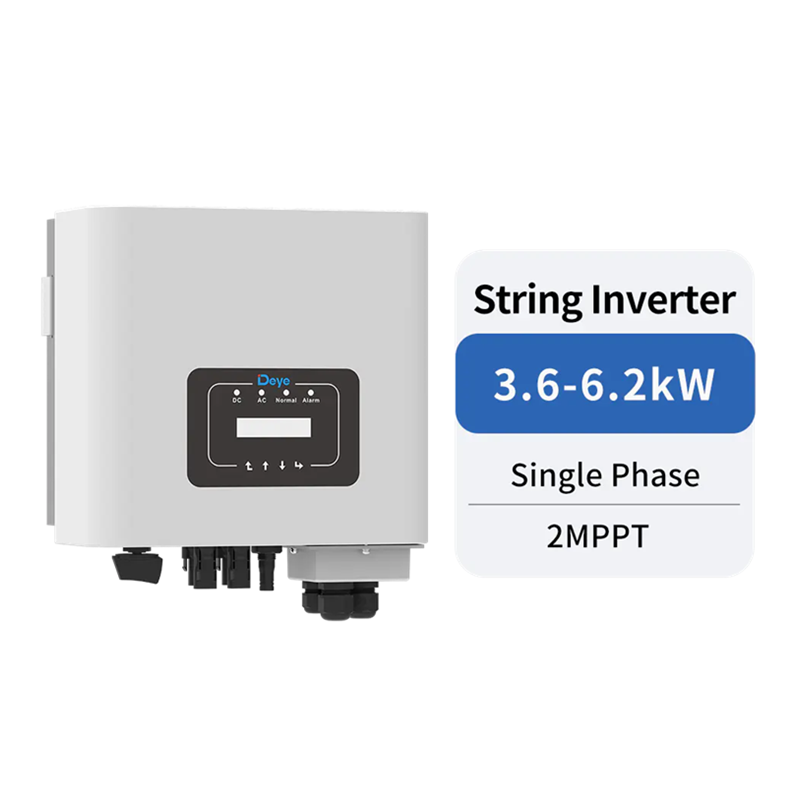

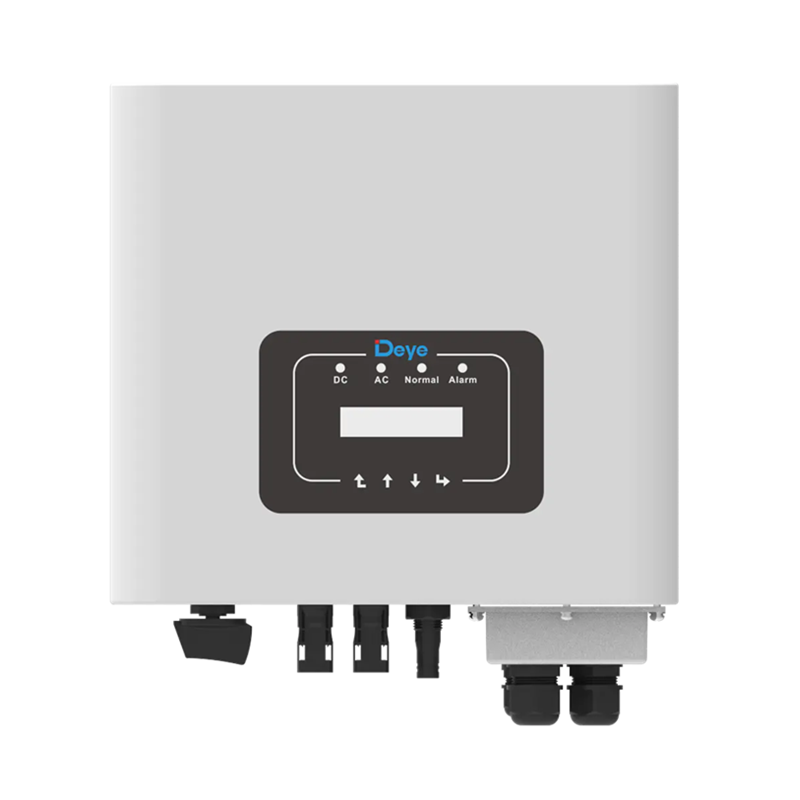

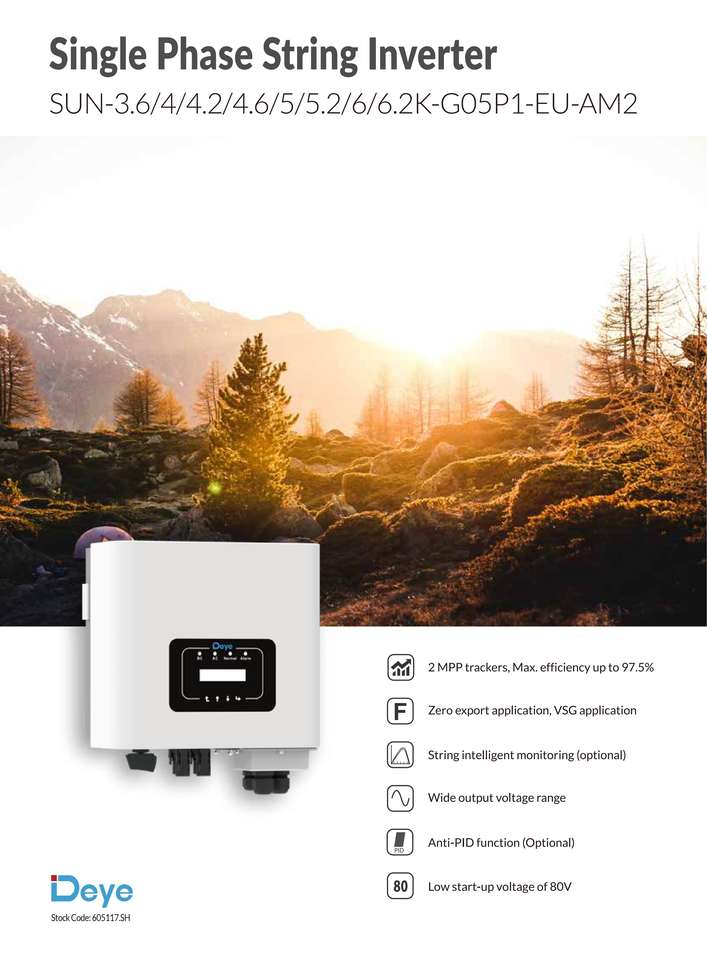

Deye SUN-3.6/4/4.2/4.6/5/5.2/6/6.2K-G05P1-EU-AM2 Single Phase Solar Inverter 230V Output High Efficiency 98%
No reviews yet
Attributes
SingleOutput Type
DC/AC InvertersType
DeyeBrand Name
97.50%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
SUN-3.6/4/4.2/4.6/5/5.2/6/6.2K-G05P1-EU-AM2Model Number
Input Voltage:550V
Output Voltage:220/230V
Output Current:16.4/15.7A-28.2/27A
Output Frequency:50Hz/60Hz
Size:305*280*180 mm
Weight:7.7KG

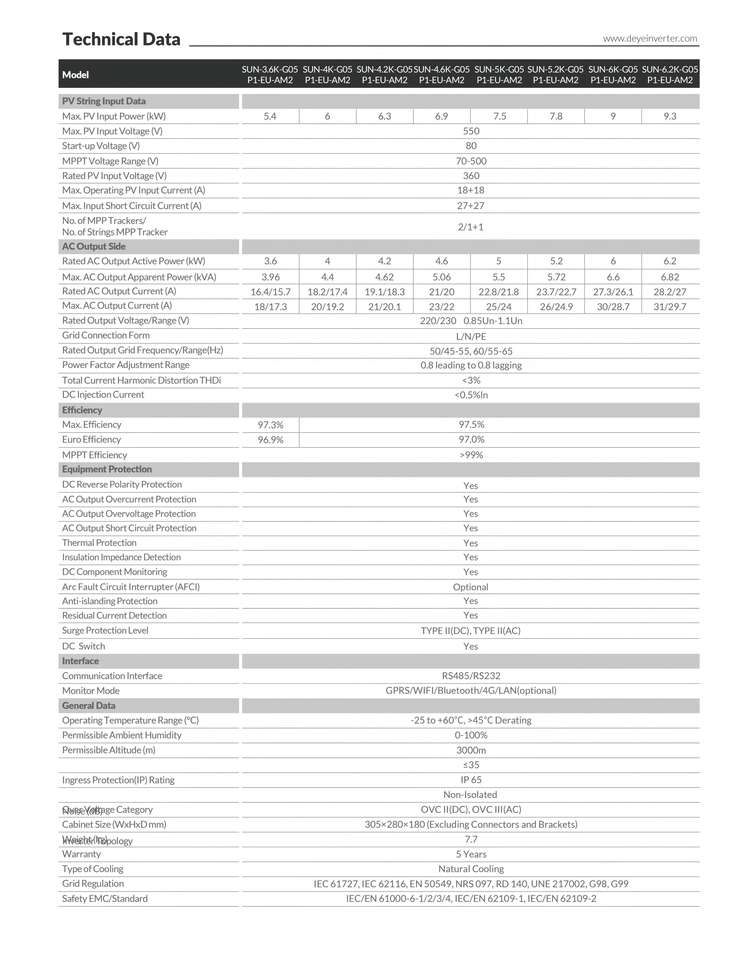

Max. PV Input Voltage(V):550
Start-up Voltage (V):80
MPPT Voltage Range (V):70-500
Rated PV Input Voltage (V):360
MPPT Efficiency:>99%
Communication Interface:RS485/RS232
Monitor Mode:GPRS/WIFI/Bluetooth/4G/LAN(optional)
Ingress Protection(IP) Rating:IP 65
Inverter Topology:Non-Isolated
Warranty [year]:5 Years
Key attributes
Output Type
Single
Type
DC/AC Inverters
Brand Name
Deye
Inverter Efficiency
97.50%
Place of Origin
Zhejiang, China
Model Number
SUN-3.6/4/4.2/4.6/5/5.2/6/6.2K-G05P1-EU-AM2
Input Voltage
550V
Output Voltage
220/230V
Output Current
16.4/15.7A-28.2/27A
Output Frequency
50Hz/60Hz
Size
305*280*180 mm(12.01*11.02*7.09in)
Weight
7.7KG(16.98lb)
Max. PV Input Voltage(V)
550
Start-up Voltage (V)
80
MPPT Voltage Range (V)
70-500
Rated PV Input Voltage (V)
360
MPPT Efficiency
>99%
Communication Interface
RS485/RS232
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Warranty [year]
5 Years
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 49 sets
$320
>= 50 sets
$290
Variations
Select nowApplication: On-Grid Solar System
On-Grid Solar System
Output Power: 3.6KW(4.83hp)
3.6KW(4.83hp)
6.2kw(8.31hp)
4 kW(5.36hp)
5 kW(6.71hp)
6 kW(8.05hp)
4.2kw(5.63hp)
4.6kw(6.17hp)
+1
Inverter Type
String Inverter
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
