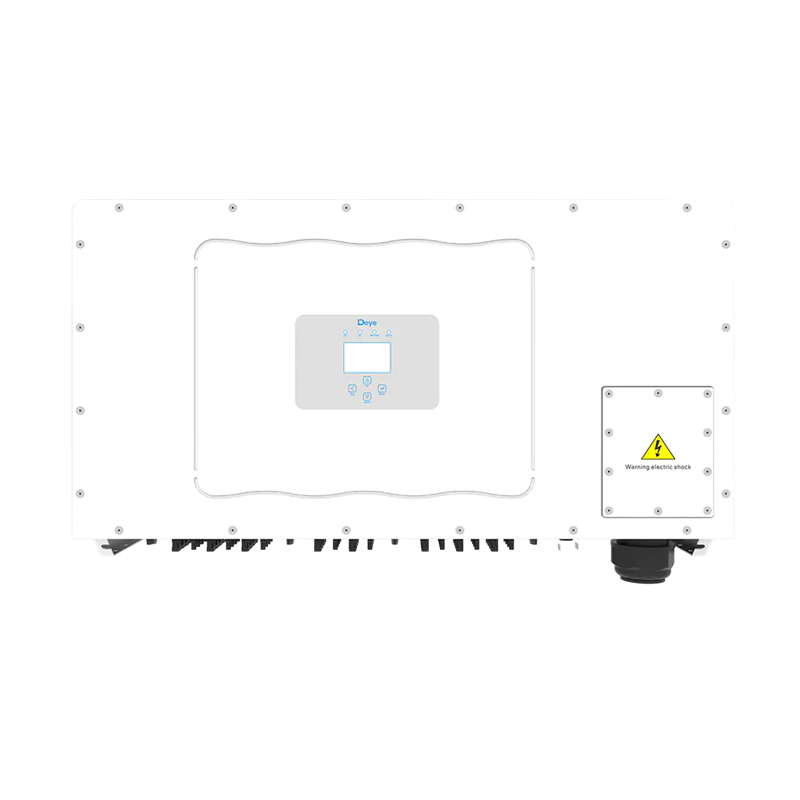

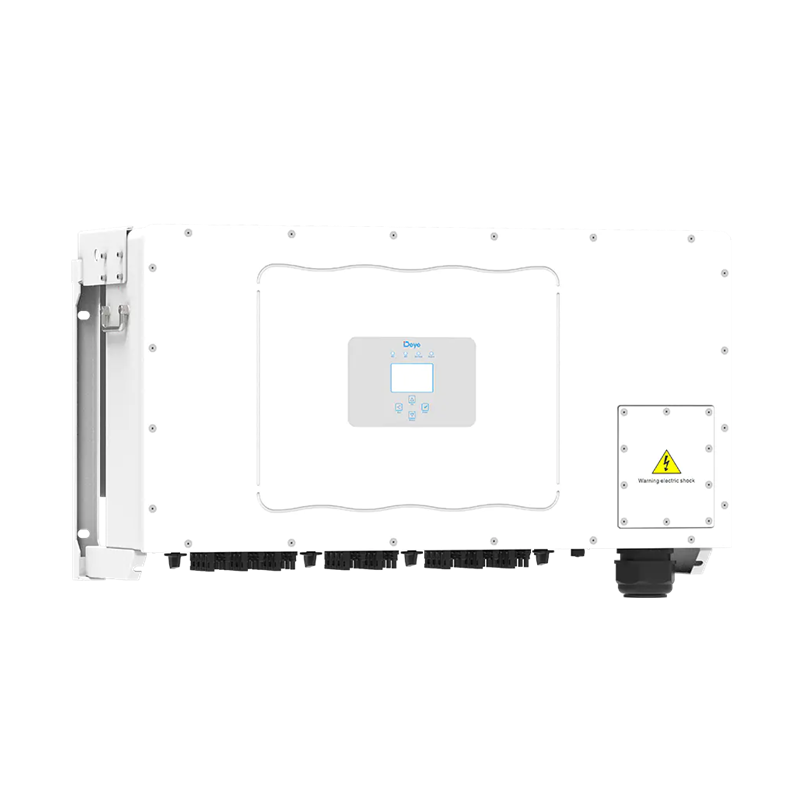

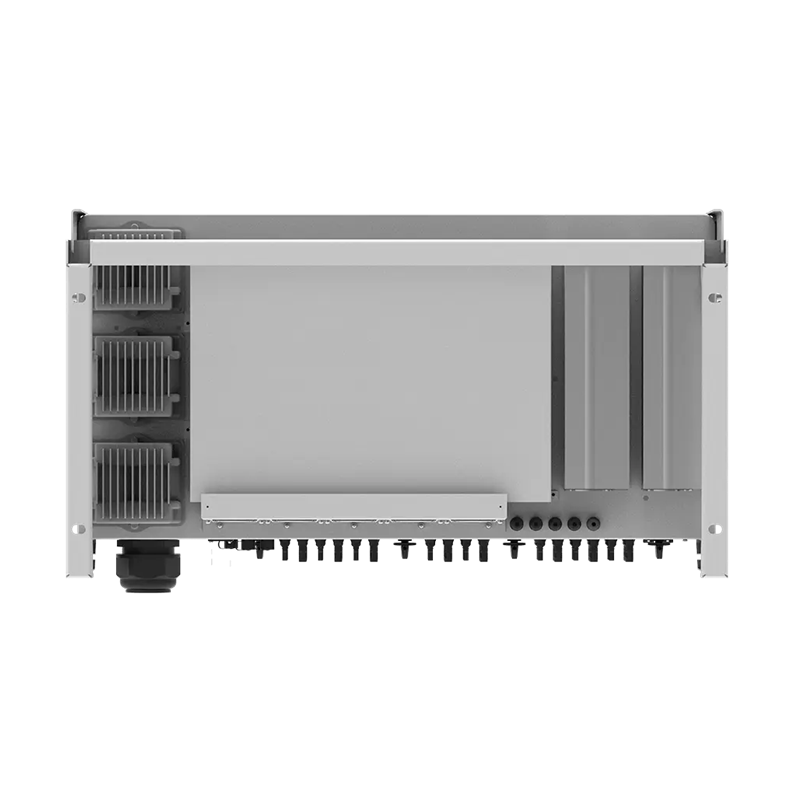

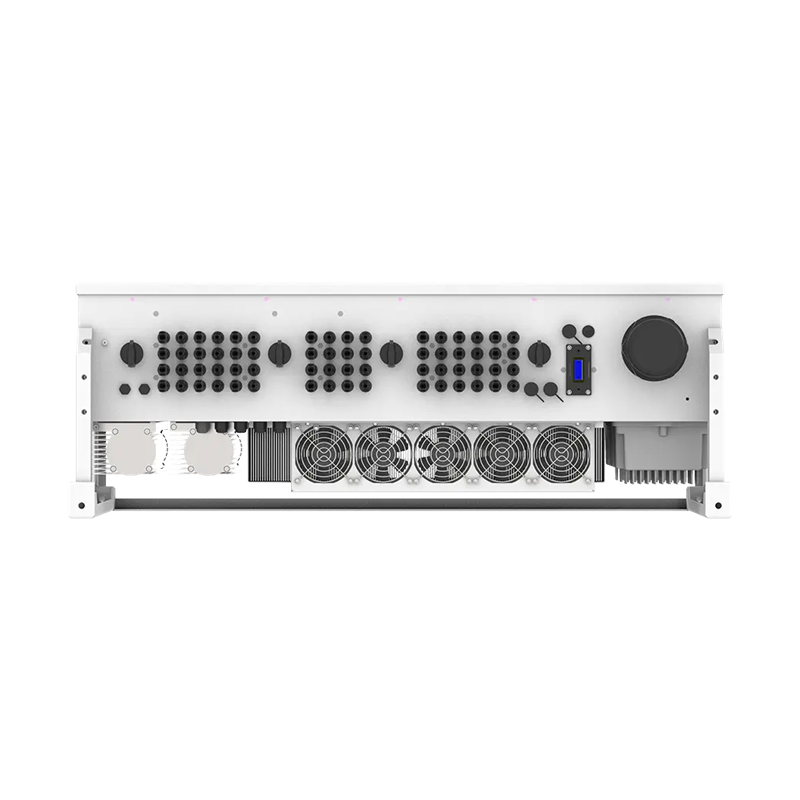

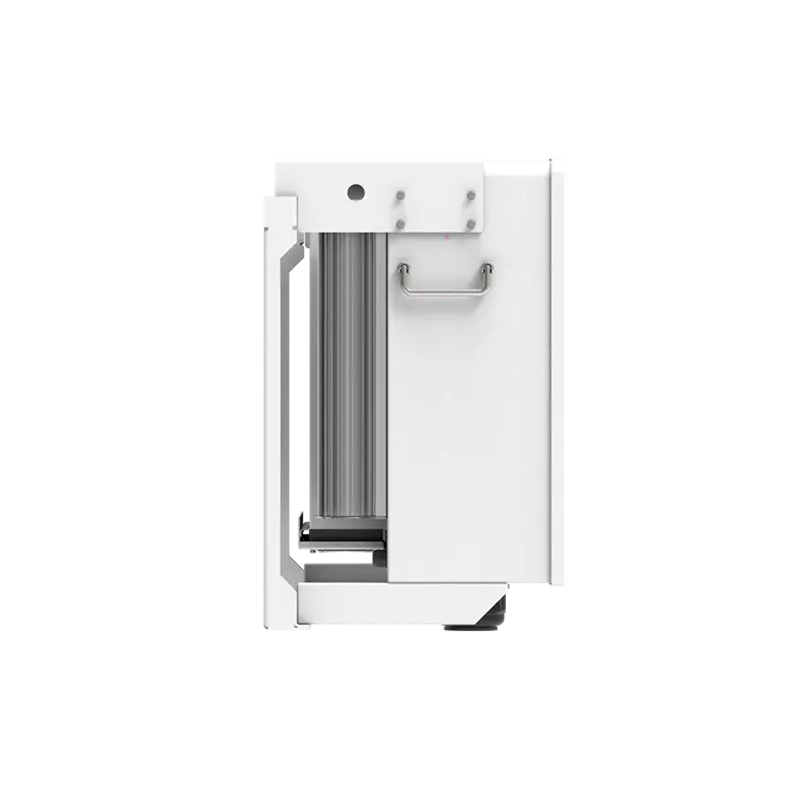

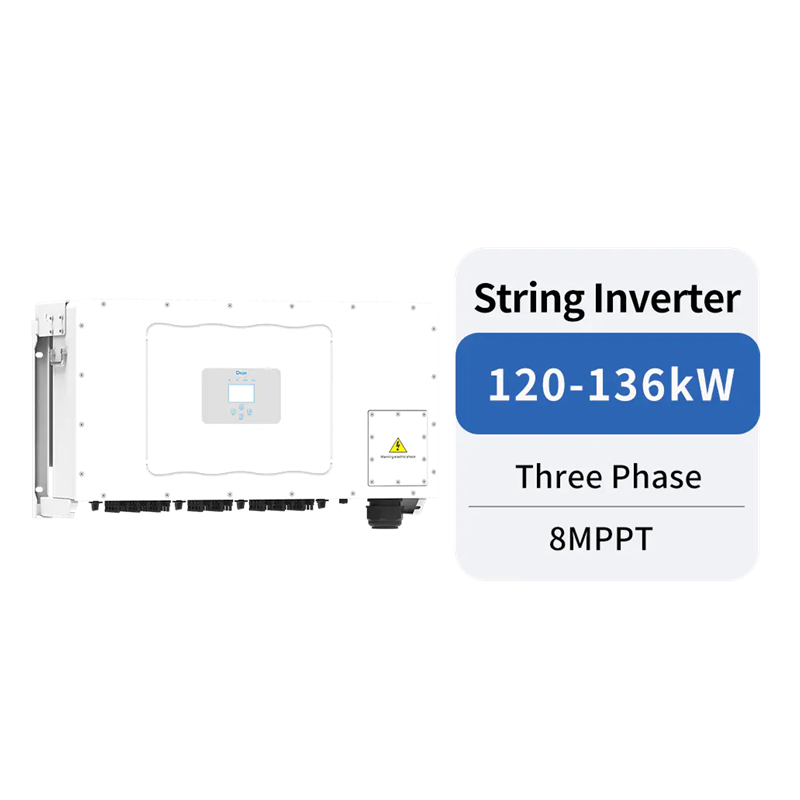

Deye SUN-120/125/130/135/136-G01P3-EU-AM8 136kW 3 Phase Grid Tie Inverter 8 MPPT Trackers High Efficiency 98.8%
No reviews yet
Attributes
Three PhaseOutput Type
DC/AC InvertersType
DeyeBrand Name
98.8%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
SUN-120/125/130/135/136-G01P3-EU-AM8Model Number
Input Voltage:1100V
Output Voltage:220/380V, 230/400V
Output Current:181.9/174A-206.1/197.2A
Output Frequency:50Hz/60Hz
Size:1006mm*516mm*325.5mm
Weight:103KG
Max. PV Input Voltage(V):1100
Start-up Voltage(V):250
MPPT voltage range(V):200-1000
Rated PV Input voltage(V):600
MPPT Efficiency:>99%
Communication Interface:RS485/RS232
Monitor Mode:GPRS/WIFI/Bluetooth/4G/LAN(optional)
Ingress Protection(IP) Rating:IP 65
Inverter Topology:Non-Isolated
Warranty [year]:5 Years
Key attributes
Output Type
Three Phase
Type
DC/AC Inverters
Brand Name
Deye
Inverter Efficiency
98.8%
Place of Origin
Zhejiang, China
Model Number
SUN-120/125/130/135/136-G01P3-EU-AM8
Input Voltage
1100V
Output Voltage
220/380V, 230/400V
Output Current
181.9/174A-206.1/197.2A
Output Frequency
50Hz/60Hz
Size
1006mm*516mm*325.5mm
Weight
103KG
Max. PV Input Voltage(V)
1100
Start-up Voltage(V)
250
MPPT voltage range(V)
200-1000
Rated PV Input voltage(V)
600
MPPT Efficiency
>99%
Communication Interface
RS485/RS232
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Warranty [year]
5 Years
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 49 sets
$2,845
>= 50 sets
$2,350
Variations
Select nowApplication: On-Grid Solar System
On-Grid Solar System
Output Power: 120kw
120kw
125kw
130kw
135kw
136kw
Inverter Type
String Inverter
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
