Davicom DM9000AEP Ethernet Controller with General Processor Interface 10/100Mbps MAC PHY

Davicom

DM9000AEP

Processor Interface, MII, PHY

SMT

25+

Taiwan, China

Network Interface Adapter, Surveillance Camera, Embedded System, Ethernet Hub, Ethernet Switch

PHY

DM9000A series

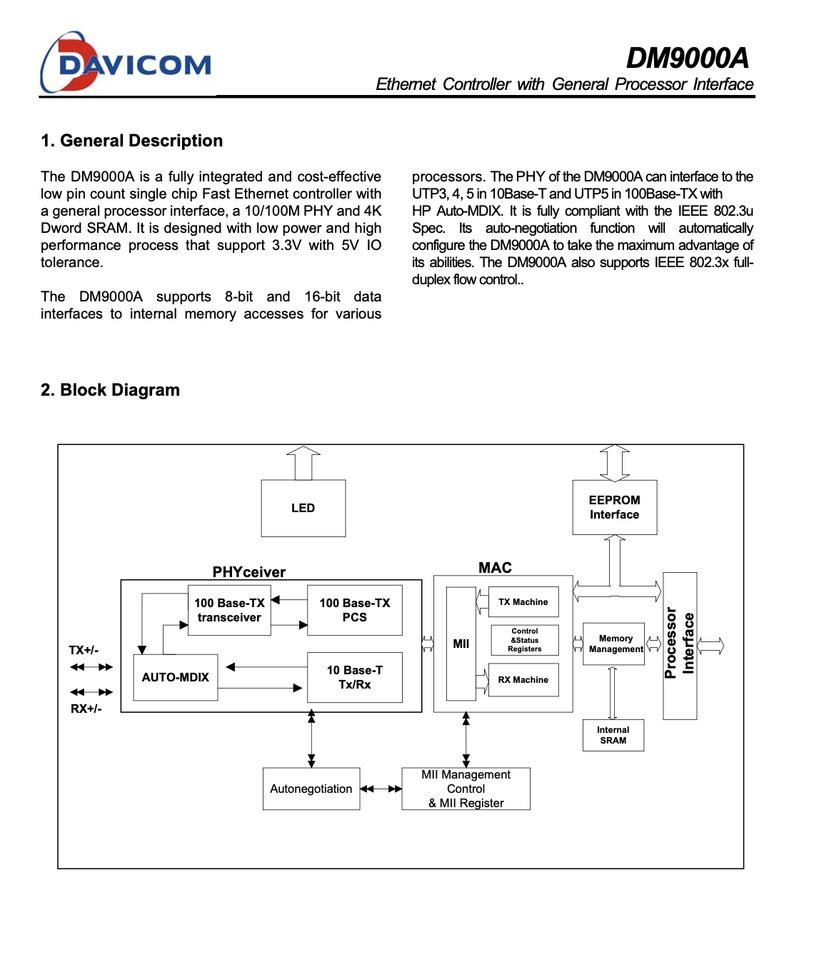

The DM9000A is a fully integrated and cost-effectivelow pin count single chip Fast Ethernet controller witha general processor interface, a 10/100M PHY and 4KDword SRAM. It is designed with low power and highperformance process that support 3.3V with 5V IOtolerance.The DM9000A supports 8-bit and 16-bit datainterfaces to internal memory accesses for variousprocessors. The PHY of the DM9000A can interface to theUTP3, 4, 5 in 10Base-T and UTP5 in 100Base-TX withHP Auto-MDIX. It is fully compliant with the IEEE 802.3uSpec. Its auto-negotiation function will automaticallyconfigure the DM9000A to take the maximum advantage ofits abilities. The DM9000A also supports IEEE 802.3x full-duplex flow control.

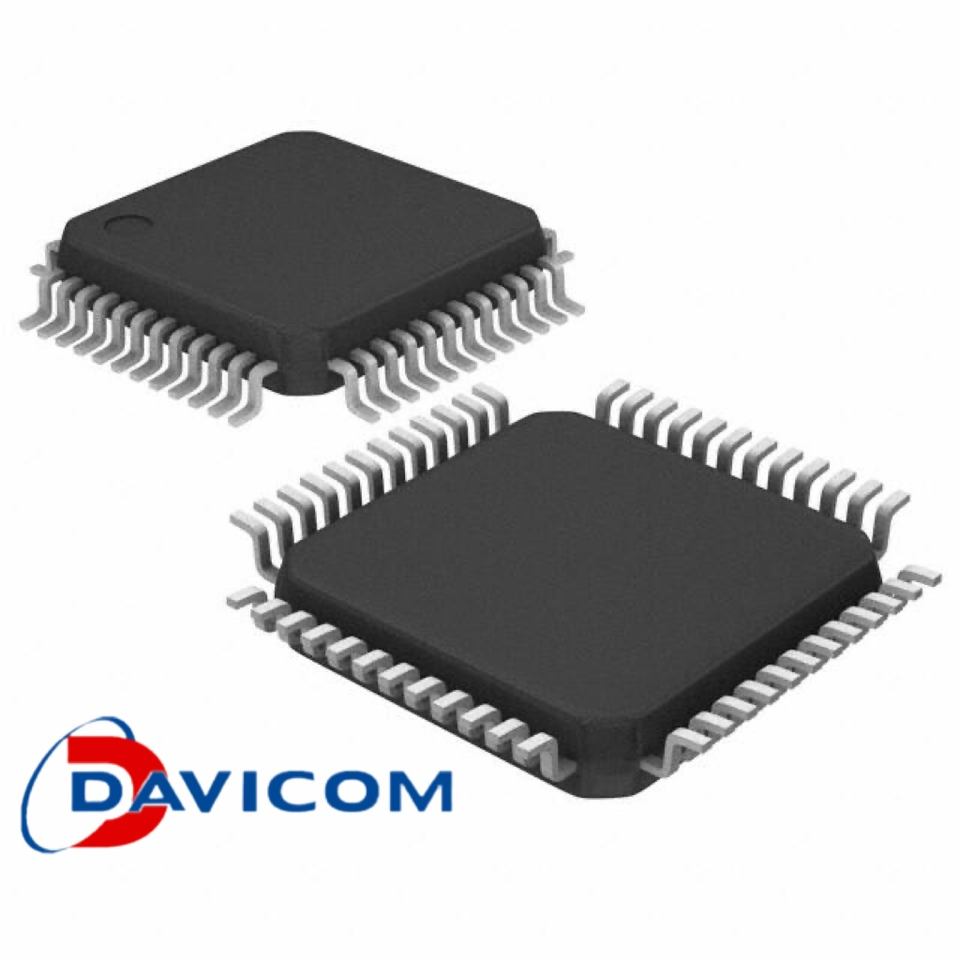

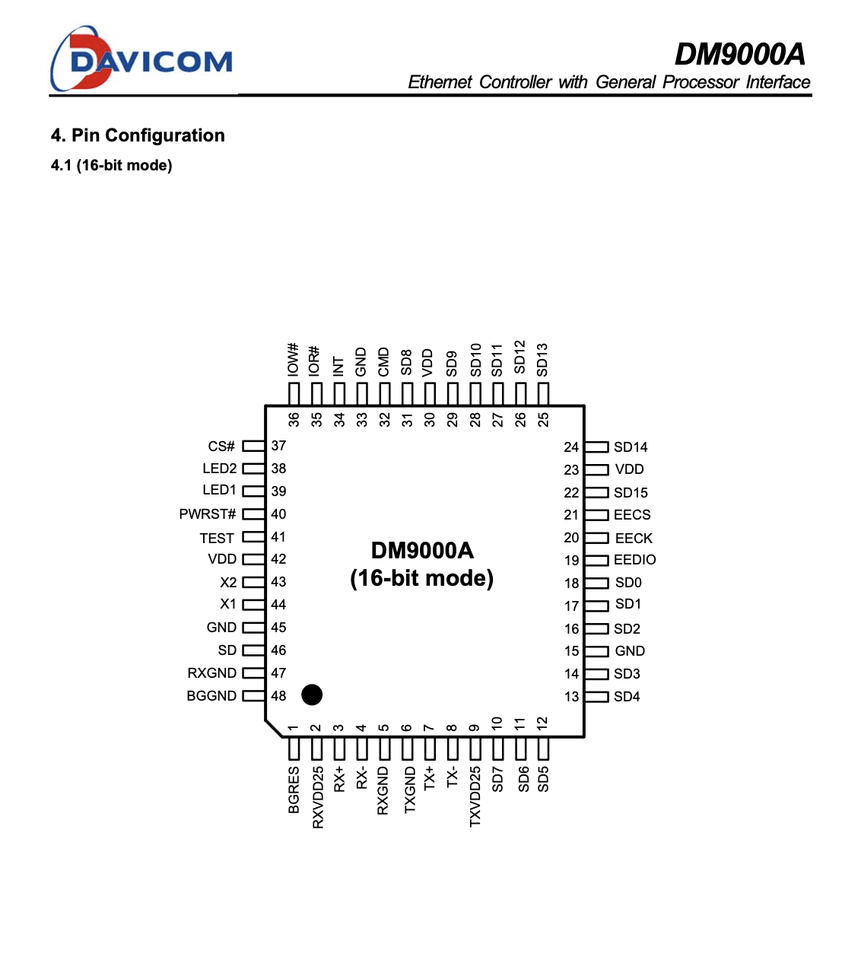

48-pin LQFP

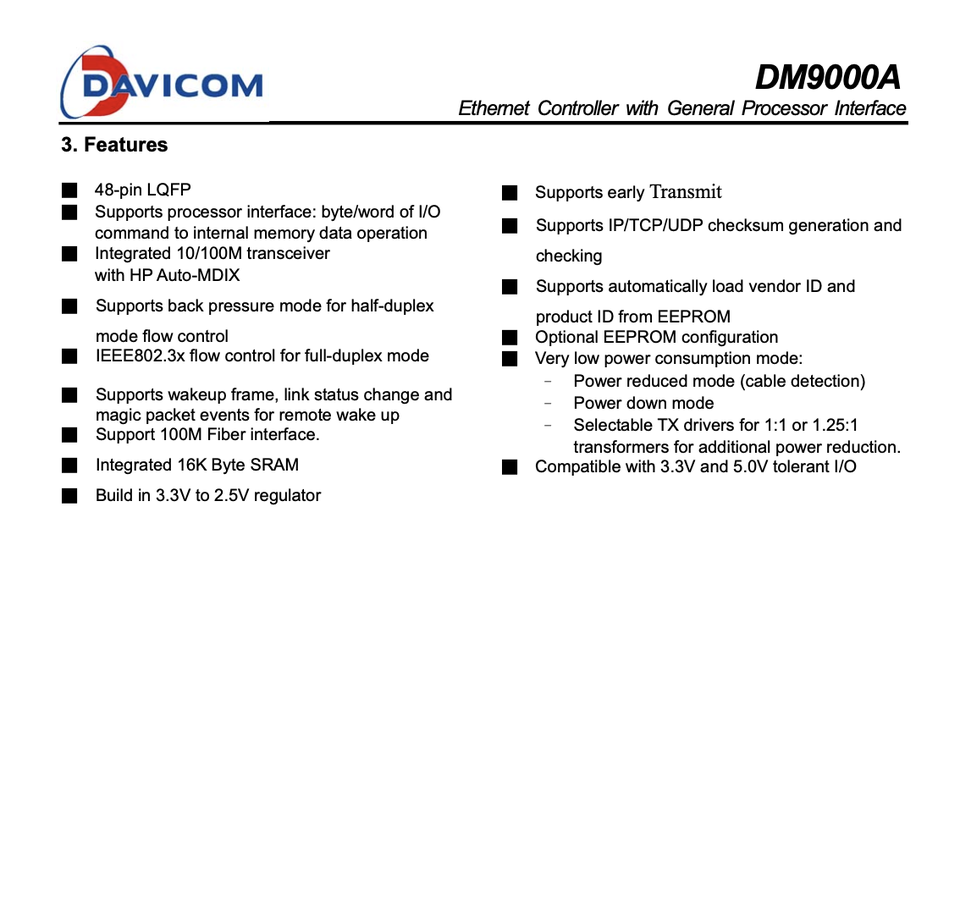

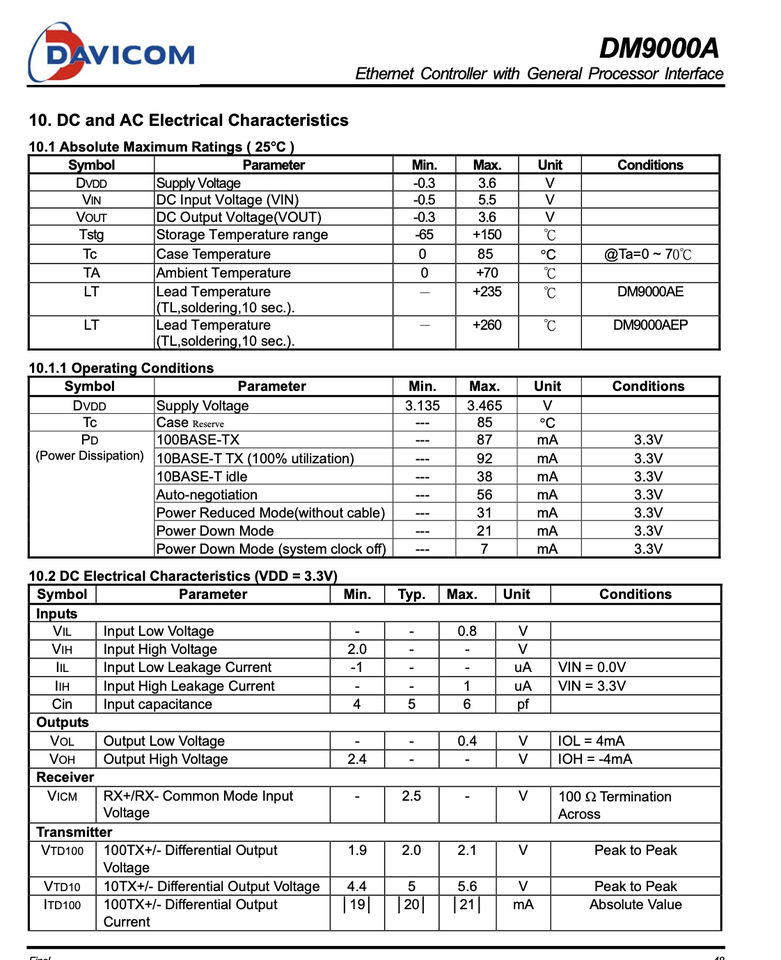

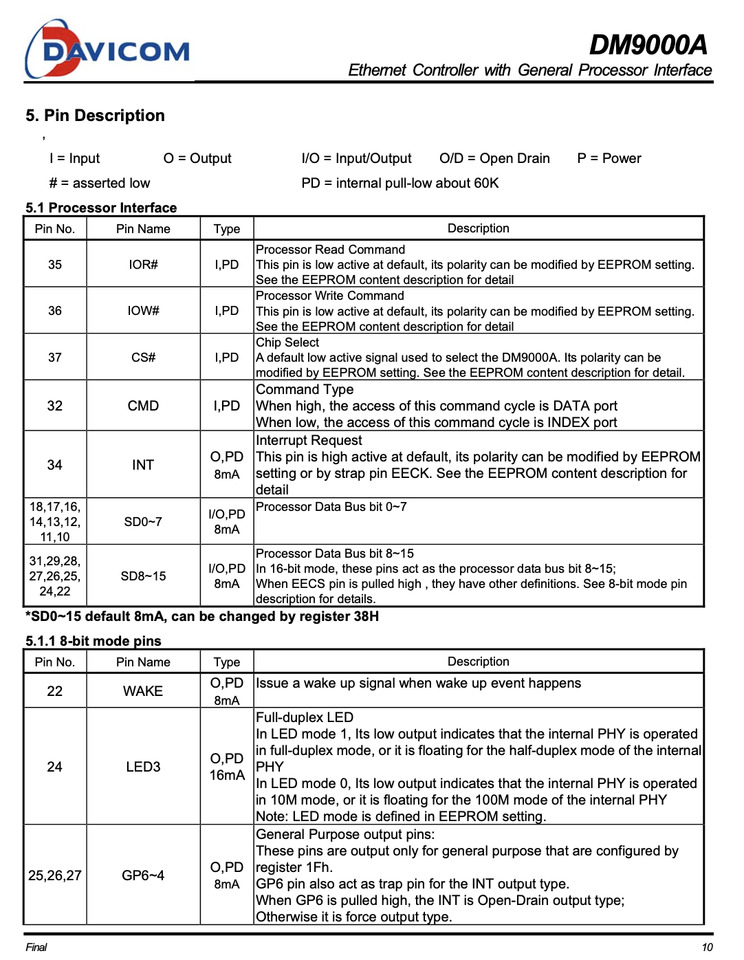

48-pin LQFP, Supports processor interface: byte/word of I/O command to internal memory data operation, Integrated 10/100M transceiver with HP Auto-MDIX, Supports back pressure mode for half-duplex mode flow control, IEEE802.3x flow control for full-duplex mode, Supports wakeup frame, link status change and magic packet events for remote wake up, Support 100M Fiber interface, Integrated 16K Byte SRAM, Build in 3.3V to 2.5V regulator, Supports early Transmit, Supports IP/TCP/UDP checksum generation and checking, Supports automatically load vendor ID and product ID from EEPROM, Optional EEPROM configuration, Very low power consumption mode: Power reduced mode (cable detection) Power down mode Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction, Compatible with 3.3V and 5.0V tolerant I/O
