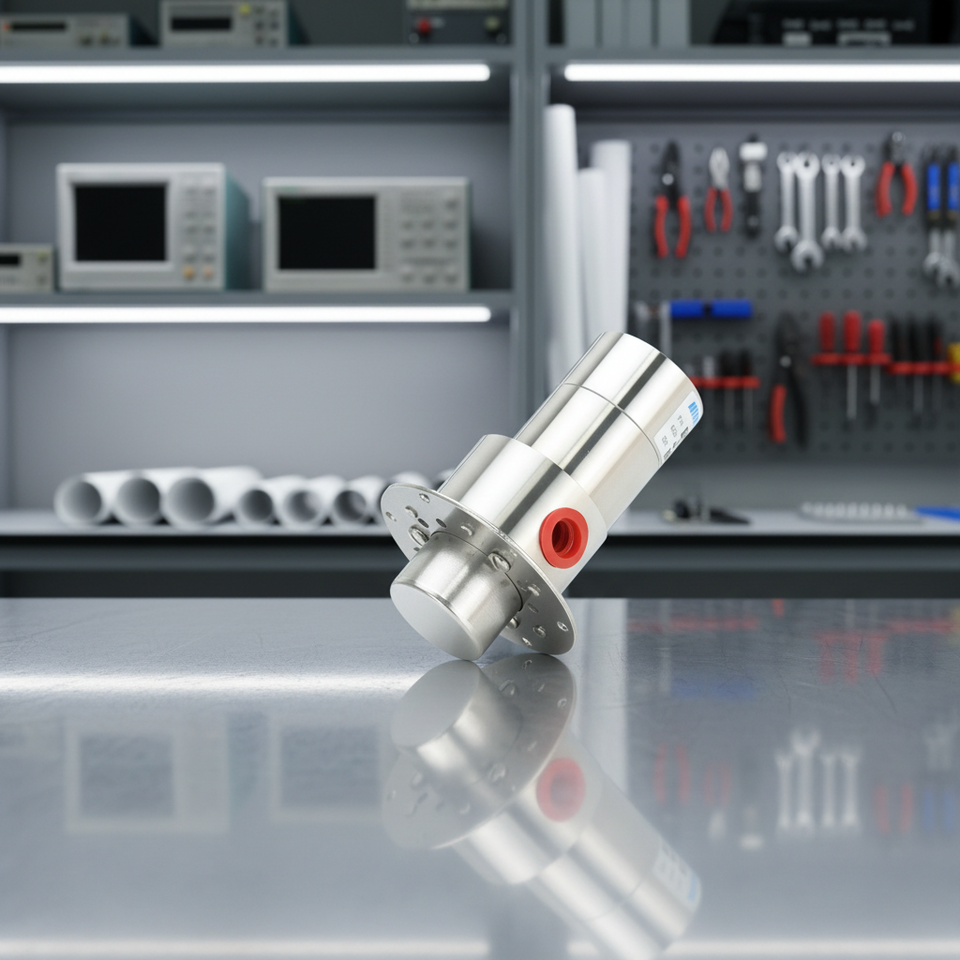

24V BLDC 316L Stainless Steel Micro Magnetic Drive Gear Pump for Precision Liquid Metering Dosing and Fluid Transfer Equipment

No reviews yet3 sold
$161.08
1-99 pieces
$128.86
100-499 pieces
$107.38
≥500 pieces
Flow Rate
maximum head
type
Customization options
motor (Min. order: 1 piece)

Key attributes

application

Other

pressure

0.25Mpa

customized support

OEM, ODM, OBM

place of origin

China

power source

Electric

warranty

1 Year

At a glance

  • SUS316L Pump Body: The SUS316L stainless steel pump body ensures high corrosion resistance and durability, making it suitable for demanding environments.

  • 0.5-1500CP Viscosity Range: With a wide viscosity range of 0.5 to 1500 CP, this pump can handle a variety of fluids, providing versatility in different applications.

  • Temperature Resistance -40 to 105°C: The pump's temperature resistance from -40 to 105 degrees Celsius allows it to operate in extreme conditions, ensuring reliable performance in various environments.

  • Max. Pressure 1.2MPa: A maximum pressure of 1.2 MPa enables the pump to handle high-pressure fluid transfer, making it suitable for demanding industrial applications.

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

application
Other
pressure
0.25Mpa
customized support
OEM, ODM, OBM
place of origin
China
power source
Electric
warranty
1 Year
model number
GQA125ESLD01
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Alcohol
Displacement
0.32mL/rev
Max Flow Rate
6L/min(water as medium)
Max Pressure
0.25MPa
motor
Servo Motor, Stepper Motor, Brushless DC Motor
Sealing Material
Ceramic
structure
ink pump
Material
Stainless Steel
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration NPT1/4-18(customizable)
Compatible Drive
Brushless DC, Stepper, Servo
Max. Flow Rate
6L/min(water as medium)
Max. Pressure
0.25MPa
Viscosity Range
0.5-1500CP
Shaft Material
Stainless steel
Temperature resistance
-40 to 105 degrees Celsius
