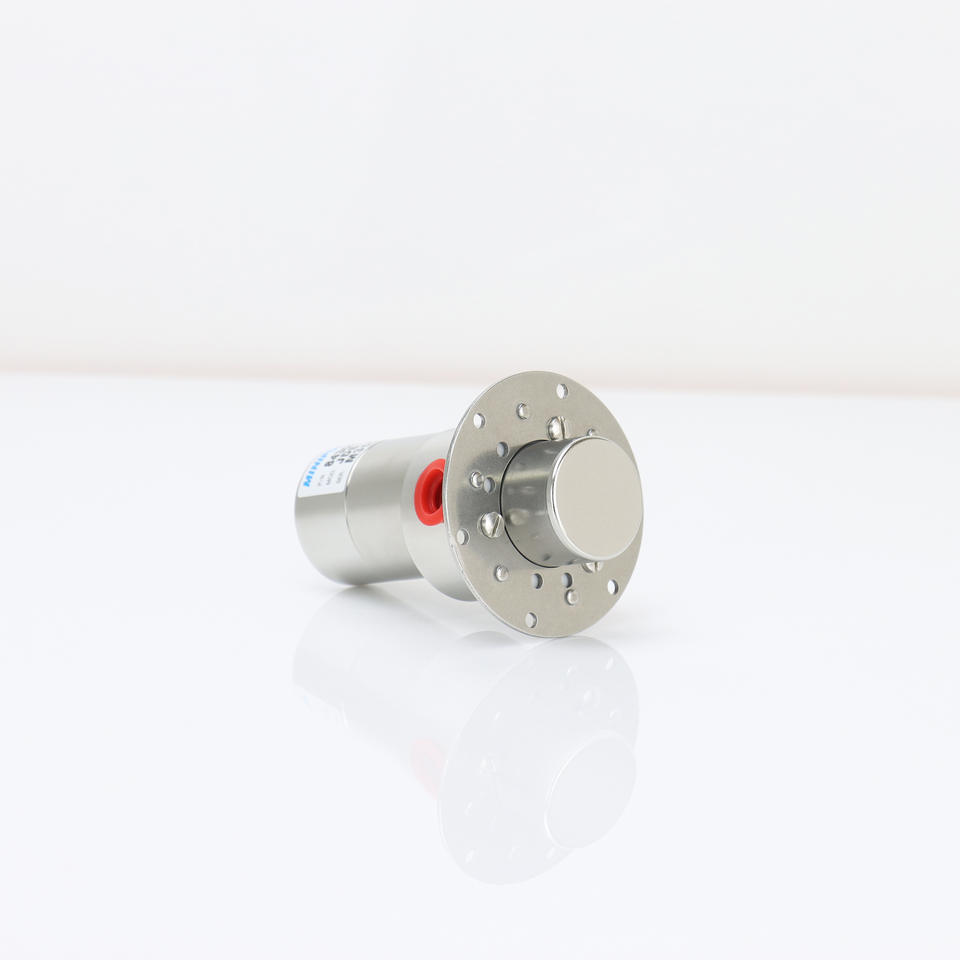

DOCOD Small Permanent Magnet Pump Micro Fluid Transfer Pump Mini 24V DC Gear Oil Pump Price
No reviews yet1 sold
Attributes
Automotive Industryapplication
ink pumpstructure
6L/min(water as medium)Max Flow Rate
2.5BarMax Pressure
Electricpower source
Alcohol, Diesel, Gasoline, Kerosene, oils, WaterChemical Compatibility
Applicable temperature:-40 to 105 degrees Celsius
Displacement:0.32mL/rev
Material:Stainless Steel
motor:Servo Motor, Brushless DC Motor, Stepper Motor
warranty:1 Year
customized support:OEM, ODM, OBM
pressure:Low Pressure
model number:GQA125ESLD01
place of origin:Guangdong, China
brand name:DOCOD
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:70W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)

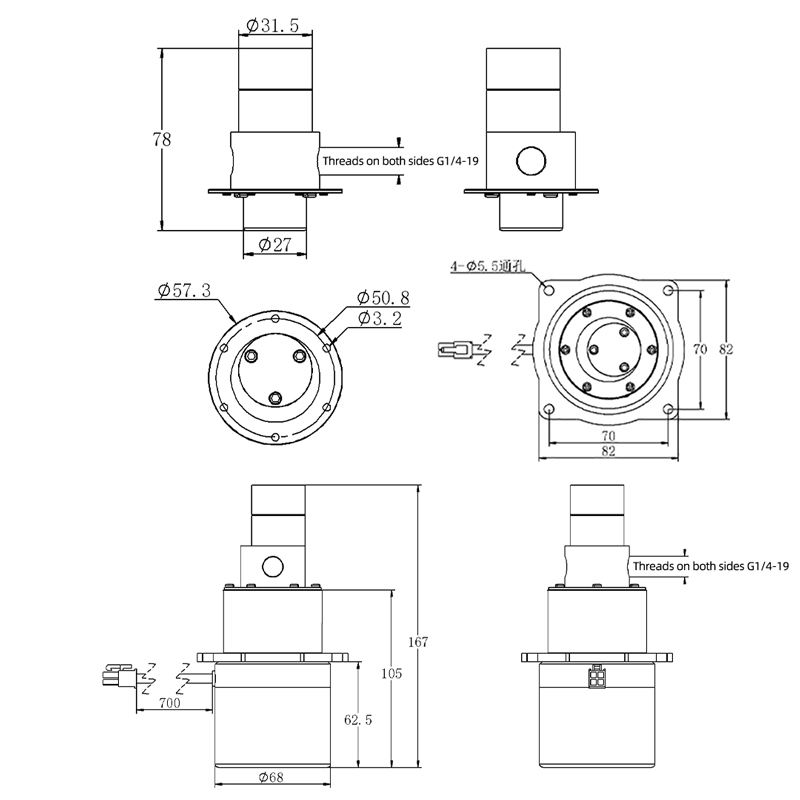

thread specifications:Standard configuration NPT1/4-18(customizable)
Compatible Drive:Brushless DC, Stepper, Servo
Max. Flow Rate:6L/min(water as medium)
Max. Pressure:0.25MPa
Viscosity Range:0.5-1500CP
Shaft Material:Stainless steel
Temperature resistance:-40 to 105 degrees Celsius
DOCOD PRECISION GROUP LIMITED
HK1 yr on Alibaba.com
Response Time ≤ 5hOn-time delivery rate ≥ 100%
Key attributes
application
Automotive Industry
structure
ink pump
Max Flow Rate
6L/min(water as medium)
Max Pressure
2.5Bar(36.26psi)
power source
Electric
Chemical Compatibility
Alcohol, Diesel, Gasoline, Kerosene, oils, Water
Applicable temperature
-40 to 105 degrees Celsius
Displacement
0.32mL/rev
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
Low Pressure
model number
GQA125ESLD01
place of origin
Guangdong, China
brand name
DOCOD
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration NPT1/4-18(customizable)
Compatible Drive
Brushless DC, Stepper, Servo
Max. Flow Rate
6L/min(water as medium)
Max. Pressure
0.25MPa
Viscosity Range
0.5-1500CP
Shaft Material
Stainless steel
Temperature resistance
-40 to 105 degrees Celsius
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
$16108
100 - 499 pieces
$12886
>= 500 pieces
$10738
Variations
Select nowFlow Rate: 500-4500rpm
500-4500rpm
maximum head: other
other
type: ink pump
ink pump
voltage
24VDC
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
