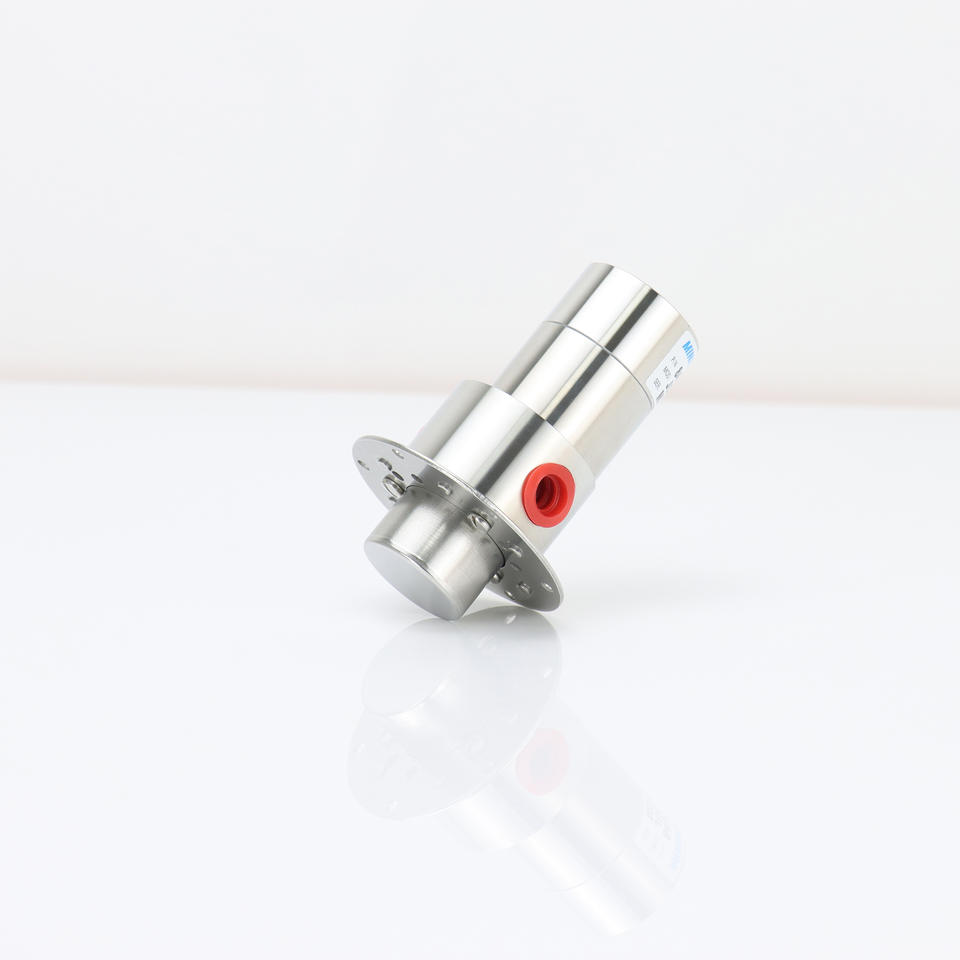

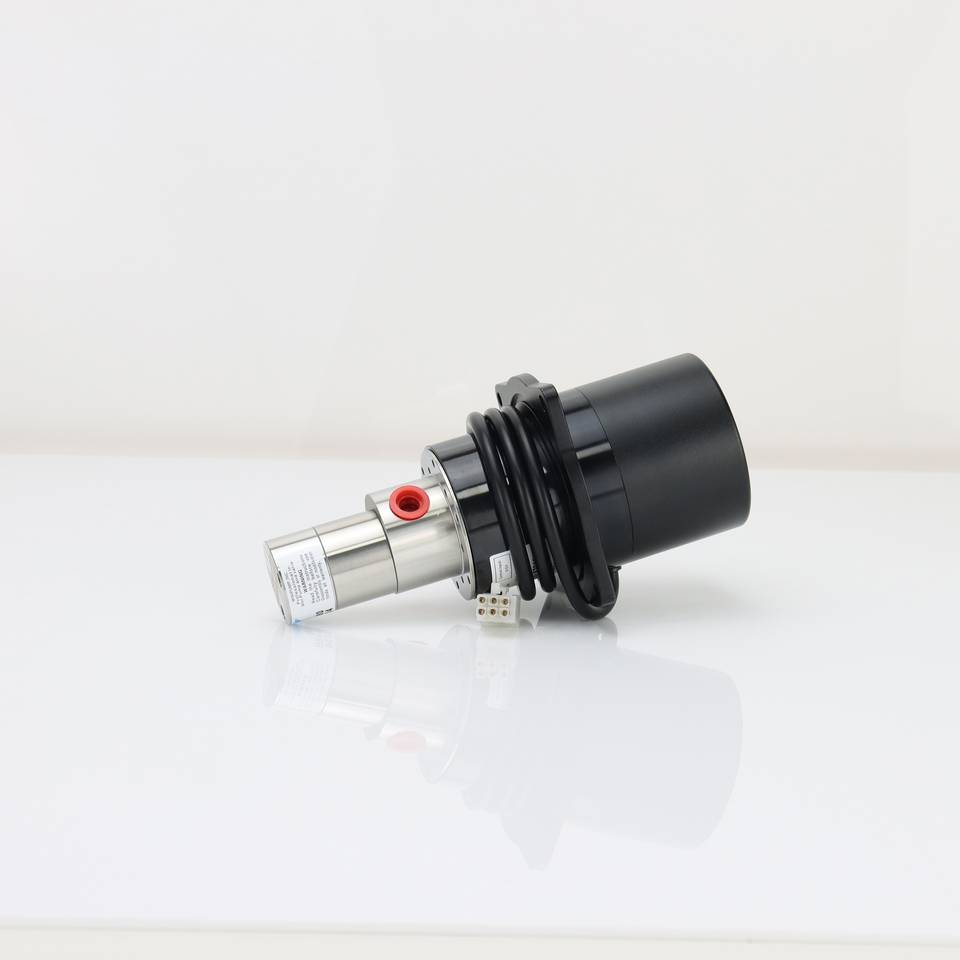

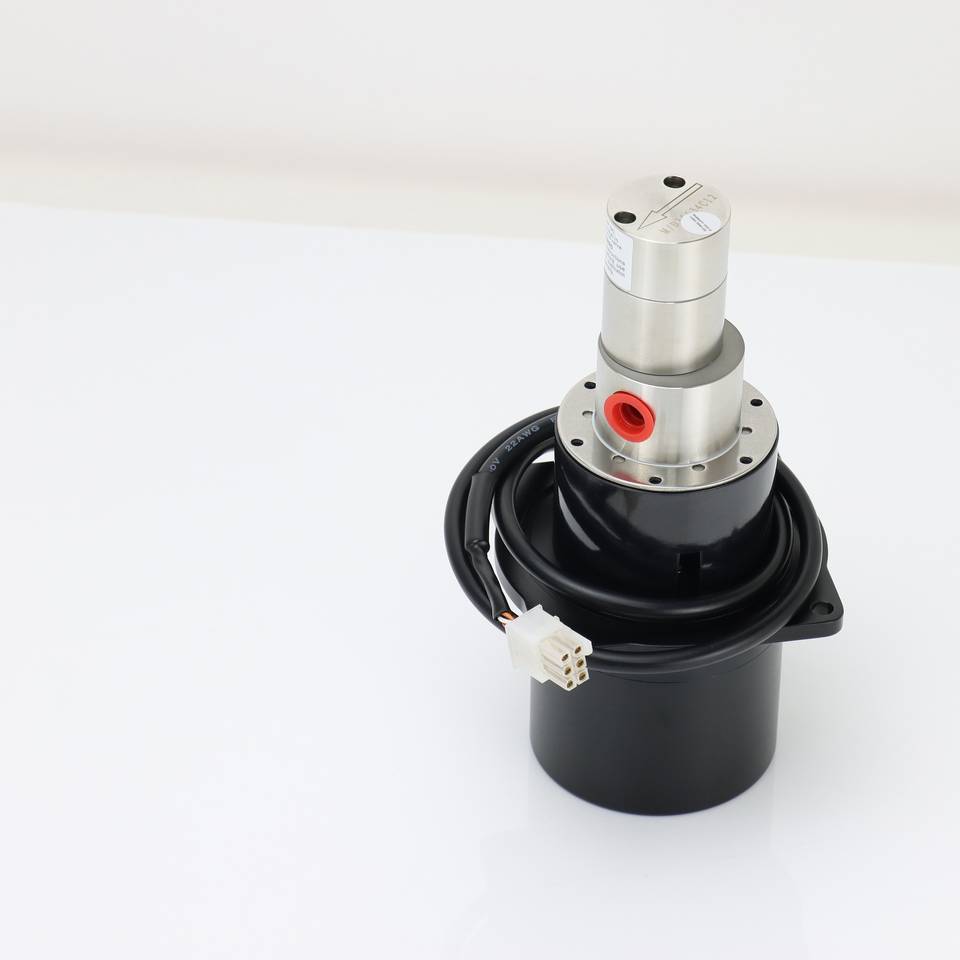

DOCOD Food Grade High Quality Stainless Steel With 70W BLDC Motor Viscous Liquid Transfer Pump
No reviews yet
Attributes
Automotive Industryapplication
Gear Pumpstructure
7.3L/minMax Flow Rate
0.05-1.2MPa (preset value0.7MPa)Max Pressure
Electricpower source
Water, oilsChemical Compatibility
Sealing Material:Stainless Steel, PTFE, Magnetic
Applicable temperature:-40 to 105 degrees Celsius
Material:Stainless Steel
motor:Servo Motor, Stepper Motor, Brushless DC Motor
warranty:1 Year
customized support:OEM, ODM, OBM
pressure:Low Pressure
model number:GQA175FSLD01
place of origin:Guangdong, China
brand name:DOCOD
Nominal Displacement:1.75ml/rev
Max. Flow Rate:7.3L/min(water as medium)
Max. Pressure:0.35MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4200rpm
Rated Voltage:24VDC
Rated Power:70W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
DOCOD PRECISION GROUP LIMITED
HK1 yr on Alibaba.com
Response Time ≤ 5hOn-time delivery rate ≥ 100%
Key attributes
application
Automotive Industry
structure
Gear Pump
Max Flow Rate
7.3L/min(1.93gpm)
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
power source
Electric
Chemical Compatibility
Water, oils
Sealing Material
Stainless Steel, PTFE, Magnetic
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Stepper Motor, Brushless DC Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
Low Pressure
model number
GQA175FSLD01
place of origin
Guangdong, China
brand name
DOCOD
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
motor(+ from /Min. order: 1 piece)
View details
Product descriptions from the supplier
Customizable
1 - 99 pieces
$31846
100 - 499 pieces
$25477
>= 500 pieces
$21231
Variations
Select nowFlow Rate: 500-4200rpm
500-4200rpm
maximum head: other
other
type: Positive Displacement Pumps
Positive Displacement Pumps
voltage
24VDC
Customization options
motor (Min. order: 1 piece)
