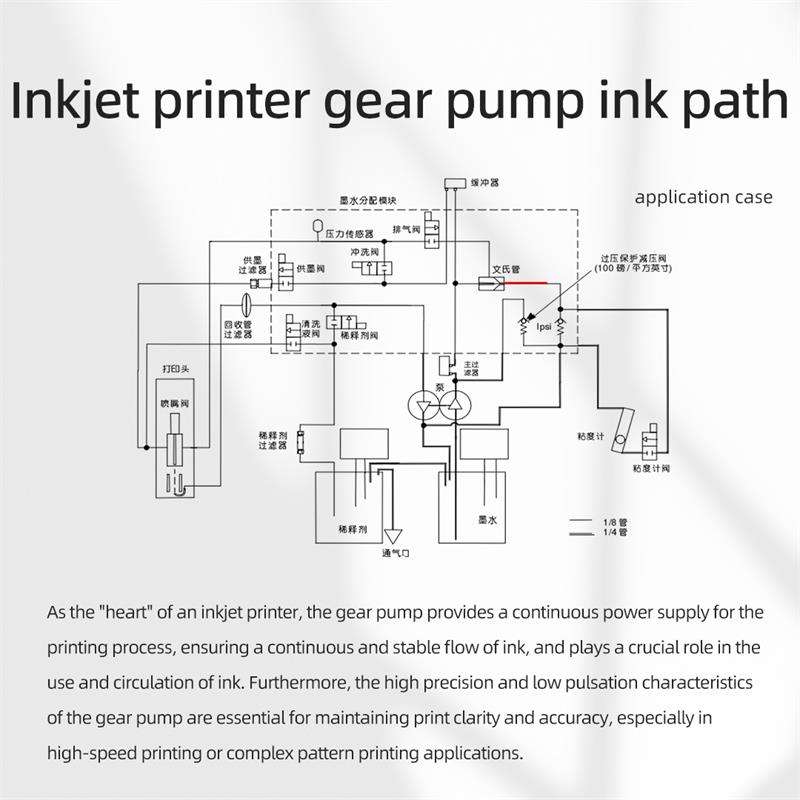

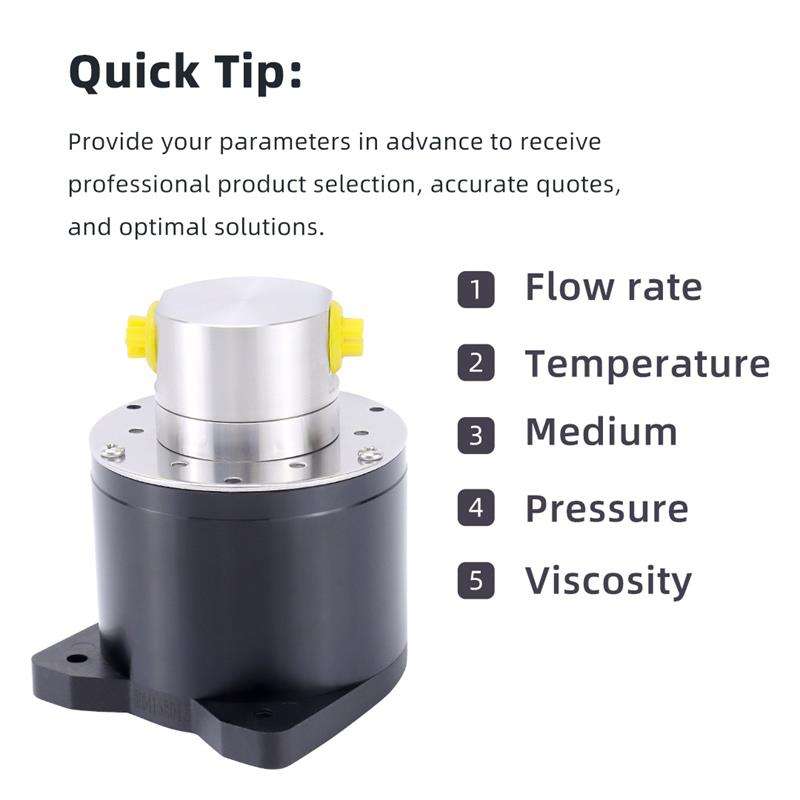

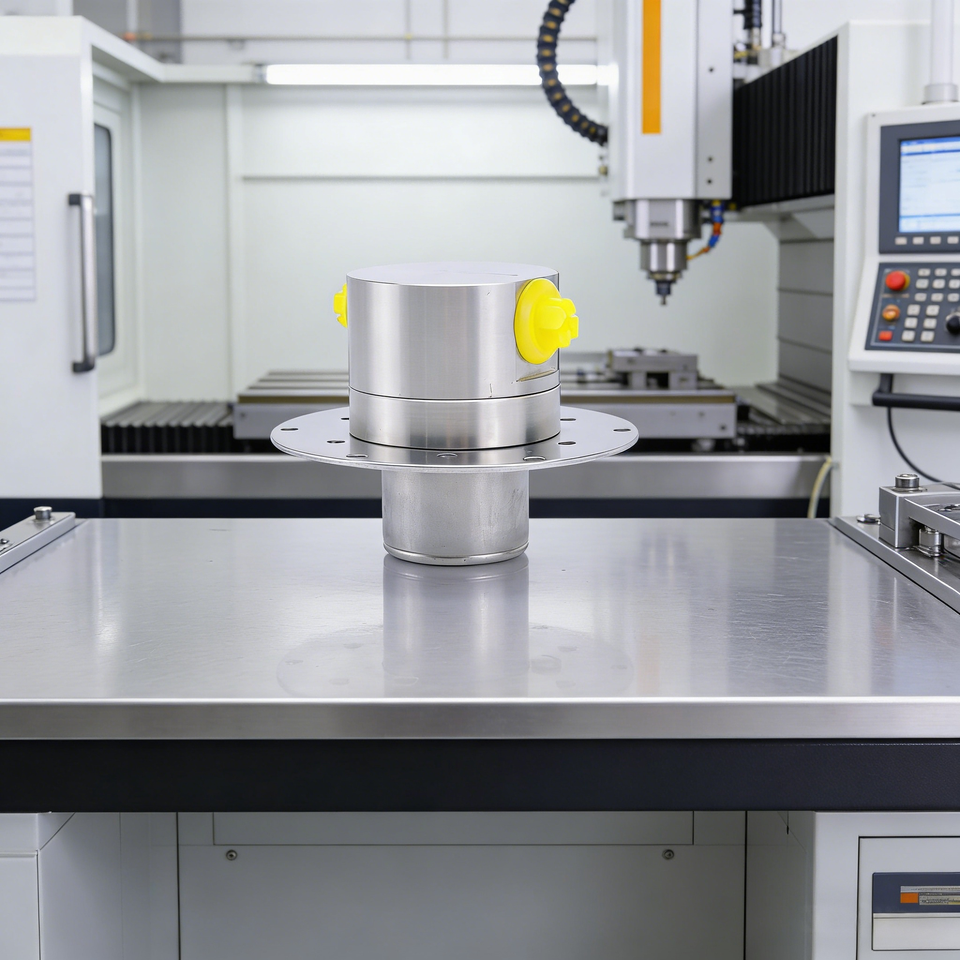

DOCOD Chenhui Electromagnetic Gear Pump Liquid Transmission Gear Pump Head for inkjet printing equipment

No reviews yet

Attributes

Automotive Industryapplication
Gear Pumpstructure
450mL/minMax Flow Rate
3.2MPaMax Pressure
Electricpower source
Alcohol, Diesel, oils, WaterChemical Compatibility
pressure:High Pressure
customized support:OEM, ODM, OBM
place of origin:Guangdong, China
warranty:1 Year
model number:GQC010ESLB03
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.1mL/rev
Max. Flow Rate:480mL/min(water as medium)
Max. Pressure:1.6MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4800rpm
Rated Voltage:24VDC
Rated Power:20W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius

Key attributes

application
Automotive Industry
structure
Gear Pump
Max Flow Rate
450mL/min(15.22fl oz/min)
Max Pressure
3.2MPa(464.12psi)
power source
Electric
Chemical Compatibility
Alcohol, Diesel, oils, Water
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
High Pressure
model number
GQC010ESLB03
place of origin
Guangdong, China
brand name
DOCOD
Nominal Displacement
0.1mL/rev
Max. Flow Rate
480mL/min(water as medium)
Max. Pressure
1.6MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4800rpm
Rated Voltage
24VDC
Rated Power
20W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius

Packaging and delivery

Selling Units
Single item

Lead time

Product descriptions from the supplier

1 - 99 pieces
$9231
100 - 499 pieces
$7385
>= 500 pieces
$6154

Variations

Select now

最大流速: 450mL/min(15.22fl oz/min)

450mL/min(15.22fl oz/min)

最大扬程: other

other

类型: Gear pump

Gear pump

电压

24VDC
