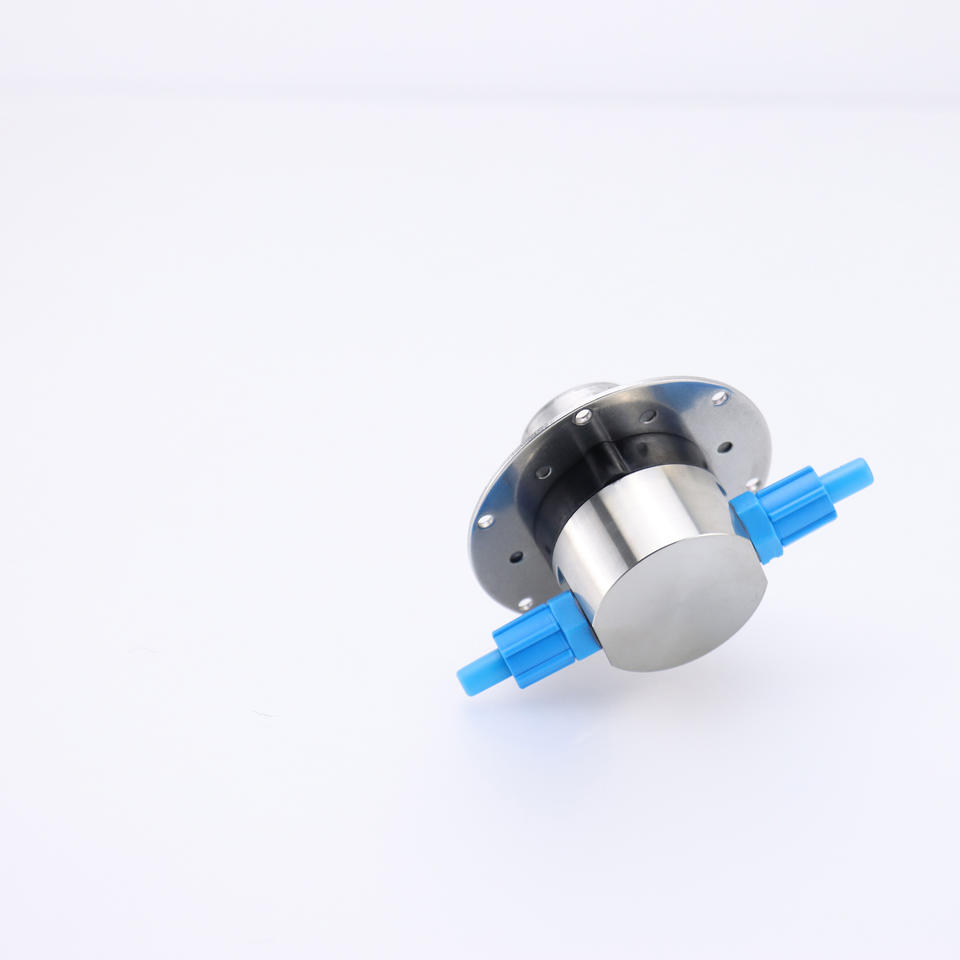

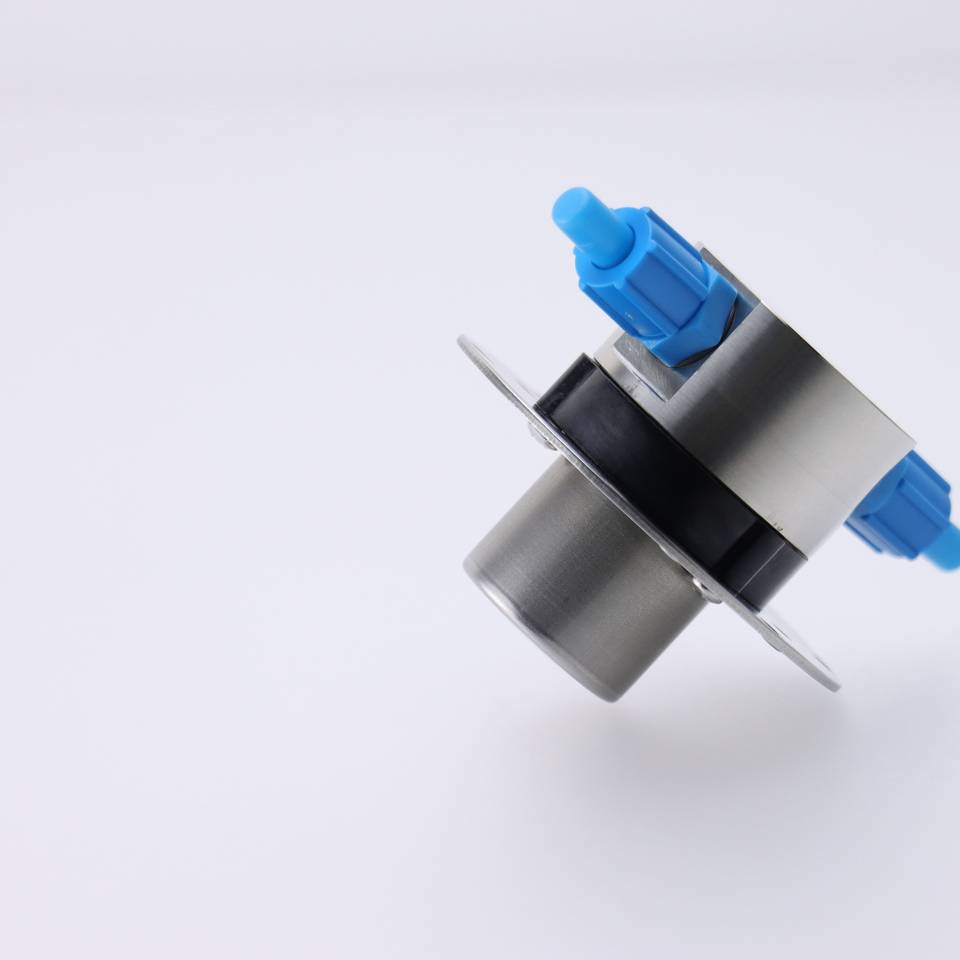

DOCOD Chemical Micro Water Pump Liquid Sampling Pump 0.1ml/rev Chemical Stainless Gear Mini Pump
No reviews yet1 sold#8 most popular in Pumps With O Ring Seals
Attributes
Otherapplication
Gear Pumpstructure
450mL/minMax Flow Rate
3.2MPaMax Pressure
Electricpower source
-40 to 105 degrees CelsiusApplicable temperature
pressure:3.2MPa
customized support:OEM, ODM, OBM
place of origin:Guangdong, China
warranty:1 Year
model number:GQC010ESLB01
brand name:DOCOD
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.1ml/rev
Max. Flow Rate:450ml/min(water as medium)
Max. Pressure:3.2MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Shaft Material:Tungsten steel (primary), ceramics (secondary)
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Key attributes
application
Other
structure
Gear Pump
Max Flow Rate
450mL/min(15.22fl oz/min)
Max Pressure
3.2MPa(464.12psi)
power source
Electric
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
3.2MPa(464.12psi)
model number
GQC010ESLB01
brand name
DOCOD
place of origin
Guangdong, China
Nominal Displacement
0.1ml/rev
Max. Flow Rate
450ml/min(water as medium)
Max. Pressure
3.2MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Shaft Material
Tungsten steel (primary), ceramics (secondary)
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
$8077
100 - 499 pieces
$6462
>= 500 pieces
$5385
Variations
Select now最大流速: 500-4200rpm
500-4200rpm
最大扬程: other
other
类型: ink pump
ink pump
电压
24VDC
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
