Customize Bldc High Robotics Reducer Joint Motor Rotary Actuator

Name: Customize Bldc High Robotics Reducer Joint Motor Rotary Actuator
Brand: CONG TY TNHH HO TRO GIAO DUC BINH MINH
SKU: 1601869803814
Price: 262.4 USD
Availability: InStock

No reviews yet

$288

1-99 pieces

$27520

100-199 pieces

$26240

≥200 pieces

Select now

Rated voltage

48 V DC

Output Power

300W

Speed of Revolution

39.6RPM

Key attributes

Continuous Current(A)

3.6A

Efficiency

IE 4

Speed(RPM)

39.6RPM

Place of Origin

Other

Frame

80mm

Motor Mounting Type

Flange Mount

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

Commutation

Brushless

Rated Power

300 W

Speed Rpm

39.6 RPM

Speed(RPM)

39.6RPM

IP Rating

IP55

Efficiency

IE 4

Type

Servo Motor

Construction

Permanent Magnet

Frame

80mm

Motor Mounting Type

Flange Mount

Protect Feature

Totally Enclosed

Usage

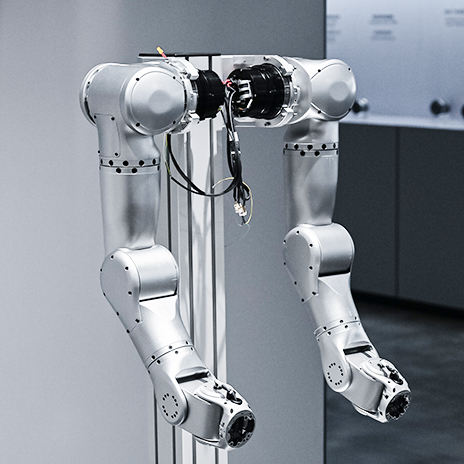

Collaborative Robot

Warranty

1 Year

Continuous Current(A)

3.6A

Model Number

HAD-17-101

Torque

35NM

Place of Origin

Henan, China

Brand Name

Avatar

Name

Robot Joint

ratio

101

Rated voltage

48V

Rated Torque

35Nm

Torque for Start and Stop

70Nm

Rated Speed

39.6RPM

Average Torque

55Nm

Hollow Diameter

14mm

Dual Encoder

17 bit

Weight

0.9KG

Packaging and delivery

Selling Units

Single item

Single volume

0 cm

Single gross weight

0.0 kg

Lead time
