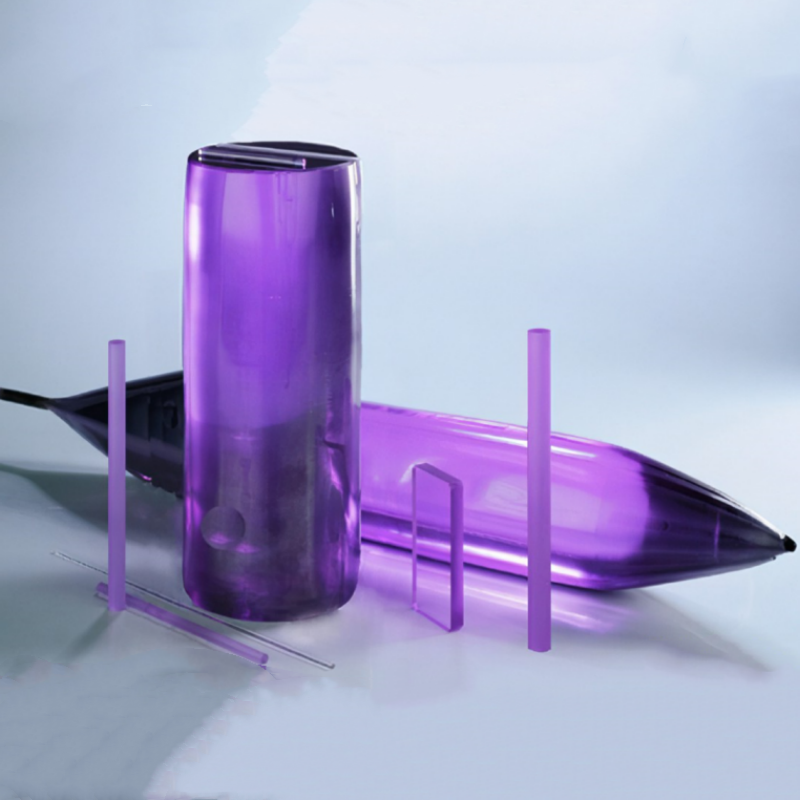

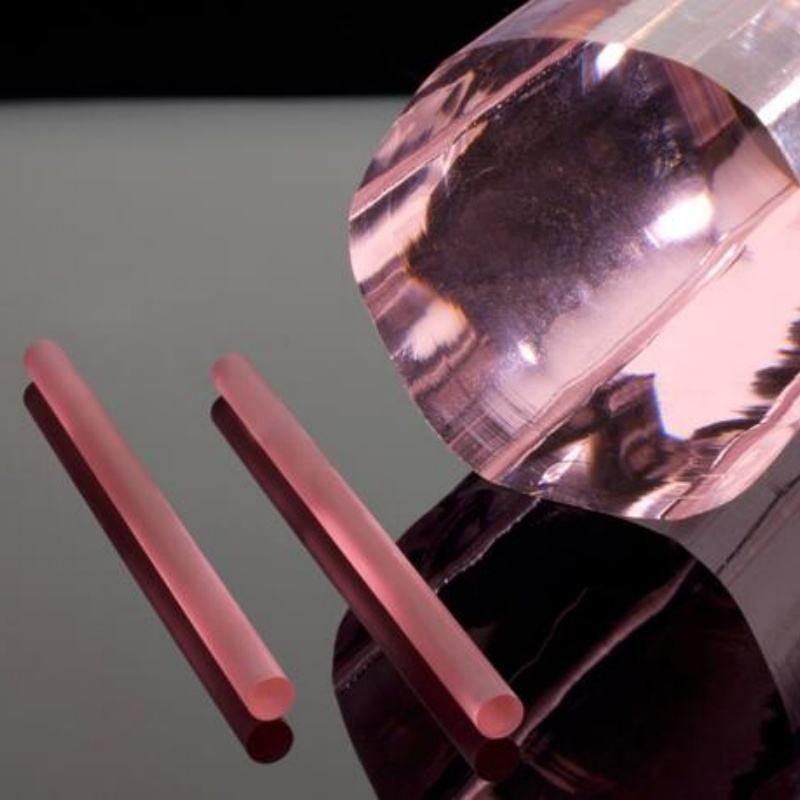

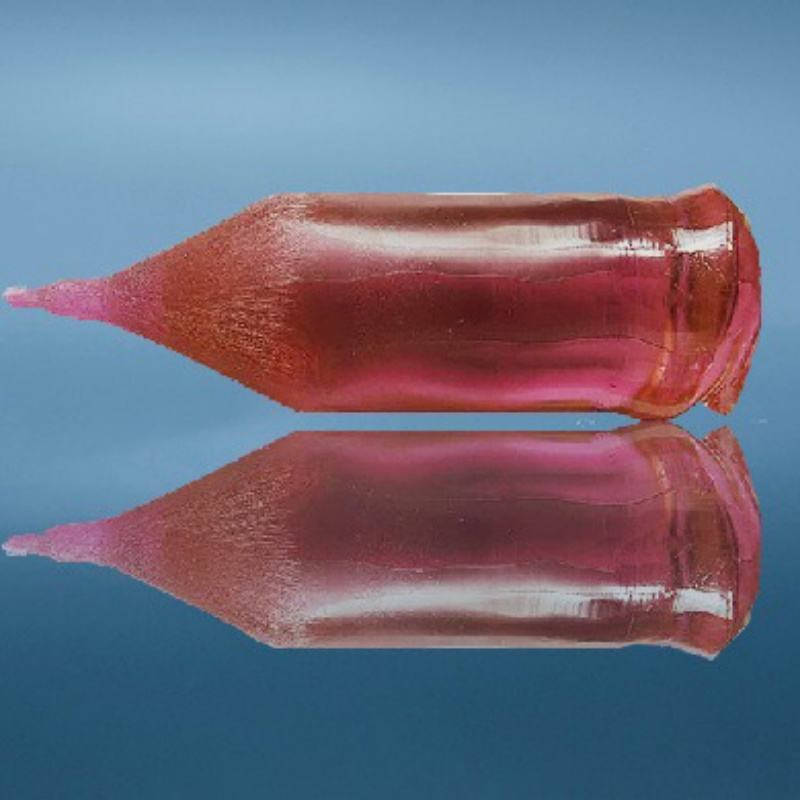

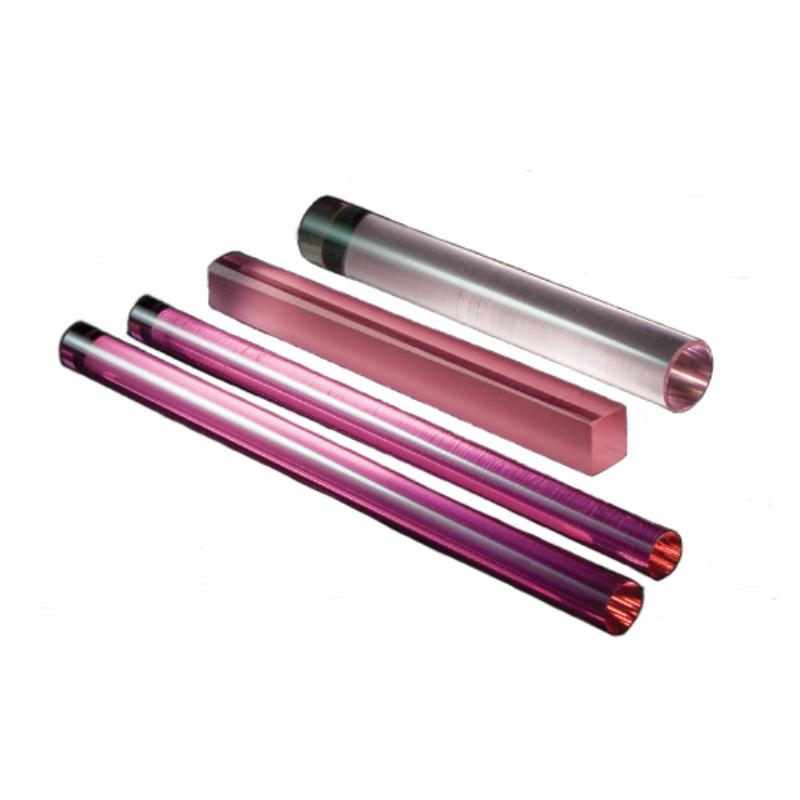

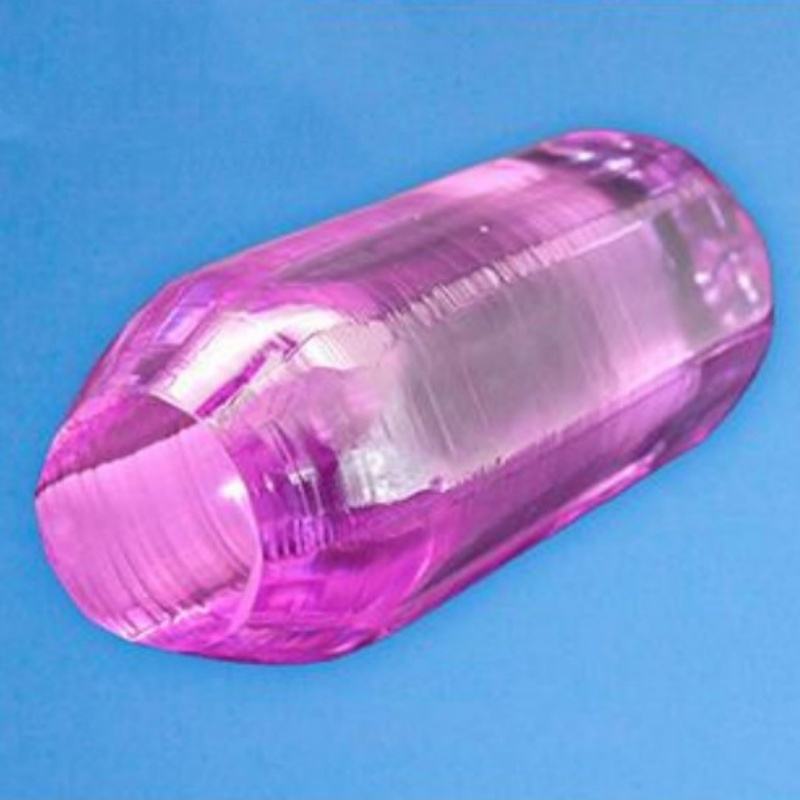

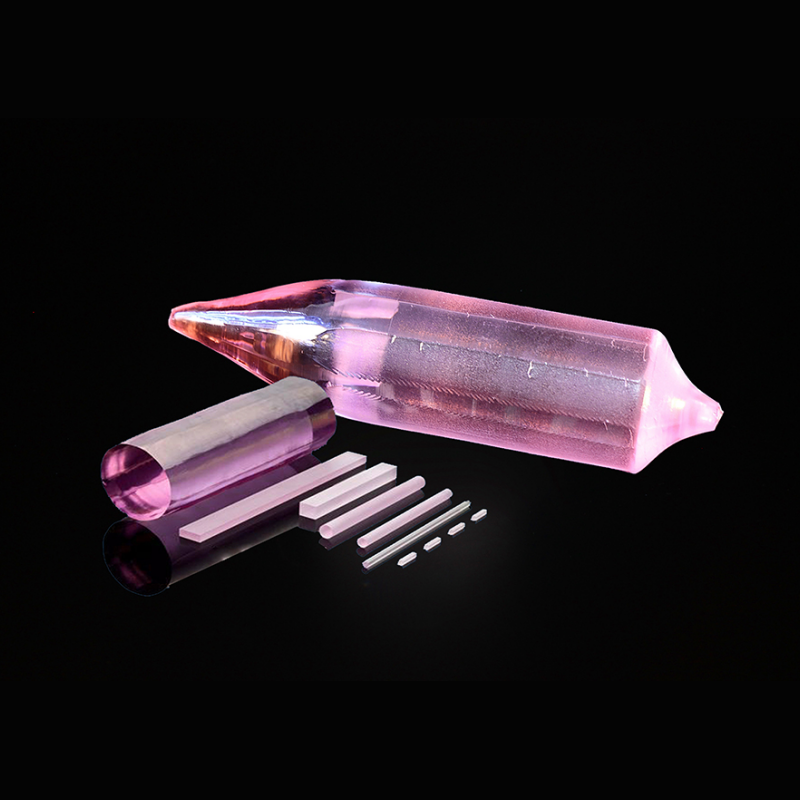

Cost-Effective Er:YAG Crystal Rod Er-Doped YAG Crystal for Materials Processing
No reviews yet
Attributes
Er:YAGModel Number
Laser TherapyApplication
Erbium-doped Yttrium Aluminum GarnetChemical Composition
ChinaPlace of Origin
WOBOBrand Name
Plate,RodShape
Doping Concentration:0.5%~5 at%
Crystal Orientation:[111], <5
Transmitted Wavefront Distortion:8 per inch @ 632.8nm
Crystal Rod Dimensions:Diameter: 2~10mm, Length: 5~150mm (Customizable)
Dimensional Tolerance:Diameter: +0.00/-0.05mm, Length: ±0.5mm
Cylindrical Surface Processing:Fine grinding, Polishing, Threading
End Face Parallelism:≤10 ''
End Face Perpendicularity:≤5 '
End Face Flatness:10 per inch @ 632.8nm
Surface Finish:10^-5 (MIL-O-13830A)
Key attributes
Model Number
Er:YAG
Application
Laser Therapy
Chemical Composition
Erbium-doped Yttrium Aluminum Garnet
Place of Origin
China
Brand Name
WOBO
Shape
Plate,Rod
Doping Concentration
0.5%~5 at%
Crystal Orientation
[111], <5
Transmitted Wavefront Distortion
8 per inch @ 632.8nm
Crystal Rod Dimensions
Diameter: 2~10mm, Length: 5~150mm (Customizable)
Dimensional Tolerance
Diameter: +0.00/-0.05mm, Length: ±0.5mm
Cylindrical Surface Processing
Fine grinding, Polishing, Threading
End Face Parallelism
≤10 ''
End Face Perpendicularity
≤5 '
End Face Flatness
10 per inch @ 632.8nm
Surface Finish
10^-5 (MIL-O-13830A)
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo (Min. order: 100 pieces)
View details
Product descriptions from the supplier
Customizable
1,000 - 4,999 pieces
$33690
5,000 - 9,999 pieces
$32580
>= 10,000 pieces
$31450
Variations
Select nowDimensions
+0.00/-0.05mm
Customization options
Customized logo (Min. order: 100 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
