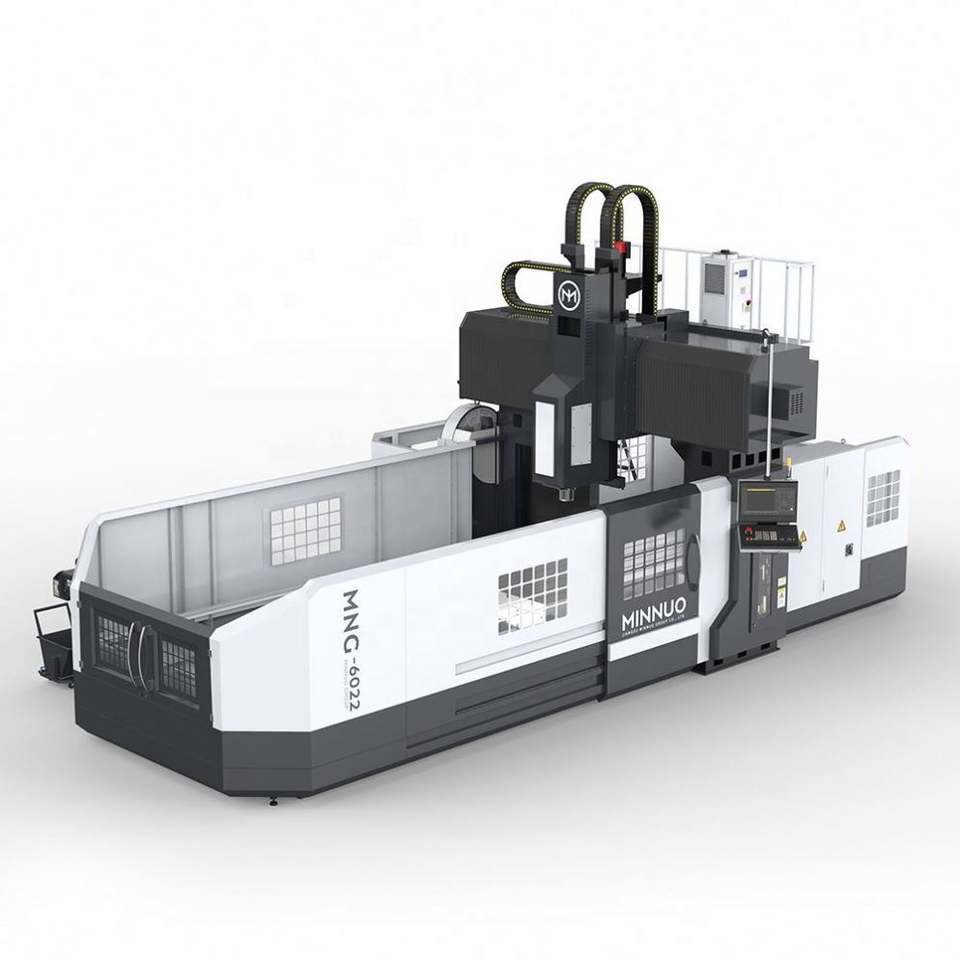

Cnc Gantry Milling Machine Fixed-colum Gantry Machining Center MNG-6022 Aluminium Profile Machining Center
No reviews yet
Attributes
Gantrytype
6200table travel (x) (mm)
3150table travel (y) (mm)
1000table travel (z) (mm)
±0.012repeatability (x/y/z) (mm)
±0.016positioning accuracy
spindle taper:BT50
no. of spindles:Single
tool magazine capacity:24
cnc control system:GSK
machining capacity:Heavy Duty
voltage:customizable
table size:2200*6000
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
min. time of tool change(s):2
key selling points:High-Accuracy
weight (t):57
max. table load(kg):12000
place of origin:Jiangsu, China
dimension(l*w*h):20000*7600*6200
range of spindle speed:1 - 8000
brand name:Minnuo
rapid feed speed:1 - 8000
Product name:MNG-6022 Gantry Processing Center CNC Gantry Machining Center
CNC or Not:CNC Systemn
Controlling Mode:Fanuc Mitsubishi Siemens Gsk System
Spindle Speed:8000rpm
Tool Changer:ATC 24 Tools Changer
T Slot:22X140X7mm
Power(W):22/26KW
Guideways:Taiwan Hiwin Linear Guideways
Surface Treatment:High Temperature Quenching
Color:Customer's Requirement
Key attributes
type
Gantry
table travel (x) (mm)
6200
table travel (y) (mm)
3150
table travel (z) (mm)
1000
repeatability (x/y/z) (mm)
±0.012
positioning accuracy
±0.016
spindle taper
BT50
no. of spindles
Single
tool magazine capacity
24
cnc control system
GSK
machining capacity
Heavy Duty
voltage
customizable
table size
2200*6000
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
2
key selling points
High-Accuracy
weight (t)
57
max. table load(kg)
12000
place of origin
Jiangsu, China
dimension(l*w*h)
20000*7600*6200
range of spindle speed
1 - 8000
brand name
Minnuo
rapid feed speed
1 - 8000
Product name
MNG-6022 Gantry Processing Center CNC Gantry Machining Center
CNC or Not
CNC Systemn
Controlling Mode
Fanuc Mitsubishi Siemens Gsk System
Spindle Speed
8000rpm
Tool Changer
ATC 24 Tools Changer
T Slot
22X140X7mm
Power(W)
22/26KW
Guideways
Taiwan Hiwin Linear Guideways
Surface Treatment
High Temperature Quenching
Color
Customer's Requirement
Packaging and delivery
Selling Units
Single item
Single package size
XX cm
Lead time
Product descriptions from the supplier
1 - 4 pieces
$88,888
>= 5 pieces
$78,000
Variations
Select nowmodel number: MNG-6022
MNG-6022
number of axes: 3
3
spindle motor power
22/26
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
