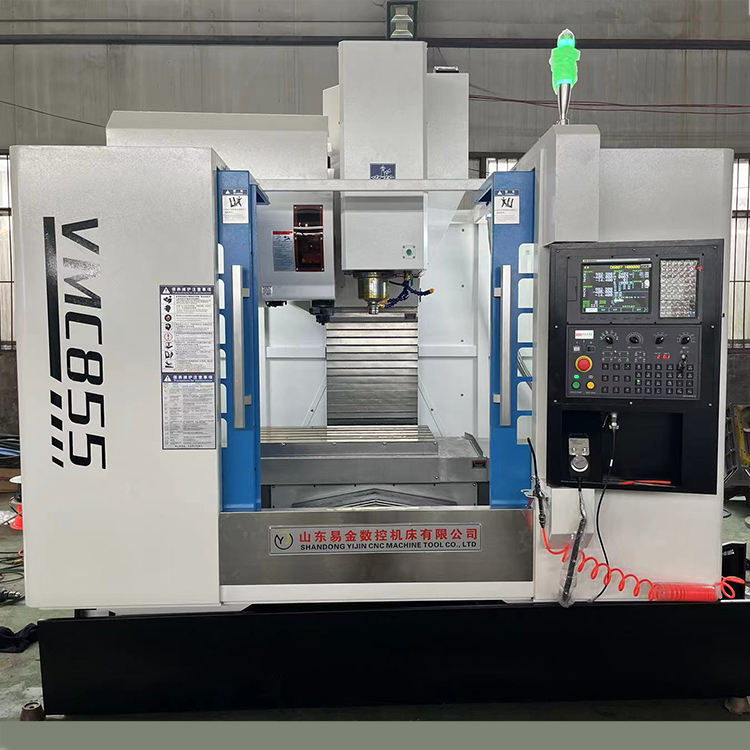

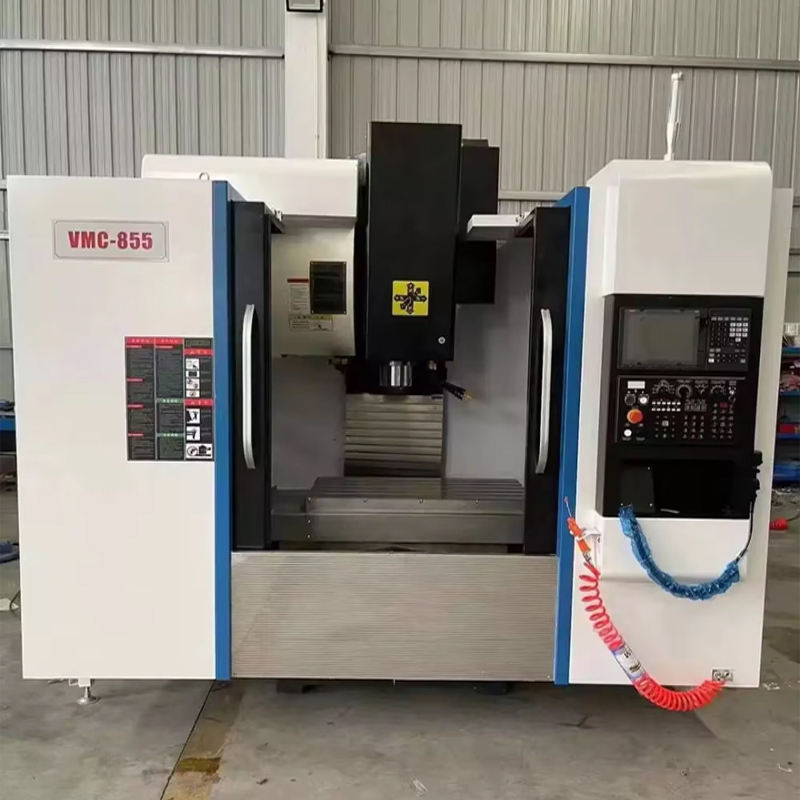

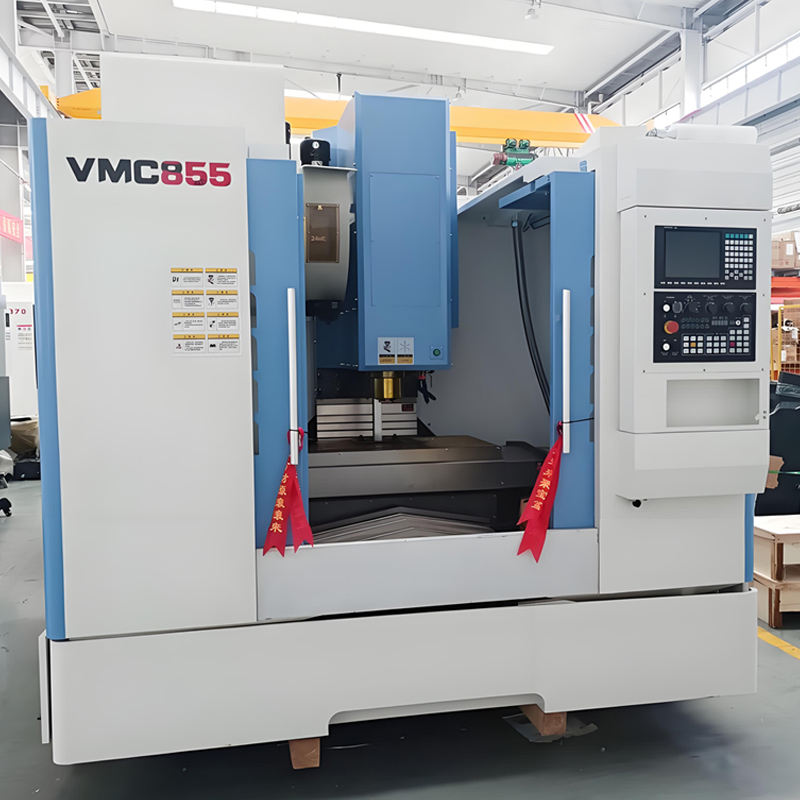

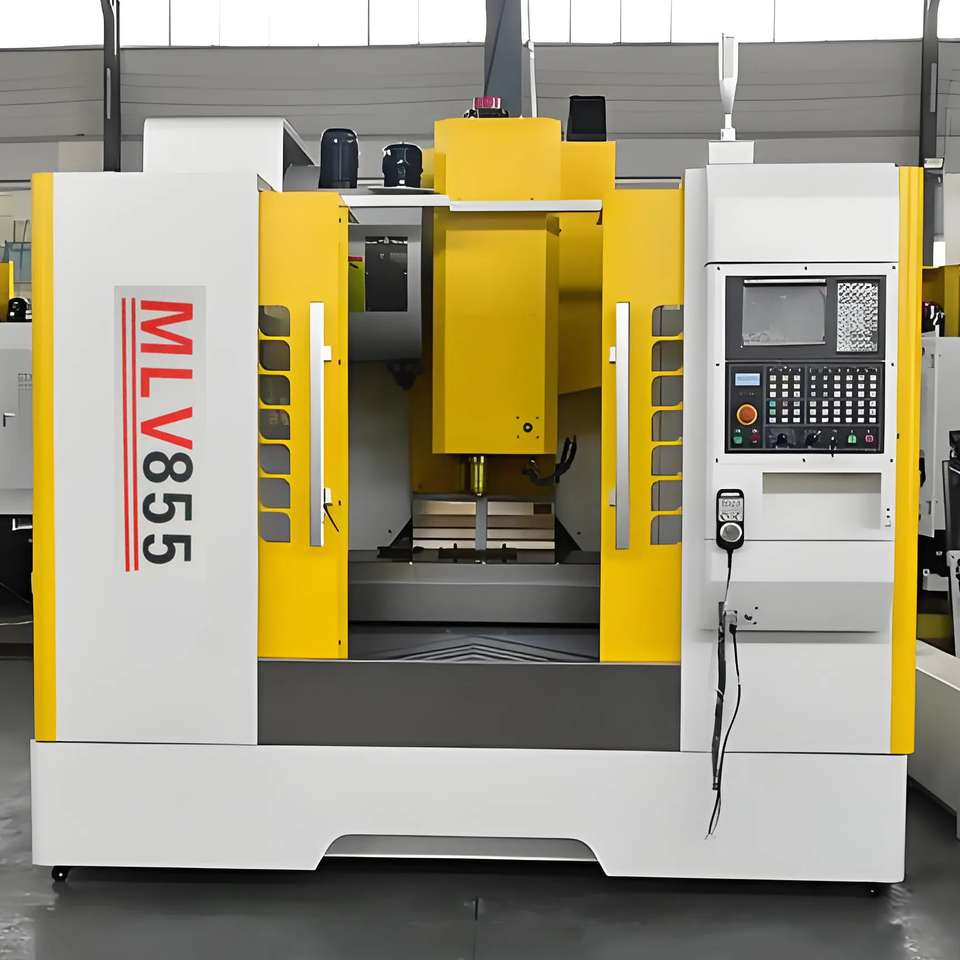

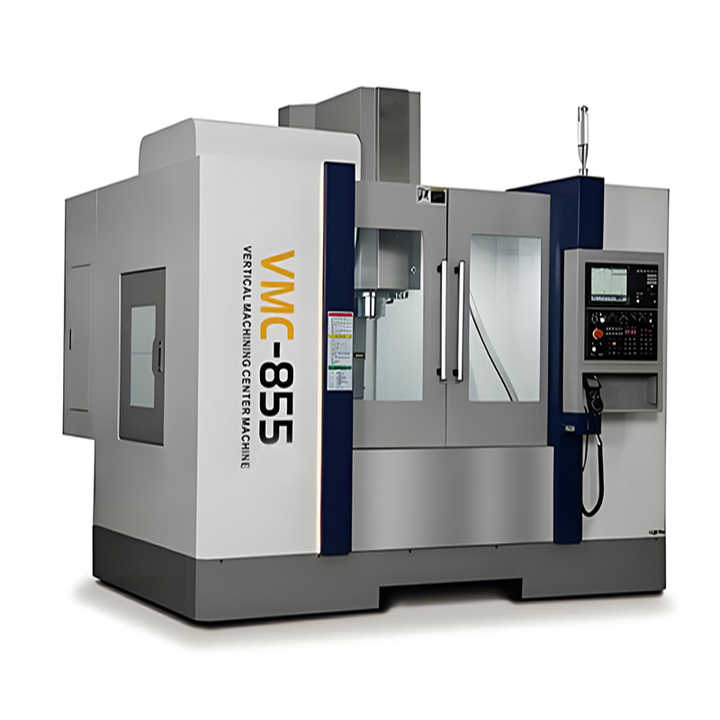

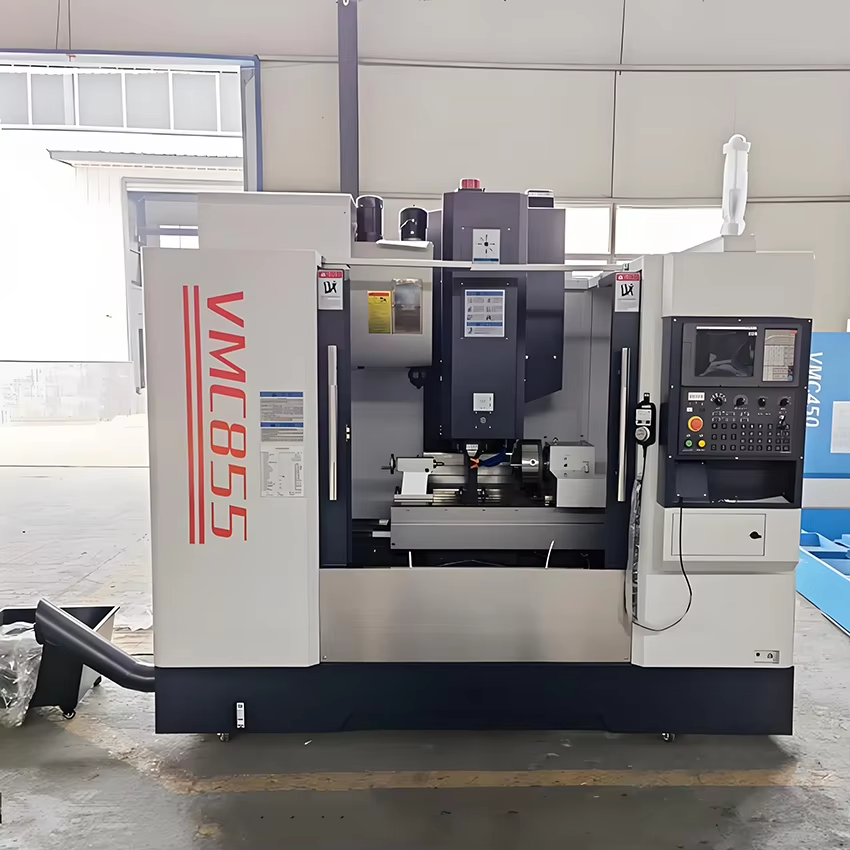

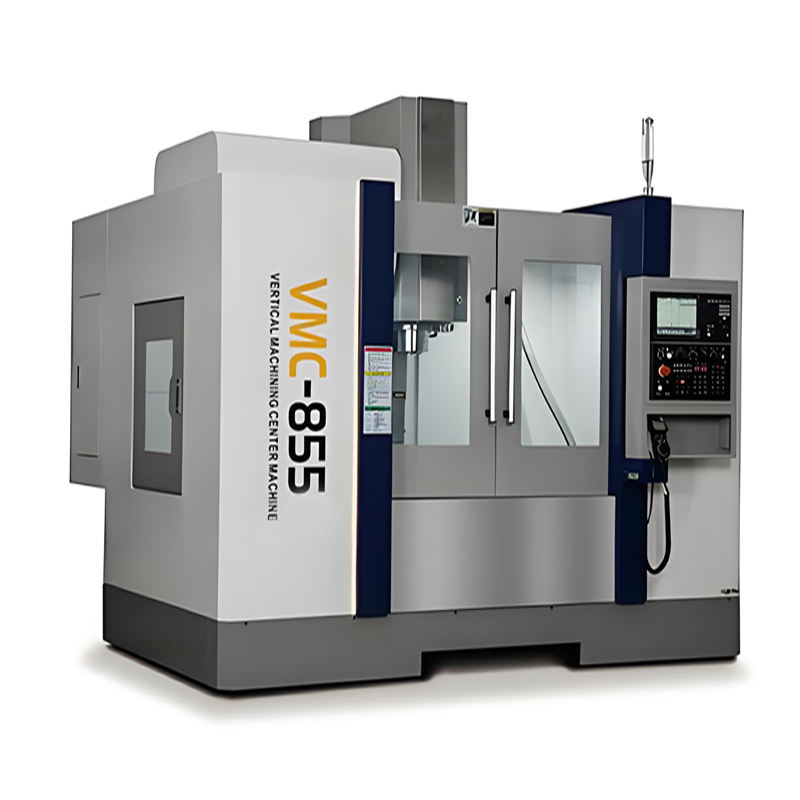

Chinese Factory VMC855 VK 3&4&5 Axis CNC Milling Machine BT40 Vertical Machining Center CNC Milling Machining Center Tool
No reviews yet
Attributes
VERTICALtype
800table travel (x) (mm)
550table travel (y) (mm)
550table travel (z) (mm)
±0.003repeatability (x/y/z) (mm)
±0.005/300mmpositioning accuracy
table size:1000*550
no. of spindles:Single
weight (t):5.8
max. table load(kg):600
min. time of tool change(s):2
place of origin:Shandong, China
spindle taper:BT40
dimension(l*w*h):2800*2360*2400mm
range of spindle speed:1 - 10000 r.p.m
tool magazine capacity:16, 24, 32
key selling points:High-Accuracy
warranty:3 Years
brand name:YIJIN CNC
voltage:380V±10%
machinery test report:Provided
video outgoing-inspection:Provided
machining capacity:Heavy Duty
rapid feed speed:1 - 10000 mm/min
Spindle diameter:150mm
T-slot:5-18-90mm
Distance from spindle end face to table:120-670mm
Spindle center to column guide:540mm
Rapid traverse of X/Y/Z-axis:36/36/36m/min
X/Y/Z-axis travel guide way type:Linear guideway
Keywords:Vertical Machine Center VMC
Key word:High Speed Vertical
Product name:CNC Vertical Machining Center
Machine Type:Vertical CNC Milling Machine
Service
Free replacement parts & online technical support
Key attributes
type
VERTICAL
table travel (x) (mm)
800
table travel (y) (mm)
550
table travel (z) (mm)
550
repeatability (x/y/z) (mm)
±0.003
positioning accuracy
±0.005/300mm
spindle taper
BT40
no. of spindles
Single
tool magazine capacity
16, 24, 32
machining capacity
Heavy Duty
voltage
380V±10%
table size
1000*550
warranty
3 Years
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
2
key selling points
High-Accuracy
weight (t)
5.8
max. table load(kg)
600
place of origin
Shandong, China
dimension(l*w*h)
2800*2360*2400mm
range of spindle speed
1 - 10000 r.p.m
brand name
YIJIN CNC
rapid feed speed
1 - 10000 mm/min
Spindle diameter
150mm
T-slot
5-18-90mm
Distance from spindle end face to table
120-670mm
Spindle center to column guide
540mm
Rapid traverse of X/Y/Z-axis
36/36/36m/min
X/Y/Z-axis travel guide way type
Linear guideway
Keywords
Vertical Machine Center VMC
Key word
High Speed Vertical
Product name
CNC Vertical Machining Center
Machine Type
Vertical CNC Milling Machine
Packaging and delivery
Selling Units
Single item
Single package size
280X236X240 cm
Single gross weight
5800.000 kg
Lead time
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
1 - 1 sets
$16,500
2 - 2 sets
$15,500
>= 3 sets
$14,500
Variations
Select nowmodel number: VMC855 CNC Milling Machine center
VMC855 CNC Milling Machine center
number of axes: 3
3
4
5
spindle motor power
7.5
