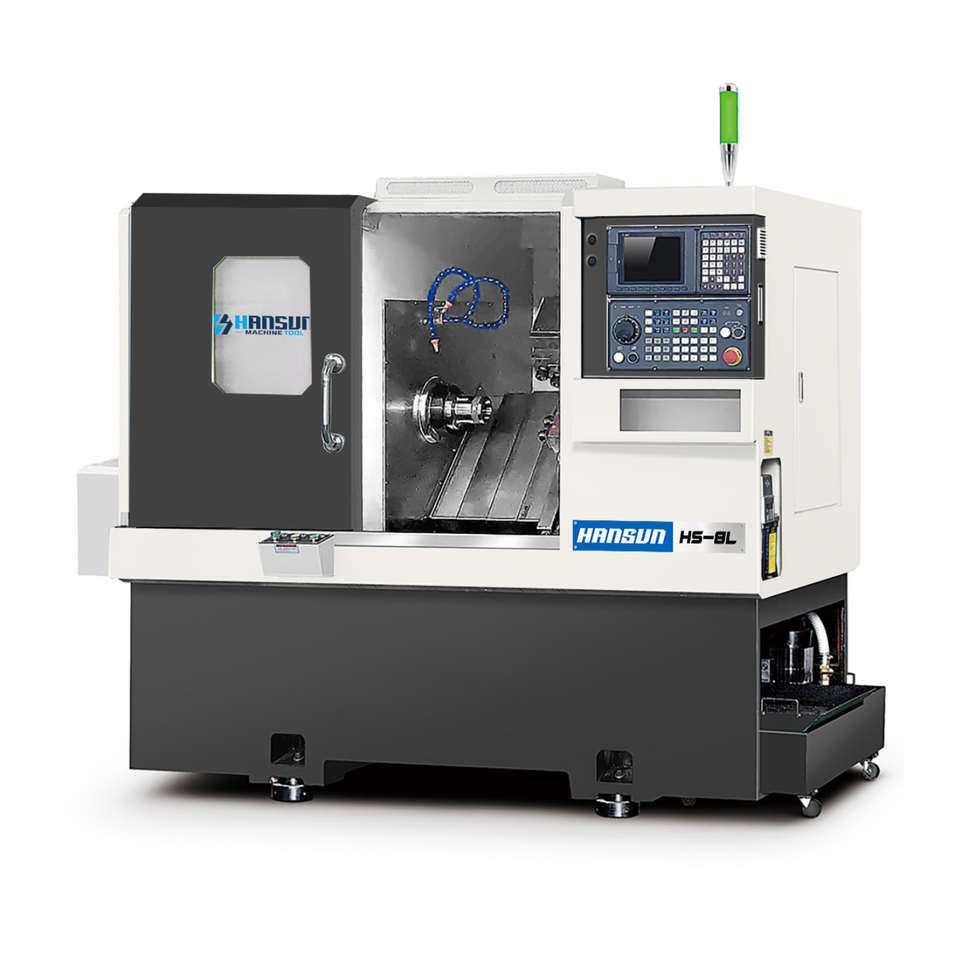

China Factory High Speed FANUC CNC Lathe Single Spindle Gang Tool Turret Type Flat Bed HS-8L 0-3000 RPM 8-Station Tool Post
No reviews yet
Attributes
380 V, 220V Electrical Equipmentvoltage

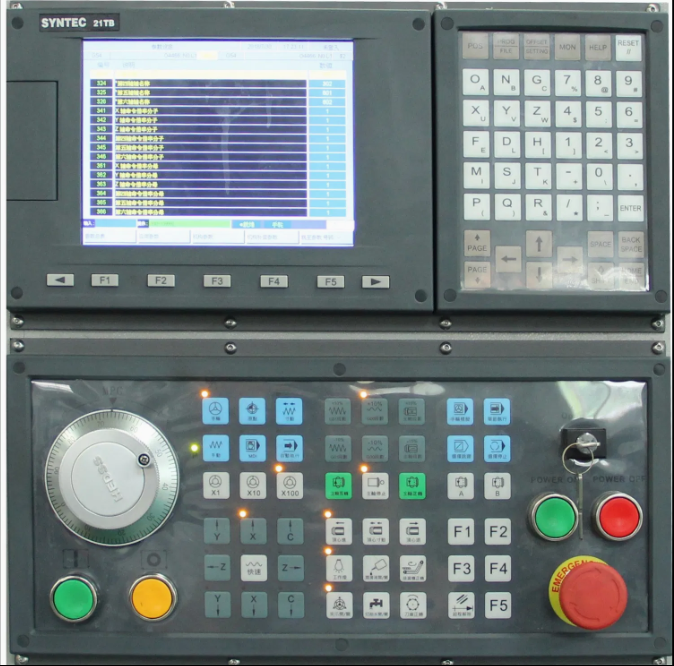

FANUCcnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles

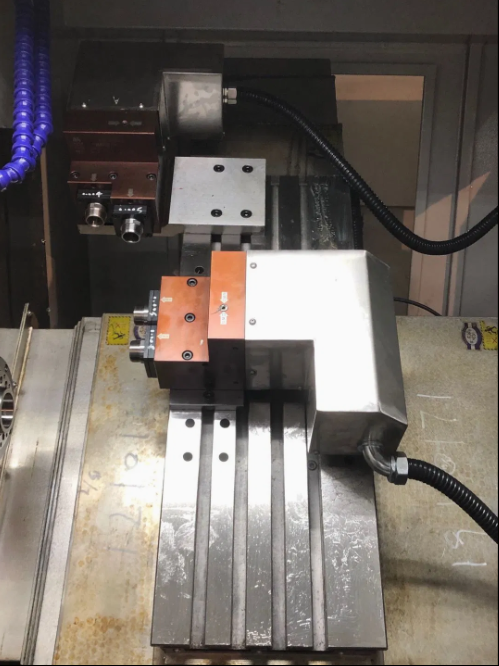

8tool post stations
max. length of workpiece (mm):250
key selling points:Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year
type:cnc lathe
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):1040
travel (z axis)(mm):250
place of origin:Guangdong, China
dimension(l*w*h):2400x1500x2000
brand name:HANSUN
model number:8L
weight:3000
range of spindle speed:0 - 2500
CNC or Not:cnc
max process diameter:380mm
spindle bore:62mm

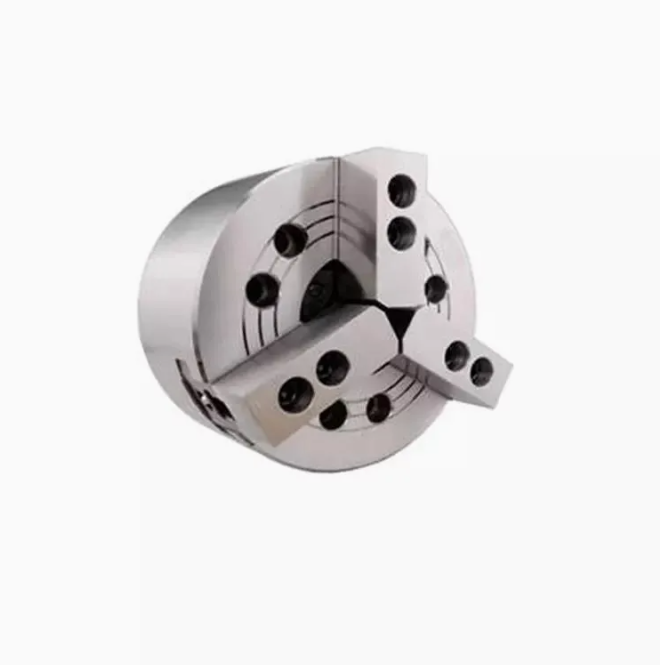

chuck size:8 inch
x/z axis machining travel:1030/300 mm
center height:56mm
bar feeder ground to center:1120mm
square tool holder size:20x20
round hole tool holder size:25mm
max passable bar diameter:52mm
power head speed:0-3000 r/min
x/z axis fast moving speed:26/26 m/min
Key attributes
voltage
380 V, 220V Electrical Equipment
cnc control system
FANUC
machining capacity
Light Duty
number of axes
2
no. of spindles
Single
tool post stations
8
max. length of workpiece (mm)
250
key selling points
Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm)
±0.005
positioning accuracy (mm)
±0.005
warranty
1 Year
type
cnc lathe
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
50
travel (x axis)(mm)
1040
travel (z axis)(mm)
250
place of origin
Guangdong, China
dimension(l*w*h)
2400x1500x2000
brand name
HANSUN
model number
8L
weight
3000
range of spindle speed
0 - 2500
CNC or Not
cnc
max process diameter
380mm
spindle bore
62mm
chuck size
8 inch
x/z axis machining travel
1030/300 mm
center height
56mm
bar feeder ground to center
1120mm
square tool holder size
20x20
round hole tool holder size
25mm
max passable bar diameter
52mm
power head speed
0-3000 r/min
x/z axis fast moving speed
26/26 m/min
Packaging and delivery
Selling Units
Single item
Single package size
2400X1500X2000 cm
Single gross weight
3000.000 kg
Lead time
Customization options
cnc control system (Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
1 - 2 sets
$30,890
>= 3 sets
$30,000
Sample price: $500
Variations
Select nowmax. swing diameter (mm): 400
400
spindle motor power(kw)
11kw
Customization options
cnc control system (Min. order: 1 set)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
