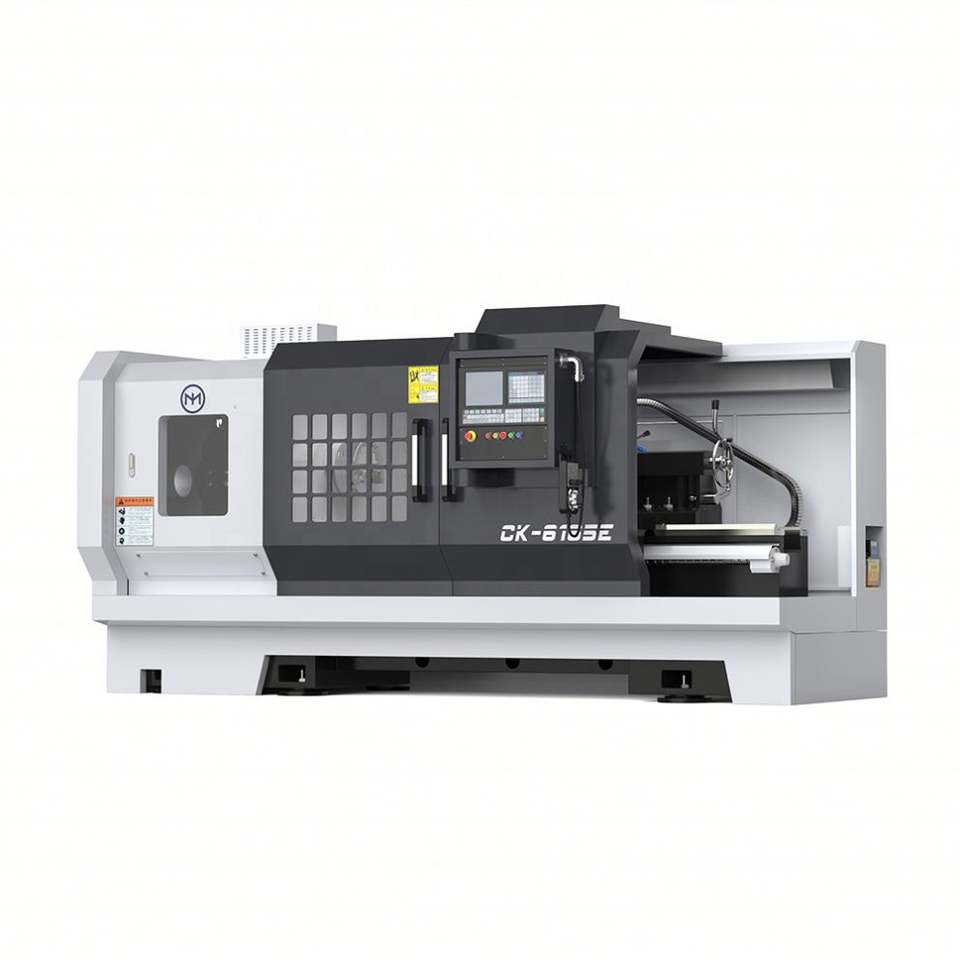

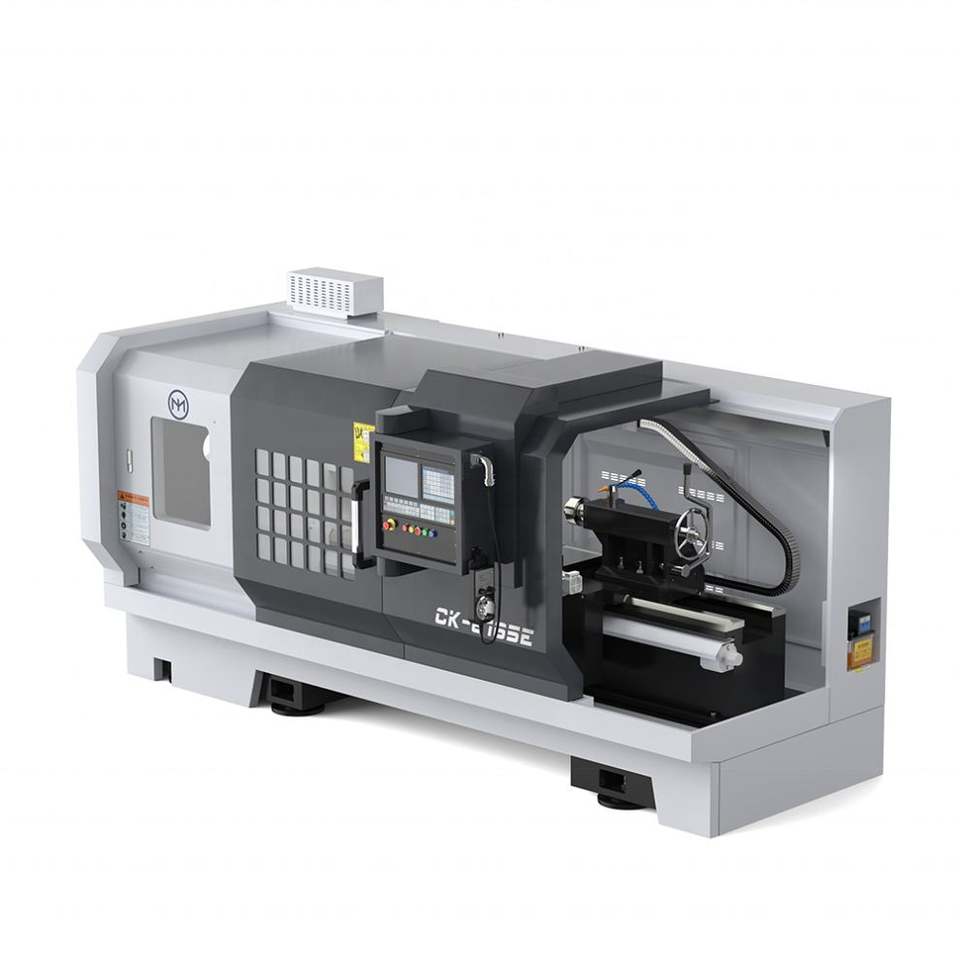

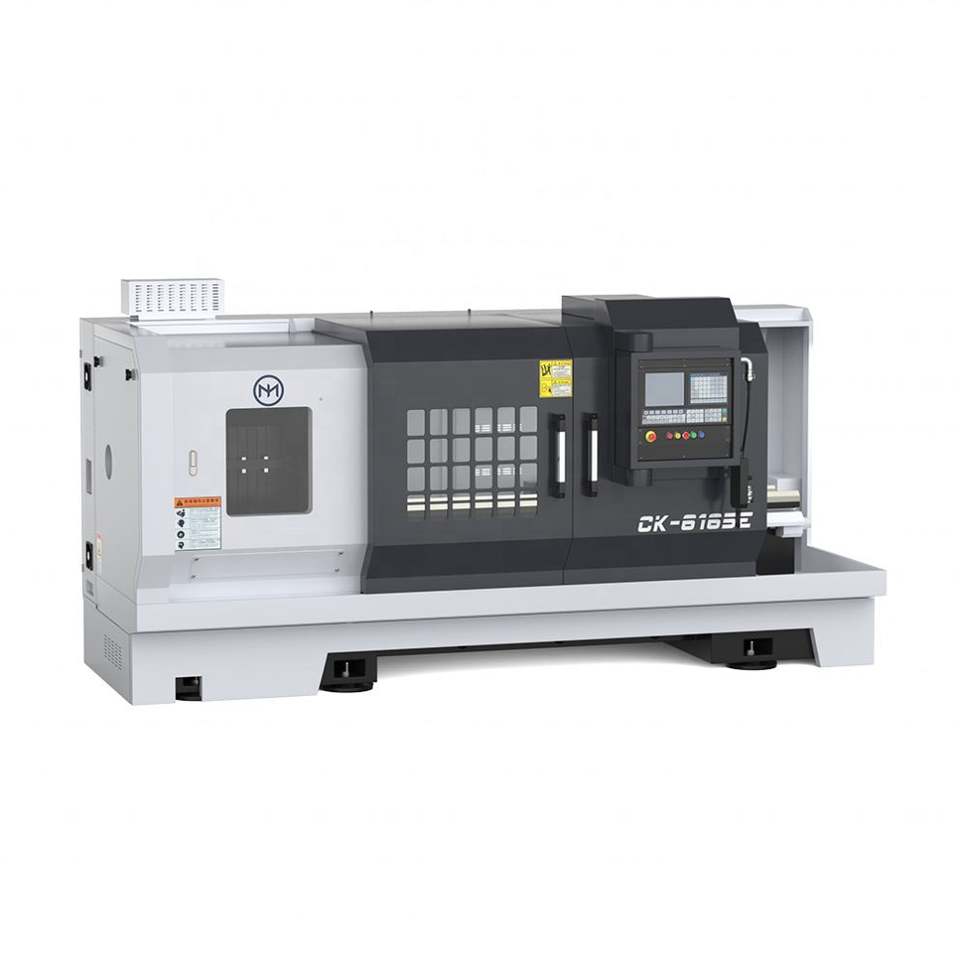

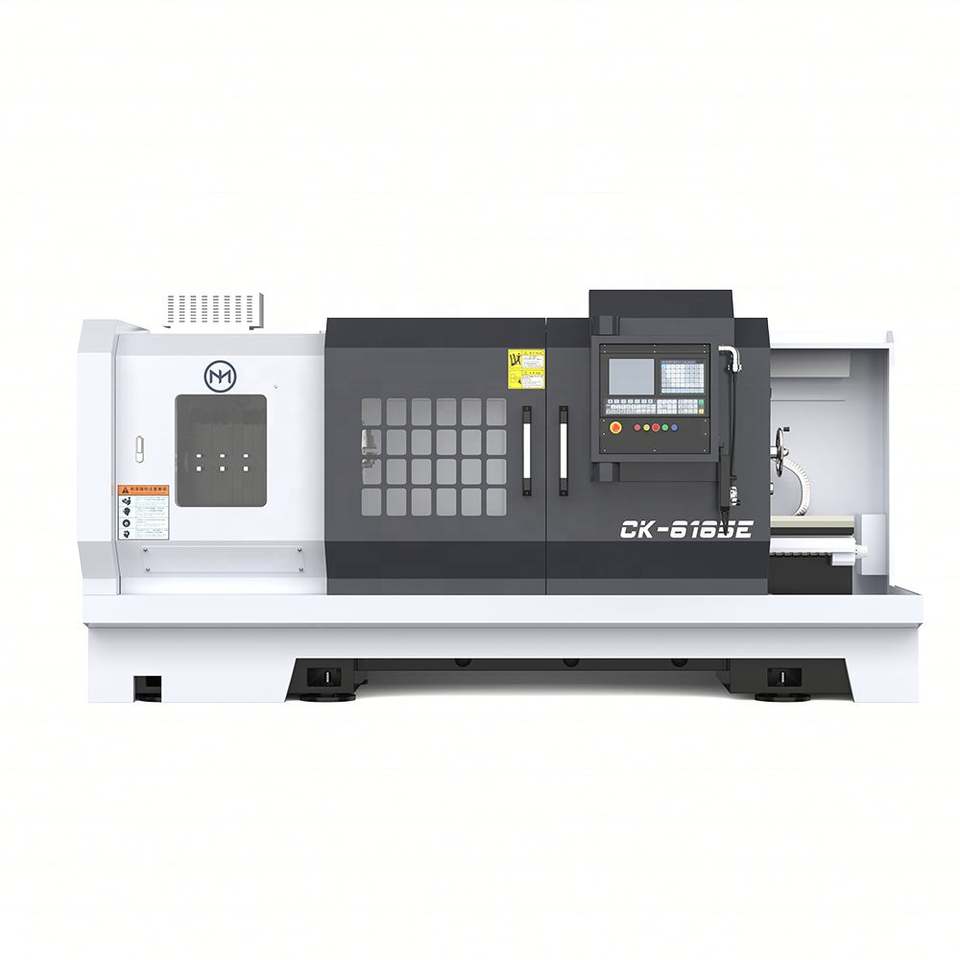

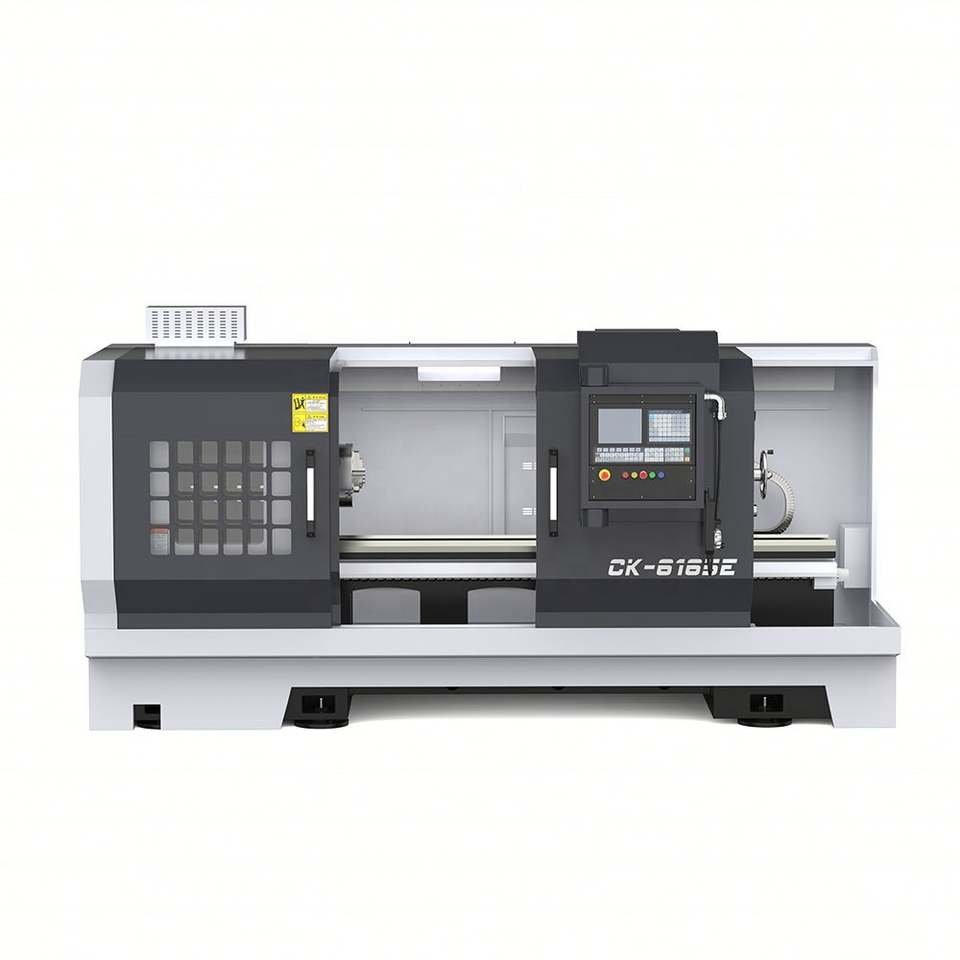

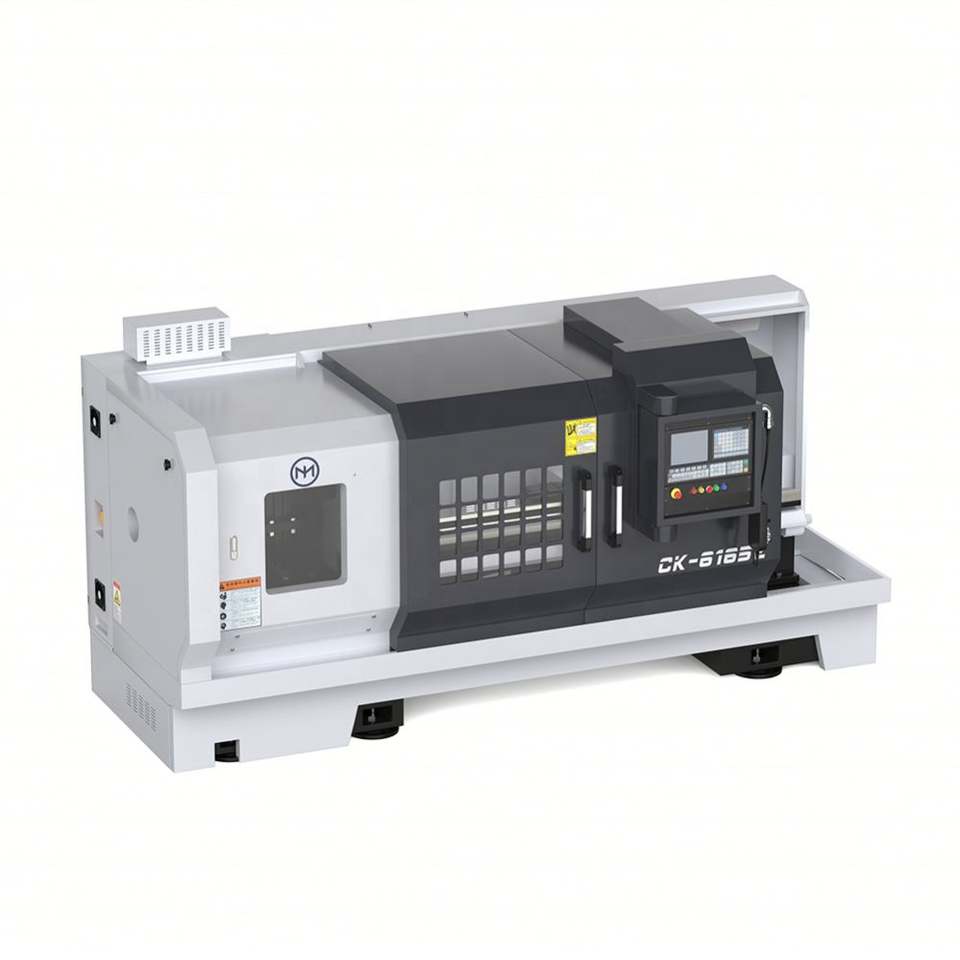

CNC Turning Parts Mechanical Hard Rail with Gear Box and Hydraulic Tailstock

No reviews yet

1 yr

US

Key attributes

voltage

220v/380v

cnc control system

FANUC

machining capacity

Medium Duty

number of axes

2

no. of spindles

Single

tool post stations

4, 6, 8

max. length of workpiece (mm)

1000/1500/2000/3000

key selling points

High-Accuracy

repeatability (x/y/z) (mm)

±0.005

positioning accuracy (mm)

±0.005

warranty

1 Year

type

Horizontal

machinery test report

Provided

video outgoing-inspection

Provided

max. weight of workpiece(kg)

100

travel (x axis)(mm)

400

travel (z axis)(mm)

1100

place of origin

Jiangsu, China

width of bed (mm)

210 mm

dimension(l*w*h)

3500*1900*1900

brand name

Minnuo

model number

CK6165E

weight

4400

range of spindle speed

10 - 85 r.p.m

cutting torque

10

Product name

CNC Turning Parts Mechanical Hard Rail with Gear Box and Hydraulic

CNC Controller

Siemens,FANUC,GSK,KND

CNC or Not

CNC Lathe Machine

Positioning Accuracy (mm)

±0.005

Repeatability (X/Y/Z) (mm)

±0.005

X axis rapid traverse

4m/min

Z axis rapid traverse

5m/min

X axis servo motor torque

10 N.m

Z axis servo motor torque

15/22/30N.m

Guide way type

Hard rail

Packaging and delivery

Selling Units

Single item

Lead time

Product descriptions from the supplier

1 - 9 pieces

$23,250

>= 10 pieces

$18,760

Variations

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
