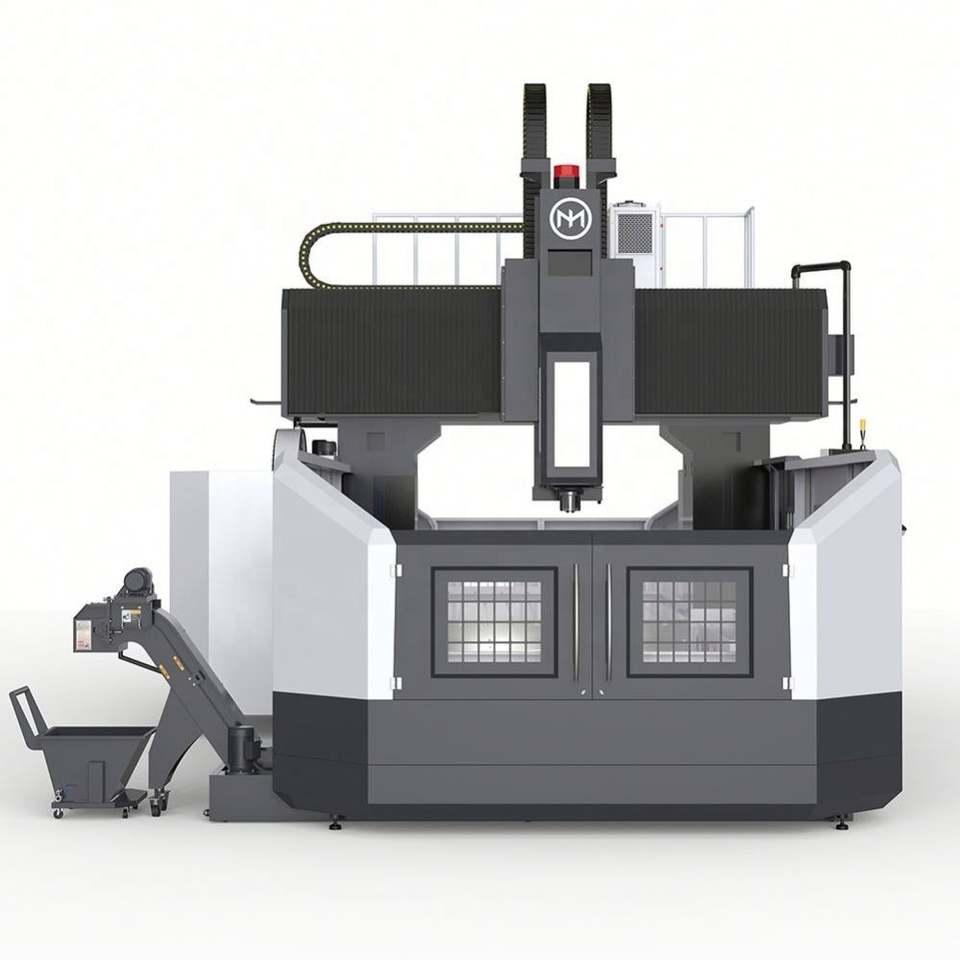

CNC Double Column Gantry Milling Machine High-Accuracy BT50 Spindle GSK Control Machining Center MNG-6022
No reviews yet
Attributes
Gantrytype
6200table travel (x) (mm)
3150table travel (y) (mm)
1000table travel (z) (mm)
±0.012repeatability (x/y/z) (mm)
±0.016positioning accuracy
spindle taper:BT50
no. of spindles:Single
tool magazine capacity:24
cnc control system:GSK
machining capacity:Heavy Duty
voltage:customizable
table size:2200*6000
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
min. time of tool change(s):2
key selling points:High-Accuracy
weight (t):57
max. table load(kg):12000
place of origin:Jiangsu, China
dimension(l*w*h):20000*7600*6200
range of spindle speed:1 - 8000
brand name:Minnuo
rapid feed speed:1 - 8000
Product name:MNG-6022 Gantry Processing Center CNC Gantry Machining Center
CNC or Not:CNC Systemn
Controlling Mode:Fanuc Mitsubishi Siemens Gsk System
Spindle Speed:8000rpm
Tool Changer:ATC 24 Tools Changer
T Slot:22X140X7mm
Power(W):22/26KW
Guideways:Taiwan Hiwin Linear Guideways
Surface Treatment:High Temperature Quenching
Color:Customer's Requirement
Key attributes
type
Gantry
table travel (x) (mm)
6200
table travel (y) (mm)
3150
table travel (z) (mm)
1000
repeatability (x/y/z) (mm)
±0.012
positioning accuracy
±0.016
spindle taper
BT50
no. of spindles
Single
tool magazine capacity
24
cnc control system
GSK
machining capacity
Heavy Duty
voltage
customizable
table size
2200*6000
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
2
key selling points
High-Accuracy
brand name
Minnuo
dimension(l*w*h)
20000*7600*6200
max. table load(kg)
12000
place of origin
Jiangsu, China
range of spindle speed
1 - 8000
rapid feed speed
1 - 8000
weight (t)
57
Product name
MNG-6022 Gantry Processing Center CNC Gantry Machining Center
CNC or Not
CNC Systemn
Controlling Mode
Fanuc Mitsubishi Siemens Gsk System
Spindle Speed
8000rpm
Tool Changer
ATC 24 Tools Changer
T Slot
22X140X7mm
Power(W)
22/26KW
Guideways
Taiwan Hiwin Linear Guideways
Surface Treatment
High Temperature Quenching
Color
Customer's Requirement
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 4 pieces
$88,888
>= 5 pieces
$78,000
Variations
Select nowmodel number: MNG-6022
MNG-6022
number of axes: 3
3
spindle motor power
22/26
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
