Bidirectional Power Supply 3U Rack Mount PBS 2500-40L 500V 40A 6kW Regenerative 95% Energy Recovery EV Battery Microgrid

No reviews yet
$2,771
Minimum order quantity: 1 unit
Select now

Output Power

±6kW

Key attributes

Input Voltage

342~528Vac/3Phase+GND, 45~66Hz

Output Current

-40A~+40A

Output Voltage

0-500V

Place of Origin

Jiangsu, China

Application

Battery Test, DC/DC Test, EV Component Test, BMS Test

Brand Name

LOITEST

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Input Voltage
342~528Vac/3Phase+GND, 45~66Hz
Output Current
-40A~+40A
Output Voltage
0-500V
Place of Origin
Jiangsu, China
Application
Battery Test, DC/DC Test, EV Component Test, BMS Test
Brand Name
LOITEST
Efficiency
≤93% High Efficiency
Model Number
PBS 2500-40L
Output Type
Bidirectional Auto Range Regulated DC Output
Protection
Over Power Protection, Over Temperature Protection, Overcurrent Protection, Overvoltage Protection, Power-off, Islanding
Type
3U Rack Mount Bidirectional DC Power Supply
Form Factor
3U Standard Rack Mount (482*670*132mm)
Rated Power
6kW Bidirectional Output
Output Range
0-500V 40A Auto Range
Energy Feedback
95% High Efficiency Grid Recovery
Power Conversion
≤93% High Conversion Efficiency
Input Compatibility
342-528Vac Three-Phase Wide Input
Cooling System
Smart Temp-Control Fan Cooling
Control Interface
RS485+LAN / RS232+LAN, SCPI Supported

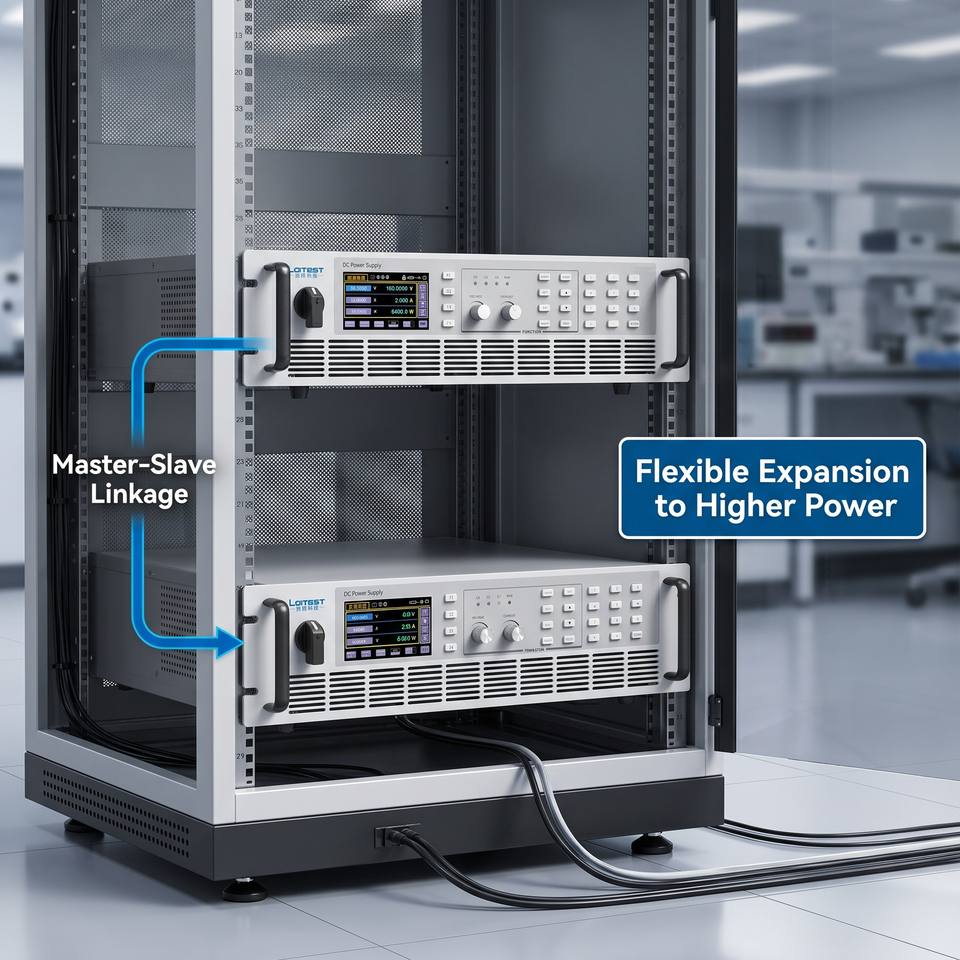

Parallel Operation
Master-Slave Parallel Up to 36 Units
Working Environment
0-50c Operating, -20c-70c Storage

Packaging and delivery

Selling Units
Single item
Single package size
90X80X30 cm
Single gross weight
40.000 kg

Lead time
