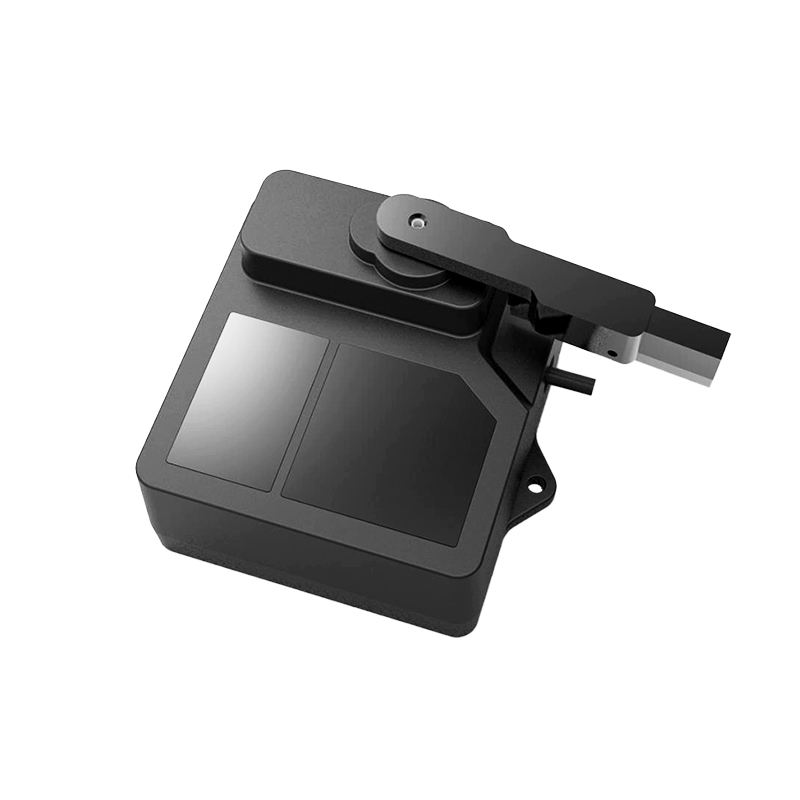

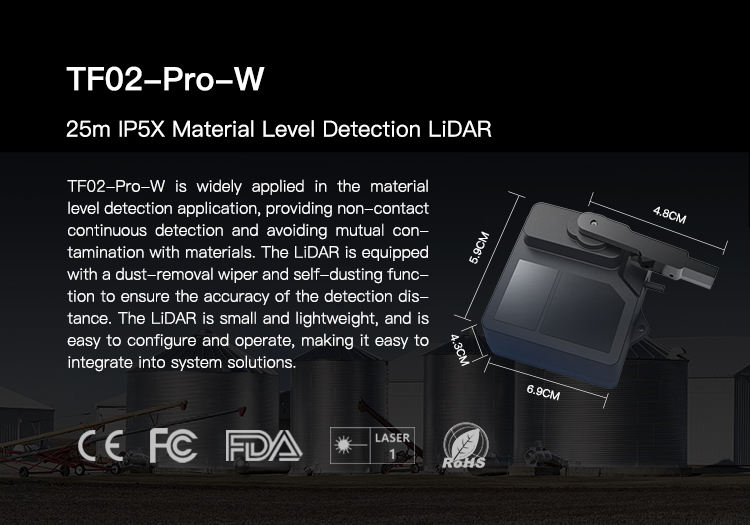

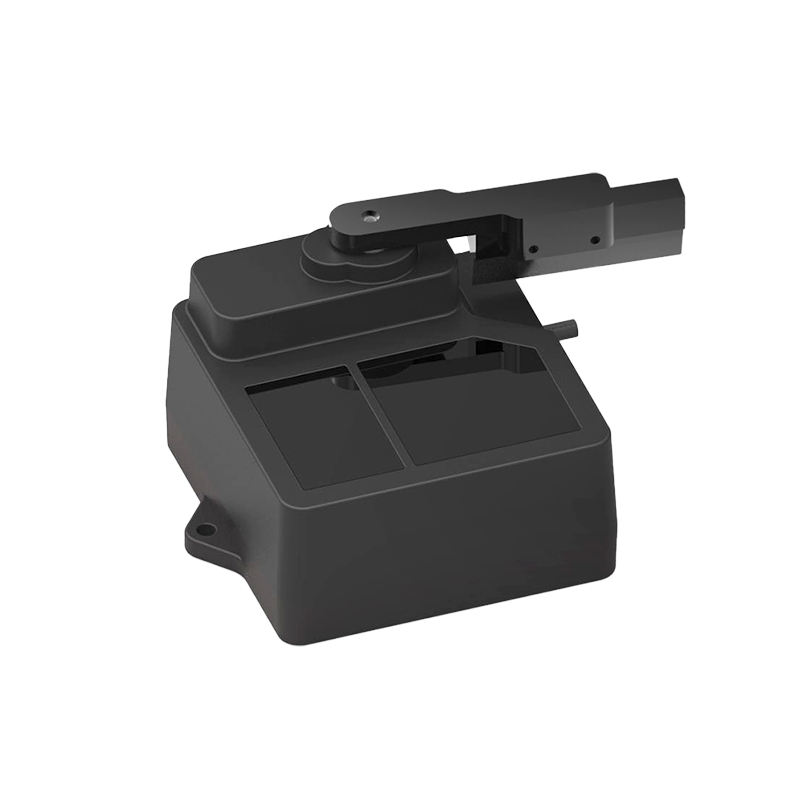

Benewake TF02-Pro-W Material Level Detection Lidar Powder Grain Silo Volume Sensor TOF Technology Self-Cleaning RS485/UART/IC

Name: Benewake TF02-Pro-W Material Level Detection Lidar Powder Grain Silo Volume Sensor TOF Technology Self-Cleaning RS485/UART/IC
Brand: HELLOCHIP LIMITED
SKU: 1601843043401
Price: 89 USD
Availability: InStock

No reviews yet

$89-109

Minimum order quantity: 1 piece

Select now

Specification

RS485

Package / Case

IP5X

Customization options

OEM (Min. order: 1,000 pieces)

Key attributes

Mounting Type

interface

Manufacturer Part Number

TF02-Pro-W

Brand Name

Benewake

Usage

Material Level Detection

Output

000

Description

distance sensor

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Usage

Material Level Detection

Theory

TOF, Time of Flight

Output

000

Interface

RS485, UART/I²C

Resolution (Bits)

±6cm(0.1m~6m),±1%(6m~25m)

Application

000, Material Level Detection

Technology

000

Function

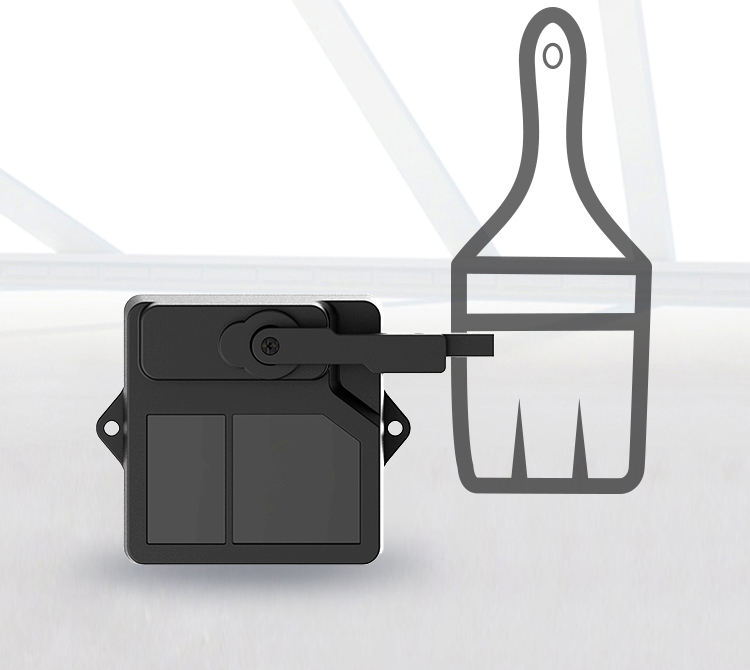

000, Self-cleaning

Output Function

000

Amplifier Type

VCSEL

Manufacturer Part Number

TF02-Pro-W

Operating Temperature

-20℃~60℃

Description

distance sensor

Mounting Type

interface

Brand Name

Benewake

Place of Origin

Beijing, China

Series

TF02-Pro-W

Brand

grain silo volume sensor

Voltage - Supply

DC 7V~30V

Output Type

000

Current - Supply

≤200mA@12V

Features

Class1 (IEC60825)

Current - Supply (Max)

000

Packaging

000

Frequency

1Hz~1000Hz( adjustable, default 100Hz)

Output Configuration

000

Current

000

Voltage Rating

12V

Operating Force

000

Oxygen Range

000

Humidity Range

000

Size

000

Size / Dimension

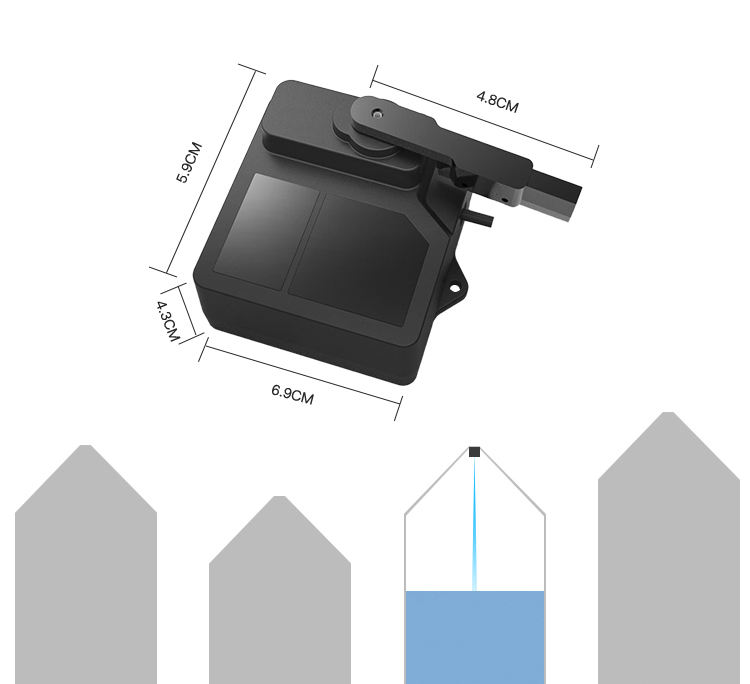

85mmx59mmx43mm (LxHxW)

Measuring Range

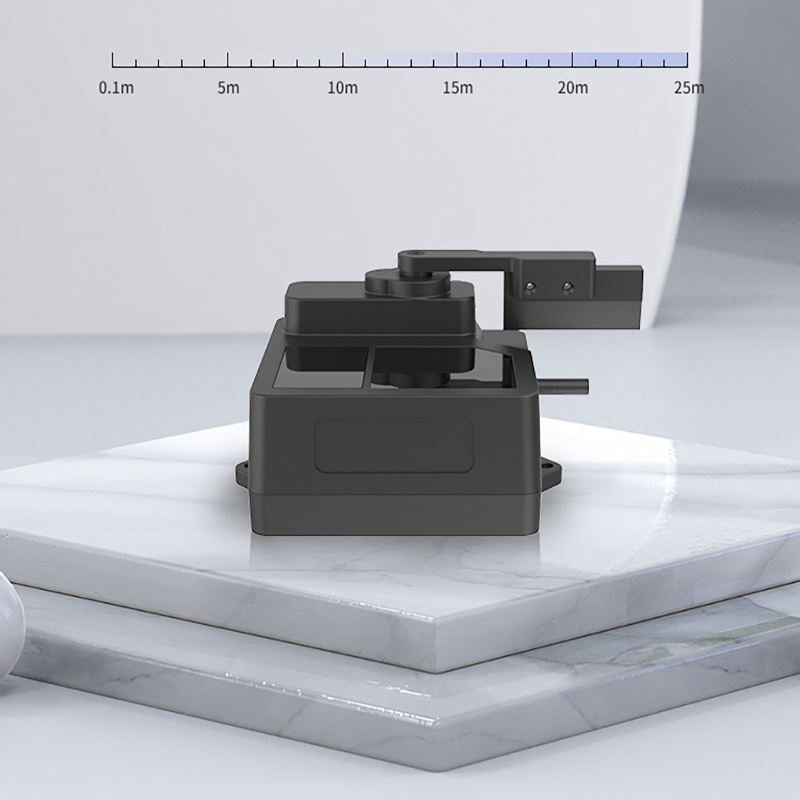

0.1~25m

Resolution

000

Sensing Range

000

Current - Output (Max)

000

Bandwidth

000

Acceleration Range

000

Sensitivity (LSB/g)

000

Sensitivity (mV/g)

000

Sensitivity (LSB/(°/s))

000

Sensitivity (mV/°/s)

000

Sensing Distance

000

Current - Output

000

Power - Rated

000

Voltage - Output Difference (Typ) @ Distance

000

Voltage - Output (Typ) @ Distance

000

Voltage - Max

000

Voltage - DC Reverse (Vr) (Max)

000

Power - Max

000

Sensing Object

000

Sensing Light

000

Resistance

000

Resistance Tolerance

000

Sensing Temperature - Local

000

Sensing Temperature - Remote

000

Current Rating - AC

000

Current Rating - DC

000

Tolerance

000

Voltage - Rated

000

Flow Sensor Type

000

Voltage - Input

000

Mfg Date Code

000

Cross Reference

000

Product name

level detection lidar powder material grain silo volume sensor

Operating Range

0.1m~25m

Accuracy

±6cm @(0.1m~6m); ±1% @(6m~25m)

FOV

3°

Wavelength

850nm

Certificate

CE,FCC,ROHS

Manufacturing Date Code

000

Packaging and delivery

Selling Units

Single item

Single package size

8.5X5.9X4.3 cm

Single gross weight

0.090 kg

Lead time

Customization options

OEM(+ from /Min. order: 1,000 pieces)
