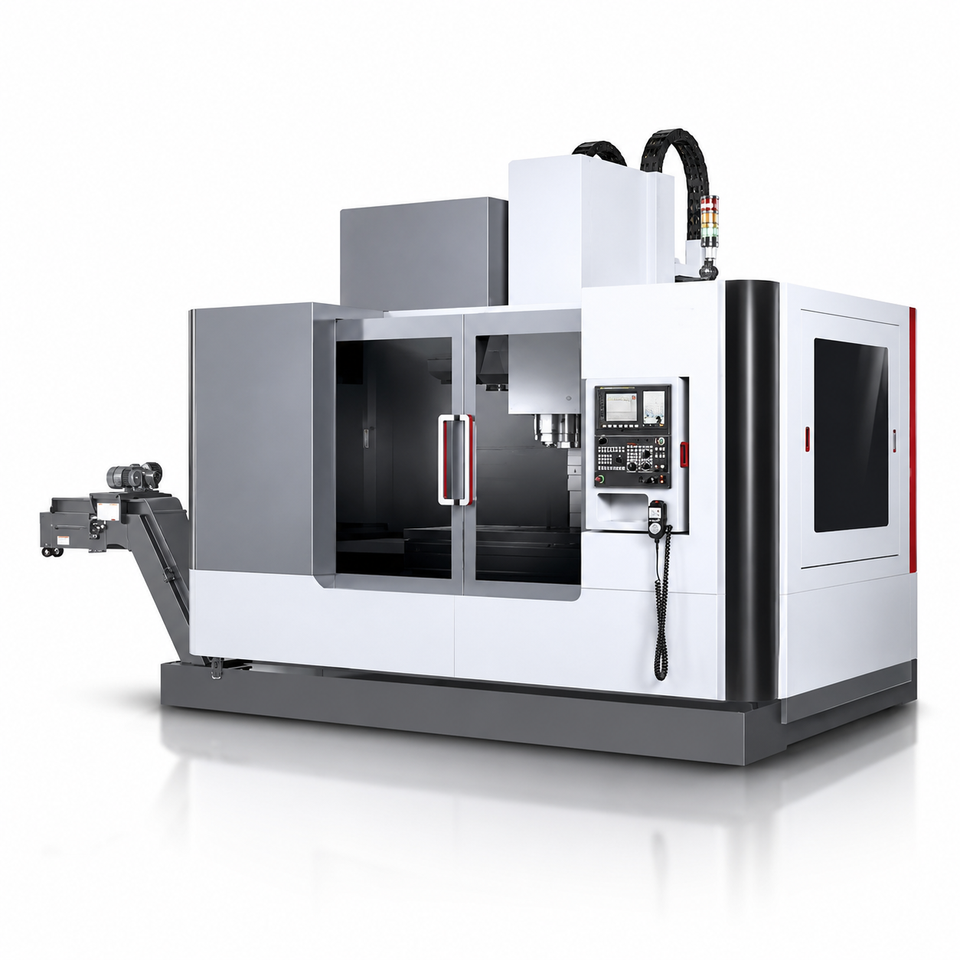

Automatic Multifunctional 4 Axis CNC Vertical Machining Center with Rotary Table for Automotive Components

No reviews yet
$22,600
1-2 sets
$15,120
3-9 sets
$10,120
≥10 sets
Select now

model number

VC6046

number of axes

3

spindle motor power

5.5 kW
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)

Key attributes

type

VERTICAL

positioning accuracy

±0.005

repeatability (x/y/z) (mm)

±0.003

table travel (x) (mm)

600

table travel (y) (mm)

450

table travel (z) (mm)

630

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

type
VERTICAL
positioning accuracy
±0.005
repeatability (x/y/z) (mm)
±0.003
table travel (x) (mm)
600
table travel (y) (mm)
450
table travel (z) (mm)
630
table size
750x450
spindle taper
BT40
machining capacity
Heavy Duty
cnc control system
GSK
tool magazine capacity
other
min. time of tool change(s)
4
voltage
380 V
no. of spindles
Single
key selling points
High-Accuracy
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
weight (t)
4.2
max. table load(kg)
350
place of origin
Jiangsu, China
dimension(l*w*h)
245x226x251mm
range of spindle speed
1 - 8000 r.p.m
brand name
SMAC
rapid feed speed
1 - 18000 mm/min
Xtravel
600mm
Ytravel
450mm
Ztravel
530mm
Spindle nose to table
140-670mm
Table size
750x450mm
T slot
18x4x100mm
Max. load capacity
350kg
Spindle motor
5.5kw
Spindle speed
60-8000rpm
Spindle taper
BT40
