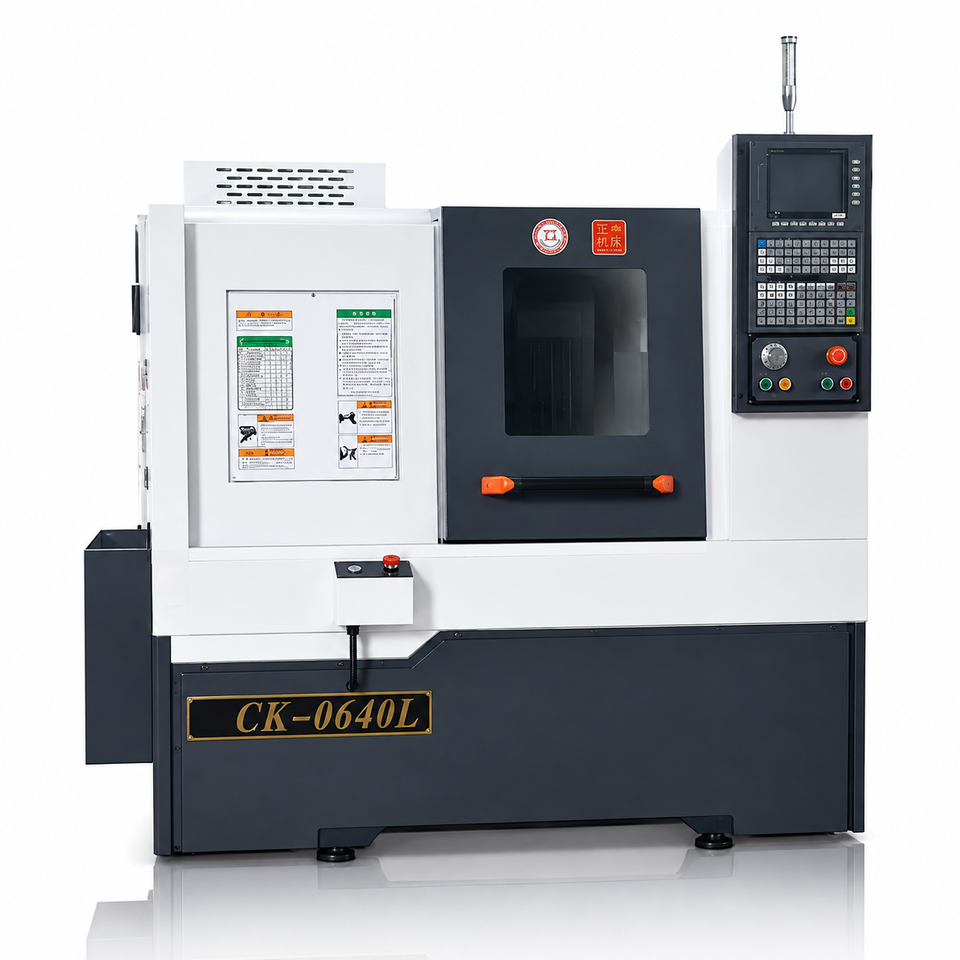

Automatic Servo Motor Multifunctional Metal Iron Cutting Turning Threading Machines CNC Lathe

No reviews yet
TOPTECH SMAC MACHINERY LTD.
2 yrs
CA

Attributes

Customer's Requirementvoltage
FANUCcnc control system
Medium Dutymachining capacity
3number of axes
Singleno. of spindles
8, 4tool post stations
max. length of workpiece (mm):380
key selling points:Competitive Price
repeatability (x/y/z) (mm):±0.003
positioning accuracy (mm):IT6-IT7
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):500
travel (x axis)(mm):300
travel (z axis)(mm):300
place of origin:Canada
width of bed (mm):300
dimension(l*w*h):1.6*1.4*1.8m
brand name:SMAC
model number:CK-0640L
weight:3500
range of spindle speed:0 - 1000 r.p.m
cutting torque:560
Max. swing over slide:150mm
Max. tuming diameter:280mm
Guide way type:Linear guide:30/30
X axis servo motor torque:4Nm
Z axis servo motor torque:4Nm
Rapid feed for X/Z:12/12 mm/min
Independent spindle unit:Stepless
Spindle clamping method:Cylindrical hydraulic chuck
Spindle nose:A2_5
Roughness:Ra<1.6pm

Key attributes

voltage
Customer's Requirement
cnc control system
FANUC
machining capacity
Medium Duty
number of axes
3
no. of spindles
Single
tool post stations
8, 4
max. length of workpiece (mm)
380
key selling points
Competitive Price
repeatability (x/y/z) (mm)
±0.003
positioning accuracy (mm)
IT6-IT7
warranty
1 Year
type
Horizontal
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
500
travel (x axis)(mm)
300
travel (z axis)(mm)
300
place of origin
Canada
width of bed (mm)
300
dimension(l*w*h)
1.6*1.4*1.8m
brand name
SMAC
model number
CK-0640L
weight
3500
range of spindle speed
0 - 1000 r.p.m
cutting torque
560
Max. swing over slide
150mm
Max. tuming diameter
280mm
Guide way type
Linear guide:30/30
X axis servo motor torque
4Nm
Z axis servo motor torque
4Nm
Rapid feed for X/Z
12/12 mm/min
Independent spindle unit
Stepless
Spindle clamping method
Cylindrical hydraulic chuck
Spindle nose
A2_5
Roughness
Ra<1.6pm

Packaging and delivery

Selling Units
Single item
Show more

Lead time

Customization options

Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
View details

Product descriptions from the supplier

Minimum order quantity: 1 set
$5,000-13,800
