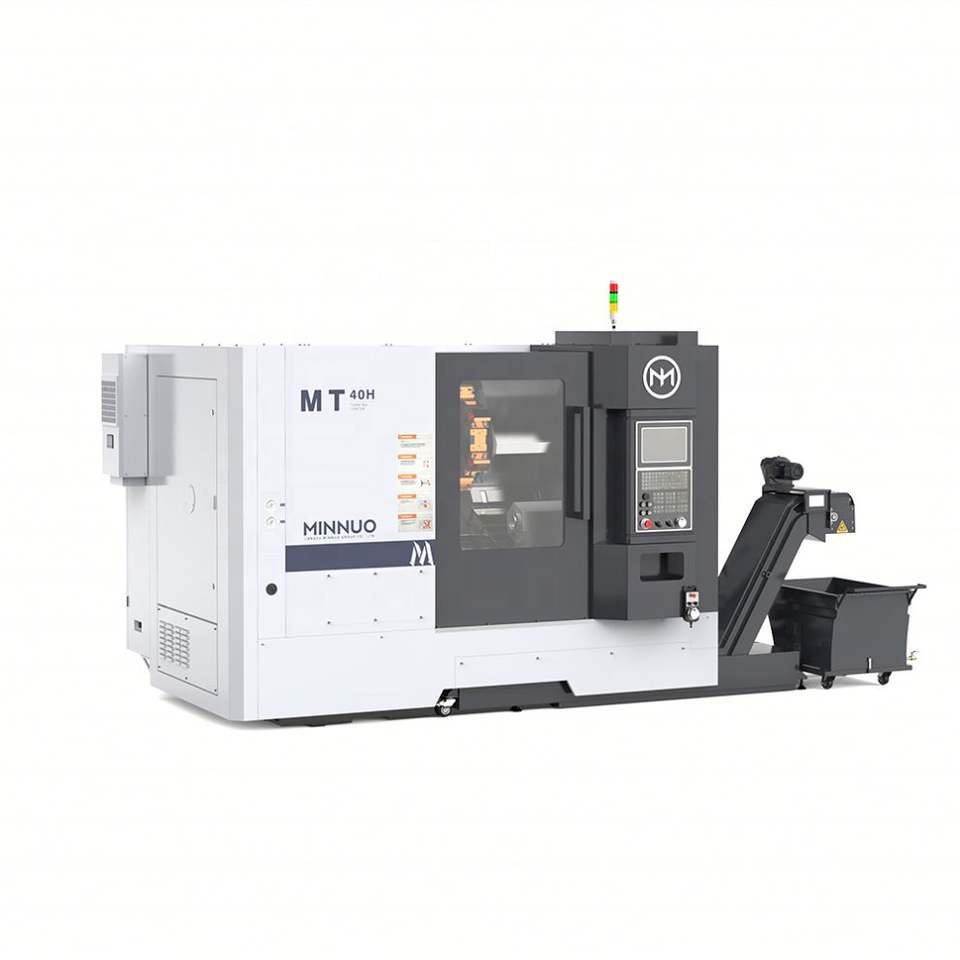

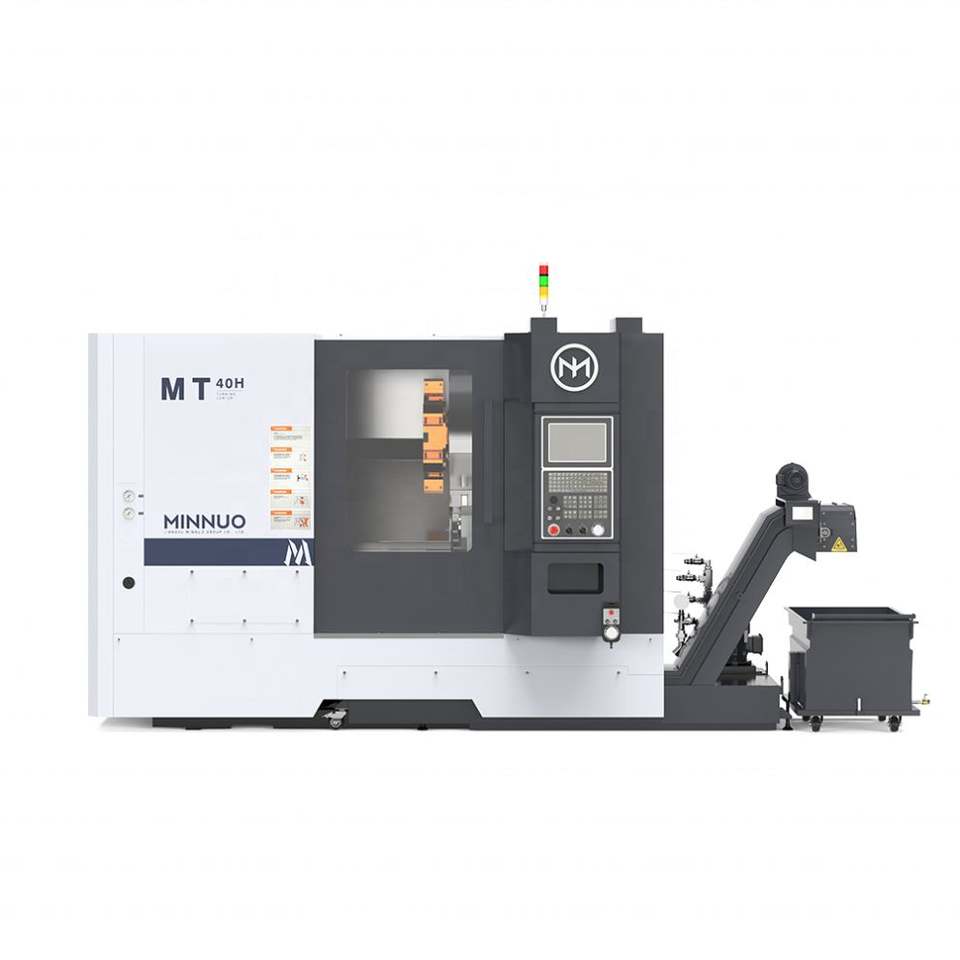

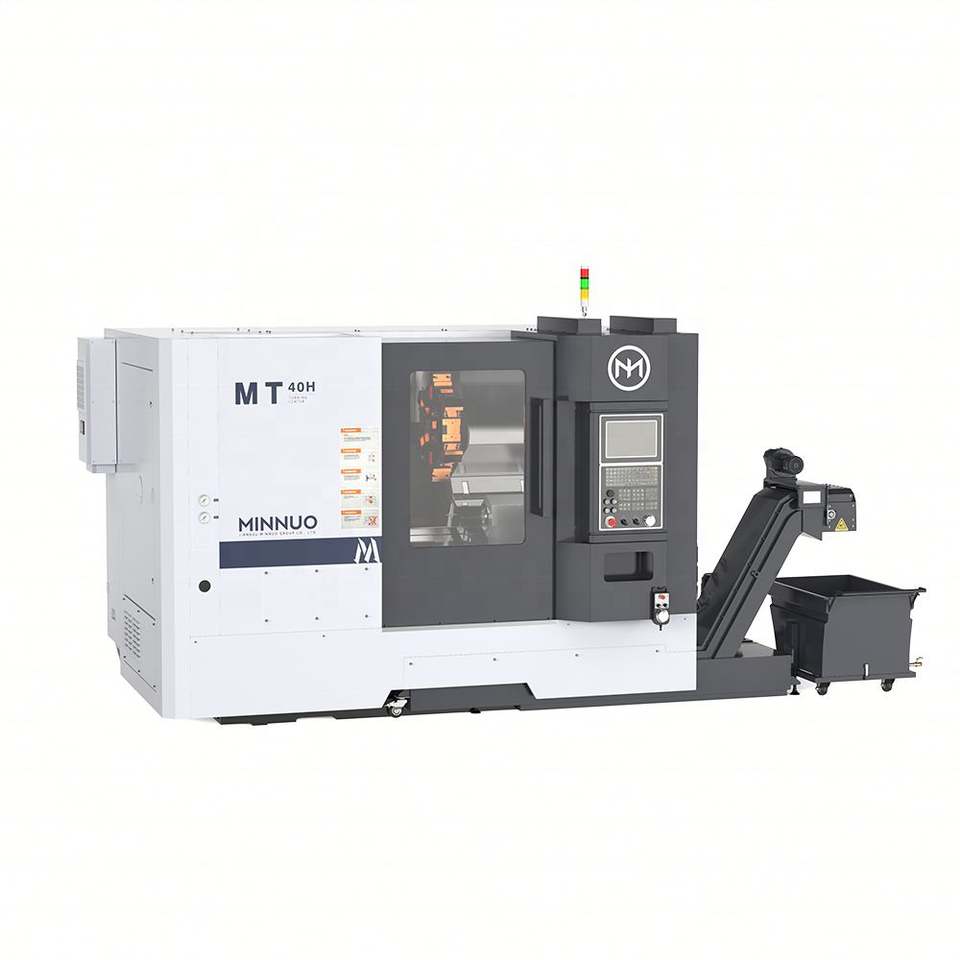

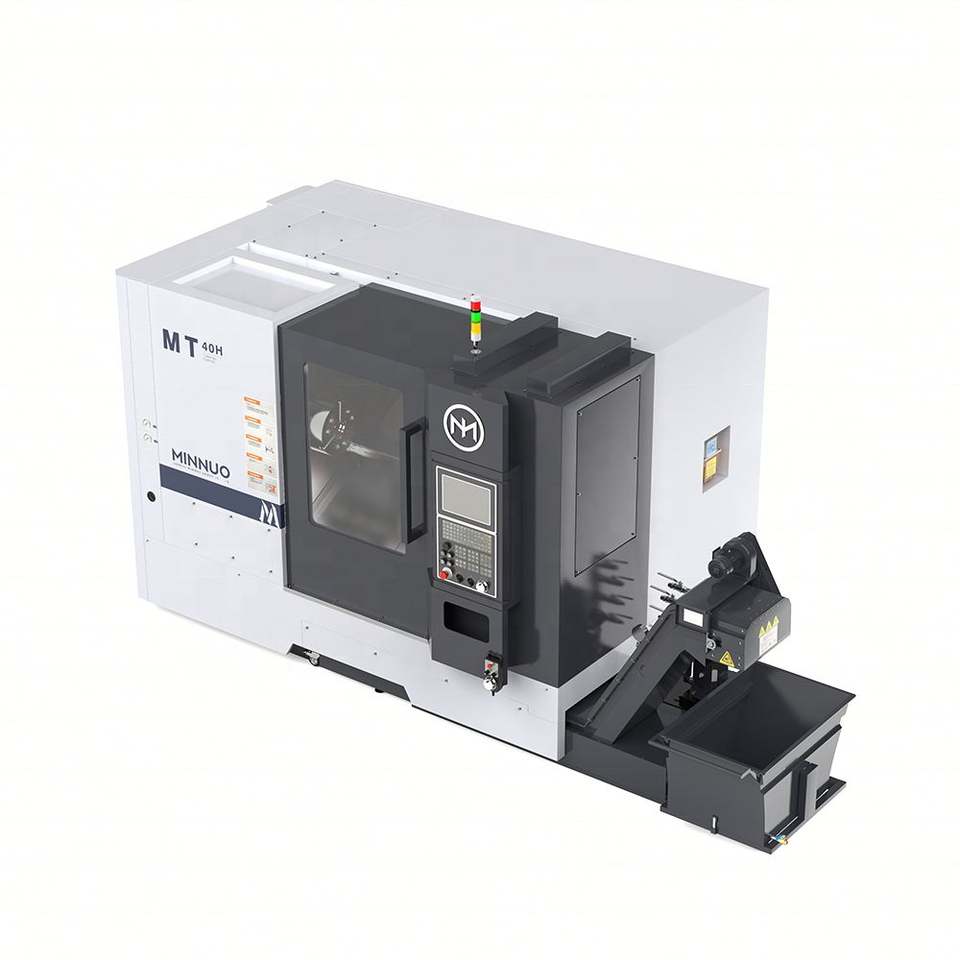

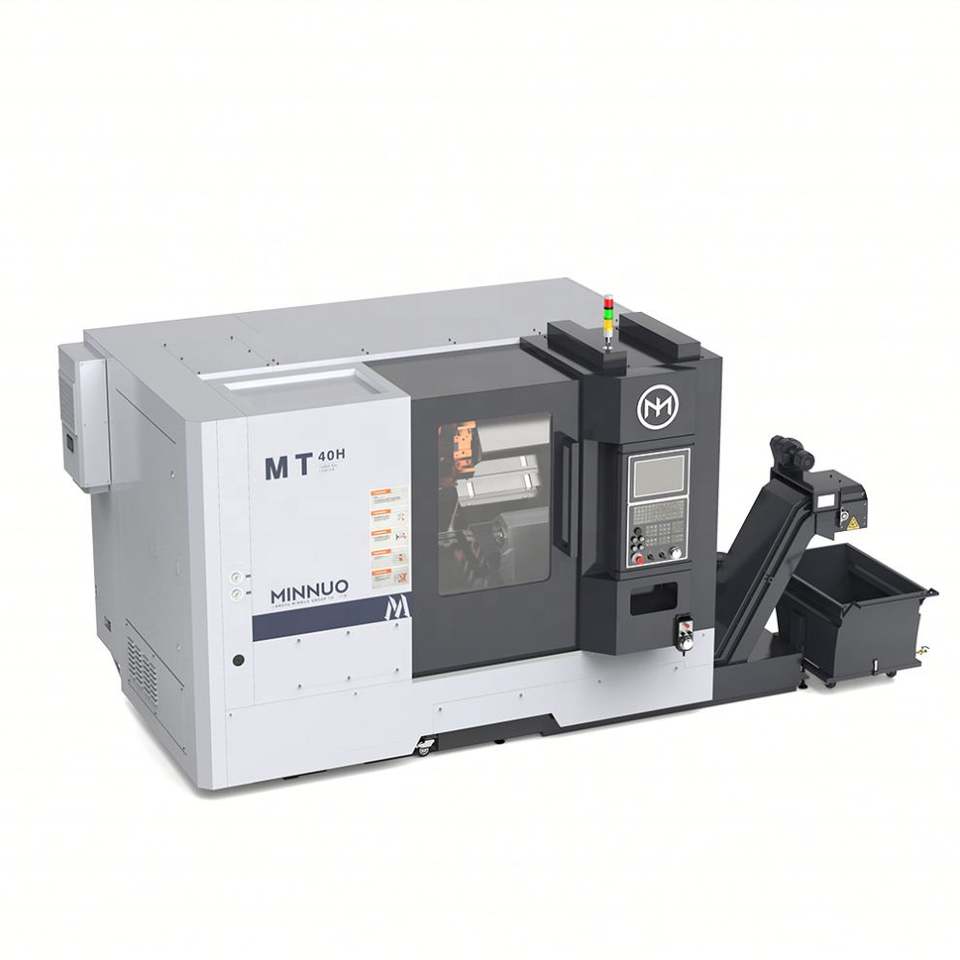

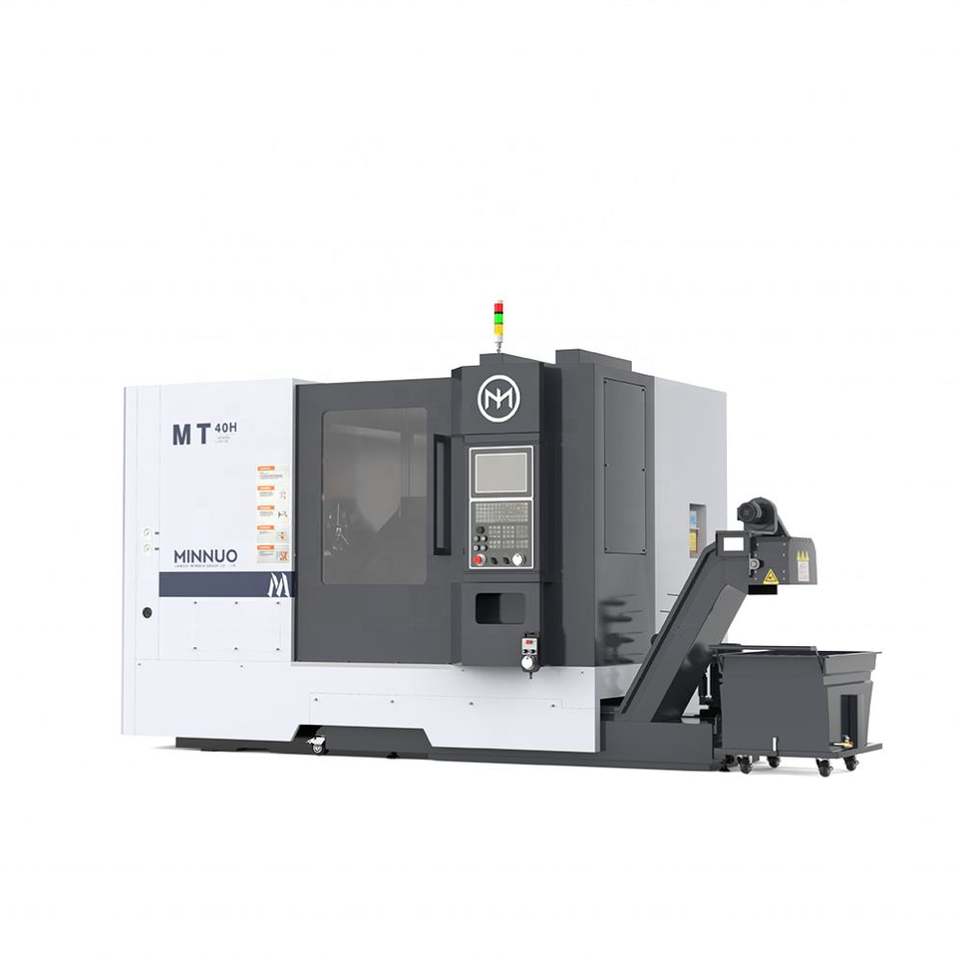

Alloy Wheel Cnc Lathe Slant Bed Turning Lathe 4000 Rpm Slant Bed Cnc Lathe Suppliers
Alloy Wheel Cnc Lathe Slant Bed Turning Lathe 4000 Rpm Slant Bed Cnc Lathe SuppliersNo reviews yet
Attributes
220v/380vvoltage
FANUCcnc control system
Medium Dutymachining capacity
2number of axes
Singleno. of spindles
12tool post stations
max. length of workpiece (mm):1055
key selling points:Competitive Price
repeatability (x/y/z) (mm):±0.007
positioning accuracy (mm):±0.005
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):350
travel (x axis)(mm):320
travel (z axis)(mm):2000
width of bed (mm):210
place of origin:Jiangsu, China
dimension(l*w*h):3422*1900*2010
brand name:Minnuo
model number:MT-40H
weight:6300
range of spindle speed:3500 - 5000 r.p.m
cutting torque:15
Product name:Alloy wheel cnc lathe slant bed turning lathe 4000 rpm
CNC Controller:Siemens 808DA
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.003
Max.Swing diameter over bed:580mm
Max turning diameter(Shaft/Disk):350/350mm
Max turning length:555/1055mm
Spindle speed range:45-4000rpm
Guide way type:Liner guideway
Key attributes
voltage
220v/380v
cnc control system
FANUC
machining capacity
Medium Duty
number of axes
2
no. of spindles
Single
tool post stations
12
max. length of workpiece (mm)
1055
key selling points
Competitive Price
repeatability (x/y/z) (mm)
±0.007
positioning accuracy (mm)
±0.005
warranty
1 Year
type
Horizontal
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
350
travel (x axis)(mm)
320
travel (z axis)(mm)
2000
width of bed (mm)
210
place of origin
Jiangsu, China
dimension(l*w*h)
3422*1900*2010
brand name
Minnuo
model number
MT-40H
weight
6300
range of spindle speed
3500 - 5000 r.p.m
cutting torque
15
Product name
Alloy wheel cnc lathe slant bed turning lathe 4000 rpm
CNC Controller
Siemens 808DA
CNC or Not
CNC Lathe Machine
Positioning Accuracy (mm)
±0.005
Repeatability (X/Y/Z) (mm)
±0.003
Max.Swing diameter over bed
580mm
Max turning diameter(Shaft/Disk)
350/350mm
Max turning length
555/1055mm
Spindle speed range
45-4000rpm
Guide way type
Liner guideway
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 4 pieces
$24,800
5 - 9 pieces
$23,500
10 - 29 pieces
$22,000
>= 30 pieces
$19,800
Variations
Select nowmax. swing diameter (mm): 360
360
460
560
580
600
spindle motor power(kw)
11/15kw
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
